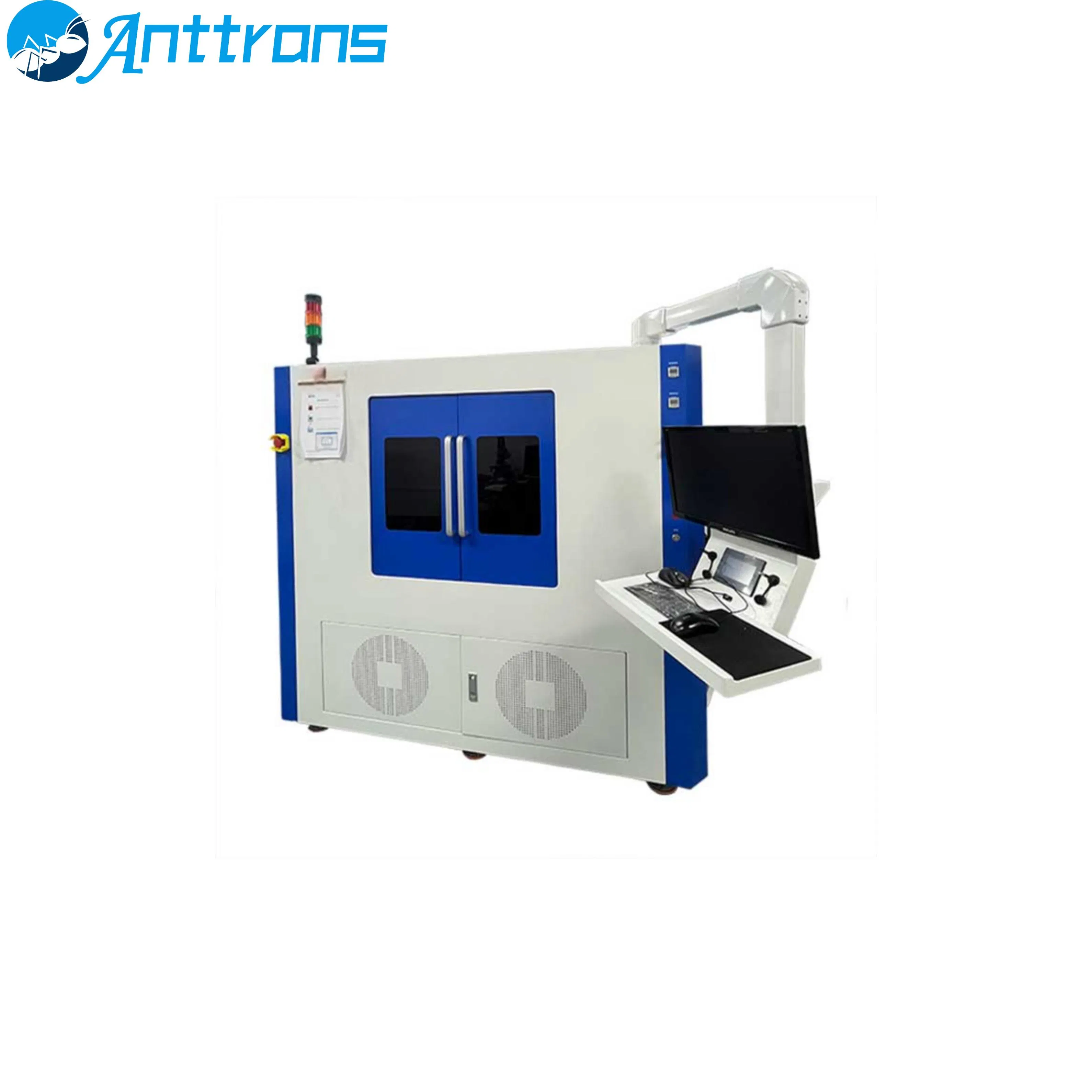

Ultra-Precision Machining System/High-Speed Laser Machining System

1 / 5

Ultra-Precision Machining System/High-Speed Laser Machining System

Customization:	Available
After-sales Service:	One Year Warranty
Warranty:	One Year Warranty

Send Inquiry

Product Description

Overview

Model NO. AT-61151

Origin China

Package Size 50.00cm * 60.00cm * 50.00cm

Gross Weight 130.000kg

★

Product Features

01 Utilizes high-power, highly stable ultra-fast ultraviolet laser for direct ablation and vaporization of materials, achieving micron-level machining line widths with no heat-affected zone.

02 Excellent beam shaping design allows for adjustments in beam spatial distribution, polarization, etc., expanding micro-machining capabilities.

03 High-precision galvanometer enables high-speed, high-precision control of beam deflection, achieving small-area high-speed precision machining with machining accuracy better than ±2μm.

04 Realizes large-area precision machining through high-precision linear motor-driven platform translation, with repeatability accuracy up to ±1μm.

05 Z-axis is electrically adjustable to accommodate materials of different thicknesses, meeting the requirements for fine machining of three-dimensional structures.

06 Extended precision rotary axis enables fine structural forming of irregularly shaped parts.

07 High-resolution industrial camera for full-field error correction, high-precision positioning, focusing, and machining dimension measurement.

08 On-machine power detection and compensation ensure reliable long-term machining.

09 Supports machining with up to 256 layer parameters and processes DXF, AI, and PNG vector and image files.

10 Adopts a marble tabletop to enhance overall stability, with carefully selected mechanical components for long-term precision.

11 Suitable for machining virtually all solid materials including glass, organics, metals, ceramics, etc.

⌖

Application Areas

Medical devices, precision tools, precision micro-mold forming, fine mask fabrication.

⚙

Product Parameters

Category	Parameter	AT-UVAT-5A
Laser	Wavelength	343/355nm
	Power	10W
	Modulation Frequency	1-2000kHz
	Pulse Width	<10ps
Galvanometer	Repeatability	<1μm
Galvanometer	Positioning Accuracy	≤±3μm
XY Table	Travel	500*400mm
	Repeatability	≤±1μm
	Positioning Accuracy	≤±3μm
Cooling	Water Cooling (2000W Cooling Capacity)
Electrical	220V 50-60Hz 10A
Weight	2000Kg

🏗

Product Construction

Main Item Name	Sub-item Name
Ultrafast Laser Micro-machining System	Laser / Scanning Galvanometer
	Control Card / System
	Linear Translation Stage / Z-axis
	CCD (Charge-Coupled Device)
	Water Chiller / Smoke Collector
	UPS / Rack / Focusing Lens

▦

Service Scope

Our company specializes in technical services, technology development, and consulting within the precision equipment sector. Our core operations include the wholesale and retail of specialized software and hardware, as well as the sales of functional glass, new optical materials, optical instruments, and specialized equipment for semiconductor devices. We provide comprehensive solutions for CNC machine tools, experimental analysis instruments, and electronic components, ensuring high-quality industrial applications for fiber optics, photovoltaic equipment, and optical glass materials.

📷

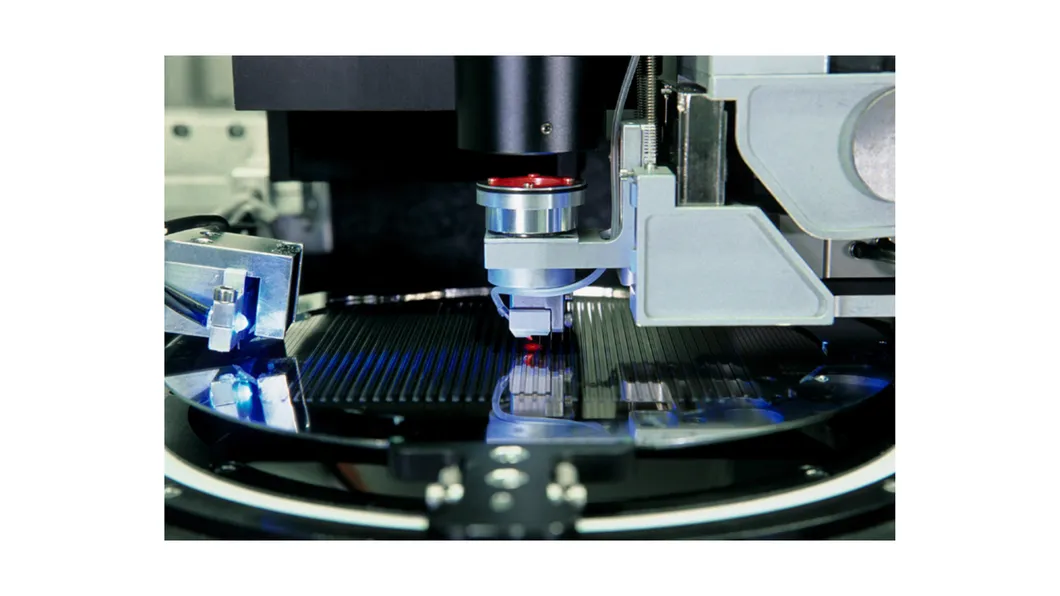

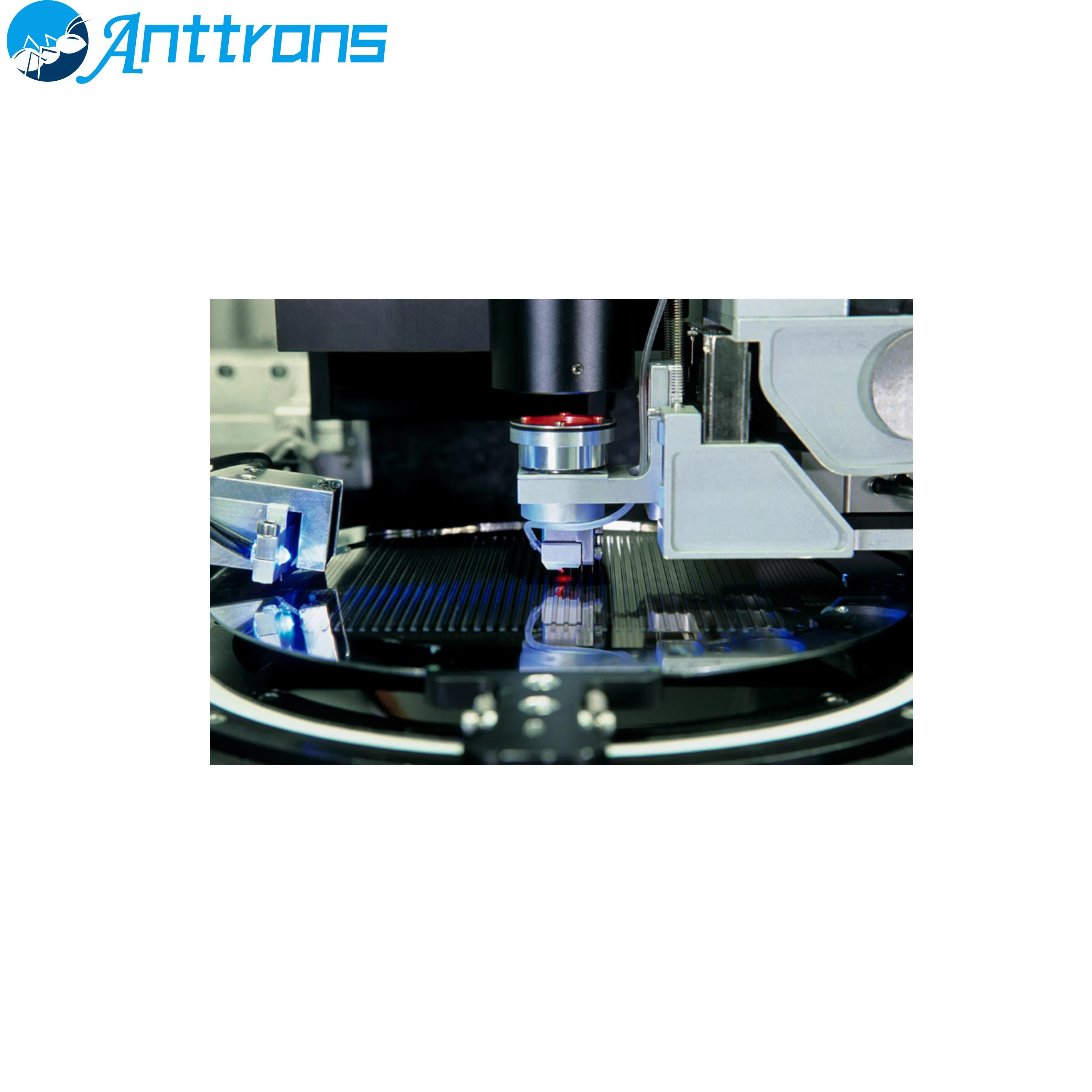

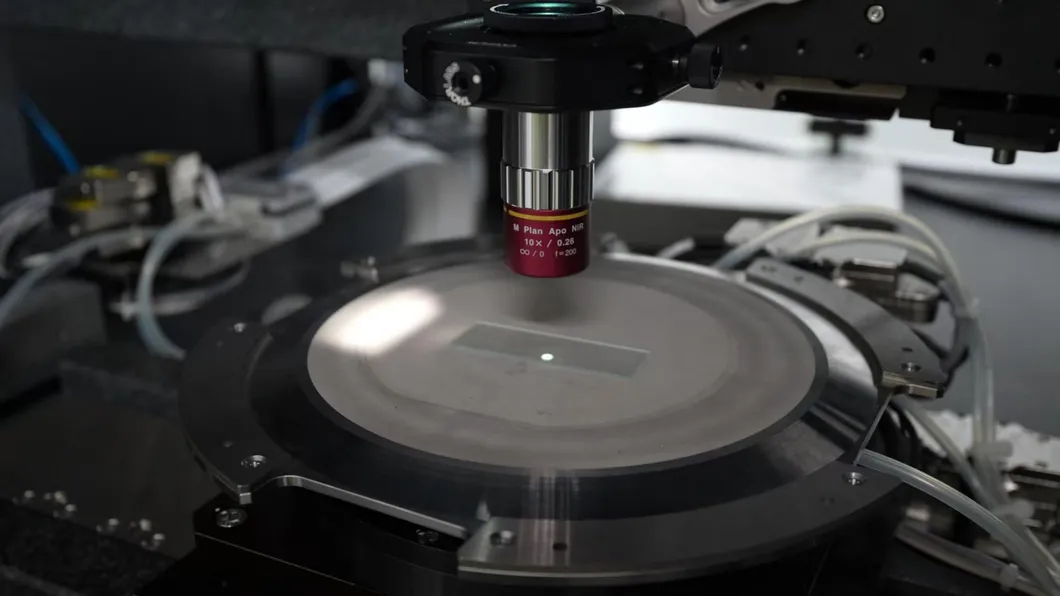

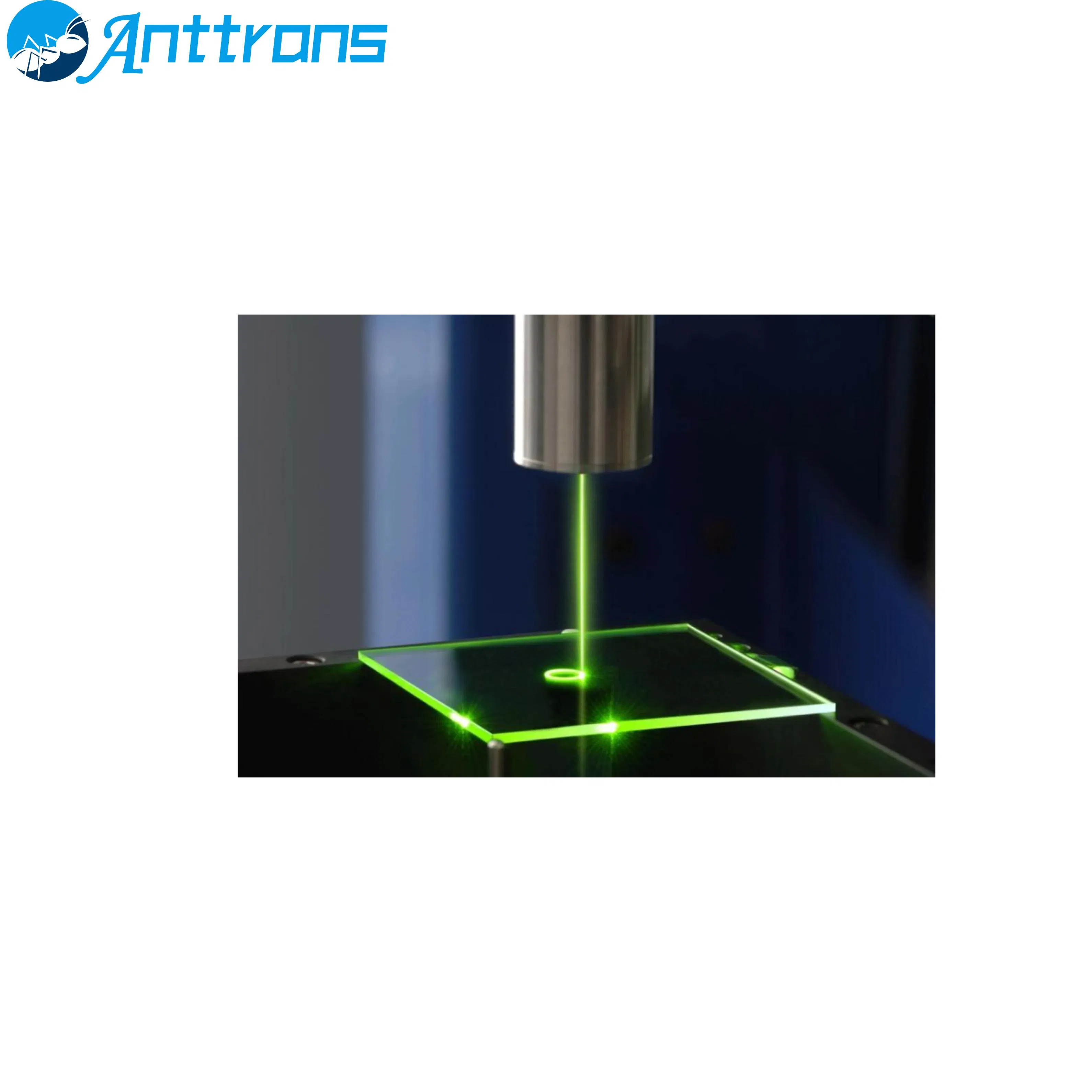

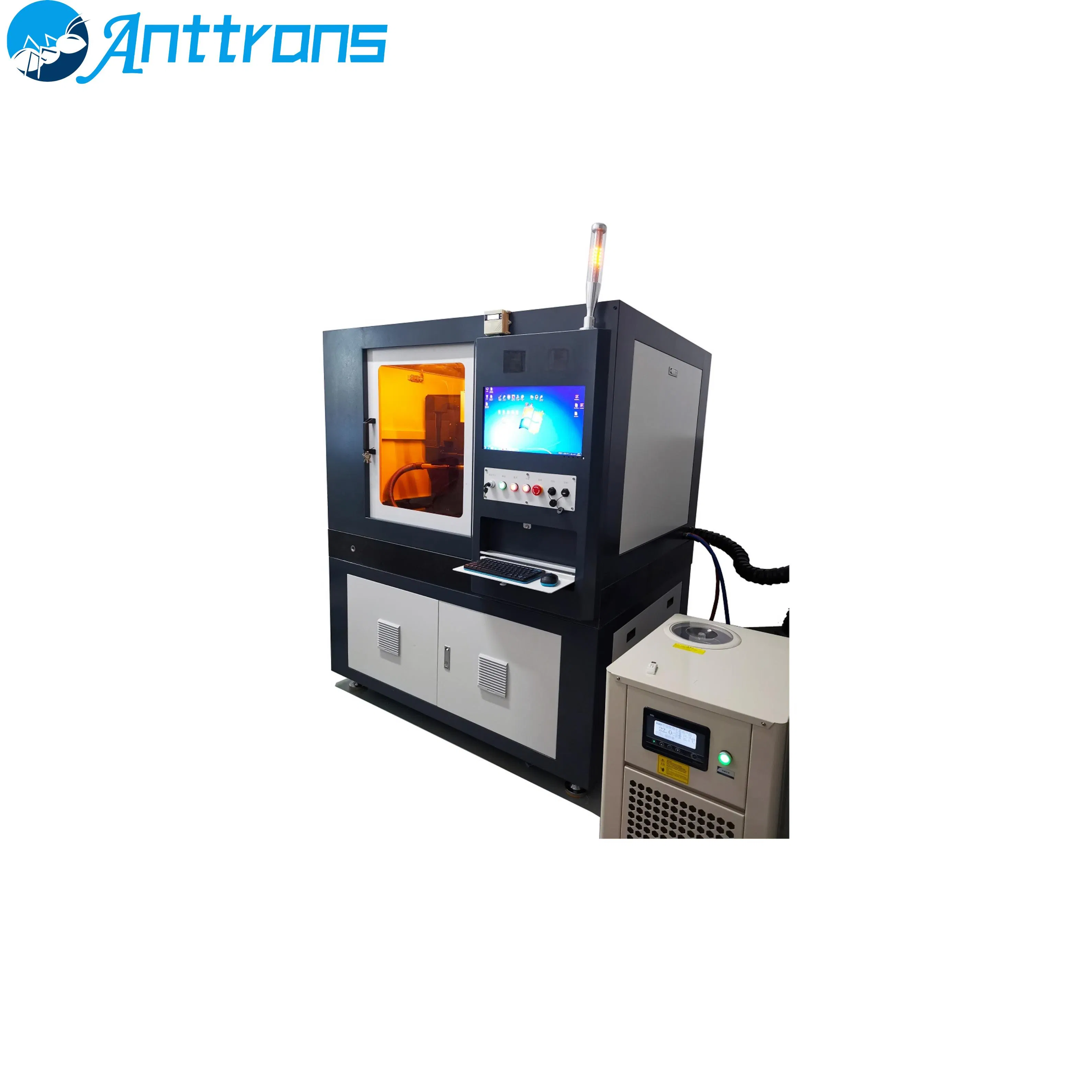

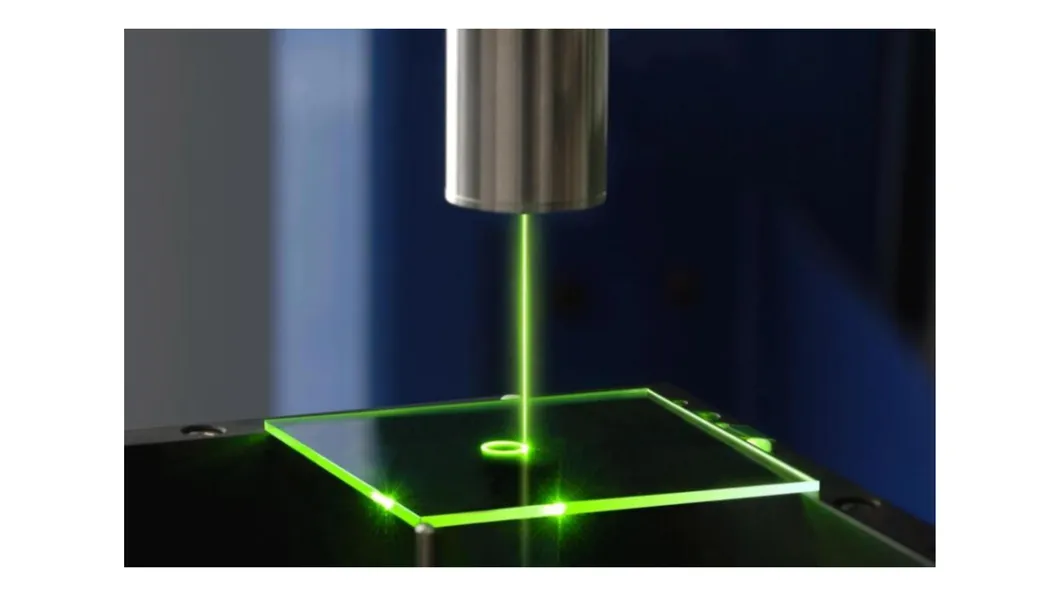

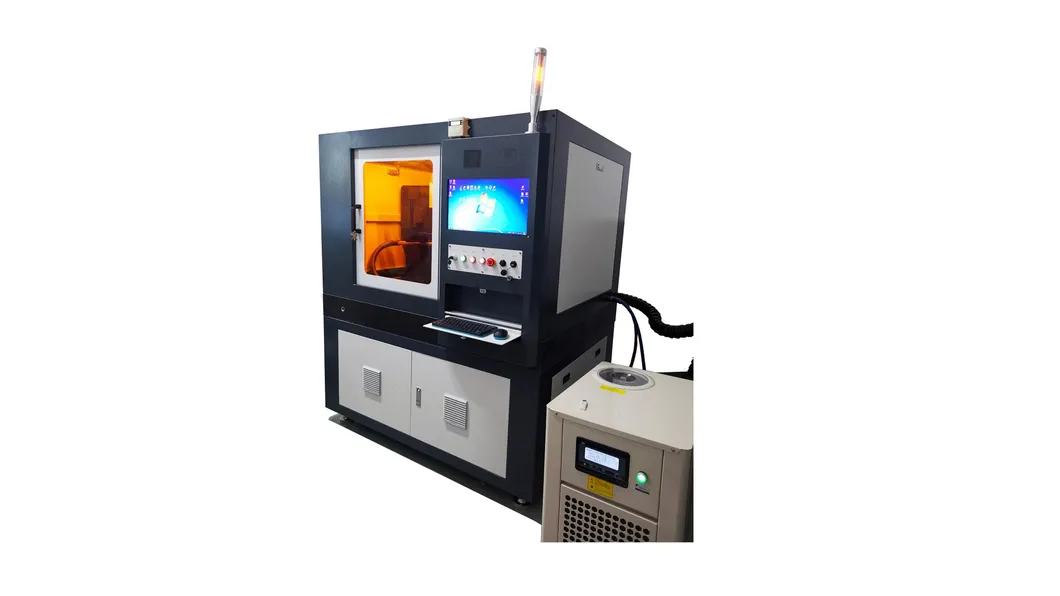

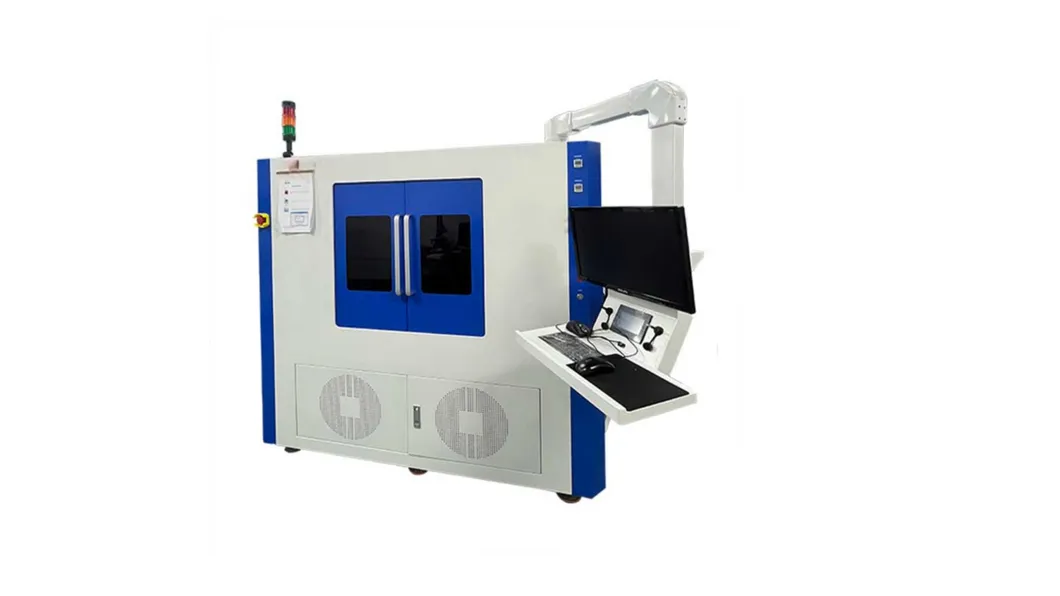

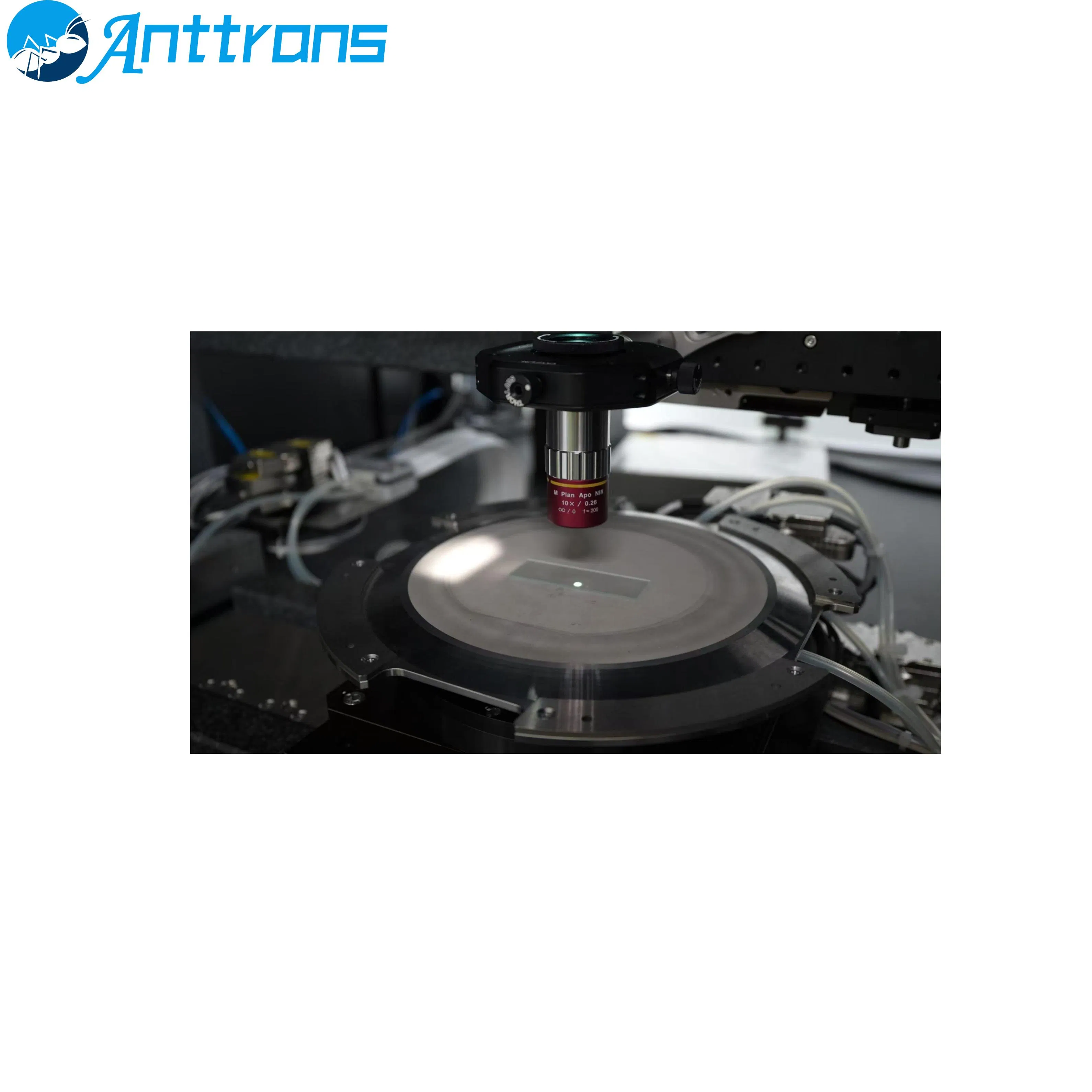

Detailed Photos

Frequently Asked Questions

What materials can be processed with this laser system?

The system is highly versatile and can process virtually all solid materials, including glass, organic materials, metals, ceramics, and diamonds.

What is the machining accuracy of the AT-61151?

It provides exceptional precision with a machining accuracy better than ±2μm and local dimensional accuracy better than 2μm.

Does the system support 3D machining?

Yes, the Z-axis is electrically adjustable to handle varying material thicknesses and supports fine machining of three-dimensional structures and vector files.

What cooling method does the system use?

The system utilizes an integrated water cooling unit with a 2000W cooling capacity to ensure stable operation during high-power tasks.

Which file formats are compatible with the control software?

The control system supports a variety of standard industry formats, including DXF, AI, and PNG for both vector and image-based machining.

How is the long-term stability of the machine guaranteed?

Stability is ensured through a heavy marble tabletop, high-precision linear motor-driven platforms, and on-machine power detection feedback loops.
