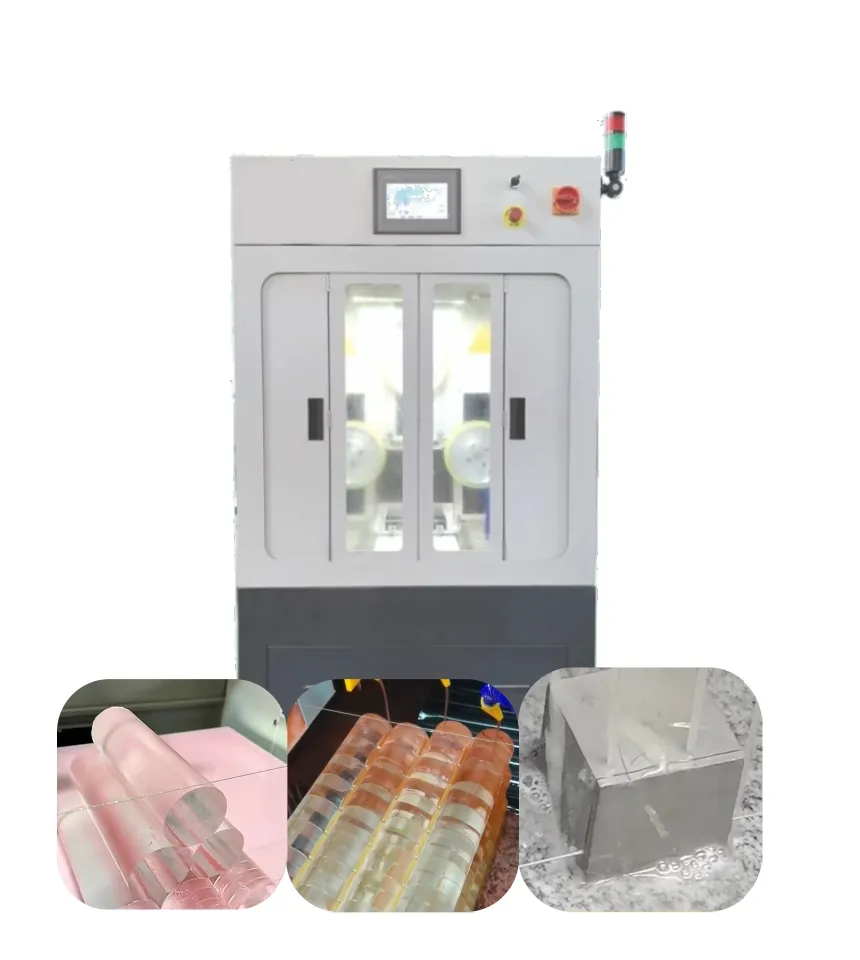

Super Thin Wire Vimfun S G20 Advanced for Glass Equipment

Basic Information

Model NO.	SG20	Customized	Can Be Customized
Cutting Tool	Endless Diamond Wire Loop	Cutting Method	Wet Cut

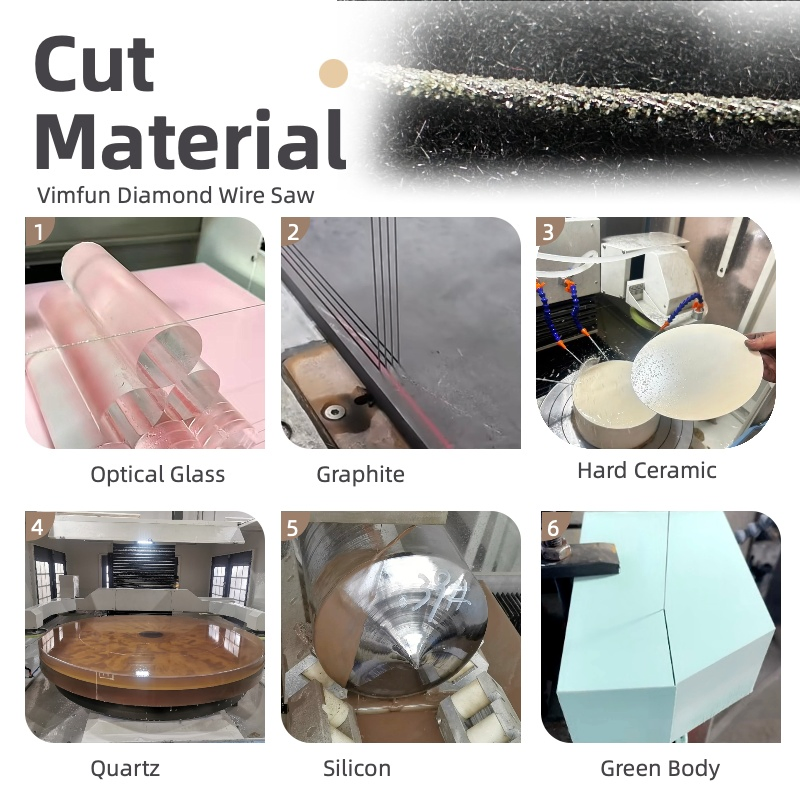

Cut Material	Quartz, Ceramic, Optical Glass, Silicon	Product Name	Quartz Cut Diamond Wire Saw
Machine Weight	500 Kg / 4000 Kg (Base on configuration)	Cutting Material Size	Smaller Than 200200200 mm
Control System	PLC	Power Supply	AC220V, 240V, 380V, 110V

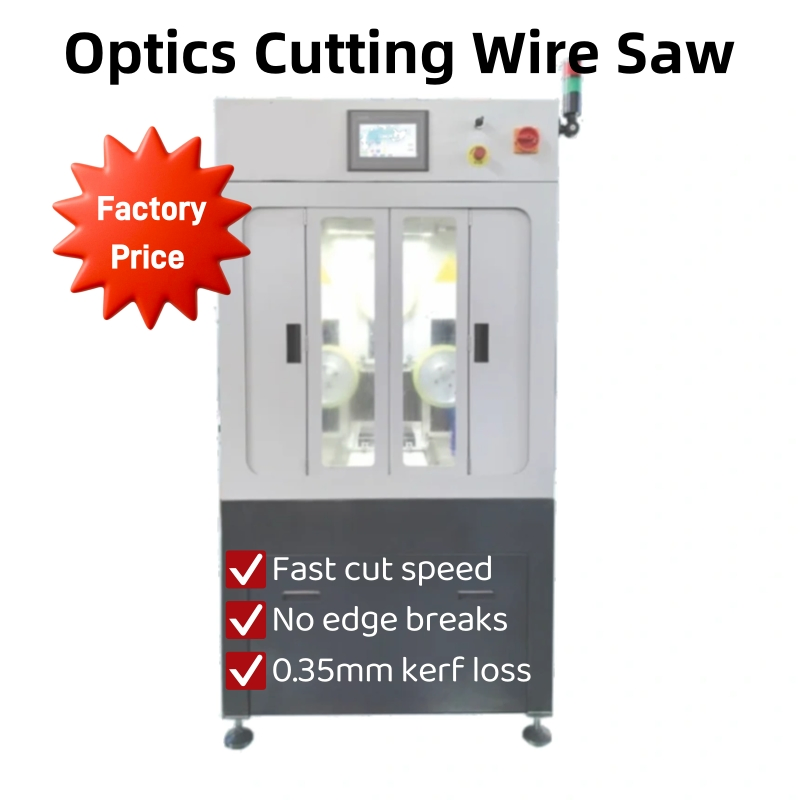

High-Speed Endless Diamond Wire Loop Saw

The diamond wire saw for glass is a state-of-the-art cutting machine designed to deliver fast, precise, and smooth cuts on various glass materials. This advanced tool employs a diamond-embedded wire loop, ensuring clean and accurate slicing, making it ideal for high-speed production environments where quality and efficiency are paramount.

Key Features

High Cutting Speed: Operates at high speeds (approx 60 m/s), significantly reducing cutting time.
Smooth Cut Surface: Diamond-embedded wire ensures precise cuts, eliminating chipping.
Enhanced Efficiency: 4 to 5 times greater than traditional ID slicing machines.
Durability: Robust design for long-lasting performance and minimal maintenance.

Technical Parameters (SG 20)

No.	Parameter	Specification
1	Loading table Size (mm)	200*280
2	Maximum Workpiece Size (mm)	200200200
3	Maximum Workpiece Height (mm)	200
4	Worktable Y-Axis Travel (mm)	250
5	Worktable Z-Axis Travel (mm)	250
6	Maximum Diamond Wire Speed (m/s)	38 (Max)
7	Total Power Consumption (kW)	4
8	Machine Size (mm)	10008001850

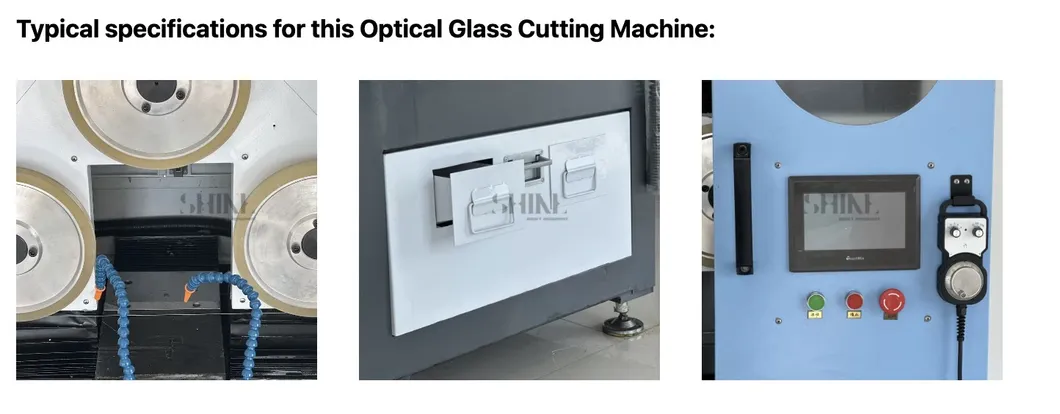

Working Principle

The cutting line is positioned parallel to the ground while the workpiece is placed on the loading platform. The wire moves at high speed along a circular path with constant tension. The entire wheel system moves vertically, allowing for gantry-style cutting with extreme precision via the PLC control system.

Our Advantages

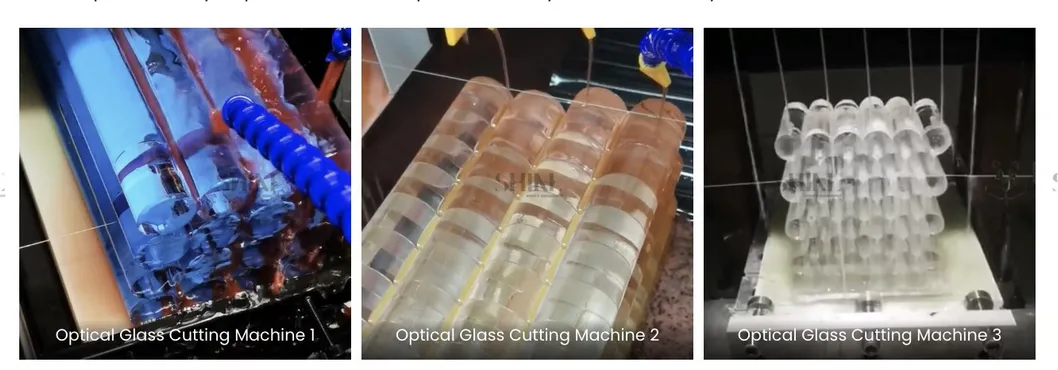

Unmatched Efficiency

The SG20 slices through optical glass with remarkable speed, reducing production cycles and boosting productivity compared to conventional saws.

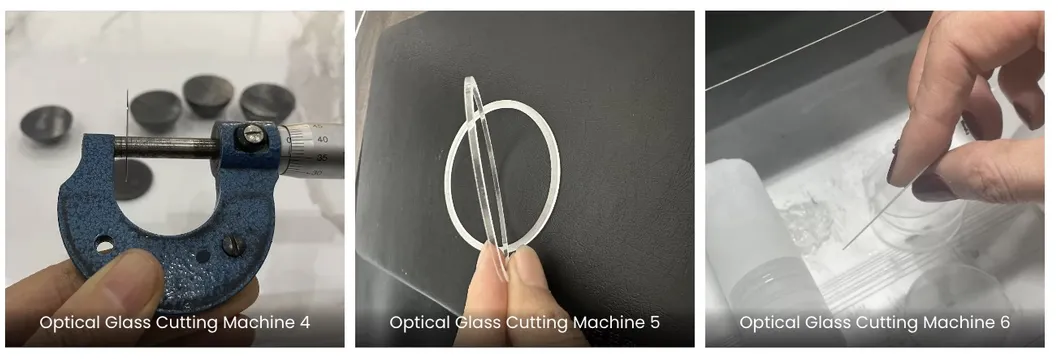

Precise Quality

Innovative design ensures clean, precise cuts for intricate shapes and delicate patterns, aligning with strict design specifications.

Packaging & Shipping

Packaging: The diamond wire saw is secured in a robust wood crate for international transit.

Lead Time: Normally 30 working days after confirmation (can be as fast as 15 days).

Shipping Methods: Flexible options including FOB, CNF, and Door-to-Door delivery via sea or air freight.

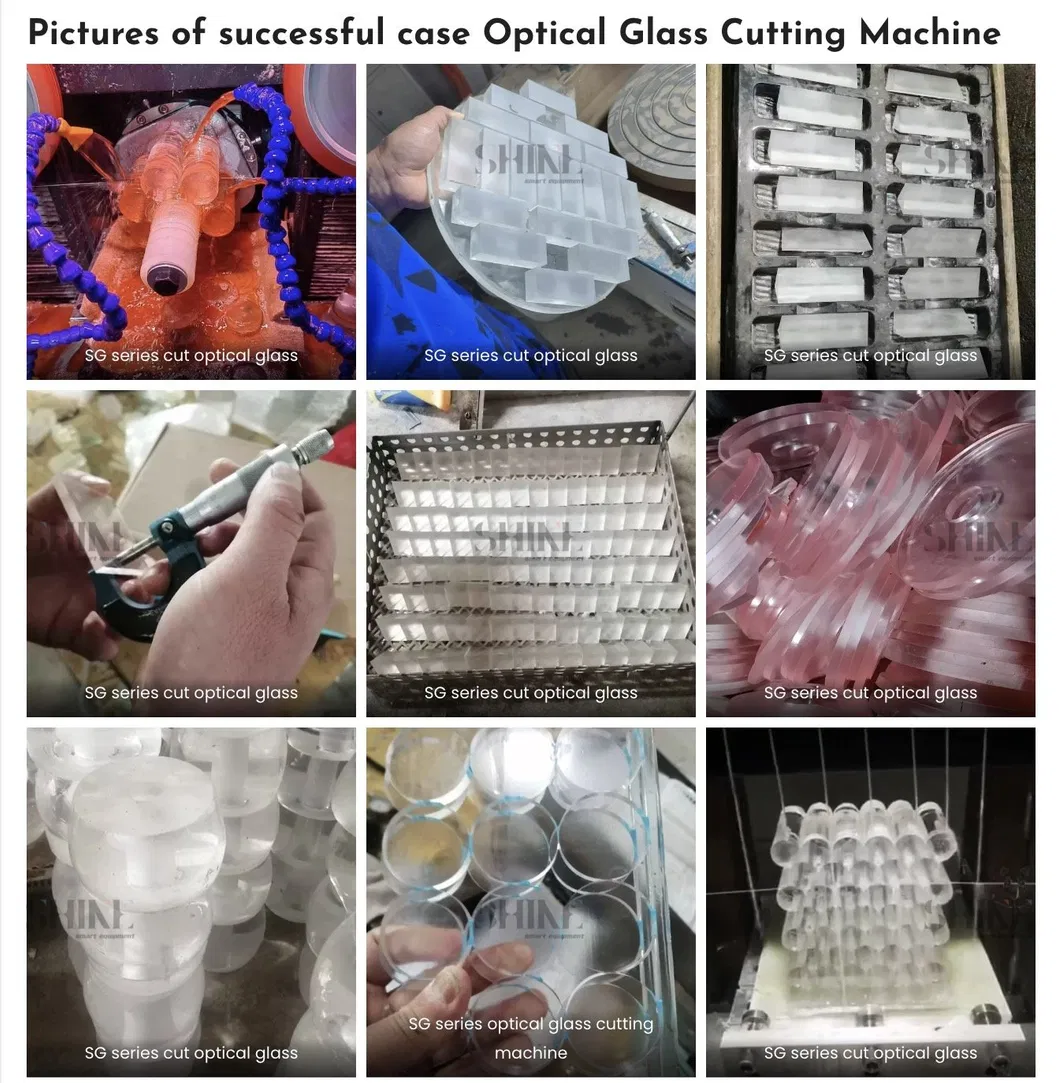

Application Cases

Case 1: Optical Lenses
Used for microscopes and cameras, reducing production time while improving edge quality.

Case 2: Photonics Equipment
Slicing crystals for laser systems and sensors without chipping.

Case 3: Semiconductors
Achieving precise cuts for high-purity photolithography masks.

Case 4: Consumer Electronics
Cutting glass for smartphone and tablet displays with uniform thickness.

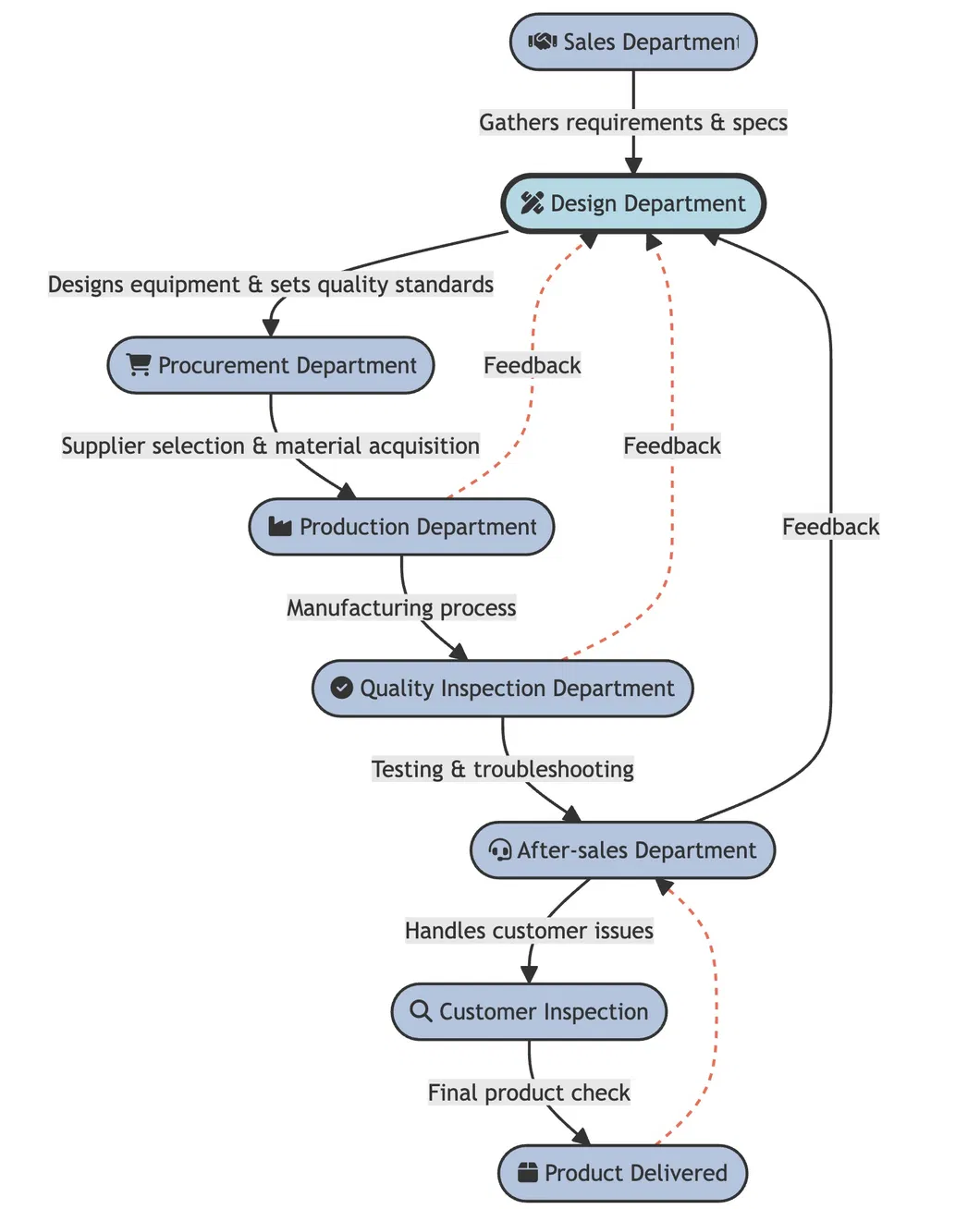

Quality Commitment

Each machine undergoes over 200 electrical tests, 30 mechanical precision tests, and 20 final inspections. This ensures traceability and high performance for industries ranging from graphite cutting to silicon rod slicing.

Frequently Asked Questions

Q1: What materials can the SG20 diamond wire saw cut? A: It is designed to cut optical glass, quartz, ceramics, silicon, and other hard or brittle materials.

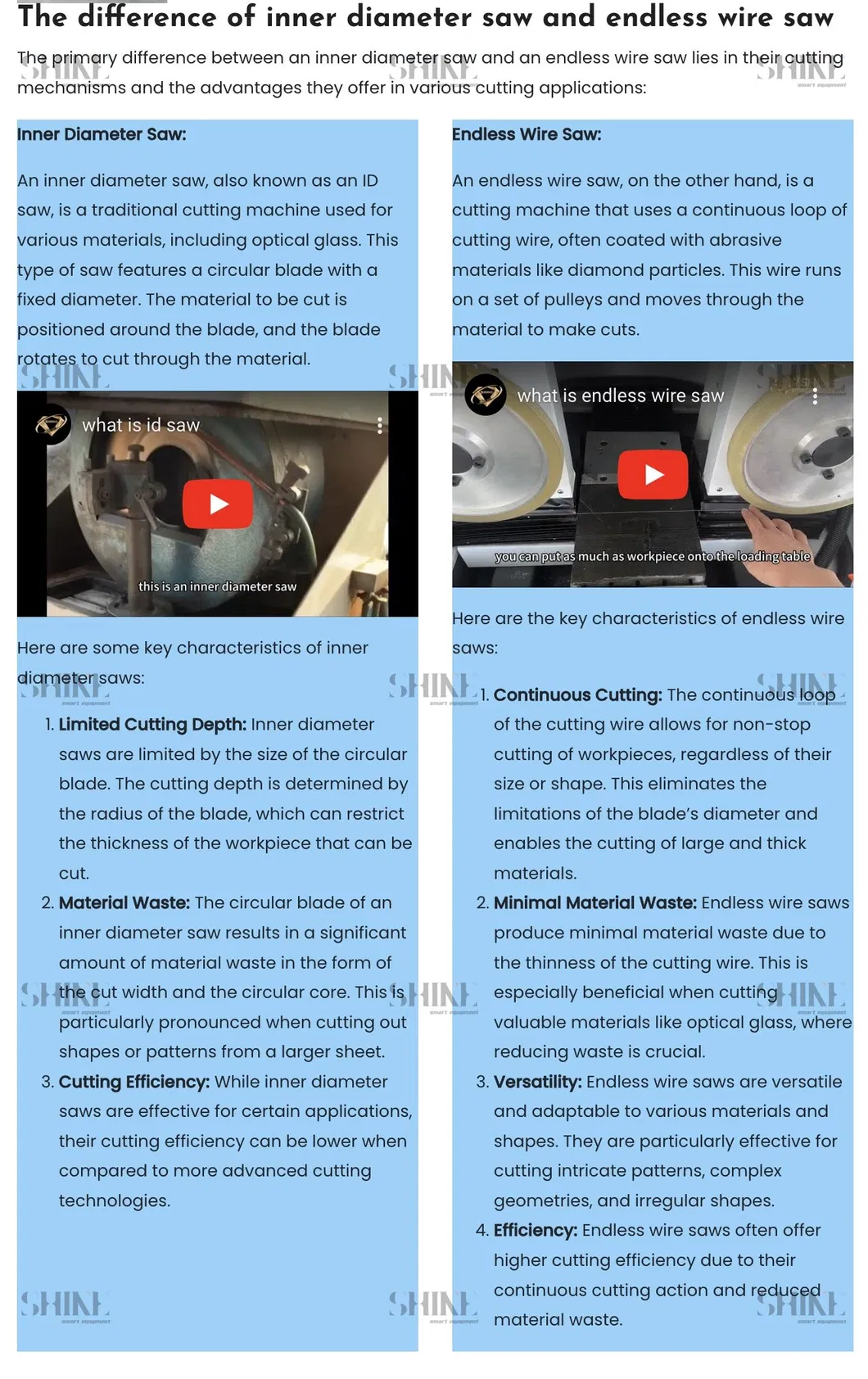

Q2: How efficient is this machine compared to traditional ID saws? A: Our endless diamond wire saw is approximately 4 to 5 times more efficient than traditional inner diameter (ID) slicing machines.

Q3: Does the machine support customized dimensions? A: Yes, the machine's dimensions and specific functions can be tailored to fit your workspace and operational requirements.

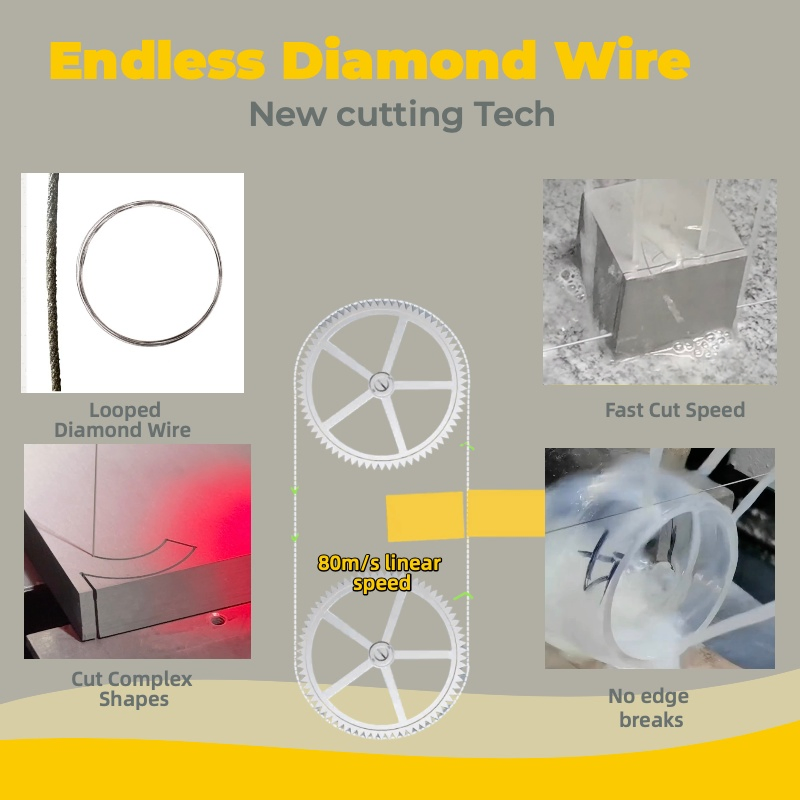

Q4: What is the benefit of the "Endless" wire loop design? A: The endless loop allows for continuous high-speed cutting in one direction (up to 60m/s), resulting in a smoother surface and minimal material waste (low kerf loss).

Q5: Can the machine operate without constant supervision? A: Yes, the machine supports unmanned operation, allowing operators to focus on other tasks while it autonomously completes the cutting process.

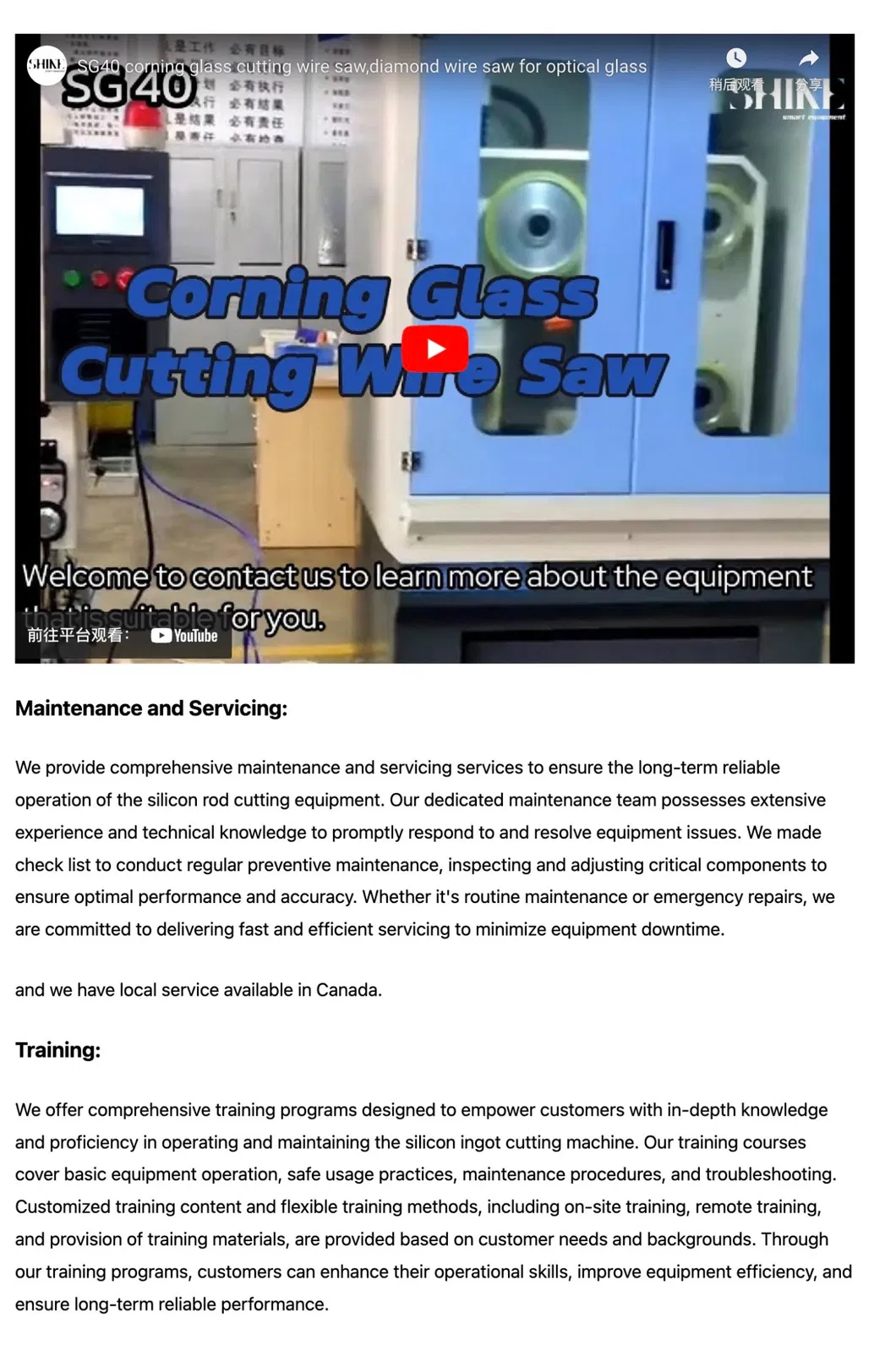

Q6: What kind of after-sales support is provided? A: We offer 24-hour online service, installation assistance, training, and routine maintenance support to ensure peak performance.
