CNC Multifunctional Laser Cutting Machinery for Sheet Metal Fabrication

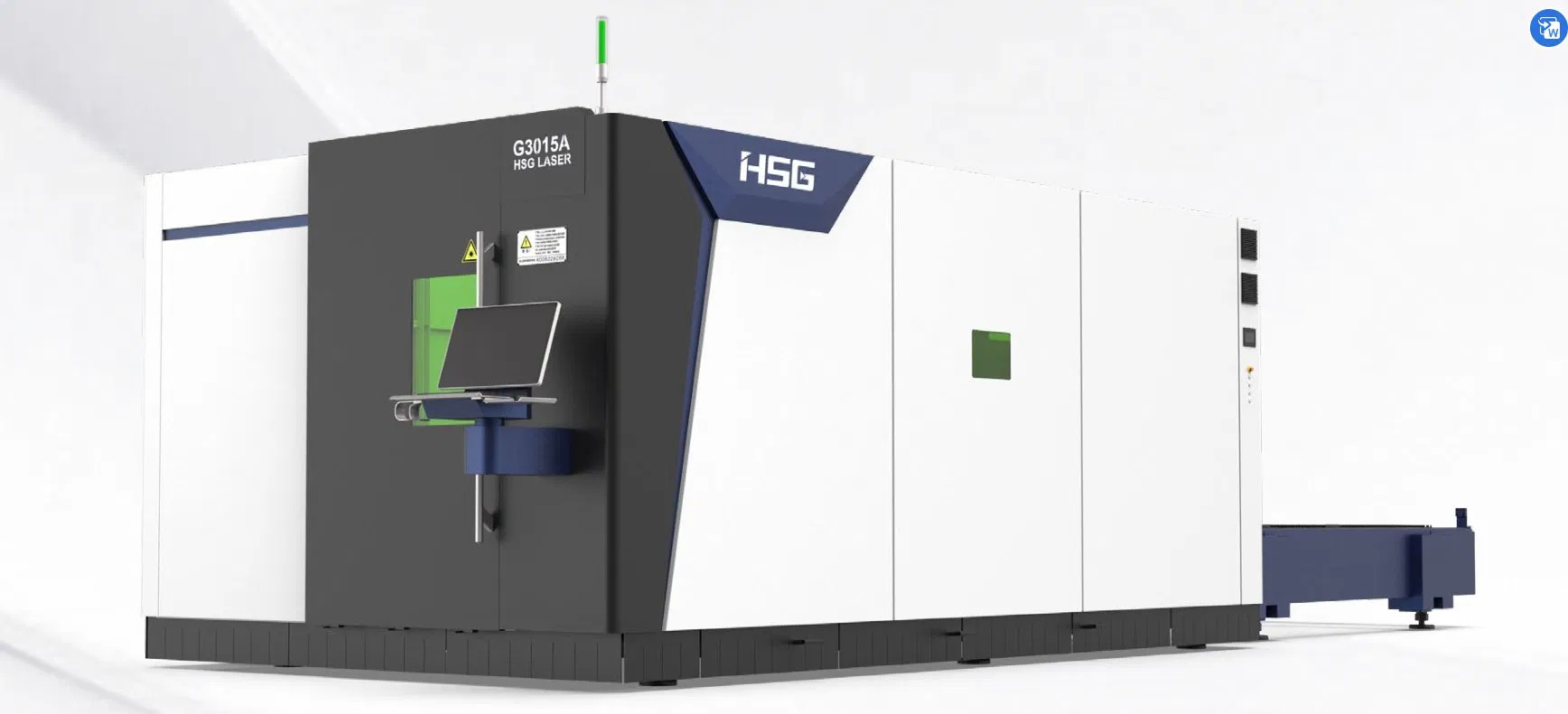

The GA IV Double Exchange Platforms Laser Cutting Machine (1500-12000W) has undergone four generations of technical upgrades. Featuring high-speed double exchange platforms and multiple processing formats (up to 6000*2500mm), it is designed to meet diverse industrial cutting demands with precision and efficiency.

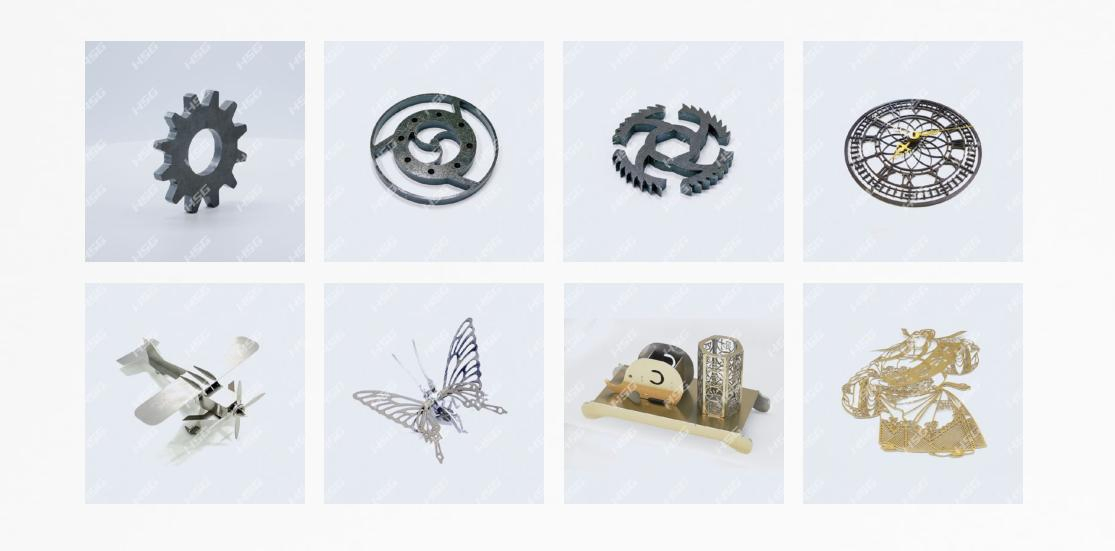

Applicable Materials: Stainless steel, carbon steel, aluminum, brass, copper, galvanized plate, and cold-rolled sheet.
Industry Use: External metal sheet processing, home decoration (window grilles, screen doors), elevators, aerospace components, and precision instruments.
| Specifications | GA IV Models | |||
|---|---|---|---|---|
| Power Range | 1500-6600W | 3000-8000W | 6000-12000W | |
| Format (L*W) | 3000*1500mm | 4000*2000mm | 6000*2000mm | 8000*2500mm |
| X/Y Positioning | ±0.03mm/m | |||
| Max No-load Speed | 140m/min | 120m/min | ||
| Acceleration | 1.5G | 1.0G | ||
| Platform Load | 800kg | 1000kg | 1800kg | 3200kg |

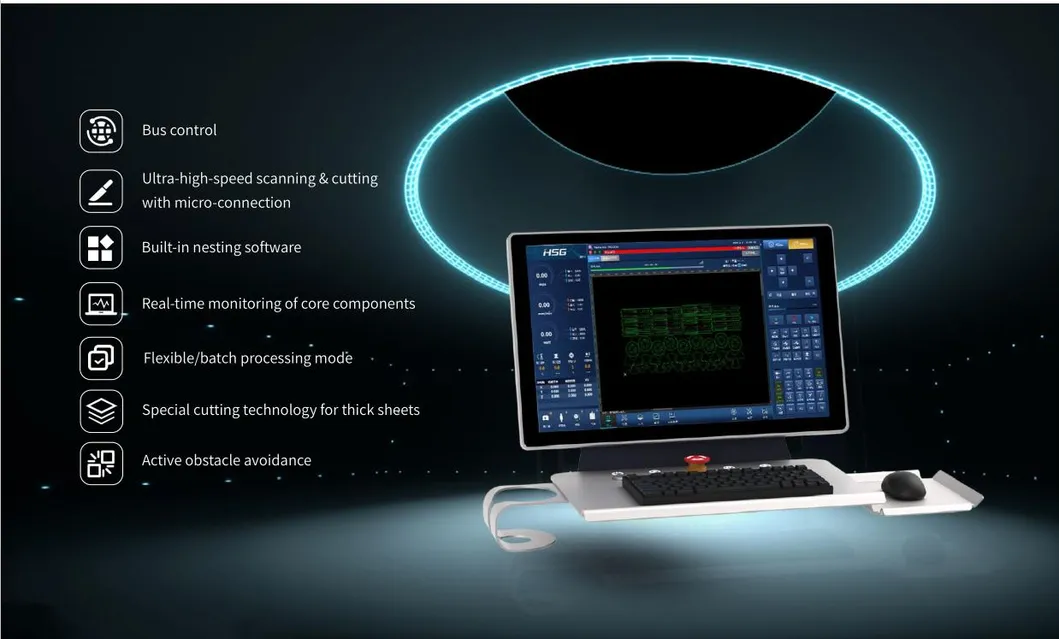

Equipped with a graphical programming interface and 2000+ process data sets, making it easy to operate even for beginners. Compatible with DXF, DWG, PLT, and NC codes. Features include active obstacle avoidance and real-time core component monitoring.

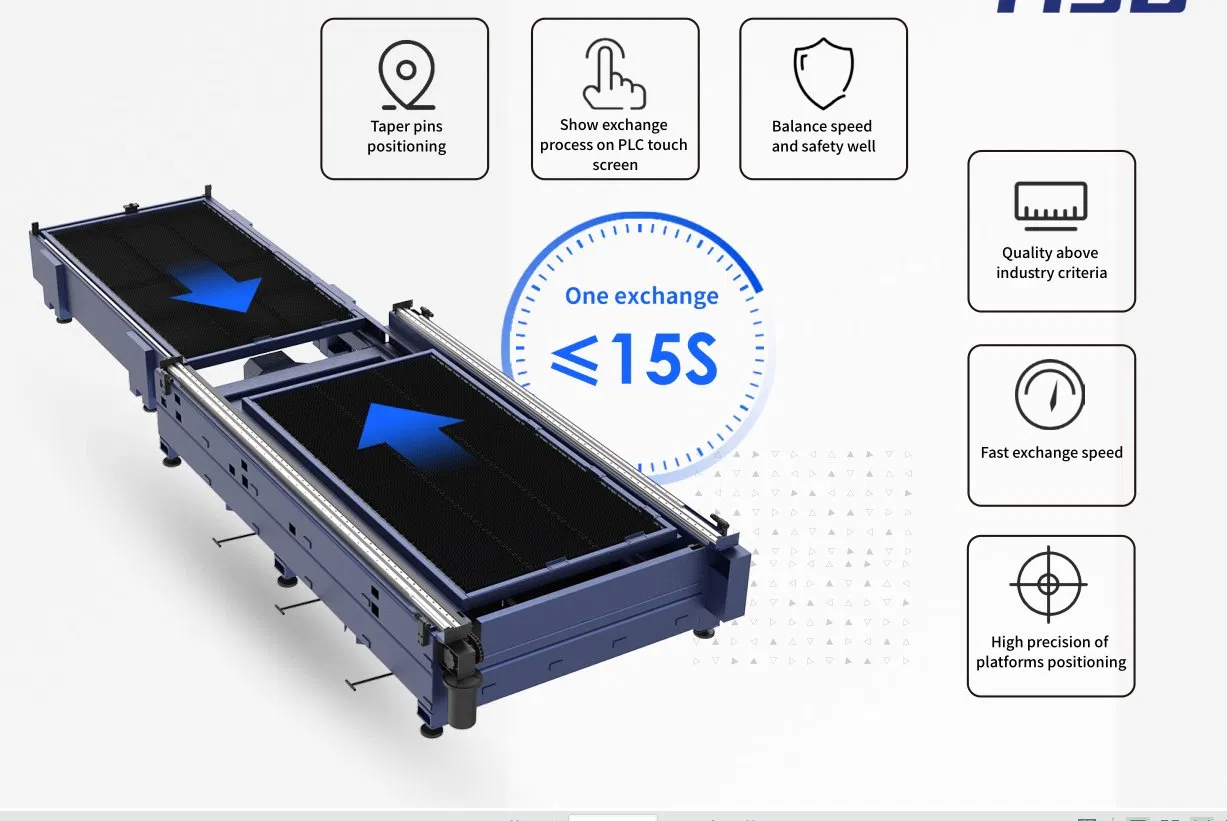

Driven by 16A wide chains and positioned via taper pins for extreme accuracy. The exchange process is fully visualized on a PLC touch screen. The front-placed motor design ensures safe loading and unloading while protecting the casing.

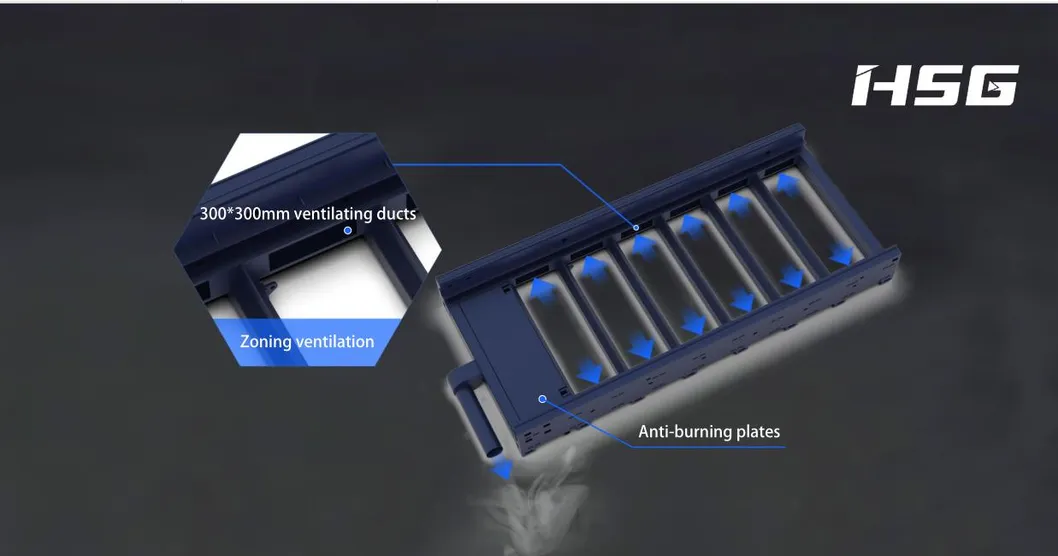

The bed features 500Mpa tensile strength and undergoes annealing and vibration aging to eliminate internal stress. Reinforced loading points enable stable cutting of thick metal sheets over long durations.

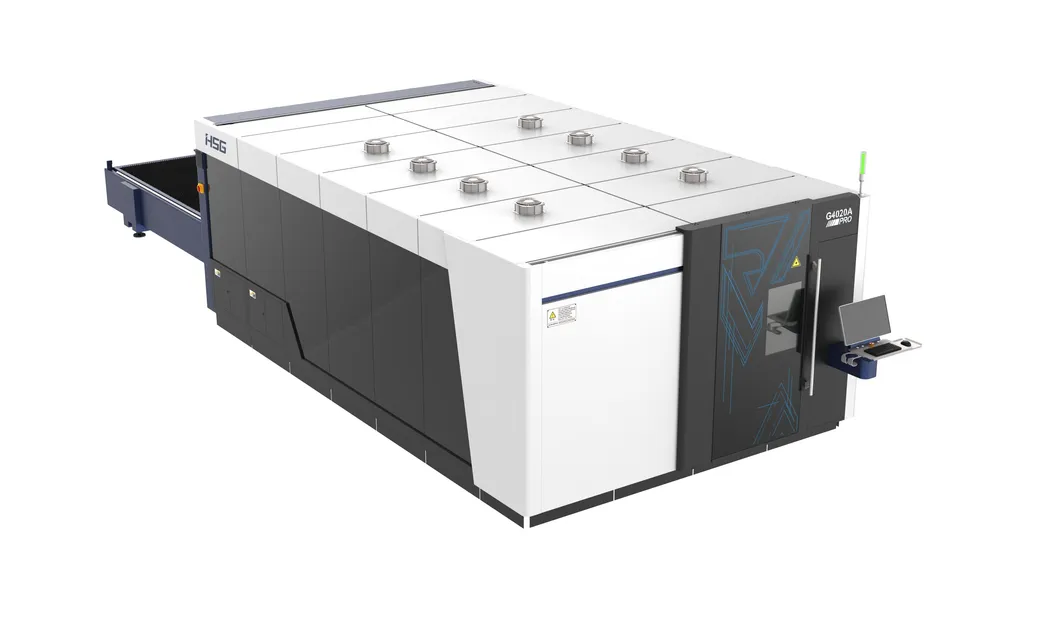

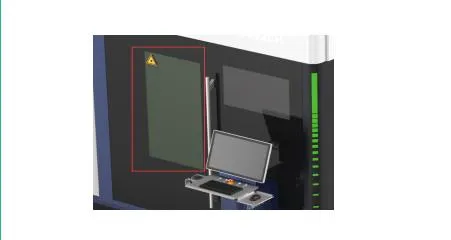

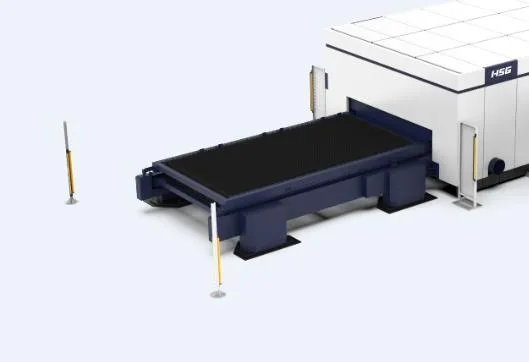

Customizable options include: Top cover with blower fans, pneumatic safety doors, safety light curtains, laser-proof glass, advanced nesting software, and high-definition supervising cameras.
Every machine undergoes strict quality inspections before delivery. We utilize high-standard international shipping packaging to ensure the equipment arrives in perfect condition.
