| Model NO. | GC III | Application | Home Appliance, Environmental Equipment, Petroleum Machinery, Aerospace, Automotive, Advertising |
| Cooling System | Water Cooling | Technical Class | Continuous Wave Laser |
| Applicable Material | Metal | Structure Type | Desktop |
| Laser Technology | Laser Vapor Cutting | Production Capacity | 5000 Sets/Year |

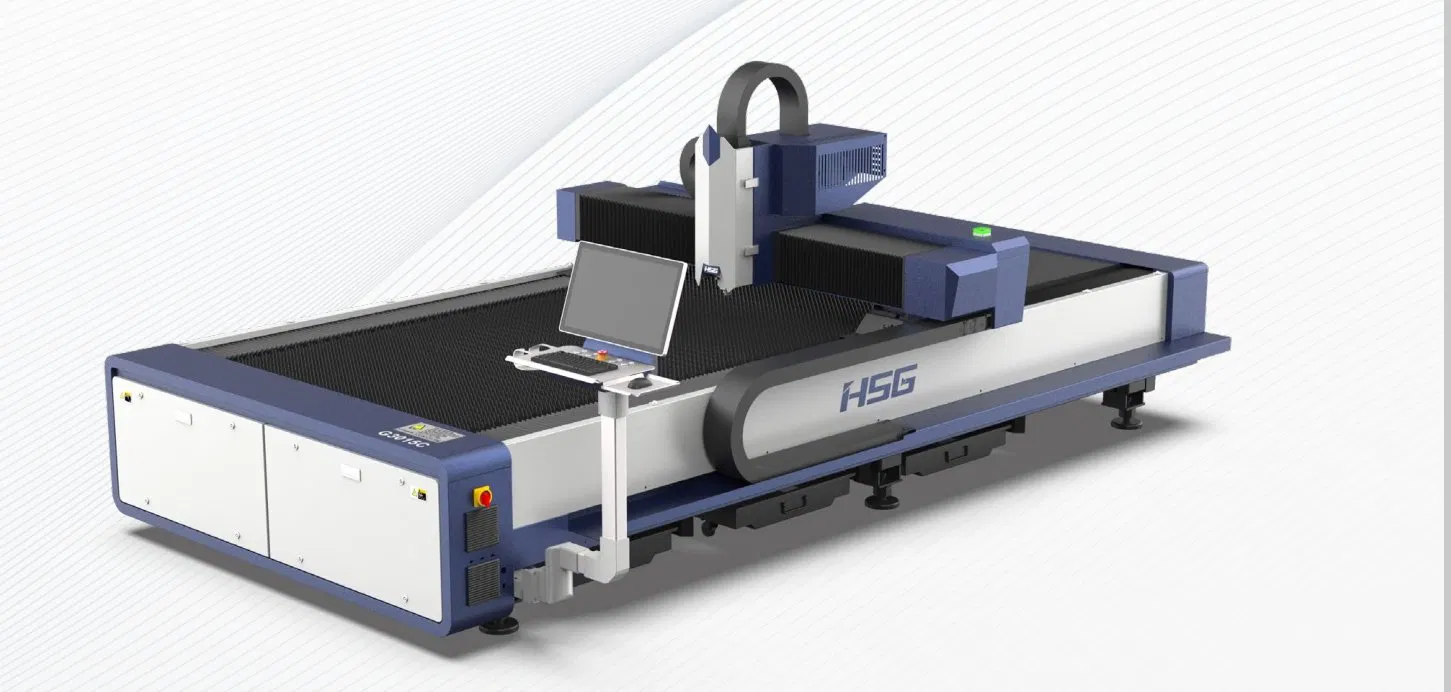

1500-6000W Compact-Size Single Platform Sheet Metal Laser Cutting Machine
The GC III Series Single Platform Laser Cutting Machine (1500-12000W) is the third generation of technical upgrades and innovation. It is small in size, only equaling a large SUV, making it highly cost-effective and efficient for space-limited environments.

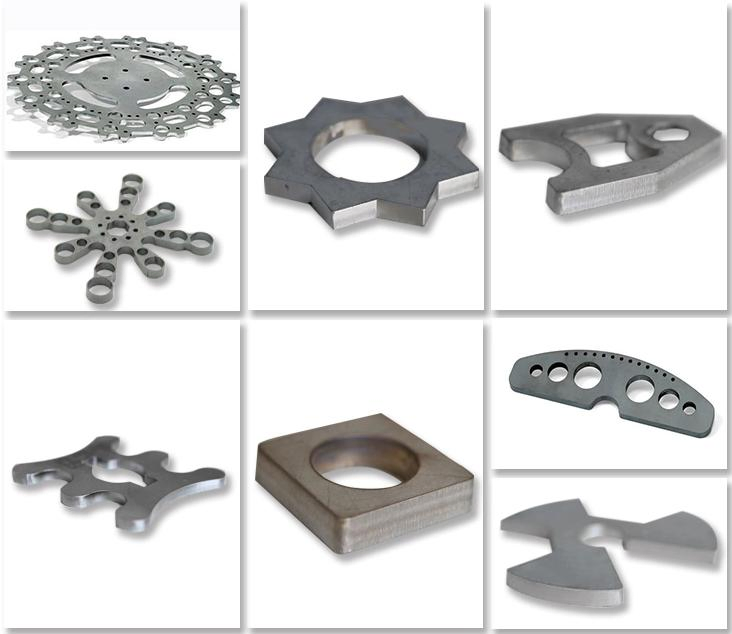

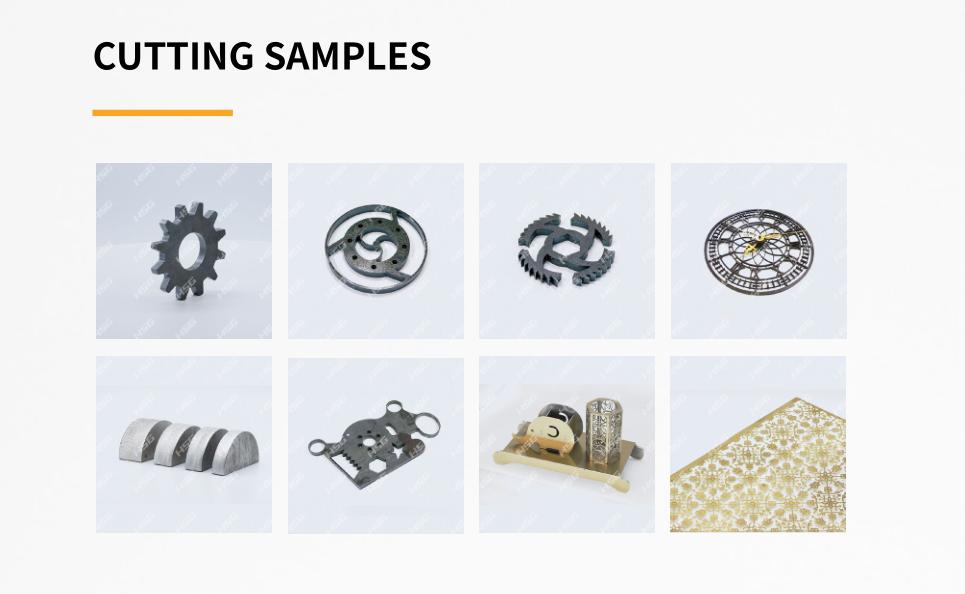

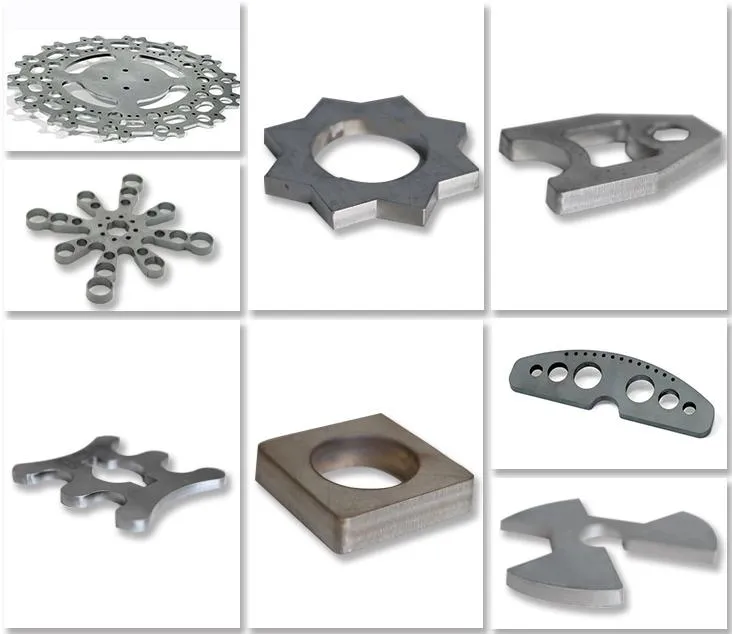

Applicable Materials: Stainless steel and aluminum (0.5-8mm), carbon steel (0.5-16mm), brass (0.5-6mm), copper (0.5-4mm), galvanized plates, and cold-rolled sheets.
Industry Applications: Widely used for external processing of metal sheets, home decorations (window grilles, screen doors), elevators, aerospace components, and instruments.
| Model | Power | Working Area | Positioning Accuracy | No-load Speed | Dimensions (L*W*H) |
|---|---|---|---|---|---|
| G3015C III | 1500W-6000W | 3000*1500mm | ±0.03mm/m | 140m/min | 4900*2250*1700mm |
| G4020C III | 1500W-6000W | 4000*2000mm | ±0.03mm/m | 140m/min | 6015*3300*1700mm |
| G6025C III | 3000W-6000W | 6000*2500mm | ±0.03mm/m | 120m/min | 8300*3760*1700mm |
| G12025C III-H | 6000W-12000W | 12000*2500mm | ±0.03mm/m | 100m/min | 15300*3800*1700mm |
* All testing results and experimental data are subject to real machine performance.

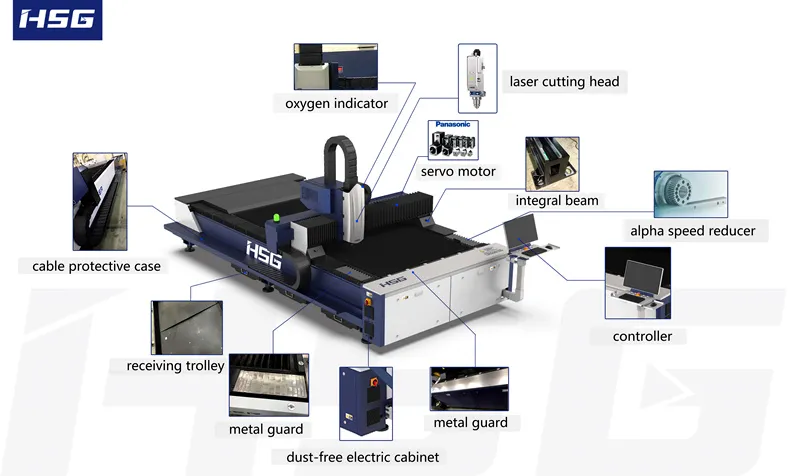

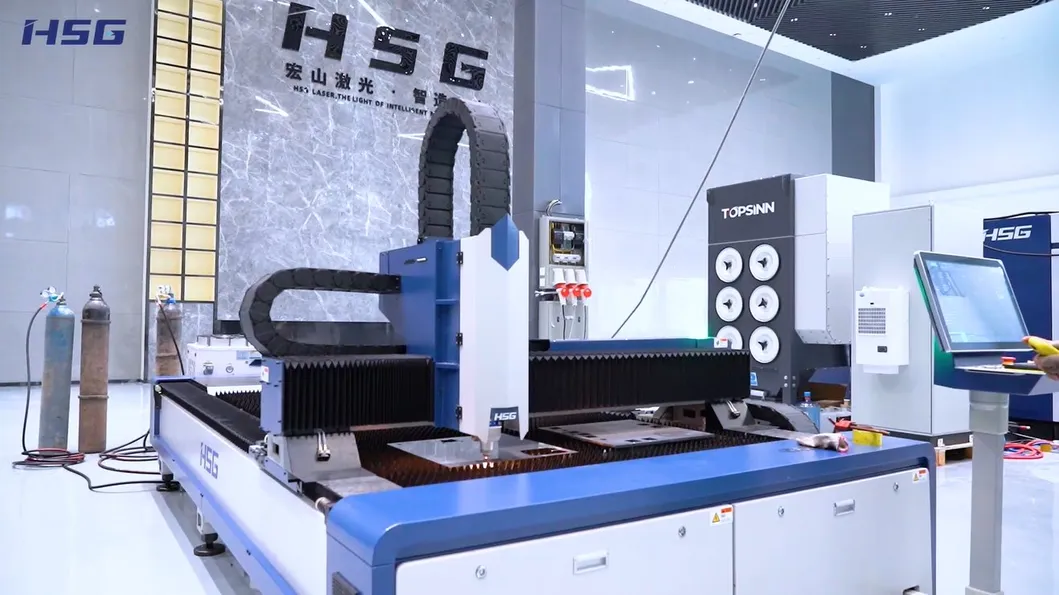

Upgraded Model: Compact design allows production to start within 1 day. High accuracy up to ±0.03mm/m.

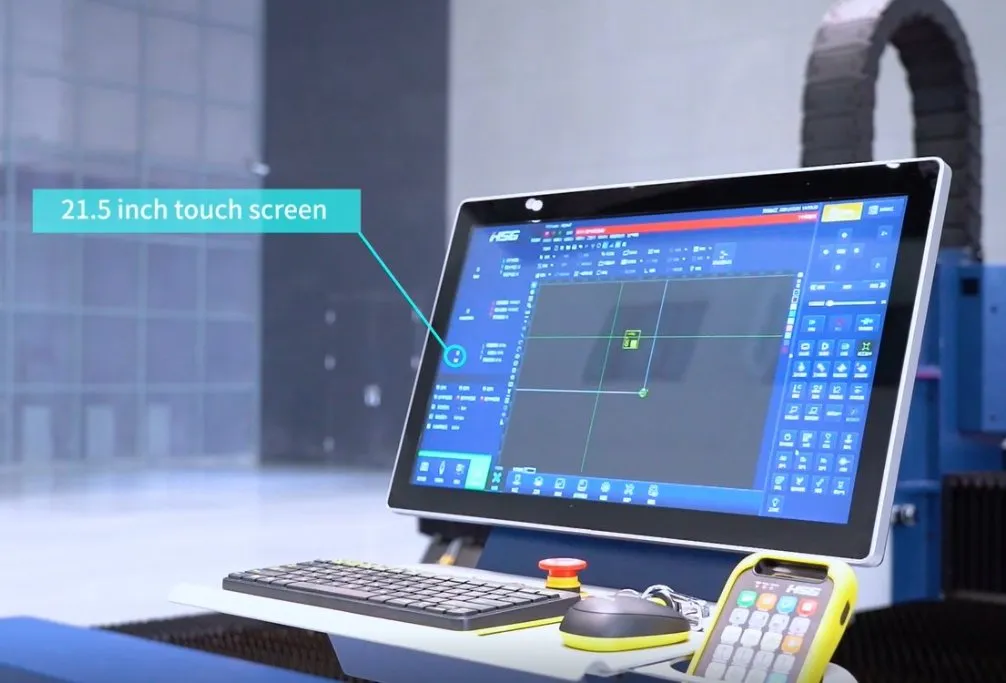

Alpha T Bus CNC System: Graphical interface with 2000+ process data. Compatible with DXF, DWG, PLT, and NC codes.

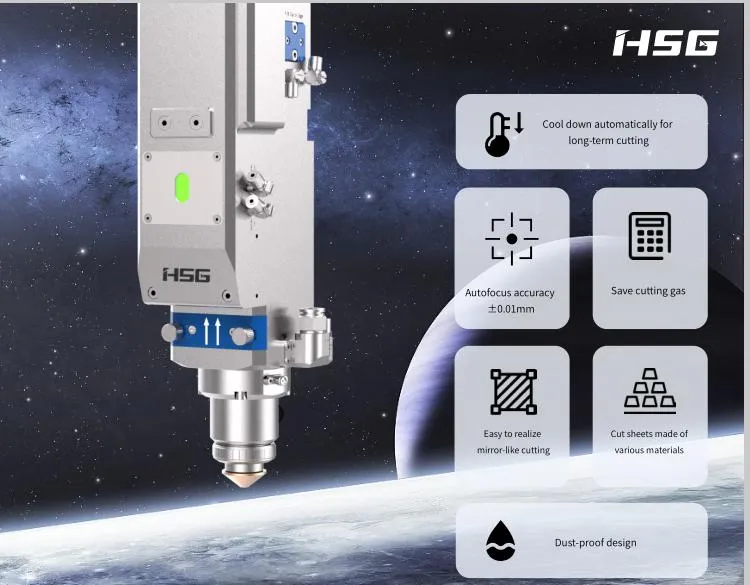

Autofocus Cutting Head: Accuracy of ±0.01mm. Features self-water-cooling and active obstacle avoidance.

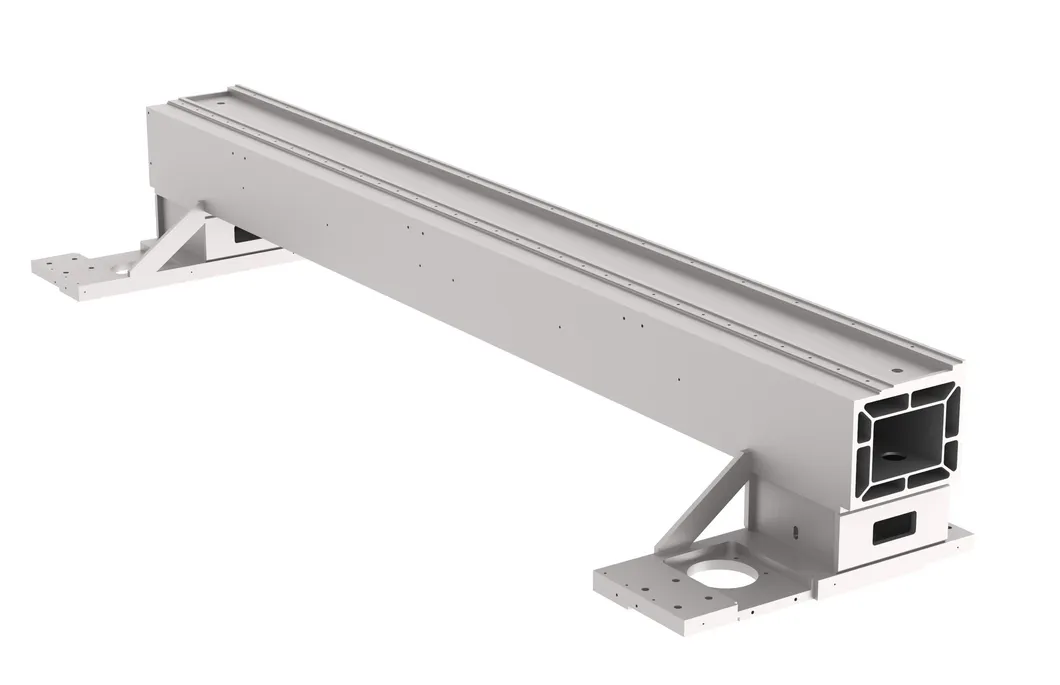

Extruded Aluminum Beam: Honeycomb anti-compression structure made via extrusion molding process.

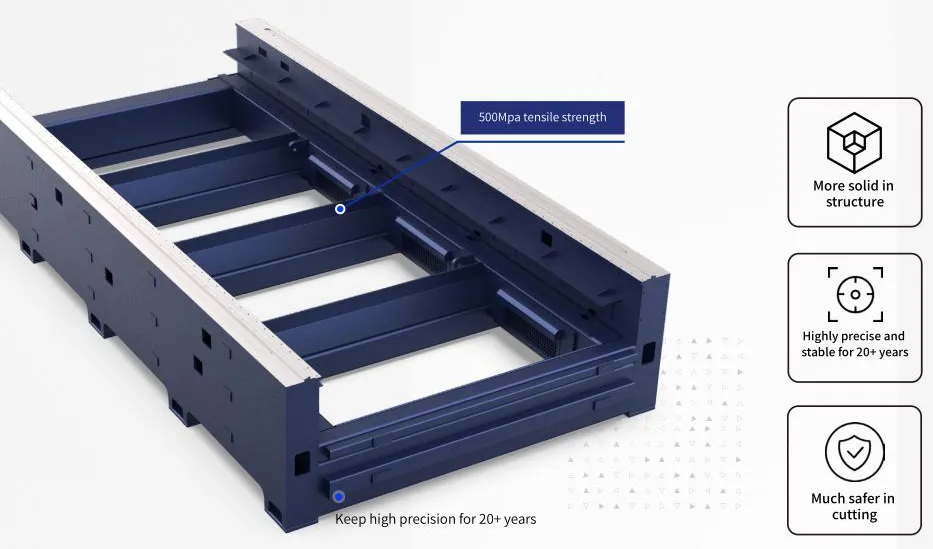

Carbon Steel Welded Bed: Low impurity and heat absorption for long-term stability.
Quality Control: Every component is carefully inspected before delivery.

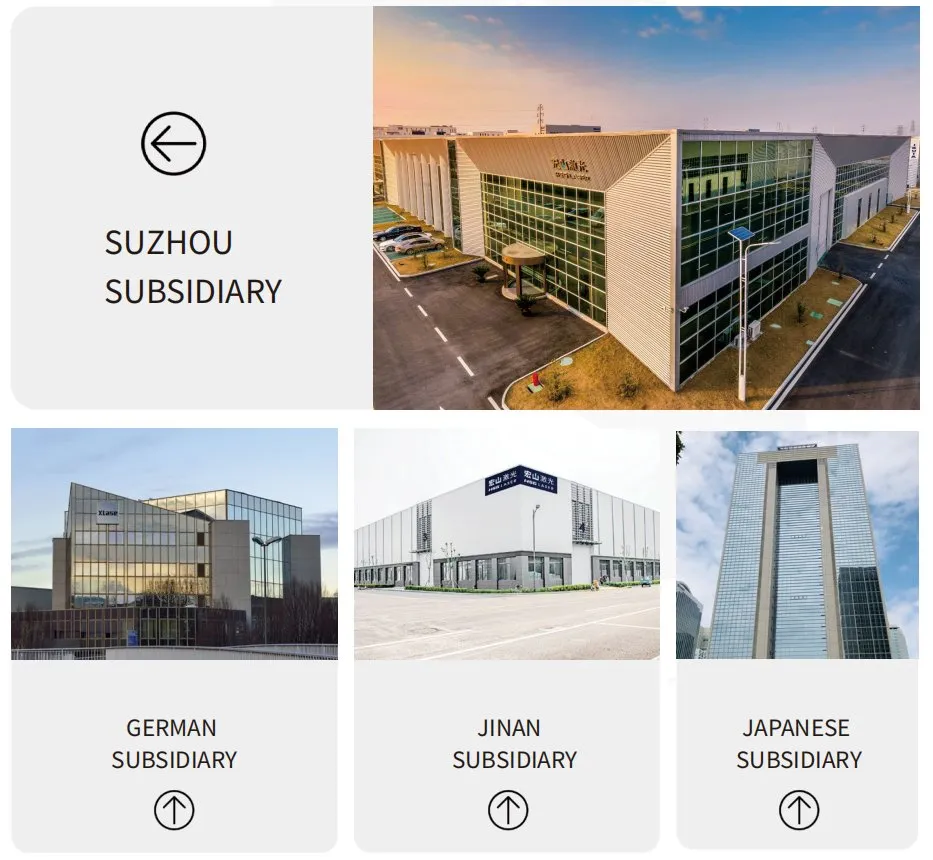

Founded in 2006, our enterprise focuses on the R&D, production, and sales of laser equipment. We are dedicated to providing global customers with advanced metal forming solutions. Our development history shows a transformation from simple laser cutting machines to comprehensive metal forming equipment across the entire industrial chain.
