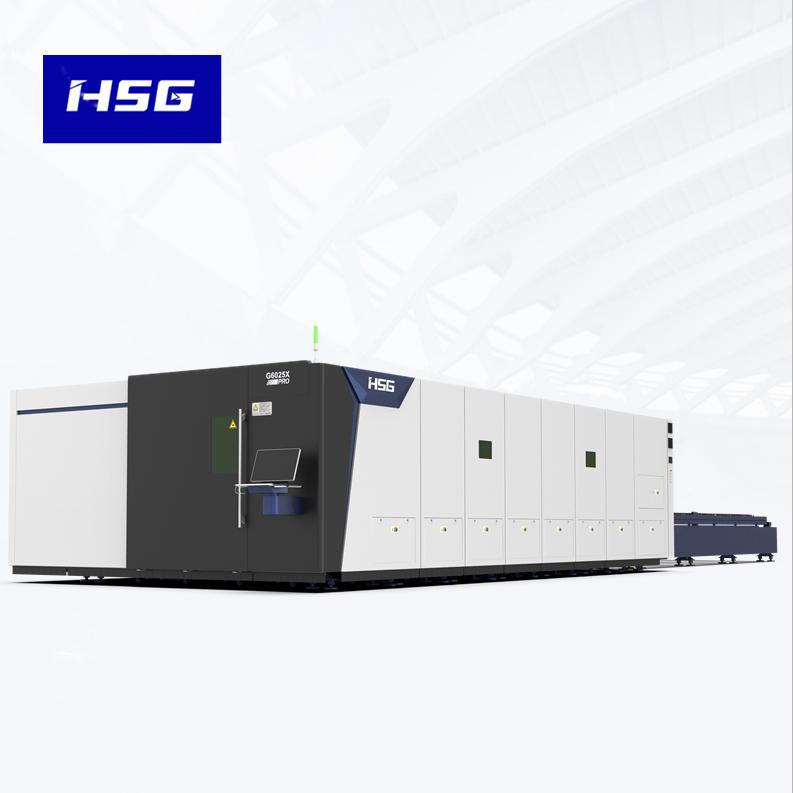

Professional Carbon Steel Metal Fiber Laser Cutting Machine
Fully Enclosed with Exchange Platform
Basic Information
Model NO.:GA
Application:Home Appliance, Environmental Equipment, Petroleum Machinery, Agriculture, Textile, Food, Aerospace, Automotive, Advertising
Cooling System:Water Cooling
Technical Class:Continuous Wave Laser
Applicable Material:Metal
Structure Type:Fiber Laser
Production Capacity:1500 PCS/Year
Package Size:300.00cm * 200.00cm * 150.00cm
Package Gross Weight:200.000kg
Model Features
Cutting table size options:
3000x1500mm, 4000x1500mm, 6000x1500mm, 4000x2000mm, 6000x2000mm

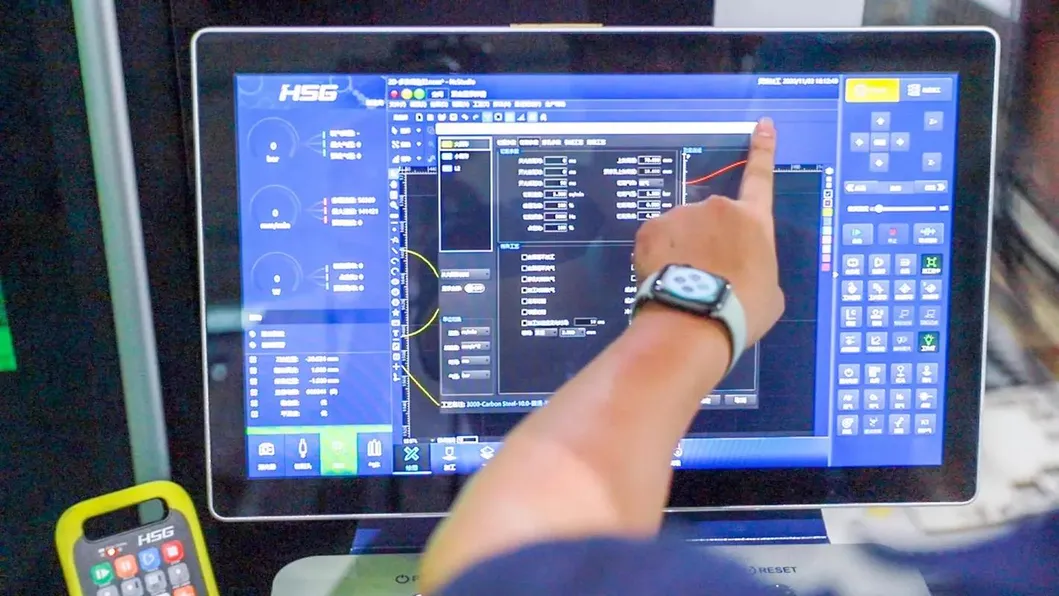

- Advanced Bus CNC System: Network cable data transmission, easy to operate with 2000+ process data.
- Intelligent Nesting Software: High efficiency material utilization.
- Double Exchange Platforms: Driven by 16A wide chains and positioned by taper pins for rapid processing.

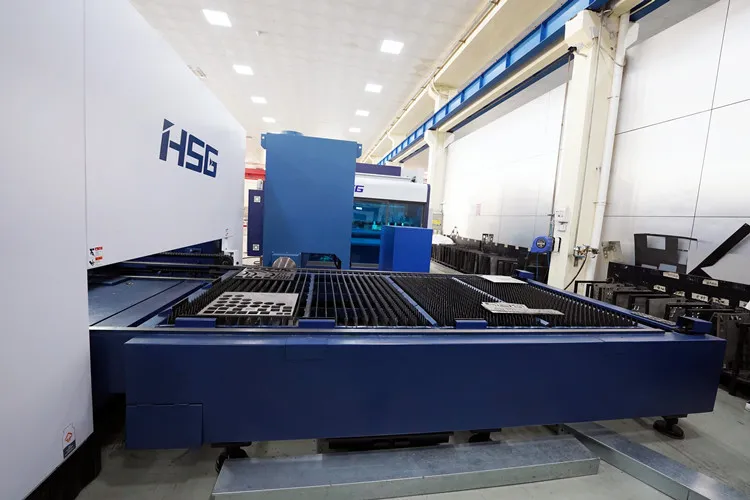

- Extruded Aluminum Beam: Honeycomb anti-compression structure made via extrusion molding process.

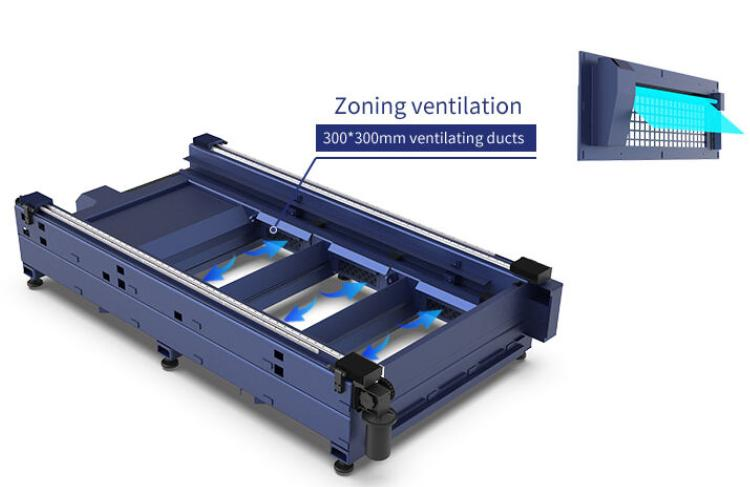

- Carbon Steel Welded Machine Bed: 500Mpa tensile strength with annealing and vibration aging treatment.

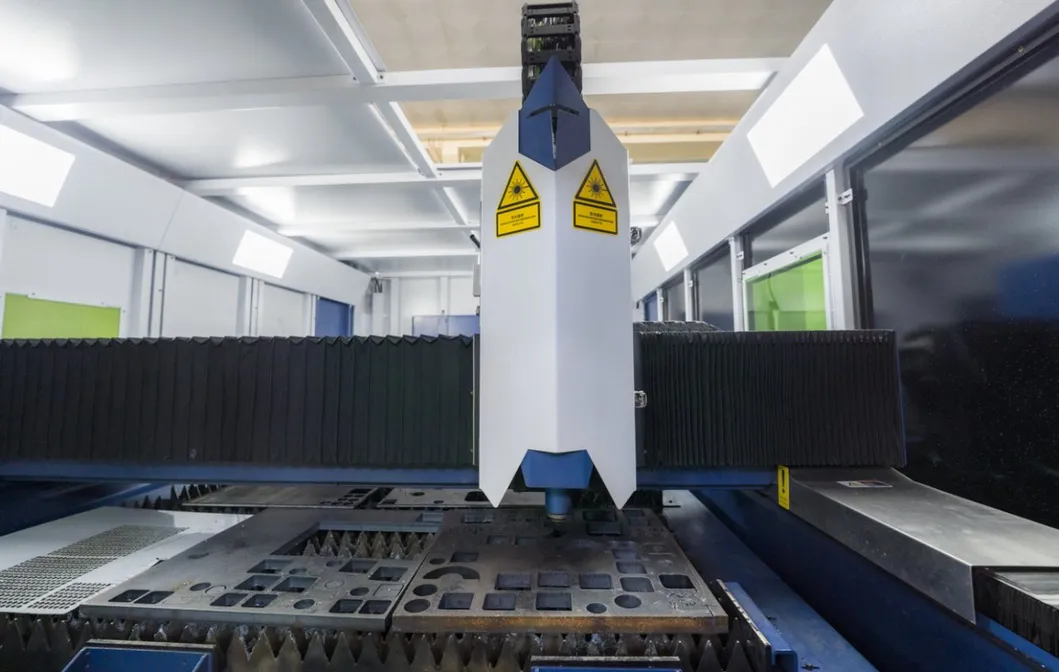

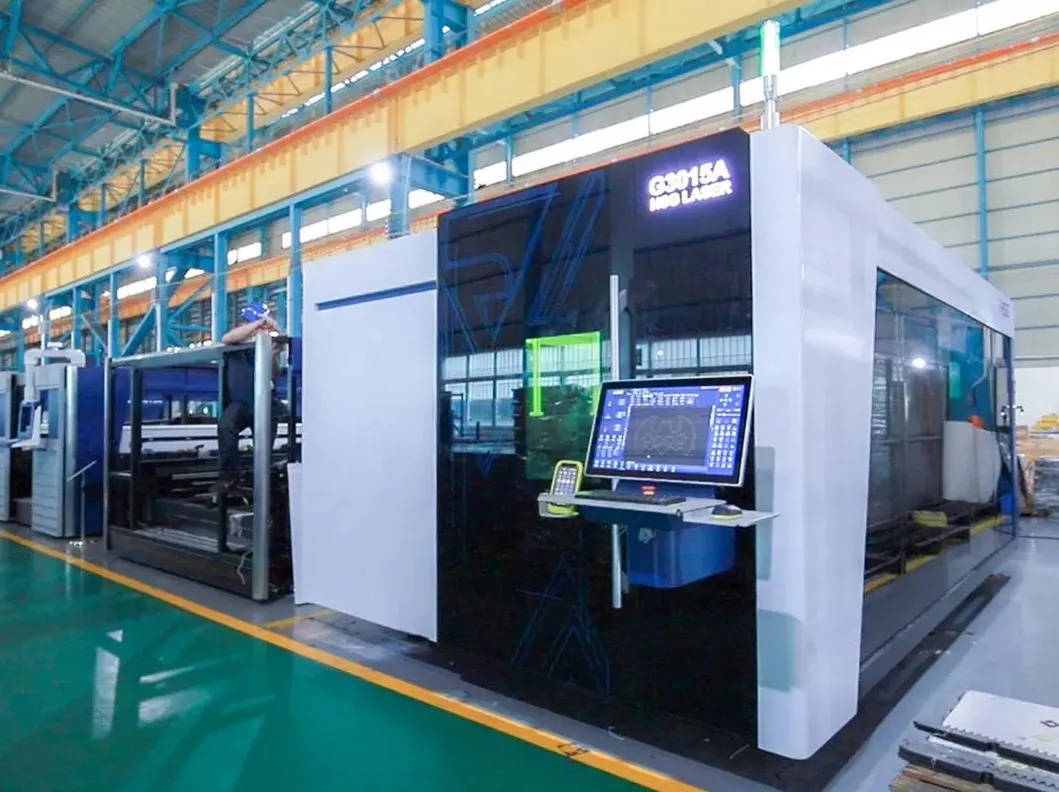

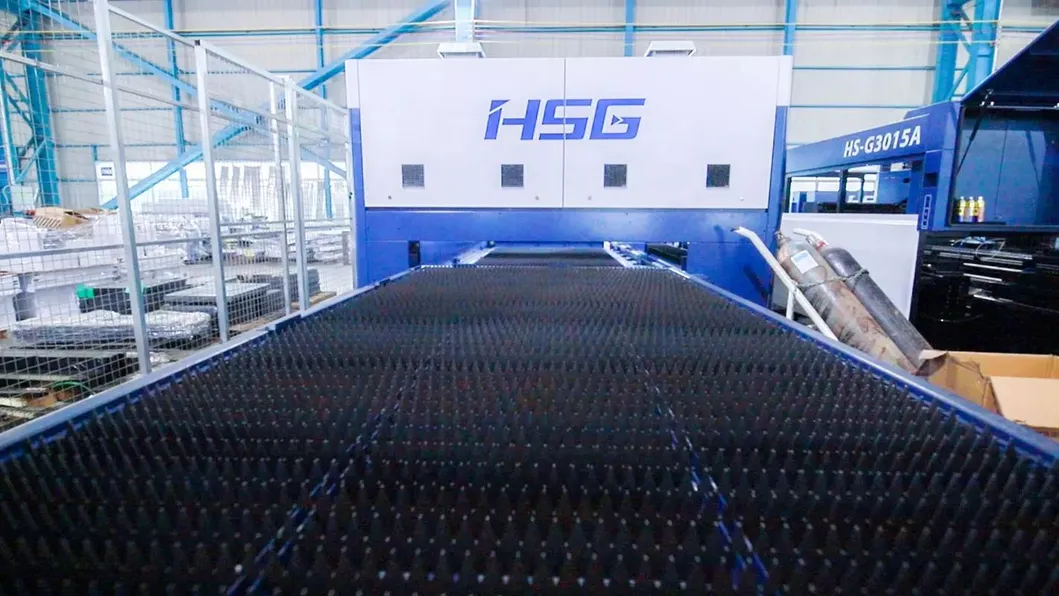

Detailed Photos
Product Parameters
| Model |
G3015A IV |
G4020A IV |
G6020A IV |
| Power |
1500-6000W |
1500-6000W |
3000-8000W |
| Working Area (L*W) |
3000*1500mm |
4000*2000mm |
6000*2000mm |
| X/Y Positioning Accuracy |
±0.03mm/m |
±0.03mm/m |
±0.03mm/m |
| Max. No-load Speed |
140m/min |
140m/min |
120m/min |
| Max. Acceleration |
1.5G |
1.5G |
1.5G |
| Max. Platform Loading |
800kg |
1000kg |
1800kg |

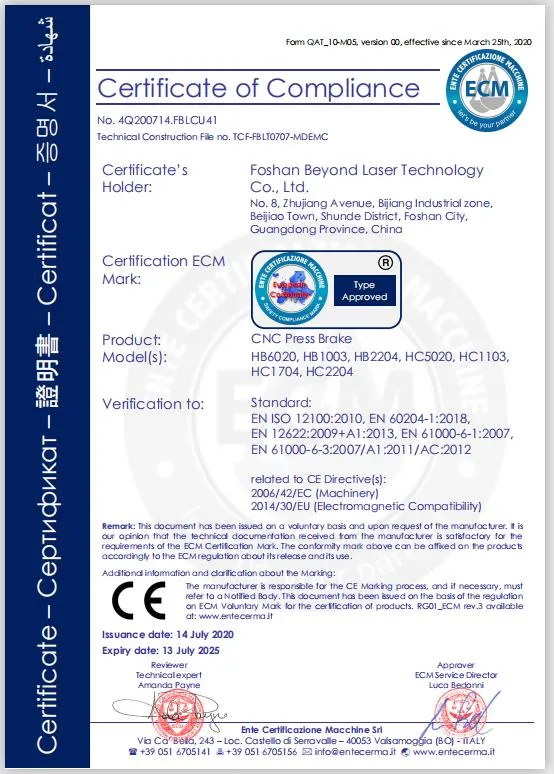

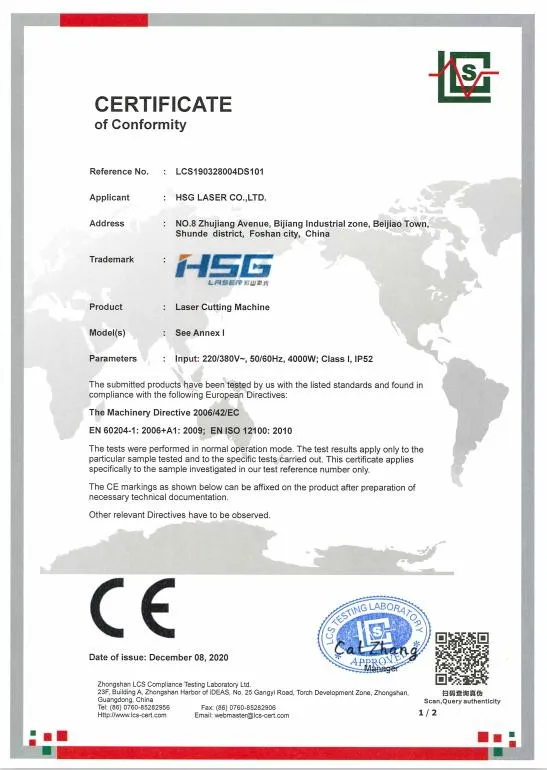

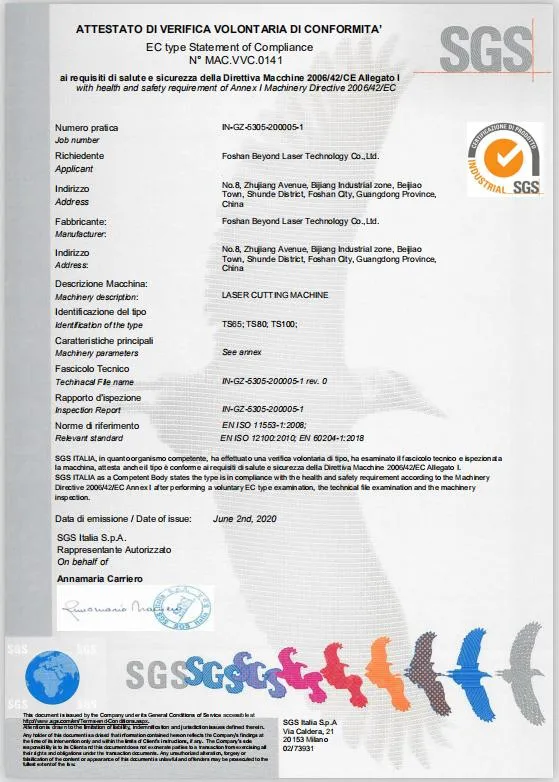

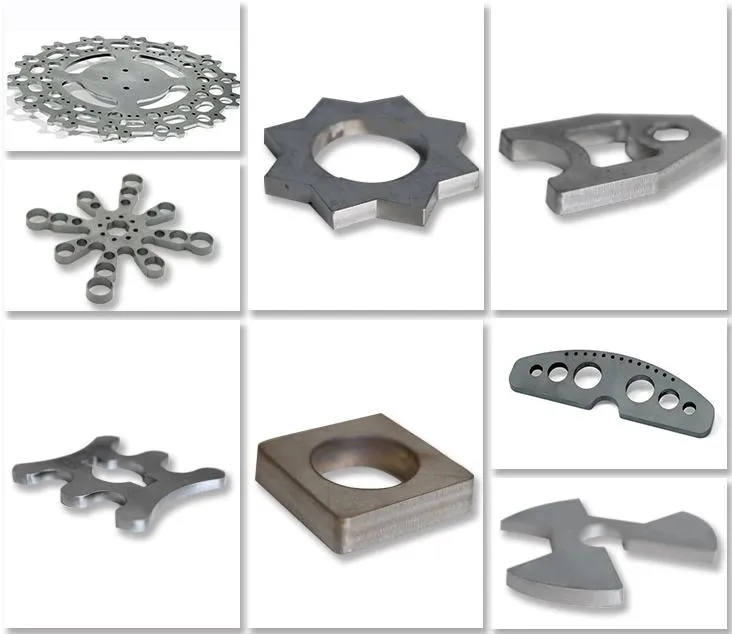

Sample Display & Certifications
Packaging & Shipping
After Sales Service
Professional team equipped with more than 200 employees providing rapid response.
👤
Customer First
⏱️
30 Mins Response
🌐
24/7 Online Service
Frequently Asked Questions (FAQ)
Q: What materials can this fiber laser cutting machine process?
A: It is primarily designed for metal processing, including carbon steel, aluminum plates, and various other metal products.
Q: What are the available laser power options?
A: The power ranges from 1500W up to 8000W, depending on the specific model (G3015A, G4020A, or G6020A).
Q: How does the exchange platform benefit the production process?
A: The double exchange platforms, driven by wide chains and taper pins, allow for simultaneous loading/unloading while cutting, significantly increasing efficiency.
Q: What kind of CNC system does the machine use?
A: It utilizes an Alpha T Bus CNC System which supports high-speed data transmission via network cable and is compatible with DXF, DWG, PLT, and NC codes.
Q: What is the after-sales response time?
A: We provide a 30-minute quick response and 24/7 online service to ensure minimal downtime for our customers.
Q: Is the machine compatible with nesting software?
A: Yes, it is fully compatible with professional nesting software to optimize cutting paths and reduce material waste.
