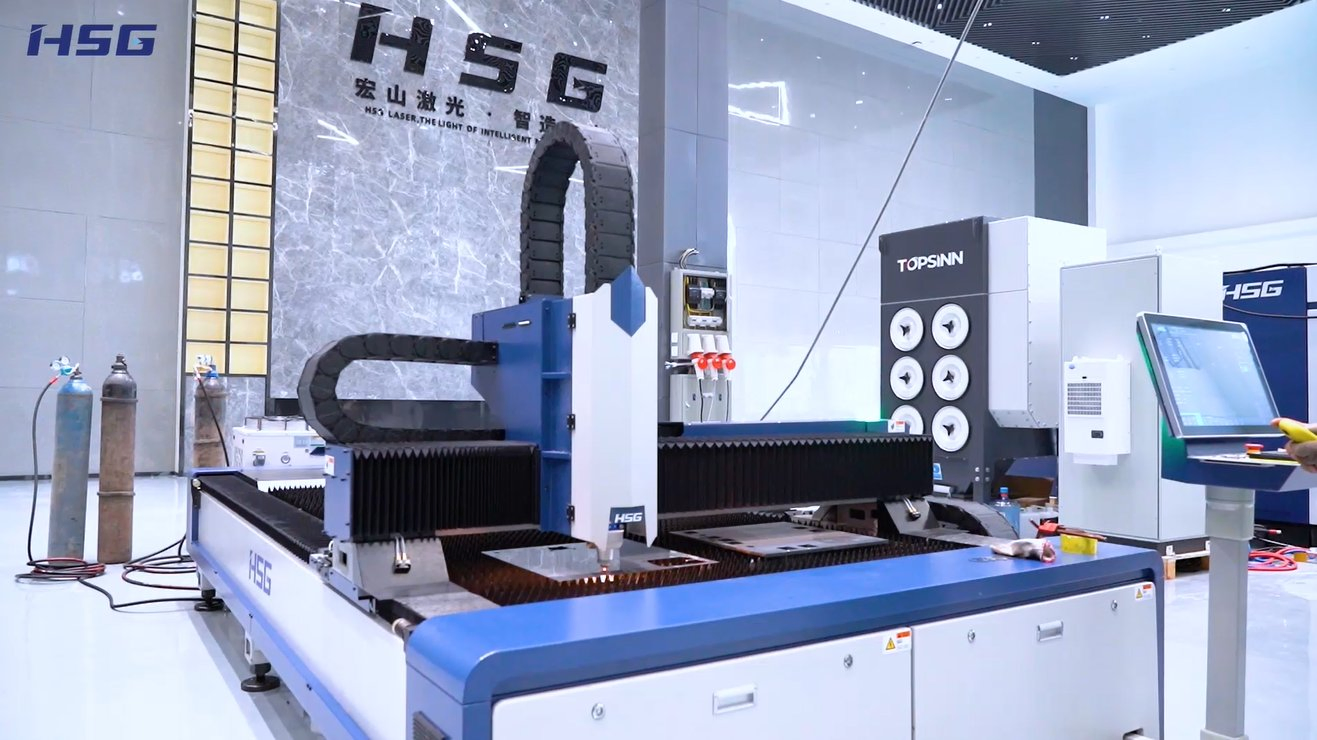

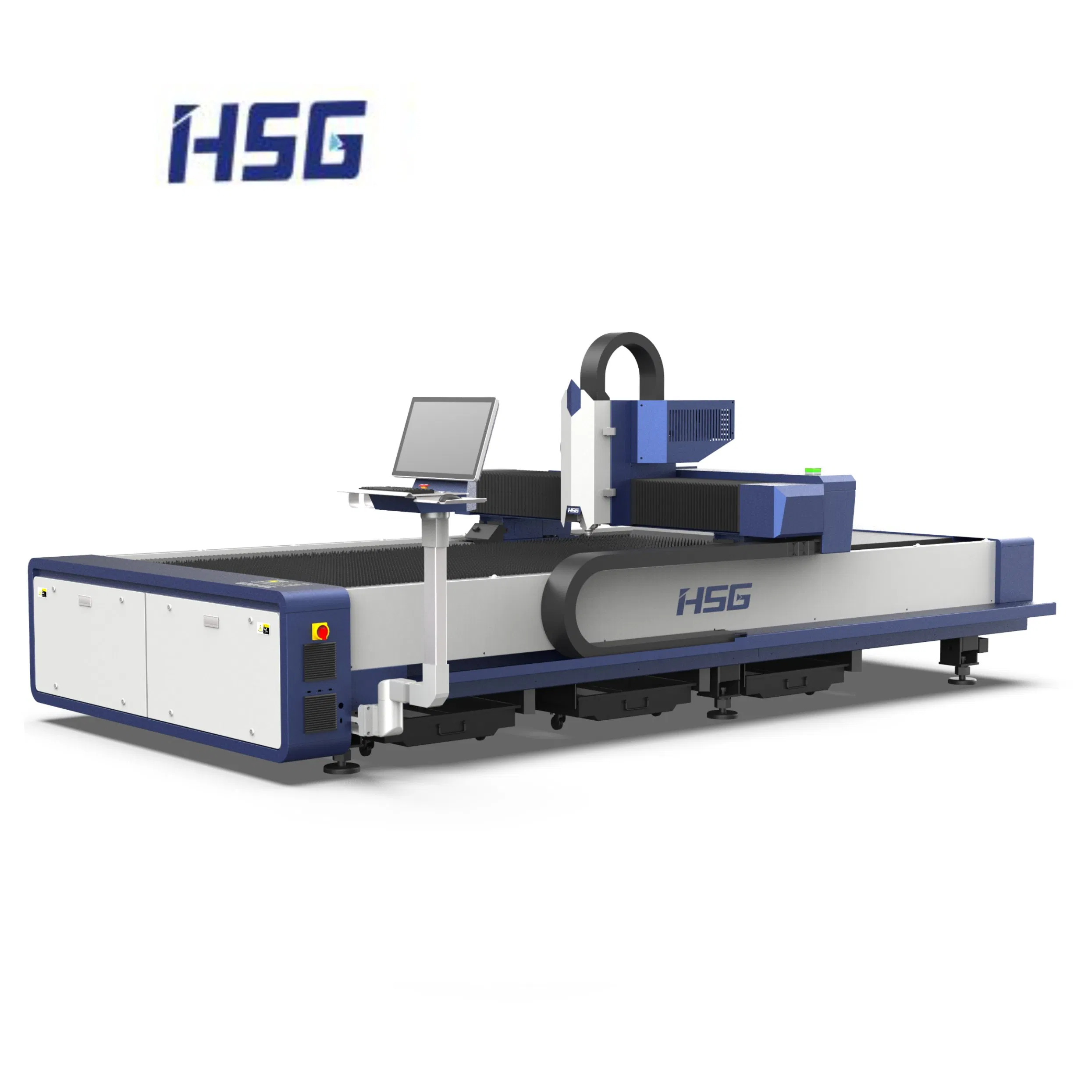

The fiber laser cutting machine series offers power options from 1500W to 12000W, specifically designed for high-precision metal sheet processing. With a compact footprint of only 4900mm*2250mm, it provides an efficient solution that can be integrated into production rapidly.

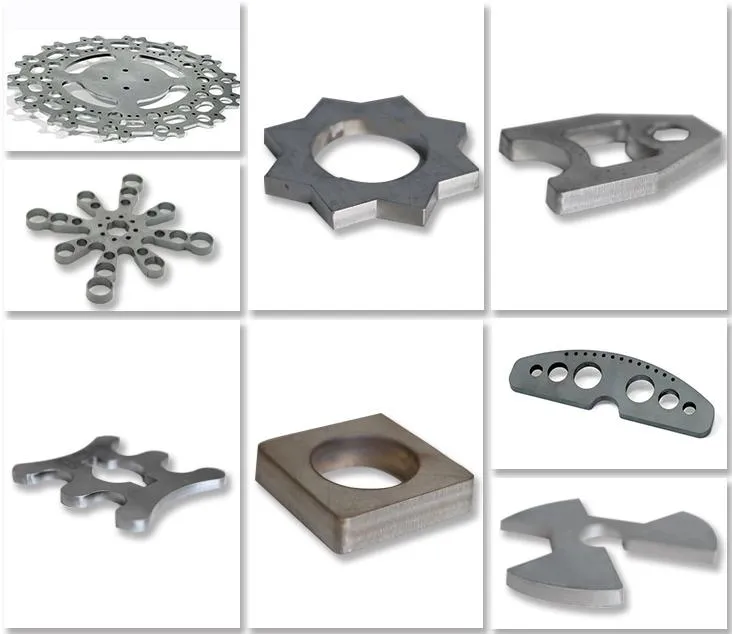

Applicable Materials: Stainless steel and aluminum (0.5-8mm), carbon steel (0.5-16mm), brass (0.5-6mm), copper (0.5-4mm), galvanized plates, and cold-rolled sheets.
Industry Applications: Widely used in external processing of metal sheets, home decorations, elevators, aerospace components, and precision instruments.
| Model | Power | Working Area (L*W) | Positioning Accuracy | No-load Speed | Loading Weight | Overall Dimensions |
|---|---|---|---|---|---|---|
| G3015C III | 1500W-6000W | 3000*1500mm | ±0.03mm/m | 140m/min | 700kg | 4900*2250*1700mm |
| G4015C III | 1500W-6000W | 4000*1500mm | ±0.03mm/m | 140m/min | 1050kg | 5560*2250*1700mm |
| G4020C III | 1500W-6000W | 4000*2000mm | ±0.03mm/m | 140m/min | 1400kg | 6015*3300*1700mm |
| G6015C III | 3000W-6000W | 6000*1500mm | ±0.03mm/m | 140m/min | 1500kg | 8300*2800*1700mm |
| G6020C III | 3000W-6000W | 6000*2000mm | ±0.03mm/m | 140m/min | 2000kg | 8300*3300*1700mm |
| G8025C III | 6000W-12000W | 8000*2500mm | ±0.03mm/m | 120m/min | 3200kg | 10500*3600*1700mm |
| G12025C III-H | 6000W-12000W | 12000*2500mm | ±0.03mm/m | 100m/min | 3200kg | 15300*3800*1700mm |

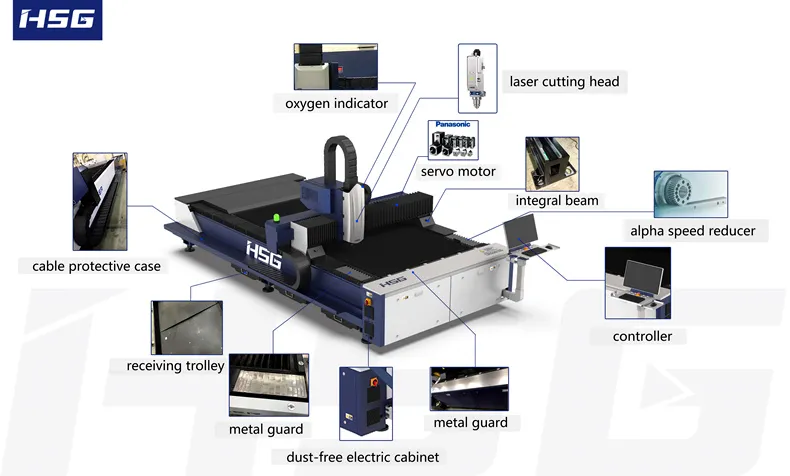

1. Core Components: Dual servo motors with rotating speeds up to 3750r/min, equipped with German WITTENSTEIN alpha speed reducers.

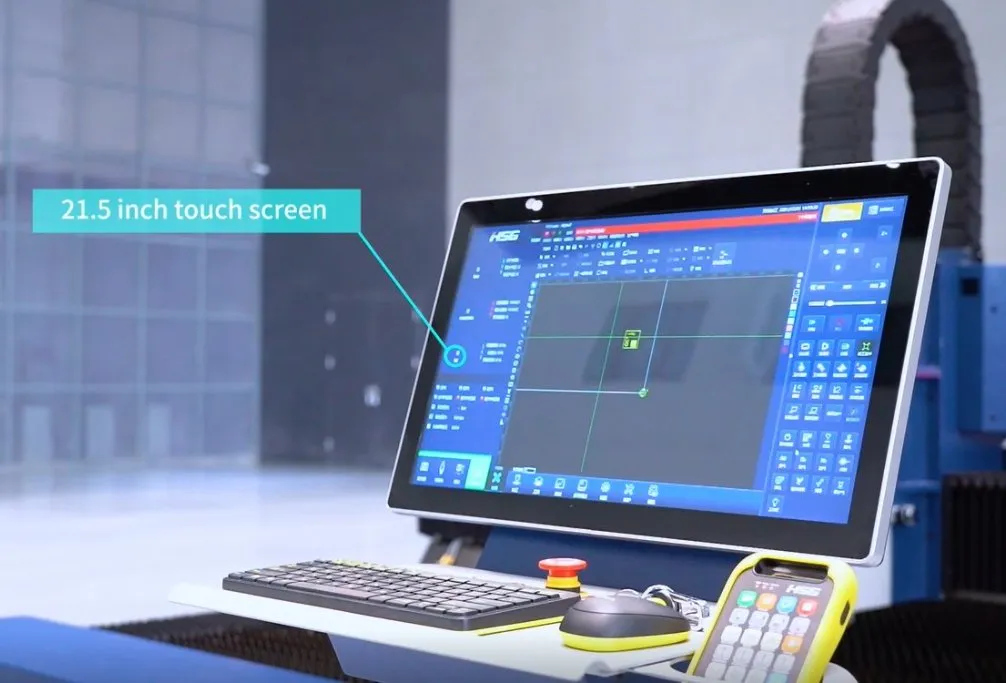

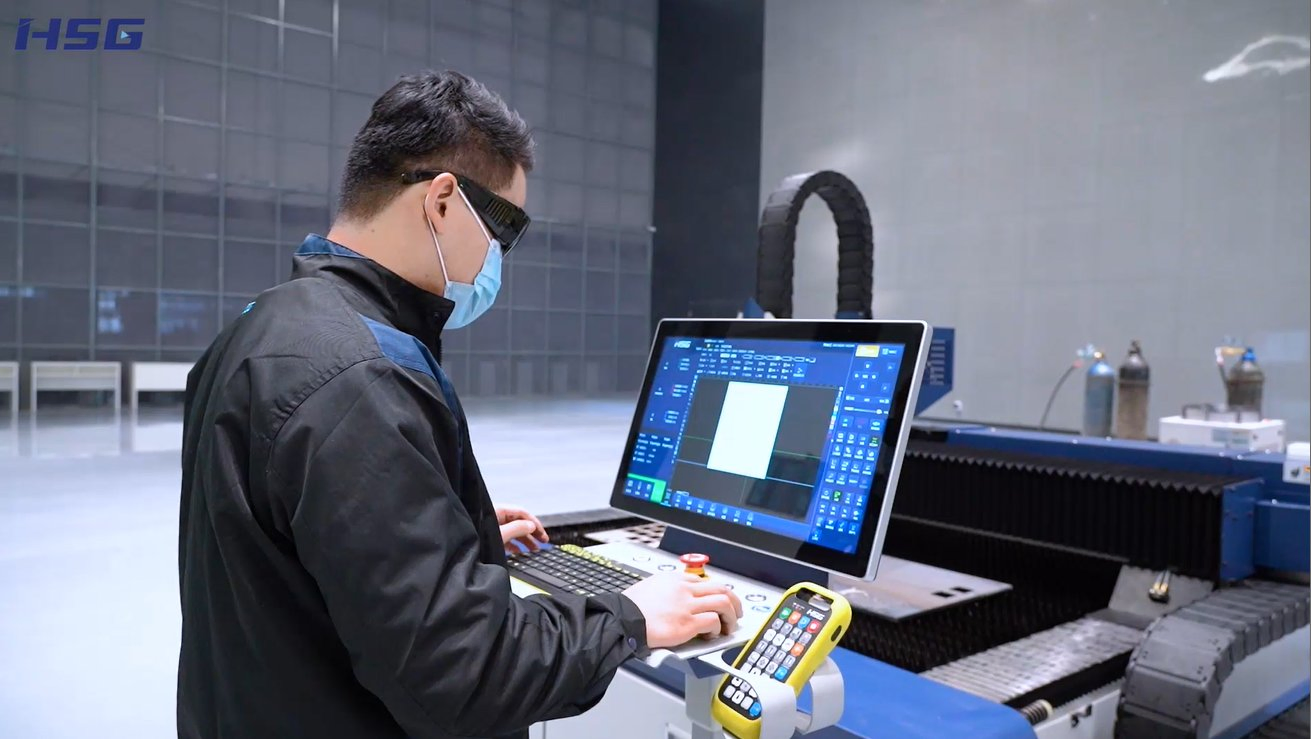

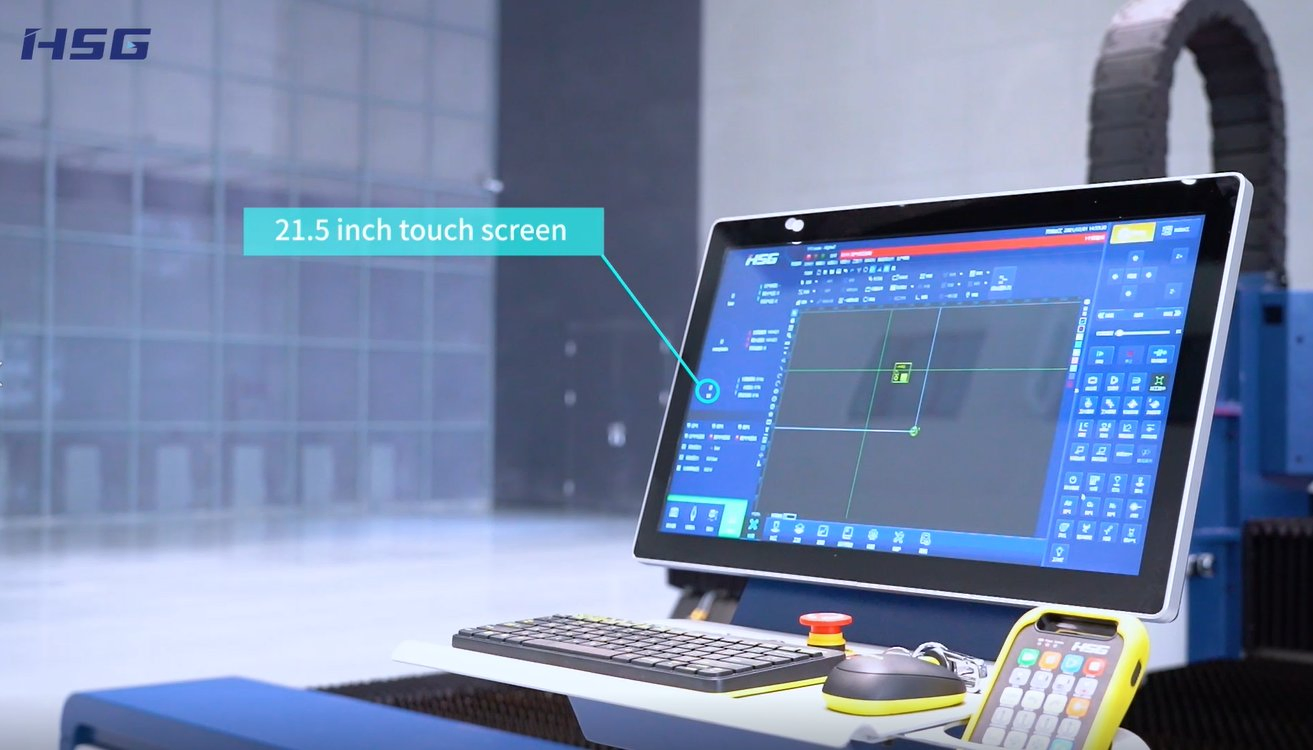

2. Alpha T Bus CNC System: User-friendly interface with 2000+ process data presets. Supports DXF, DWG, PLT, and NC codes.

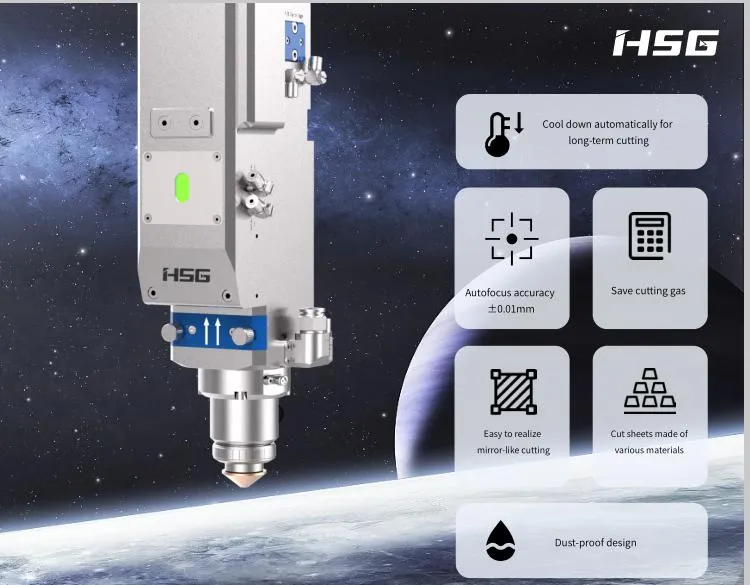

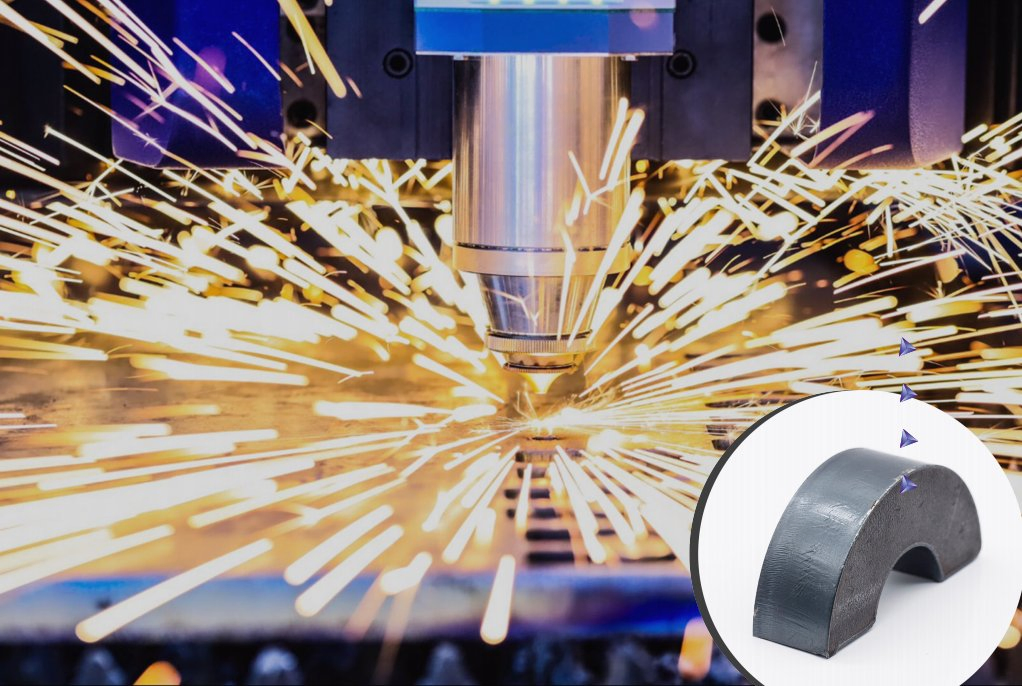

3. Autofocus Cutting Head: Accuracy of ±0.01mm with self water-cooling and anti-pollution design to enable mirror-like surface cutting.
4. Extruded Aluminum Beam: Designed with a honeycomb anti-compression structure, manufactured using a high-grade extrusion molding process.

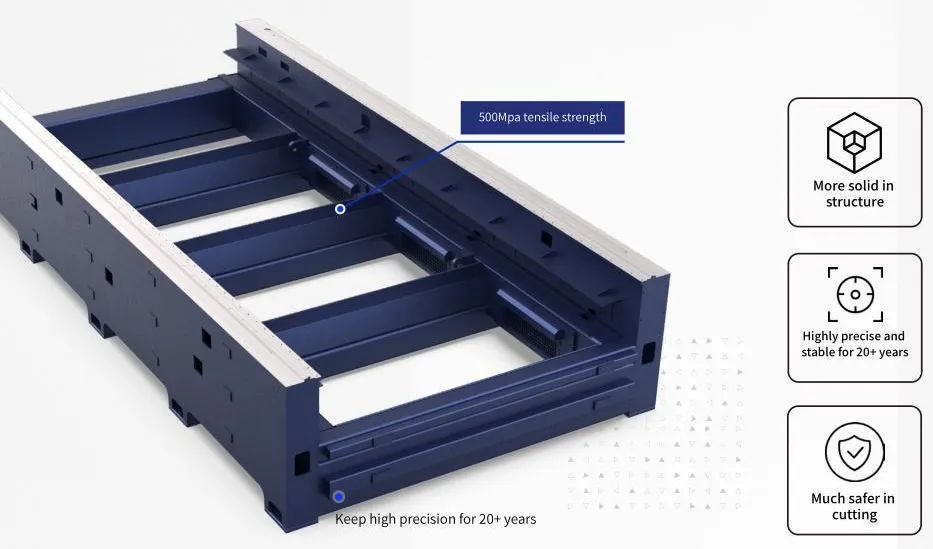

5. Carbon Steel Welded Bed: High-quality carbon steel ensures 20 years of use without deformation, offering high rigidity and low heat absorption.
6. Quality Assurance: Every unit undergoes rigorous component checks and full-machine testing before delivery.
