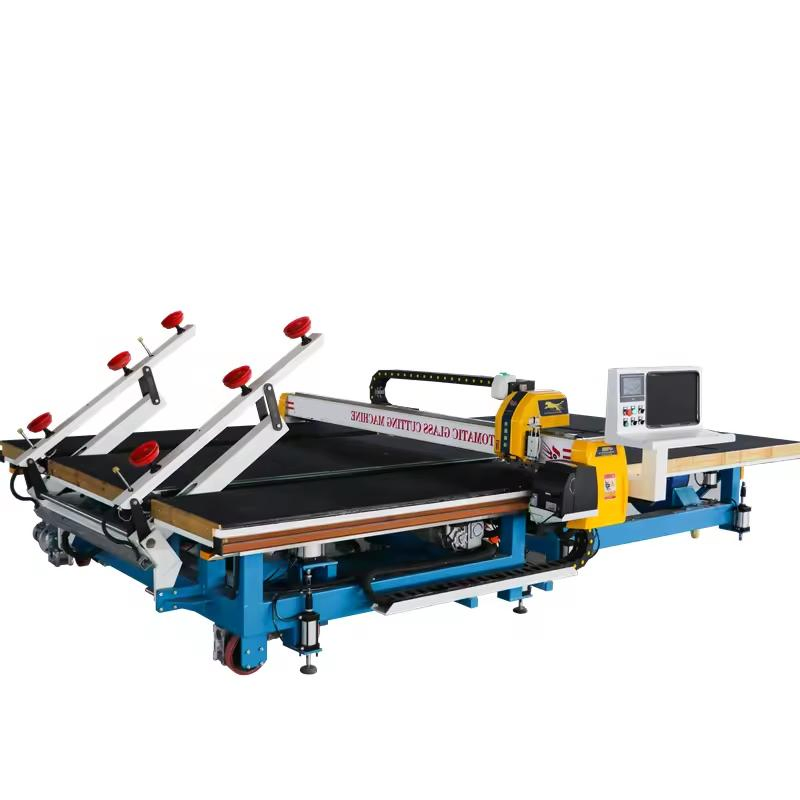

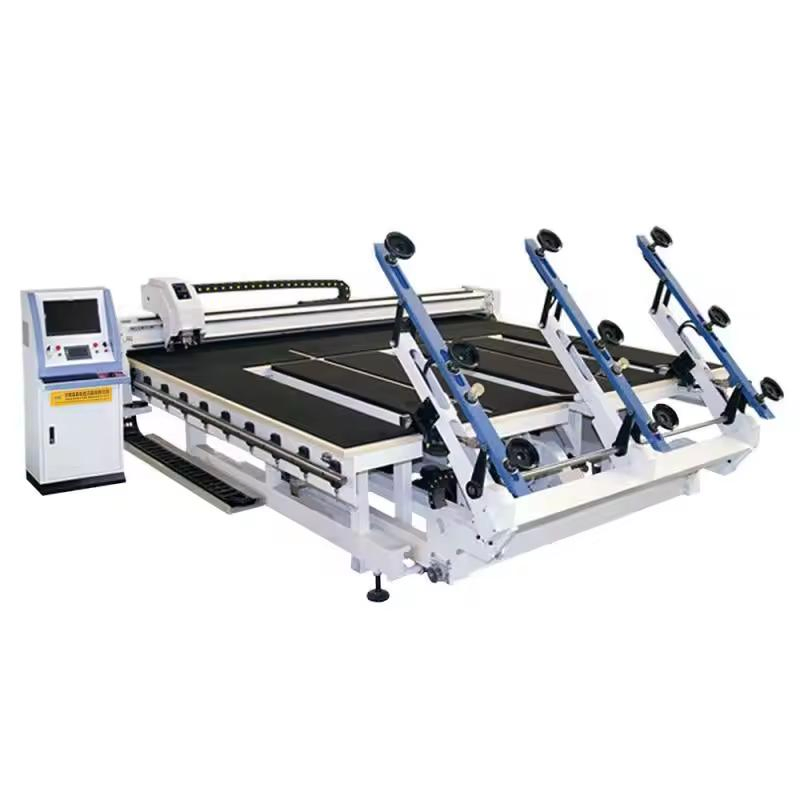

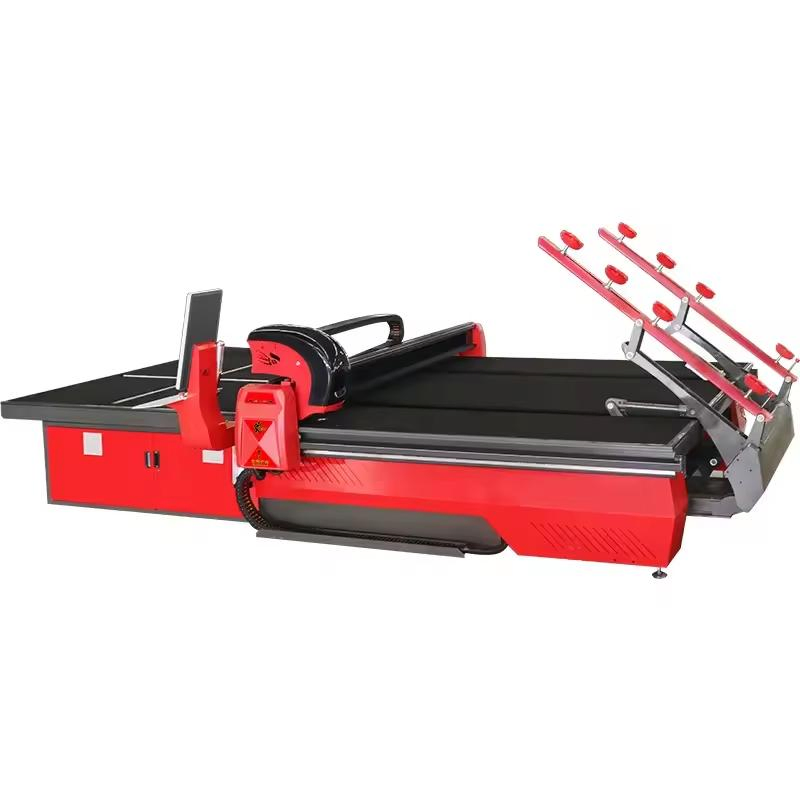

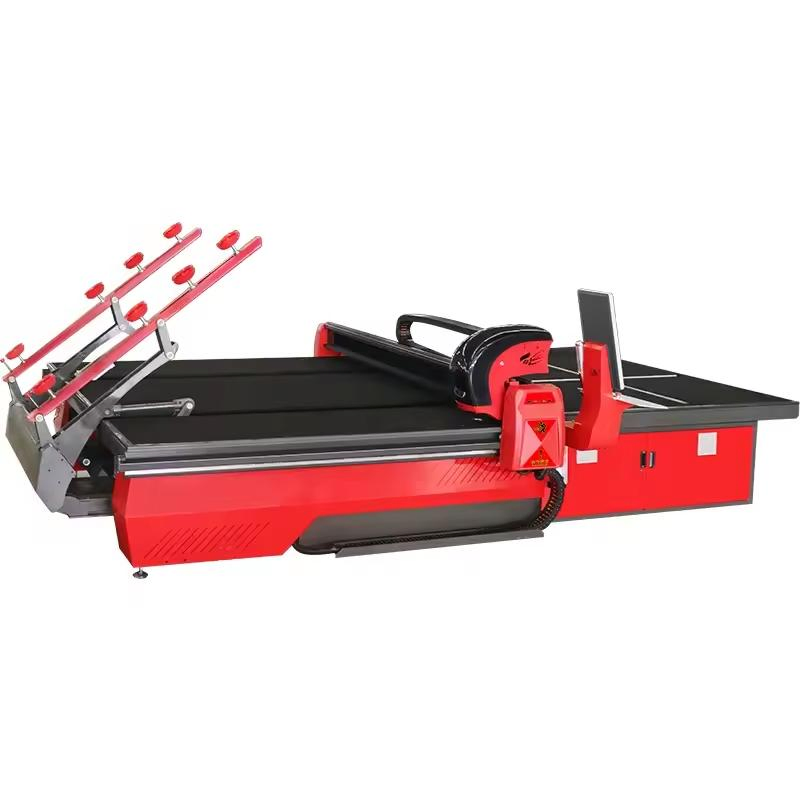

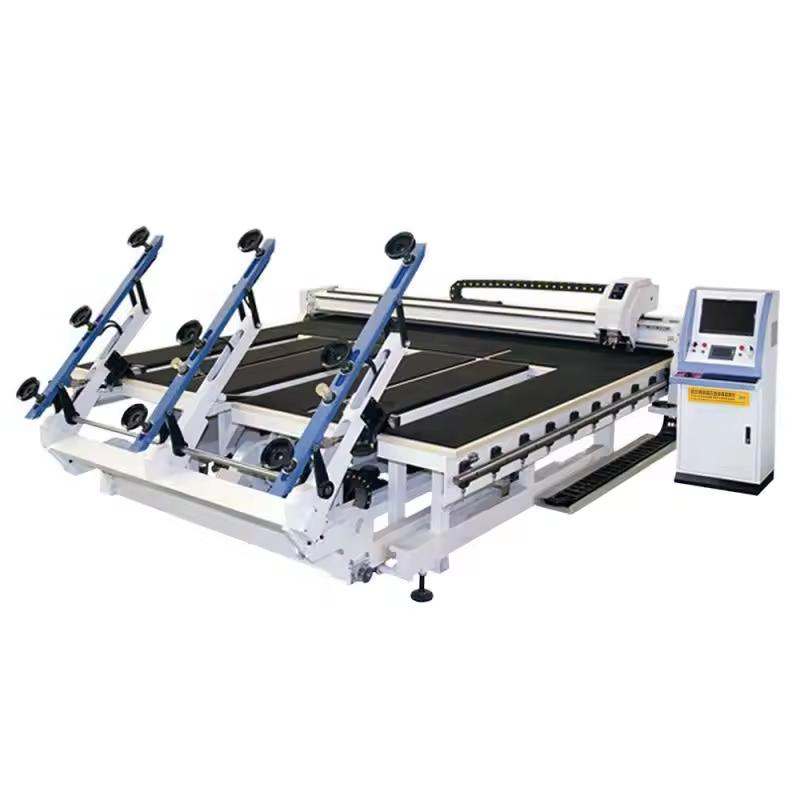

Full Automatic Advanced CNC Systems for Precision Glass Cutting

1 / 5

Full Automatic Advanced CNC Systems for Precision Glass Cutting

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Safety Features:Emergency Stop Button, Overload Protection, Safety Sensor

Cutting Thickness:2-19mm

Cutting Speed:0-180m/Min

Loading Speed:15-40 Seconds

Work Table Height:850mm

Type:Glass Cutting Machine

Structure:Horizontal

Control System:PLC

Condition:New

Warranty:1 Year

After-Sales:24-Hour Online Service

HS Code:8464901100

Production Capacity:10000 Pieces/Year

CNC Glass Cutting Machine Series

Loading, Deliver, Cutting & Break off the table - 4 in 1
Loading, Delivery & Cutting - 3 in 1
Loading & Cutting - 2 in 1

How to identify a high-quality glass cutting machine?

Selecting the right equipment is crucial for production efficiency. Here are key technical insights to help you evaluate machine quality:

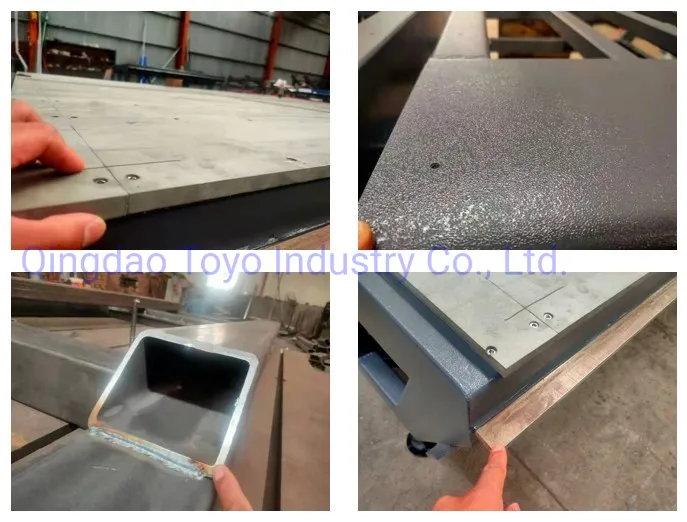

1. Precision Countertops

Our countertops use PVC resin plates featuring high hardness, zero deformation, and water/oil-proof properties. Unlike foam or density boards that warp under humidity, our PVC boards are processed via precision centers to ensure a super smooth surface. This allows for cutting glass as thin as 2mm without cracking.

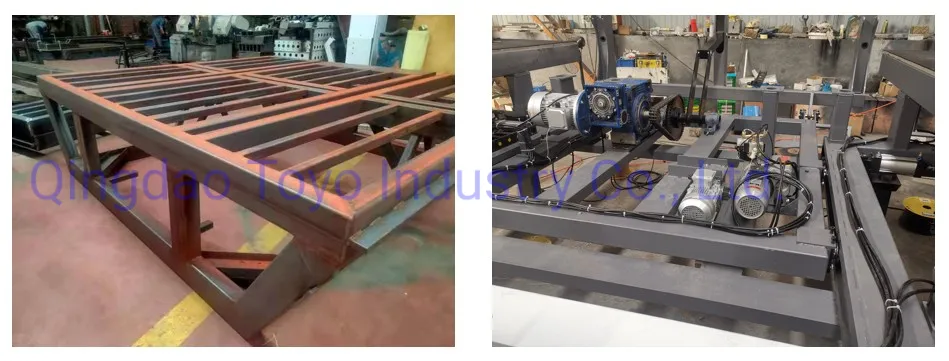

2. Superior Frame Structure

The entire frame undergoes annealing heat treatment after welding to release internal stress, preventing long-term deformation. We utilize processed steel beams rather than unstable aluminum. Our design features flat-mounted linear guides on both sides for even force distribution, ensuring stability, low noise, and accuracy ≤0.2mm.

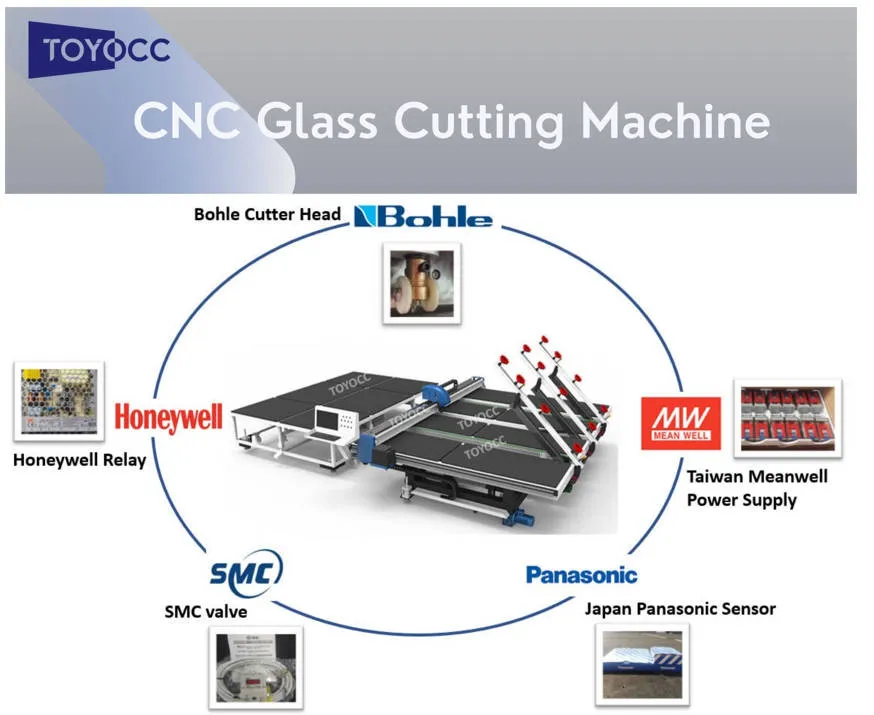

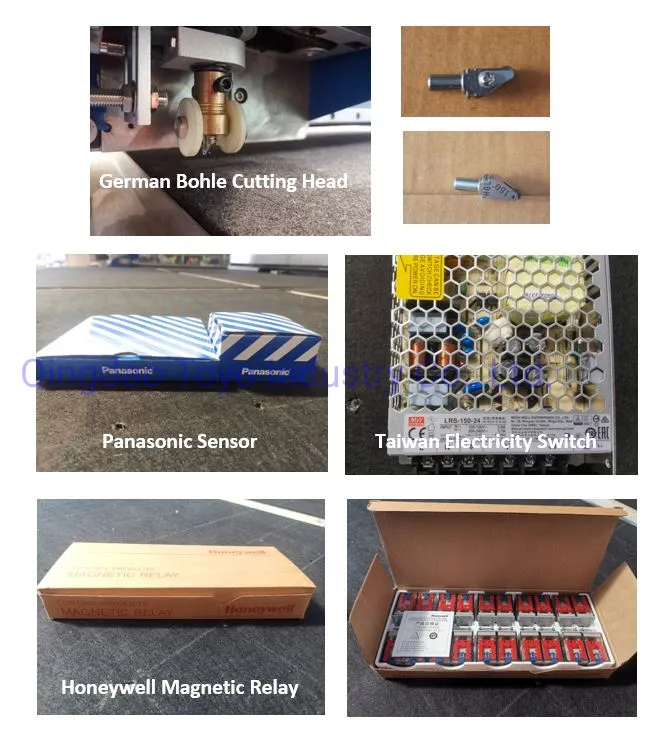

Main Component Configurations

◈ Japan Panasonic Sensor
◈ German Bohle Cutter Head
◈ American Honeywell Electrical Relays
◈ Taiwan AirTAC Air Cylinder
◈ Taiwan Meanwell Power Supply
◈ Japan Mitsubishi PLC Control
◈ Dual Motor Heads for Cutting Drive
◈ 360-degree Rotation & Free Movement

Technical Parameters

Technical Parameters	TYJT-2420	TYJT3628
Dimensions	363047001400mm	391047001450mm
Working Table Height	850mm	850mm
Max Processing Size	2440*2000mm	3660*2800mm
Cutting Thickness	2-19mm	2-19mm
Cutting Speed	0-180m/min	0-180m/min
Voltage & Air Pressure	380V/50HZ, 0.6MPA	380V/50HZ, 0.6MPA
Loading Speed	15-40 seconds	15-40 seconds
Installed Power	11.8 KW	11.8 KW
Net Weight	3000KG	3100KG

Glass Break-off Table Parameters

Technical Parameters	TYJT-2420	TYJT3628
Dimensions	25002000810mm	26004020810mm

Key Operational Details

Smart Suction System

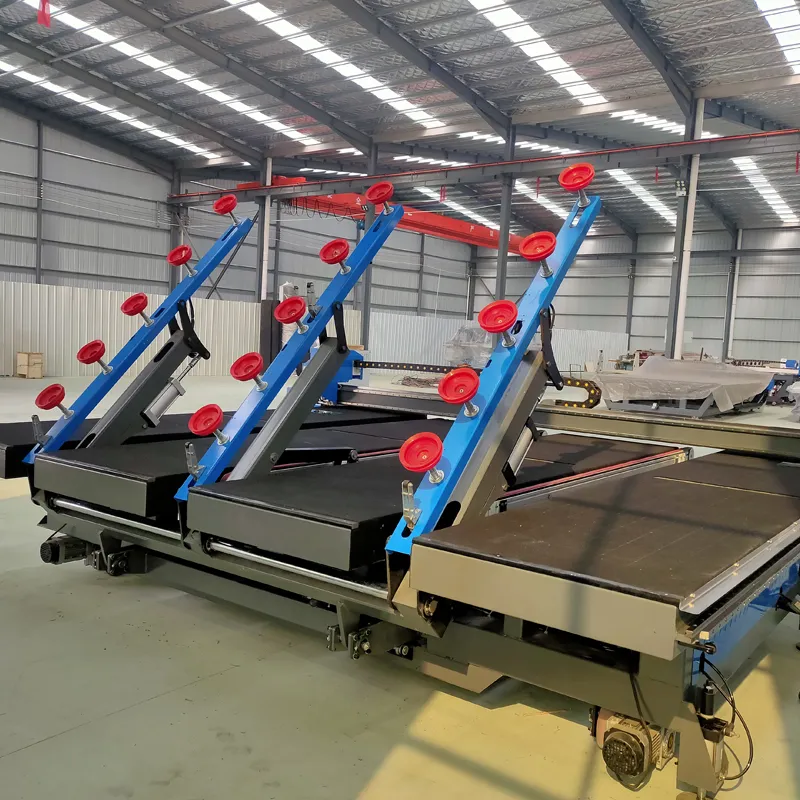

One-touch glass loading. The machine automatically raises the boom, rotates to find the angle, and utilizes a suction monitoring system to lift and scan the glass sheet automatically.

Smart Typography & Auto-Cutting

Input size and shapes via the control panel for optimized layout. The German Bohle cutter head rotates 360 degrees to execute precise cuts automatically, significantly improving efficiency.

Air Floating Platform

Equipped with over one hundred evenly distributed air holes, the system creates a stable air cushion, making it effortless to push, pull, and position large glass sheets.

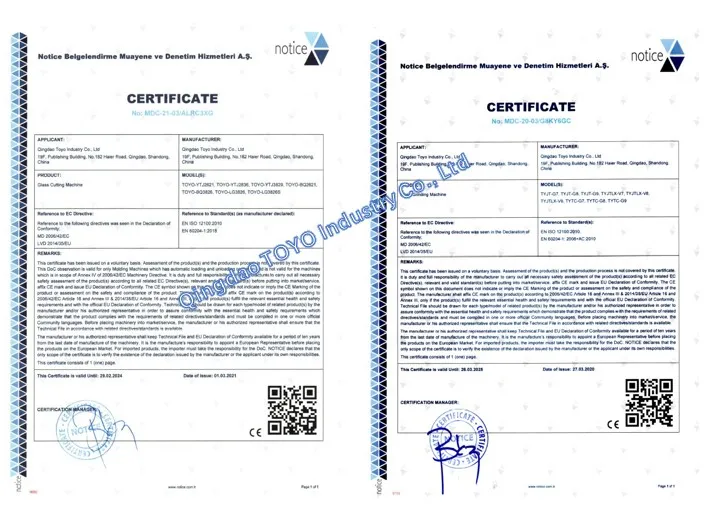

Product Gallery & Certifications

Frequently Asked Questions (FAQ)

1. What is the maximum and minimum glass thickness this machine can cut?

The CNC glass cutting machine can handle glass thicknesses ranging from 2mm to 19mm, controlled via a precise air pressure system.

2. Why is annealing treatment important for the frame?

Annealing releases internal stress in the steel after welding. This ensures the frame does not deform over time, maintaining a cutting accuracy of ≤0.2mm throughout the machine's lifespan.

3. What are the benefits of the PVC resin plate countertop?

Our PVC resin plates offer high hardness, waterproof and oil-proof properties, and zero deformation. This provides a flatter surface compared to foam or density boards, preventing thin glass from cracking.

4. How long does the automatic loading process take?

The integrated smart suction and loading system can complete a loading cycle in approximately 15 to 40 seconds.

5. Does the machine support irregular shape cutting?

Yes, the machine uses a German Bohle cutter head capable of 360-degree rotation, allowing for the automatic cutting of any shape based on your optimized digital layout.

6. What safety features are included?

The machine is equipped with multiple safety features including Emergency Stop Buttons, Overload Protection, and Safety Sensors to protect both the operator and the equipment.
