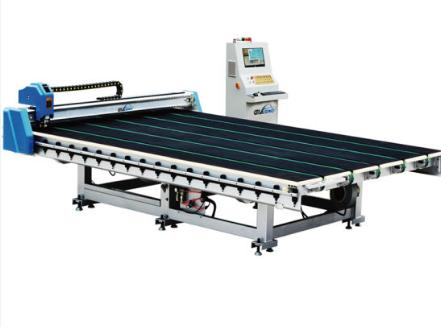

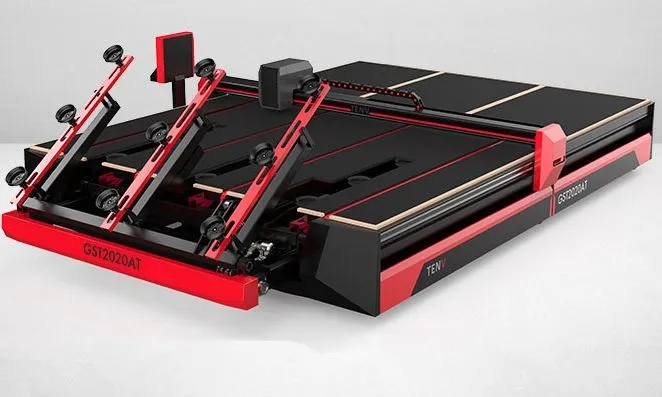

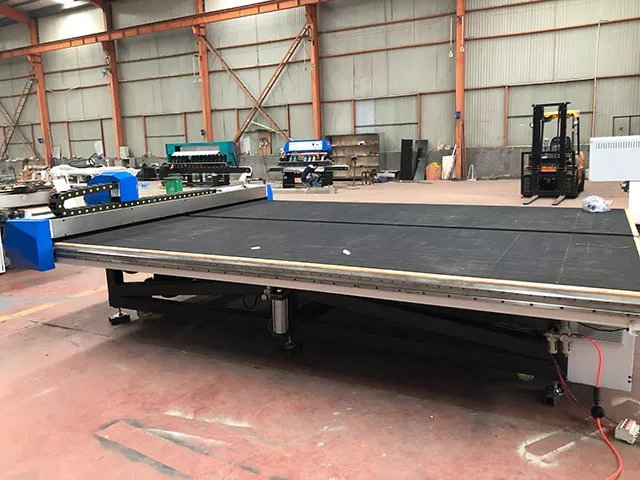

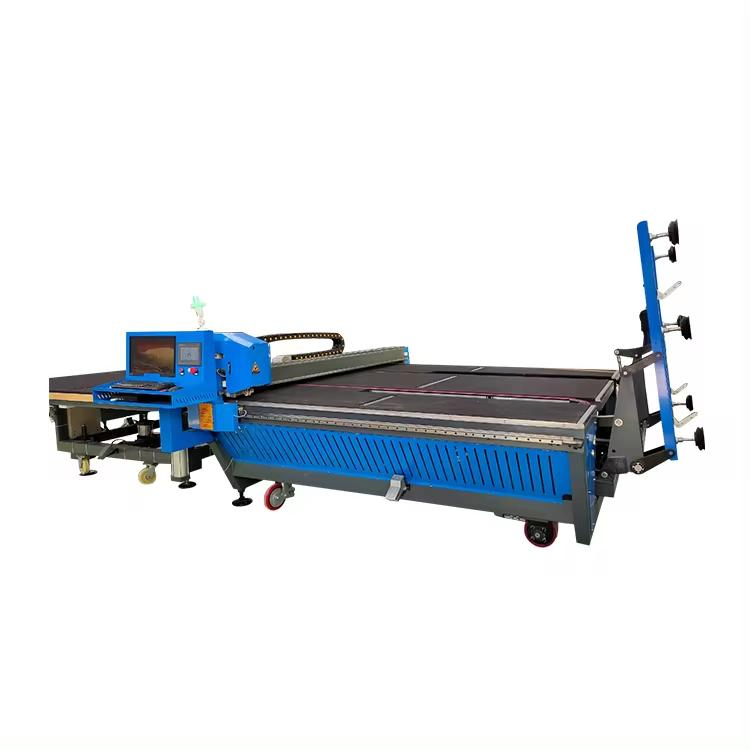

High-Speed Automatic Glass Cutting System

1 / 5

High-Speed Automatic Glass Cutting System

Customization:	Available
Certification:	CE, FDA, ISO, UR
Platform Board:	Imported Material Waterproof & Fire Rate

Send Inquiry

Product Description

Basic Information

Toothed Rack

Crescent Grinding Helical Racks

Table Surface

Air-Floating Felt Surface, Black Felt

Positing System

Japanese Panasonic Automatic Patrol

Computer

Industrial Computer

Optimization System

Guiyou Brand

Servo

Inovance

Cutting Head

Imported Germany Cutter

Max Glass Size

2440*3660mm

Glass Thickness

3-19mm

Loading Speed

30-50 Seconds

Max Loading Depth

450mm

Working Table Height

900±50mm

Loading Arms

3 Arms with 4 Cups on Each Arm

Cutting Accuracy

≤±0.15mm/M

Production Capacity

50000 sets Per Year

Product Description

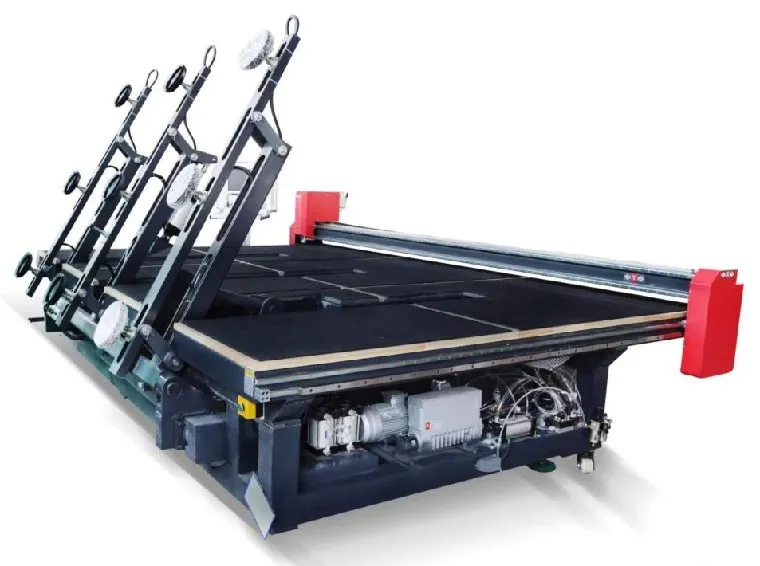

This equipment integrates glass loading, air flotation breaking, straight line cutting, and special-shaped cutting. It occupies a small footprint and is designed for simple, safe operation. Managed via remote control for free movement within the workshop, it utilizes advanced mechanical structures and optimization software to maximize stability and cutting quality.

Integrated loading, cutting, and air-floating functions in one machine.
Supports straight line and irregular shape cutting.
Remote control for easy mobility in limited factory space.
High-end cutting and matching optimization systems.
Dual-motor drive with high-performance servos.
3 loading arms with 4 suction cups per arm.
Tilting single-side loading direction.
Total power: 8KW; Compression air: 0.6Kpa.
Adjustable air pressure (-70 to 100Kpa) based on glass thickness.

Functions & Features

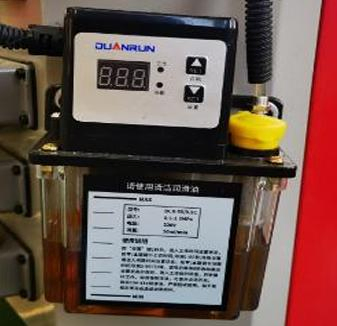

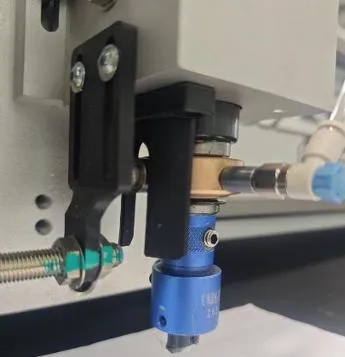

Cutting Technology & Automatic Oil Supply
Professional control system for straight and special-shaped glass. Electromechanical precision pressure valves ensure the cutting head fits the glass surface perfectly, avoiding issues from glass quality. Oil is automatically filled via pneumatic control.

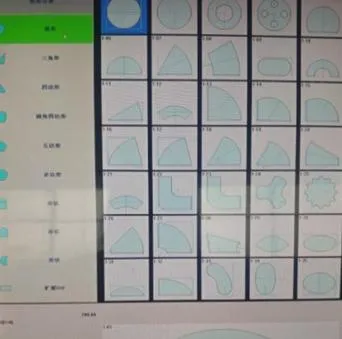

Optimization Software & Libraries
Compatible with standard G-code and international optimization formats. The system is designed to reduce waste and improve glass utilization rates. Includes a library of special-shaped patterns for diverse cutting needs.

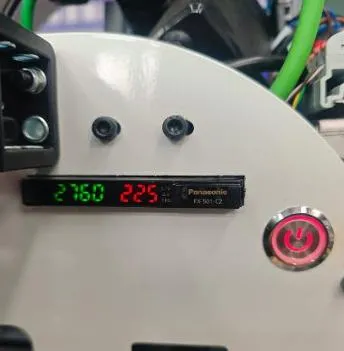

Automatic Edge Positioning & Scanning
Accurately detects the position and deflection angle of glass, automatically adjusting the path. Intelligent scanning can profile special-shaped templates from various materials to generate graphics automatically.

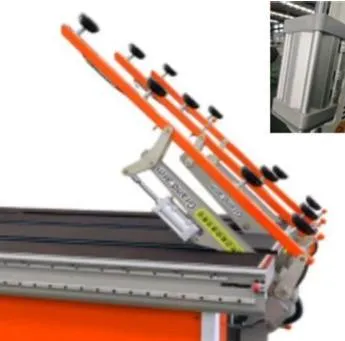

Telescopic Boom & Automatic Loading
Equipped with 3 arms and NBR suction cups. The telescopic structure replaces moving the entire machine, improving safety and doubling loading efficiency while preventing double-sheet suction hazards.

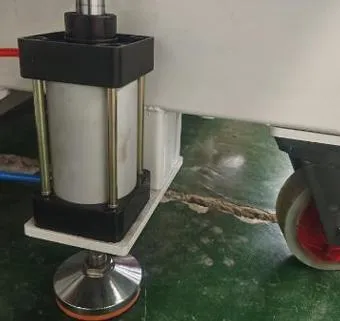

Machine Walking & Locking
Remote control allows for arbitrary turning and walking in the workshop. Foot cylinders lock the machine in place during cutting to ensure stability and precision.

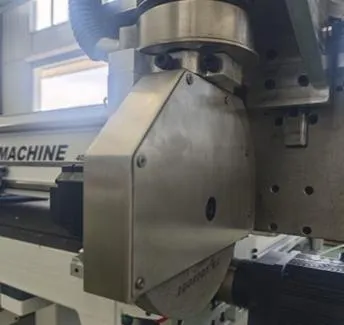

High Performance LOW-E Film Removal
Removes the low-e layer with 20mm or 25mm wheels. Features automatic dust removal, automatic pressure compensation, and the ability to process rectangular or special shapes without manual depth adjustment.

Product Parameters

Platform Board	Toothed Rack	Table Surface	Positing System
Waterproof & Fire Rate (≤±0.020mm)	Crescent grinding helical racks	Air-floating felt surface	Japanese PANASONIC patrol
Computer	Optimization System	Servo	Cutting Head
Industrial computer	GUIYOU brand	INOVANCE	Imported Germany cutter
Max Glass Size	Glass Thickness	Loading Speed	Max Loading Depth
2440*3660mm	3-19mm	30-50 seconds	450mm

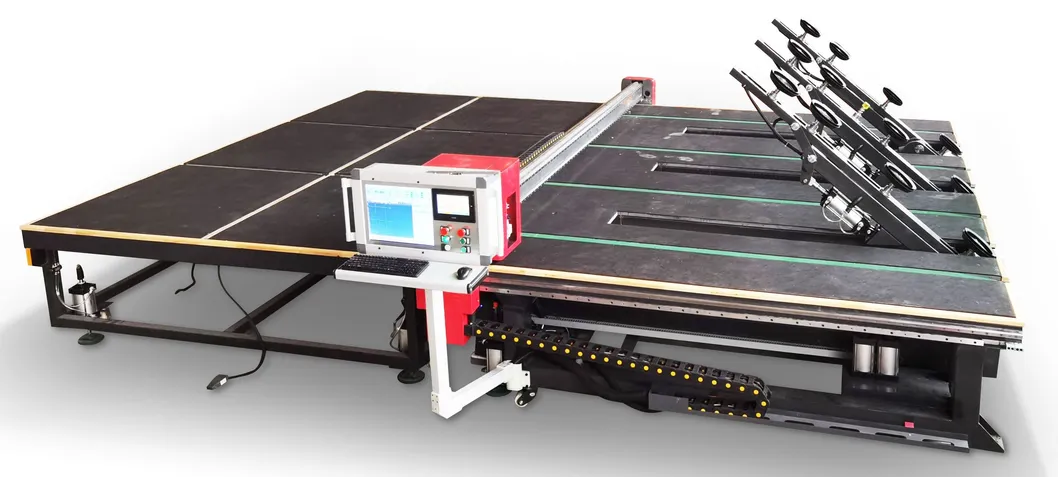

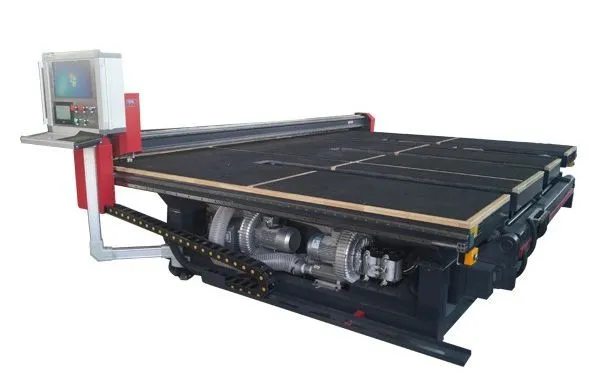

Detailed Photos

After Sales Service

Free installation, commissioning, and pre-job technical training.
One-year free maintenance (excluding human factors) and lifelong technical services.
Customer service response time within 24 hours.
Lifetime free upgrades for cutting software.
Regular performance testing to ensure normal equipment operation.

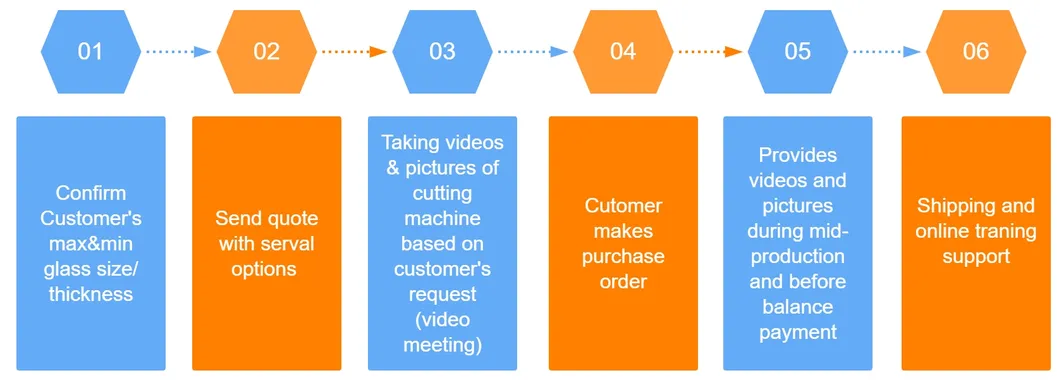

Purchasing Process
