Smart Glass Cutting and Loading Automation System for Efficient Production

Customization:	Available
Certification:	CE, ISO
The Cutting Thickness:	3~19mm

Send Inquiry

Product Description

Basic Specifications

Model NO.

CNCL-3726

Speed

50-70/Sec

Cutting Speed

180m/Minute

Outline Size

4200*3800*900mm

Max Cutting Size

3660*2440mm

Voltage

380V/50Hz

Max Loading Weight

1000kg

Machine Power

10kw

Type

Glass Cutting Machine

Structure

Horizontal

Control System

PLC

Condition

New

Warranty

One Year

HS Code

8464201000

Production Capacity

10 Sets/M

Origin

China

★

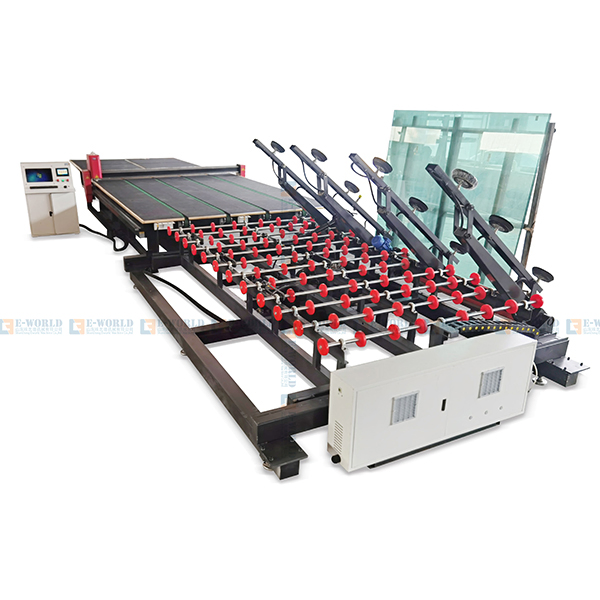

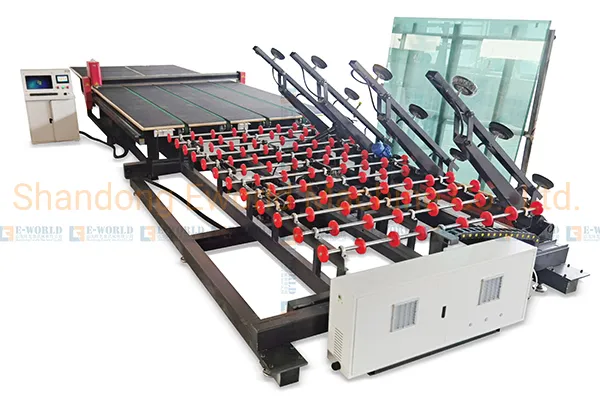

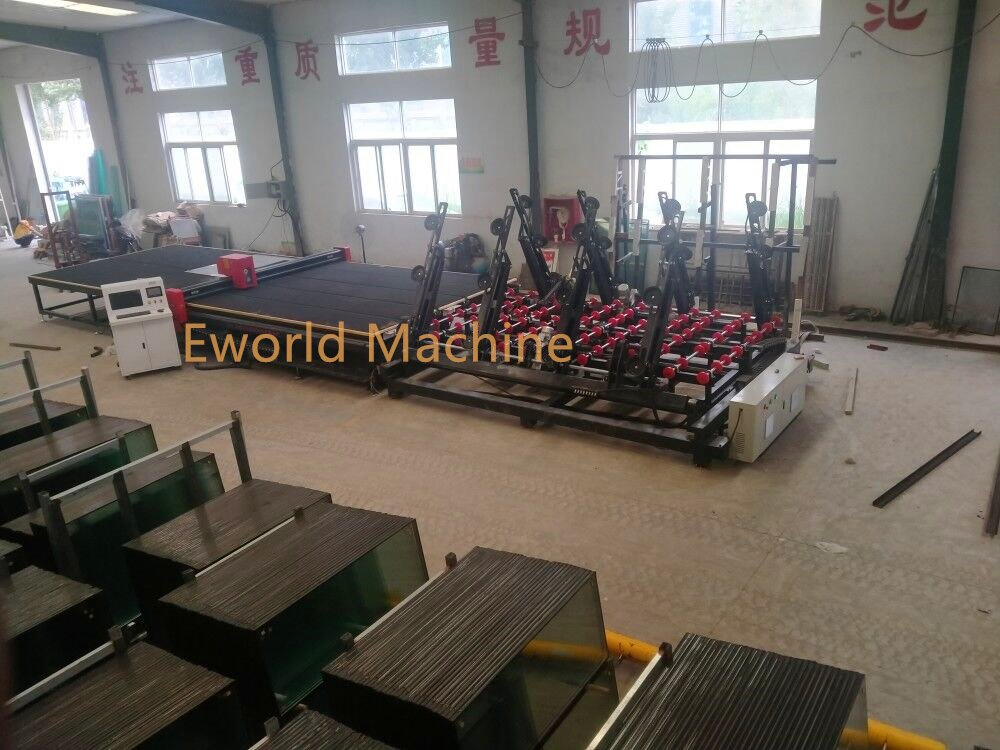

CNCL-3726 Full-Auto Glass Cutting Machine Production Line

Production line includes three main units:

1. CNCL-3726 Auto glass loading machine
2. Full-Auto shaped glass cutting machine
3. Glass breaking table

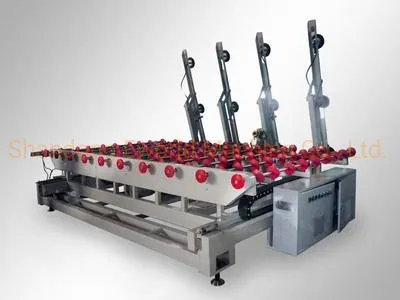

PART ONE: Auto Glass Loading Machine

Technical Parameters:

Thickness: 3-19mm
Speed: 50-70/sec (adjustable)
Max loading weight: 1000kg
Machine power: 10kw/380v
Air tolerance: 6kg (dryness and low-pressure air)

Key Features:

6 suckers and one suit of tool
Foreign hydraulic pressure system and air value pump
Low-pressure element made in Germany, PLC made in Japan
Pneumatic system made in SMC, Japan
Auto-loading with enhanced security

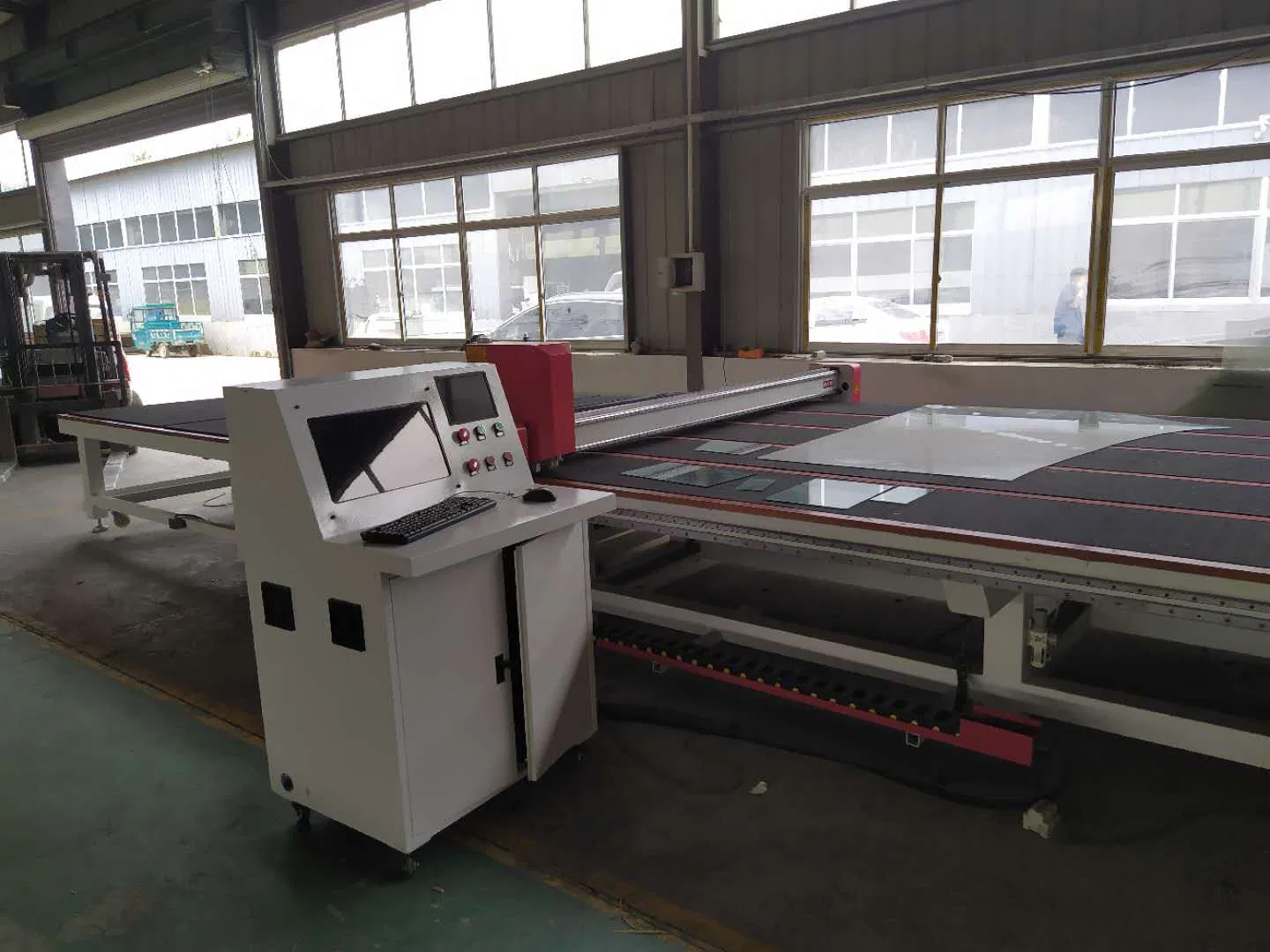

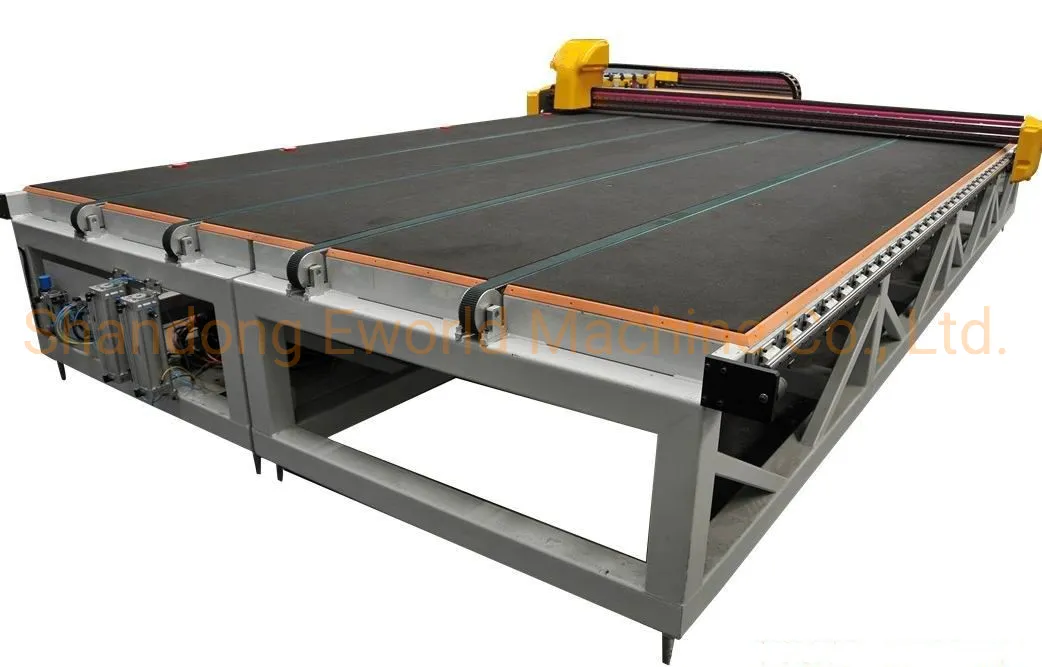

PART TWO: Full-Auto Shaped Glass Cutting Machine

Technical Parameters:

Cutting thickness: 2-19mm
Cutting accuracy Parallelism: ≤±0.15mm/m
Cutting speed: 150m/minute (adjustable)
Transmission system: X, Y, Z Axis equipped with YASKAWA JAPAN servo motors.
Cutter block: Dual pneumatic and spring system; 360° rotation for any shape.
Oiling supply: Auto oiling.

Mechanical & Electrical Components:

Tabletop: Metal tabletop (smoothness ≤±0.2mm/m) with Industrial blankets from Korea.
Rack/Guides: Imported from Japan and Switzerland.
Cutter Components: BOHLE GERMANY wheels and holders.
Control: Operated by PC under Microsoft Windows.

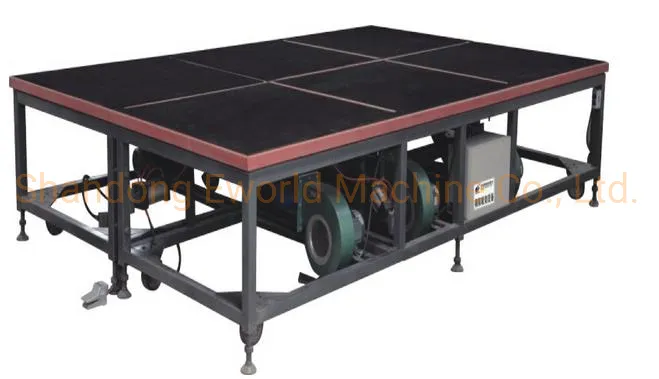

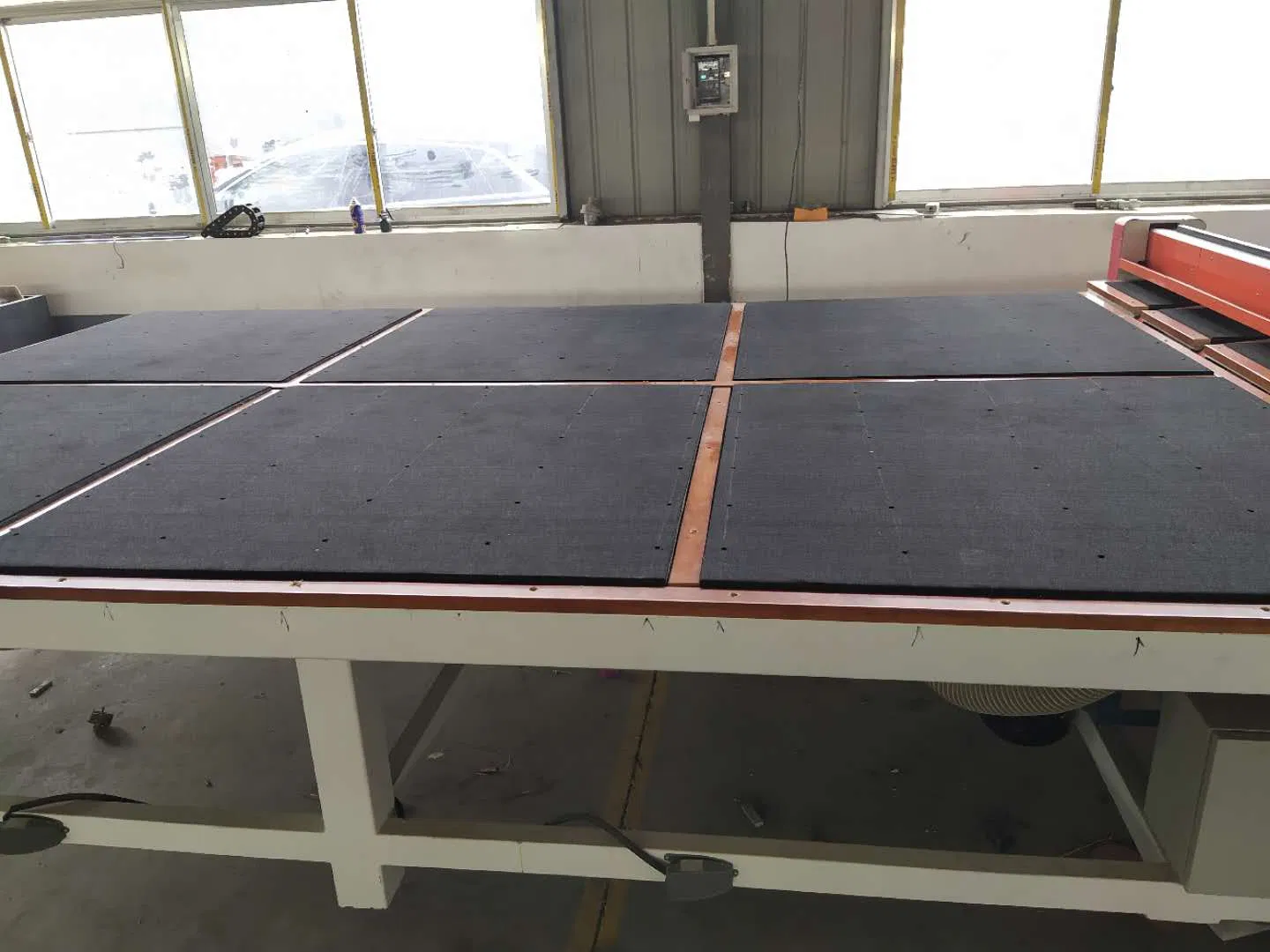

PART THREE: Auto-Pneumatic Glass Breaking Machine

Table-board size: 3800mm*2600mm
Breaking pole: Equipped with gas pump
Power: 4.4kw

Production Line Overview

Area Required: 45 sq.m
Labor: 1 person for cutting, 2 persons for breaking.
Effectiveness: 1 cycle/min.
Advantages: High cutting accuracy, automatic oil injection, and intelligent optimization to reduce glass waste.

Mechanical Parts List

Name	Brand / Source
Table surface panel	High-density waterproof panel (Imported)
Rack and rail	ALTANTA GERMANY
Belt/band pulley	KONYEAR
Cutter wheels and holder	BOHLE GERMANY

Electric Parts List

Name	Brand
Relay	OMRON JAPAN
Terminal	WAGO GERMANY
Switch/Button	MOELLER GERMANY
Servo motor	YASKAWA JAPAN
Solenoid valve	SMC JAPAN
Laser Sensor	PANASONIC
Control card	GALIL (USA)
Optimize Software	OPTIMA

Product Gallery

Frequently Asked Questions

Are you a professional manufacturer?

Yes, we are a professional manufacturer with multiple specialized workshops for glass machinery.

What is the standard warranty period?

We provide an 18-month guarantee for the machine and 2 years quality assurance for main components (excluding consumables), along with lifetime technical support.

Do you provide operation training?

Yes, we can provide professional engineering support for equipment installation, adjustment, and comprehensive operation training for your staff.

What is the delivery time for the machines?

For standard machines, delivery is typically 3-15 days. For customized or non-standard configurations, it ranges from 15 to 30 days.

Why should we choose your equipment over cheaper alternatives?

Our machines utilize premium global components (Yaskawa, SMC, Omron, Bohle). High-quality internal electrical parts significantly reduce breakdown rates and ensure long-term stability.

What payment methods are accepted?

We accept various payment methods including T/T, L/C, D/P, and West-Union to suit your requirements.
