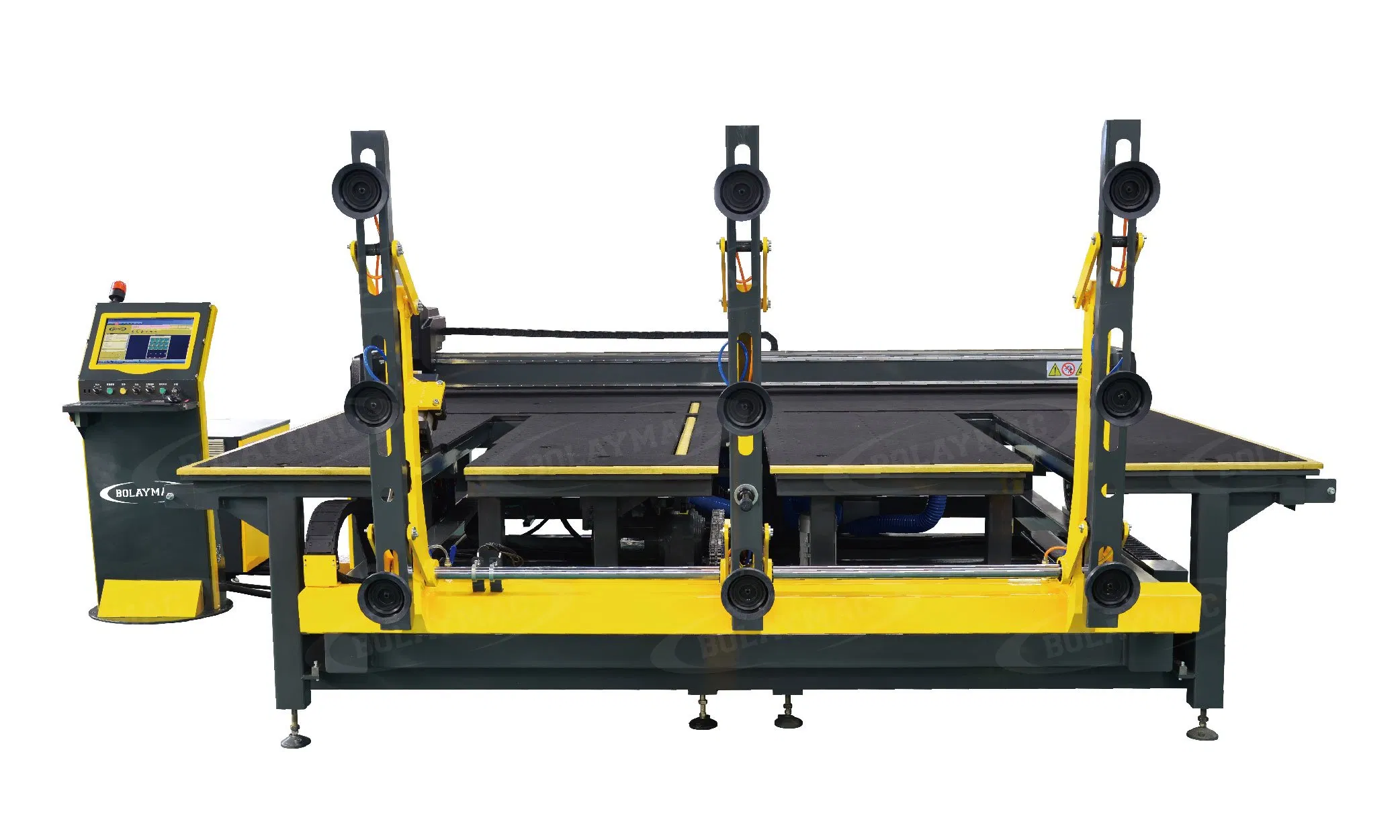

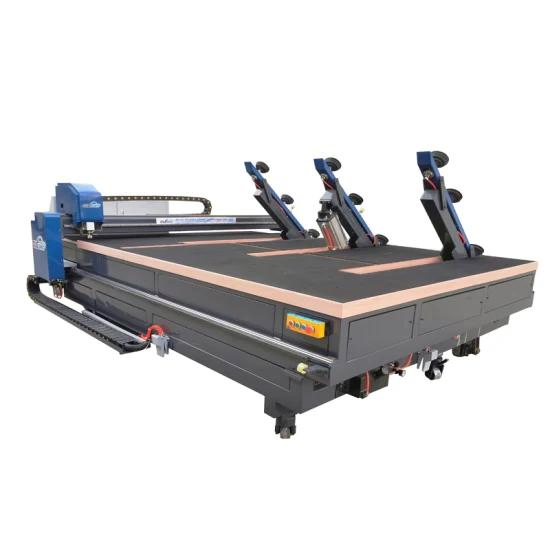

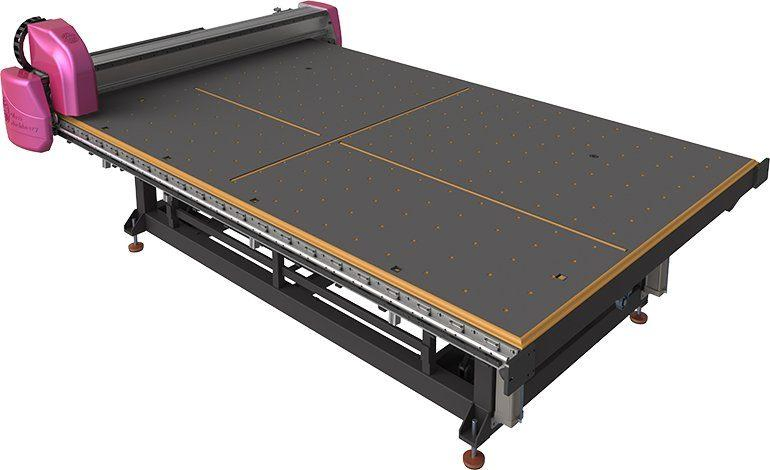

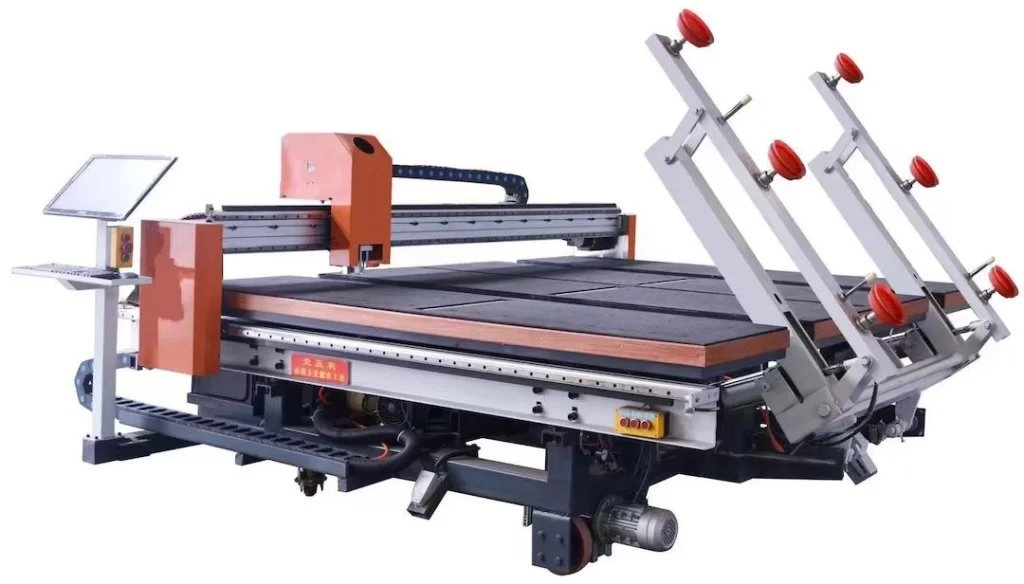

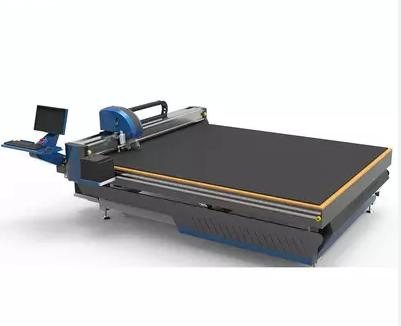

Advanced CNC Glass Cutting and Shaping System

Customization:	Available
Certification:	CE, FDA, ISO, UR
Platform Board:	Imported Material Waterproof & Fire Rate

Send Inquiry

Product Description

Basic Specifications

Model NO.

hhgc-2500

Toothed Rack

Crescent Grinding Helical Racks

Table Surface

Air-Floating Felt Surface

Positing System

Japanese Panasonic Automatic Patrol

Optimization

Guiyou Brand System

Servo Motor

Inovance High-Performance

Max Glass Size

2440*3660mm

Glass Thickness

3-19mm

Loading Speed

30-50 Seconds

Cutting Accuracy

Parallelism: ≤±0.15mm/M

Product Description

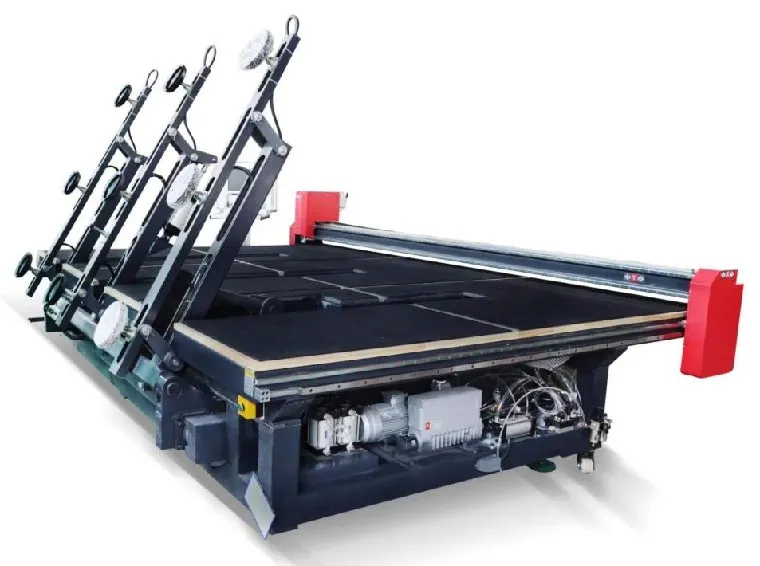

Automatic CNC Loading & Cutting Machine

This equipment integrates the upper piece taking, air flotation breaking, straight line cutting, and special-shaped cutting into one unit. It occupies a small footprint, offers simple and safe operation, and saves significant labor. It can be commanded via remote control for free movement within the workshop. Featuring advanced mechanical structures and optimization software, it utilizes dual motor drives to ensure high stability and superior glass cutting quality.

3-in-1 Function: Loading, cutting, and air-floating in one machine.
Versatile Cutting: Supports both straight-line and irregular shape cutting.
Space Efficient: Compact design with remote control for easy workshop relocation.
Precision Systems: American GALIL cutting system and INOVANCE servo drive.
Heavy Duty Loading: 3 loading arms with 4 suction cups per arm.
Customizable Power: 380V/50HZ (customizable), total power 8KW.
Adjustable Pressure: Air pressure range from -70 to 100Kpa based on thickness.

Technical Parameters

Platform Board	Toothed Rack	Table Surface	Positioning System
Waterproof & Fire Rate (≤±0.020mm)	Crescent grinding helical racks	Air-floating felt, black felt	Japanese PANASONIC auto patrol
Computer	Optimization System	Servo Drive	Cutting Head
Industrial Computer	GUIYOU Brand	INOVANCE	Imported Germany Cutter

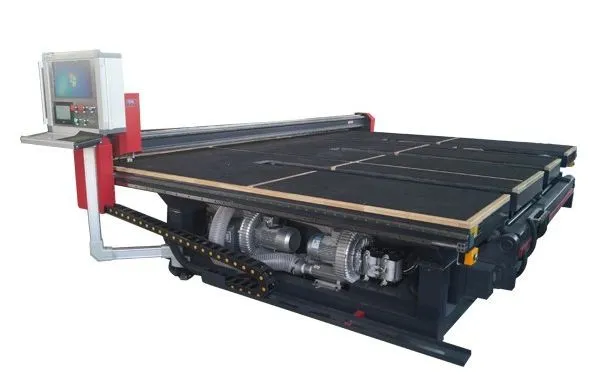

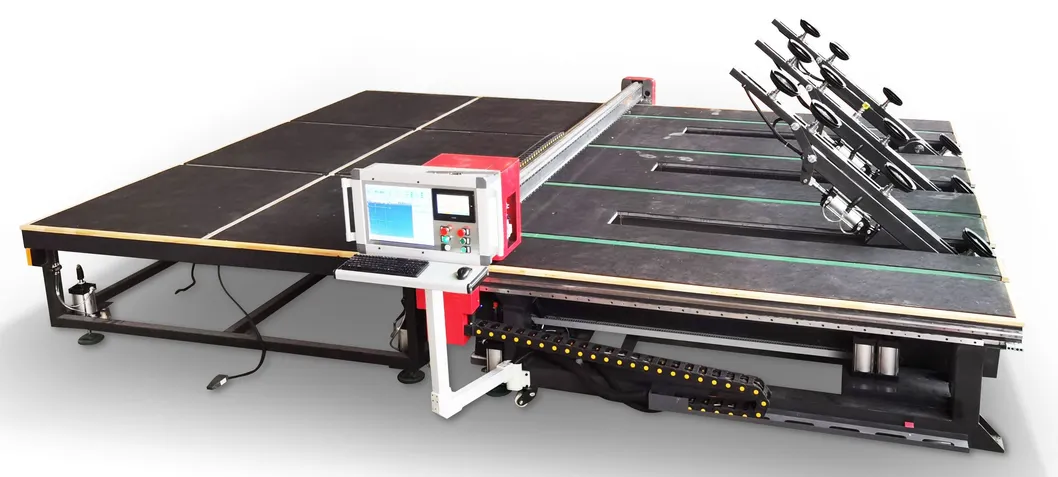

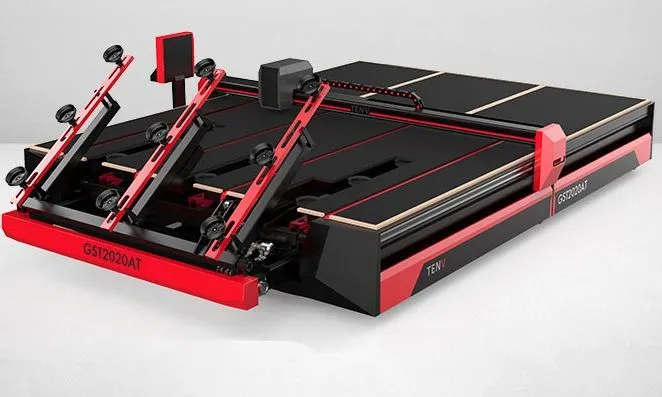

Detailed Gallery

After-Sales Service

Free installation, commissioning, and pre-job technical training.
One year free maintenance (excluding human factors) and lifelong technical support.
Customer service response time within 24 hours.
Cutting software lifetime free upgrades.
Regular equipment performance testing for stable operation.

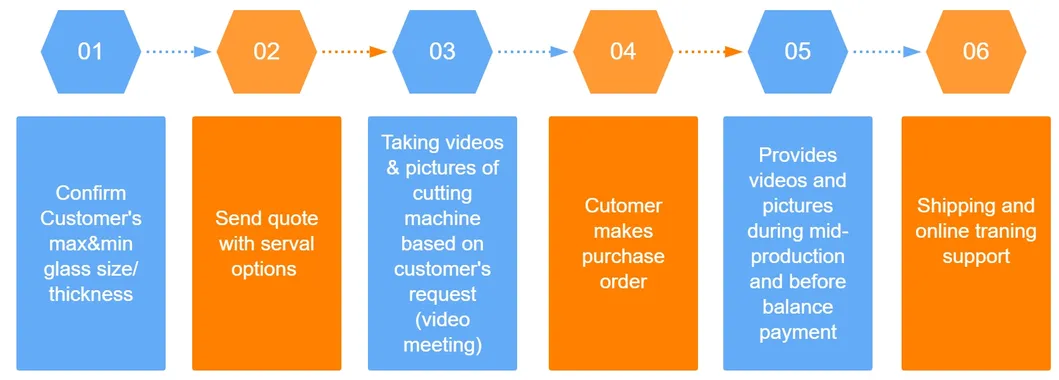

Purchasing Process

Company Profile

We are a leading provider of high-quality flat glass processing machinery, services, and supplies. Our focus is on sourcing the most innovative and reliable equipment for fabricating, handling, and processing flat glass. All our equipment is characterized by innovative features, long-lasting durability, and high reliability.

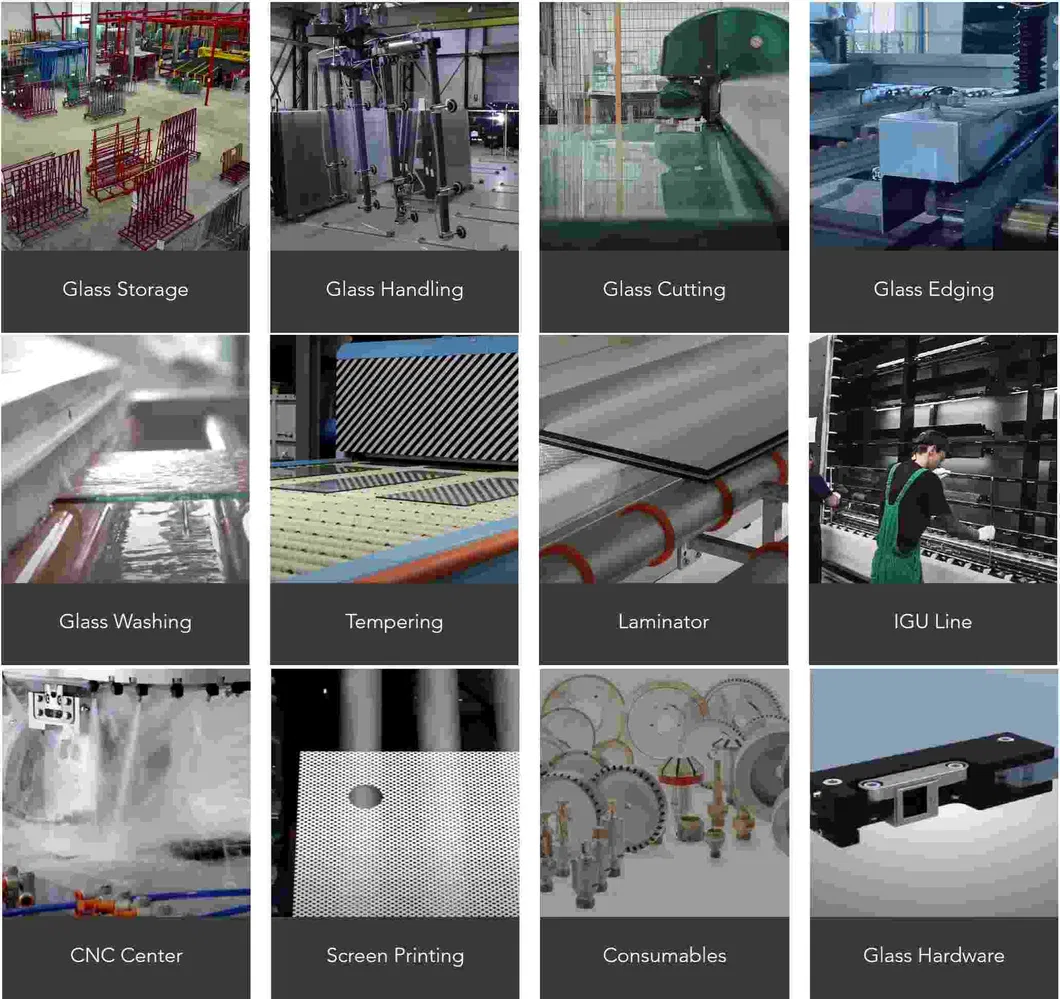

Product Categories: As a partner for glass processing solutions, we supply an extensive range of machinery for the glass industry, including integrated units for insulated glass, windows, doors, and facade manufacture.
