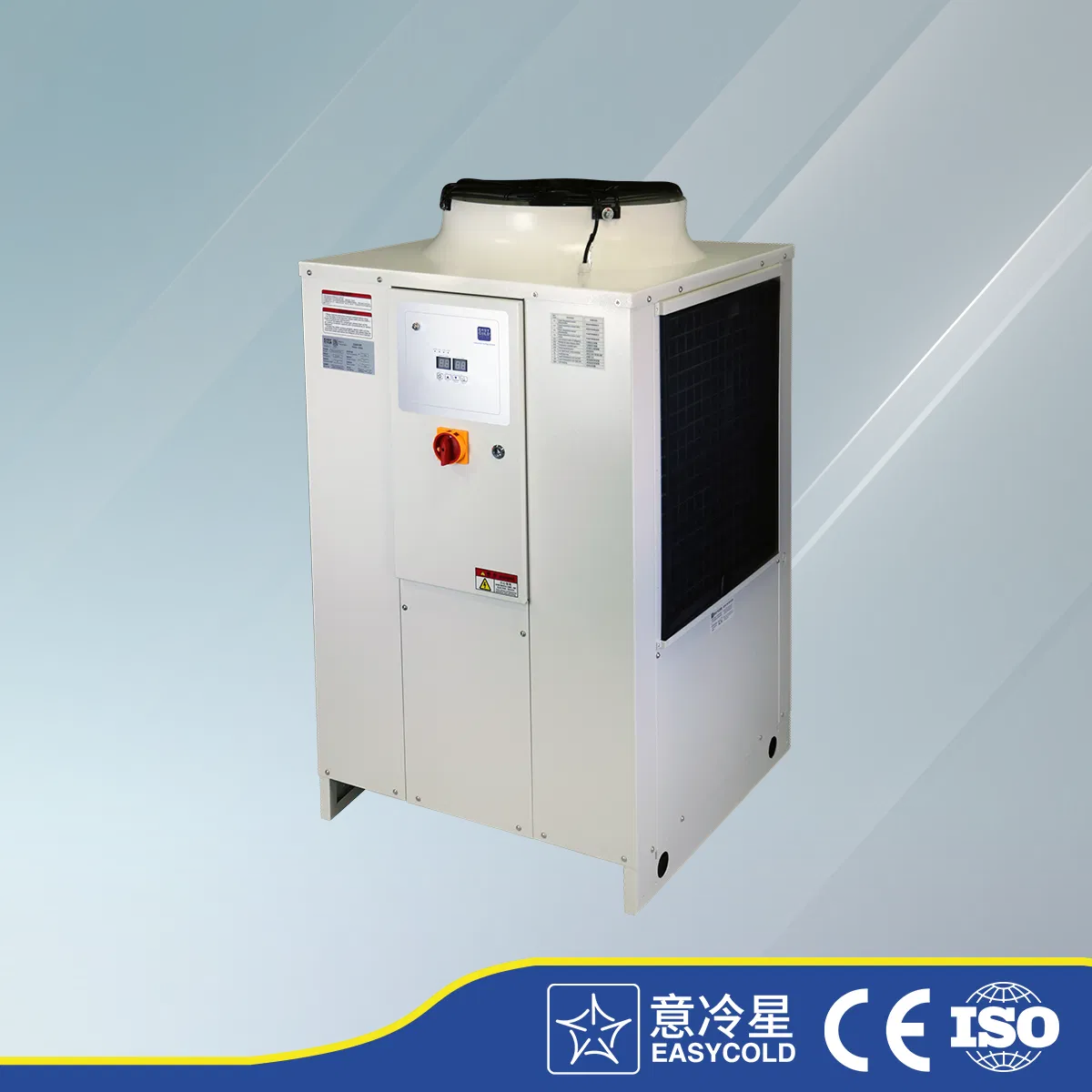

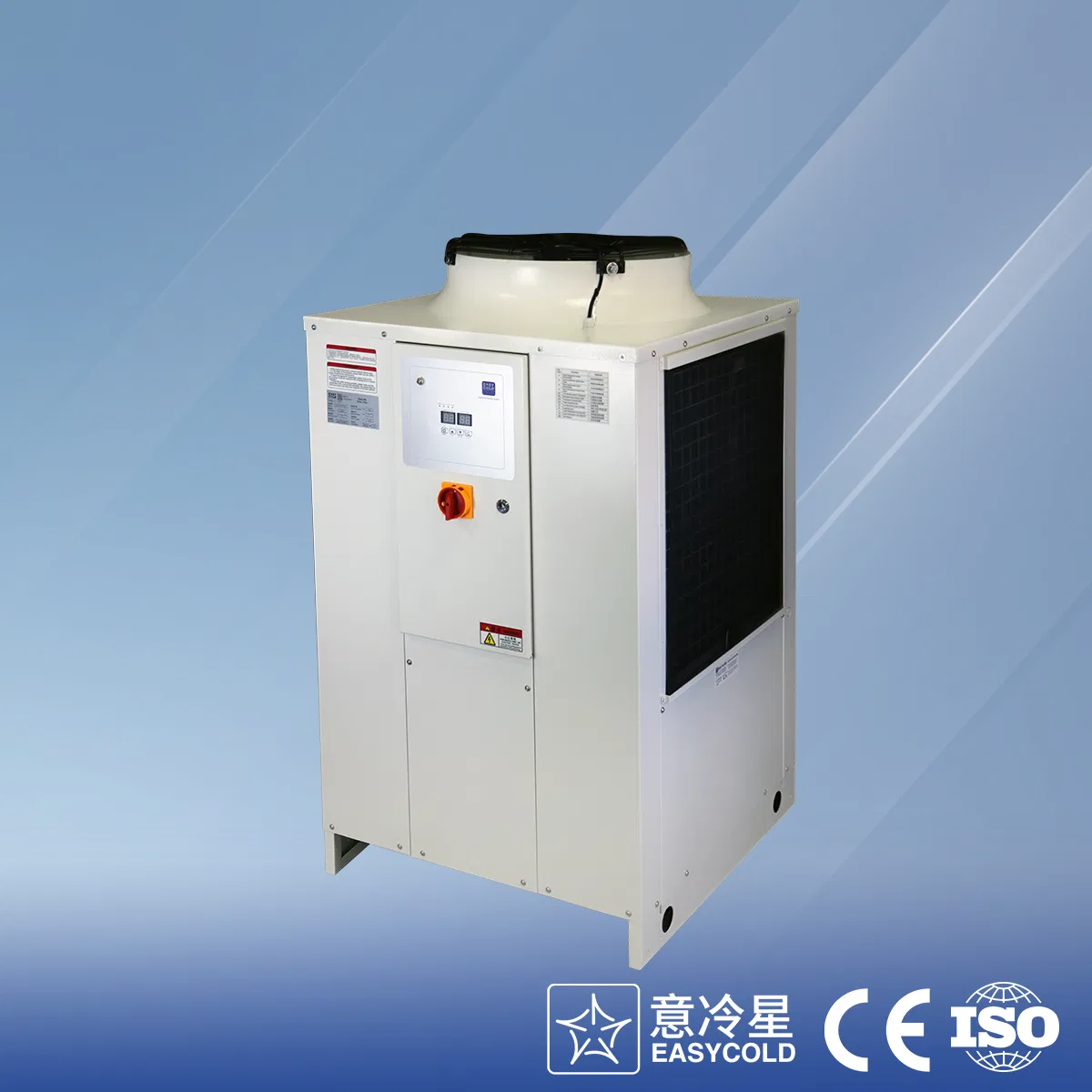

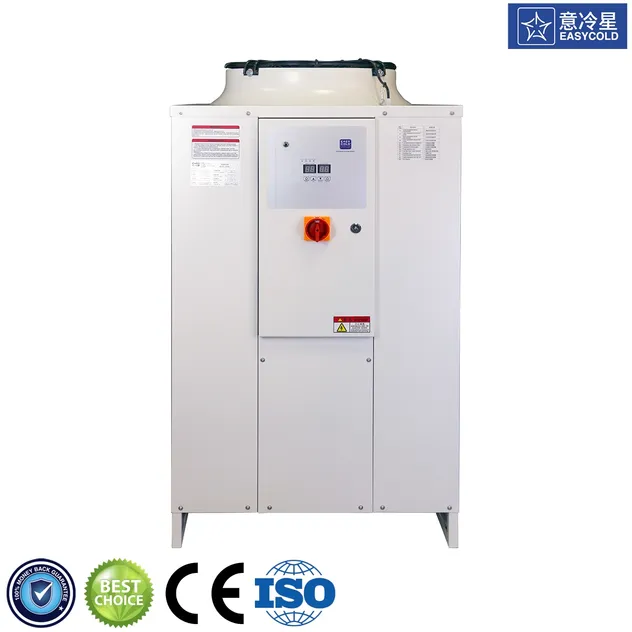

Advanced Easycold Cutting Fluid System with Rapid Cooling Technology

Customization:	Available
After-sales Service:	Yes
Warranty:	12 Months

ⓘBasic Information

Model NO.	ACC-ACE-150
Type	Air-Cooled
Cooling Water	Cutting Fluid
System Type	Open System
Fans Species	Frequency Fan
Noise Level	Low
Application Fields	Machinery
Certification	ISO, CE
Specification	7507901300
Production Capacity	800/Year

📋Product Specifications & Range

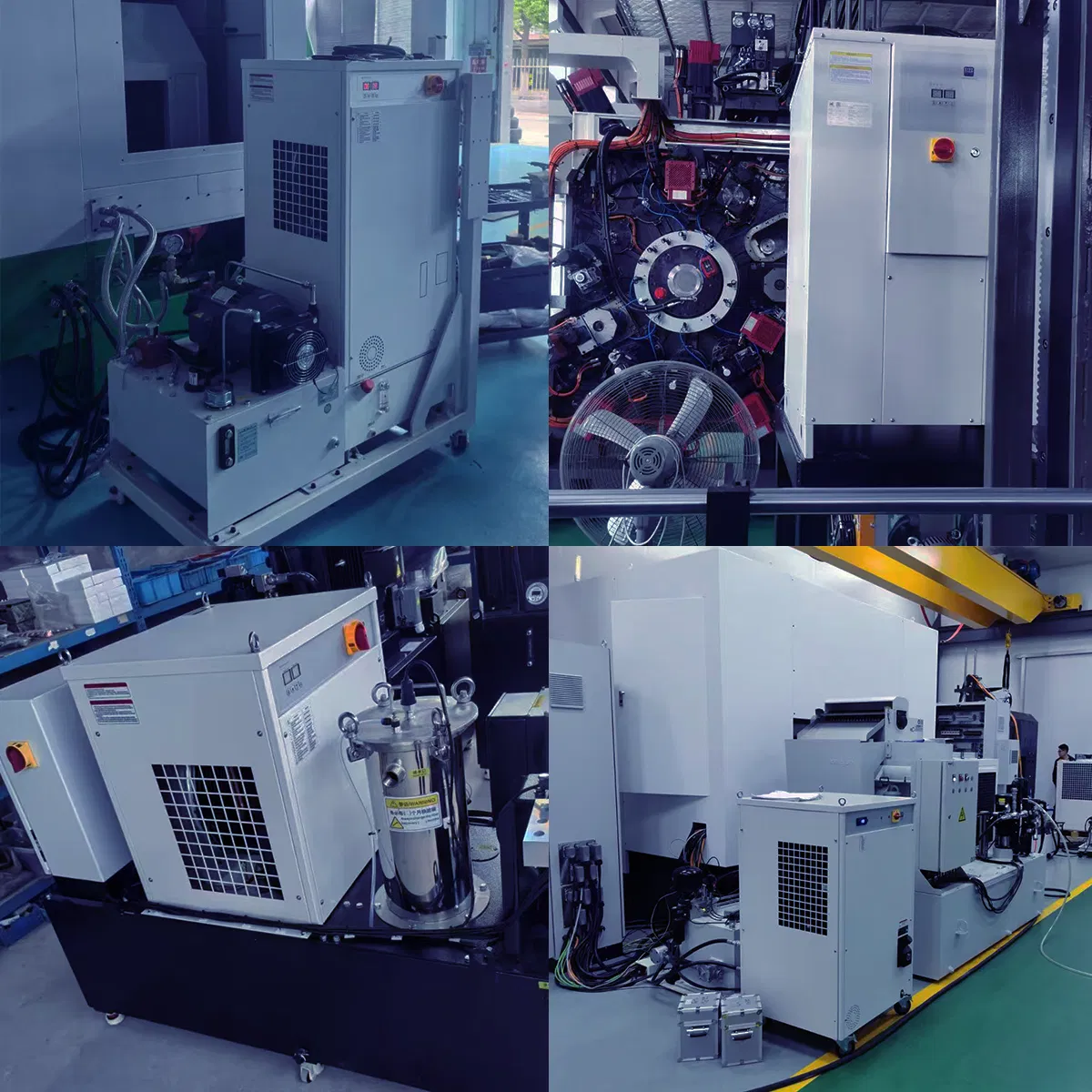

Application Range:
1. CNC hobbing, pulling, gear shaper, gear grinding, and honing machines.
2. Internal/external cylindrical grinders, crankshaft grinders, and deep hole processing tools.
3. CNC lathes, milling machines, and broaching machines.
4. EDM machine tools and hydraulic stations.

⚙Functions and Features

✓
Dual Control Modes: Simple operation with "fixed temperature" and "room temperature coherence" modes.
✓
System Protection: Multiple protection functions with passive alarm terminals for CNC feedback.
✓
Remote Linkage: Remote starting port allows synchronization between machine tool and oil cooler.
✓

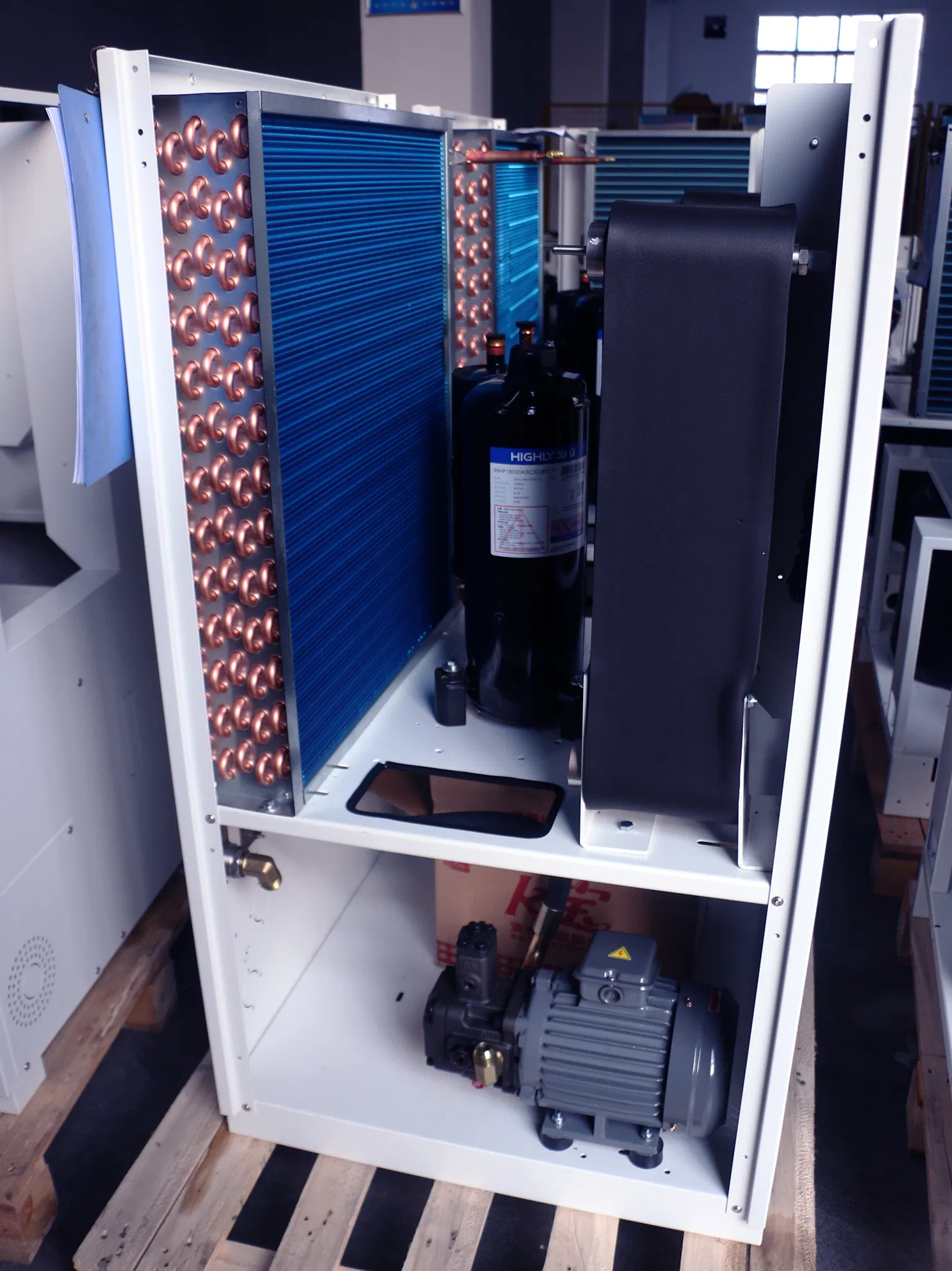

Corrosion Resistance: Nickel white copper double tube evaporator suitable for various liquids.

📊Technical Parameters

Items	ACC-ACE-150 Data
Cooling Capacity (KW)	15.0
Power (KW)	6.7
Power Source	1/220 3/380 3/220 (50/60Hz)
Precision (℃)	±1.5 (±0.1 Option PID)
Setting Range (℃)	Fixed: 15-40 / Variable: ±9
Oil Viscosity (cSt)	2-32
Noise (dB)	72
Weight (KG)	190
Refrigerant	R-410A
Dimension (mm)	7507901300

🔧After Sales Service

Standard Warranty: 12 months or 2,000 operating hours.
Extended Warranty: Optional up to 36 months.
Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation and maintenance training.

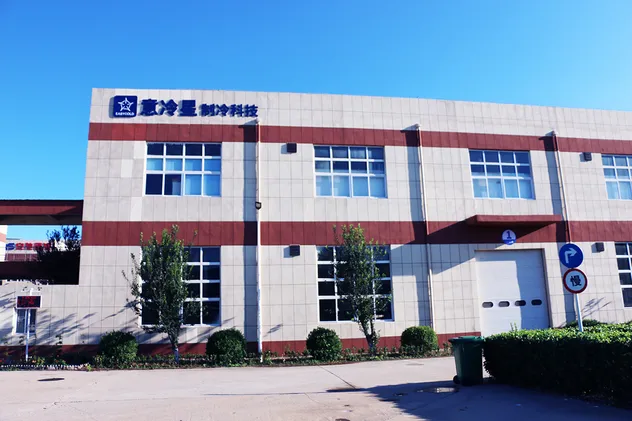

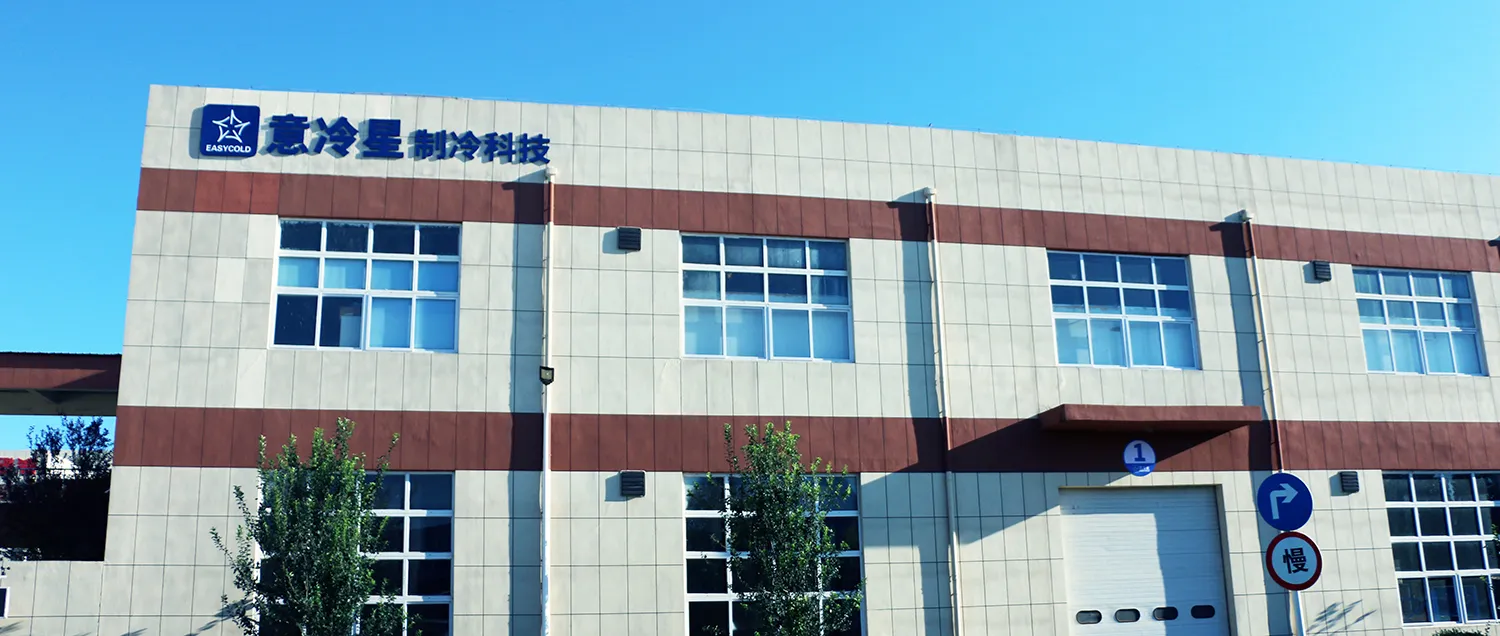

🏭Company Profile

The company is a specialist in European-standard refrigeration technology, providing advanced temperature control solutions for industrial equipment. Our expertise spans high-end manufacturing, electricity, packaging, medical, and laboratory industries. With a professional technical team, we offer optimal temperature control, maintenance, and renovation services for existing refrigeration systems.

Our facility holds numerous utility patents and software copyrights, focusing on industrial oil coolers, water coolers, and cabinet air conditioners. Certified by ISO 9001, ISO 14001, and ISO 45001, we ensure high-quality standards for global export.

🎓Exhibitions & Quality Assurance

🤝Global Partners

❓Frequently Asked Questions

Q: Can your refrigeration products be customized? A: Yes, we welcome customization for non-standard products to meet specific industrial requirements.

Q: What is the standard warranty period for your machines? A: We offer a standard 12-month warranty. Extended coverage up to 36 months is also available.

Q: How do I know which chiller model is suitable for my equipment? A: Simply provide us with your equipment details and cooling requirements, and our engineers will recommend the most suitable machine.

Q: Do you test the units before delivery? A: Yes, we perform 100% testing on all goods before delivery and can provide testing videos upon request.

Q: What is the difference between air-cooled and water-cooled units? A: Air-cooled units use ambient air to dissipate heat and are easier to install. Water-cooled units use water as a medium and require a cooling tower but offer higher efficiency.

Q: Do you provide OEM/ODM services? A: Yes, we provide full OEM/ODM services, including using your own brand logo and custom designs based on provided drawings.
