• Utilizes high-power, high-stability ultraviolet lasers to directly ablate and vaporize materials, achieving a μm-level heat-affected zone and a minimum processing spot size of 5μm.
• Achieves high-speed, high-precision etching on small surfaces through precise galvanometer control of beam deflection.
• Enables large-surface precision machining through high-precision linear motor-driven platform translation.
• The Z-axis is electrically adjustable to accommodate materials of varying thicknesses, meeting the requirements for etching three-dimensional structures.
• Expands with A and C axes, suitable for machining irregularly shaped parts.
• High-resolution industrial cameras are used for full-field error correction of the galvanometer and high-precision focusing, ensuring long-term system stability and accuracy.
• Supports high-precision positioning and machining of workpieces, with built-in offset compensation functionality.

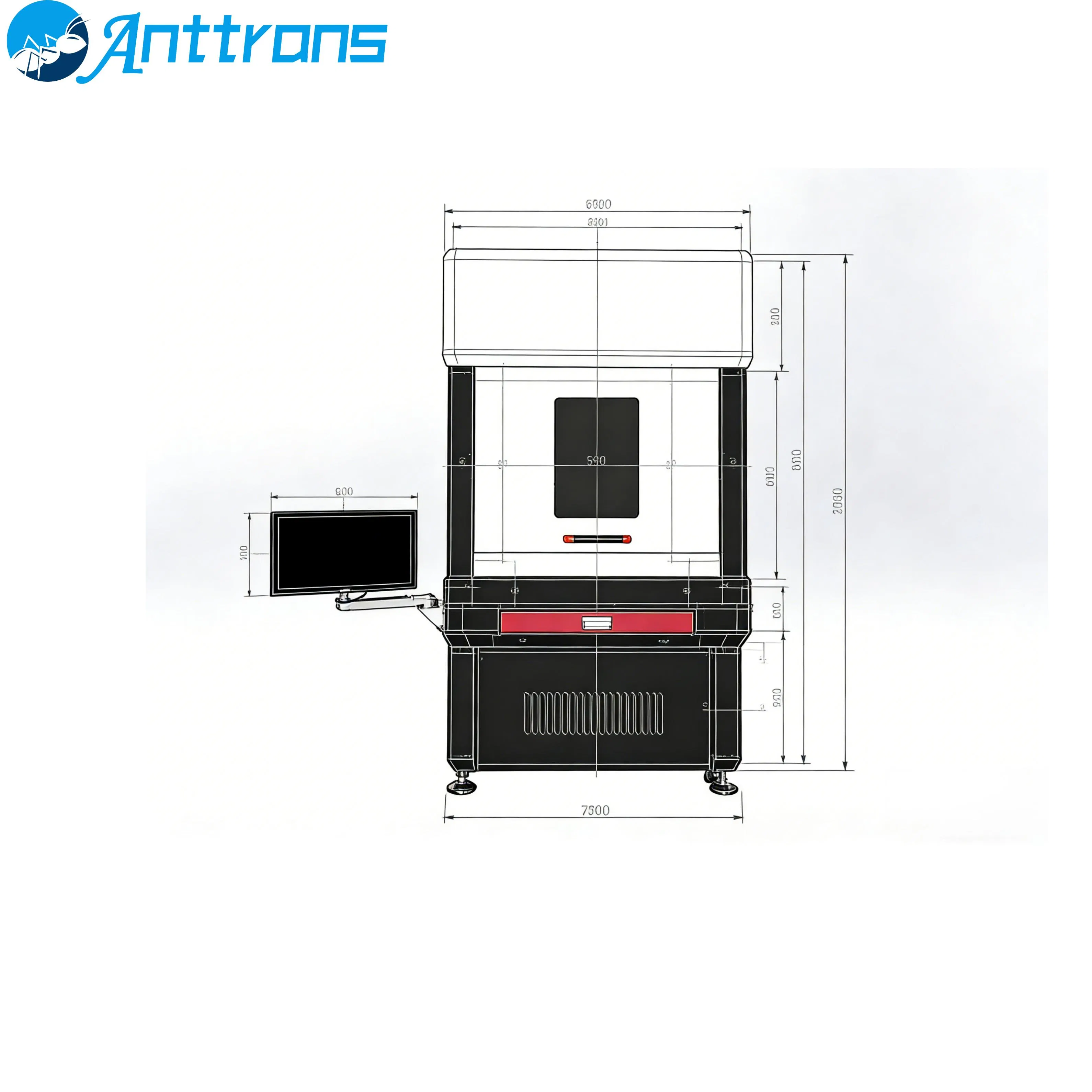

• The system employs a marble tabletop to enhance overall stability, with all mechanical components carefully selected to ensure long-term precision.
• Capable of processing metals, ceramics, organics, glass, and other materials, enabling efficient etching, blind hole drilling, through-hole drilling, slotting, and cutting.
• Minimum processing line width of 5μm, with a customizable processing range of 300*300mm.

• Semiconductor flexible circuit board cutting
• ITO film layer etching
• Microelectronic device manufacturing
• Printing template preparation
• Biochip preparation
• Precision micro-mold forming

Technical services, technology development, consulting, and promotion. Wholesale and retail of computer software, hardware, and auxiliary equipment. Import and export of technology and goods. Sales of functional glass, new optical materials, optical instruments, specialized semiconductor equipment, experimental analysis instruments, CNC machine tools, and electronic components. Sales of metal cutting and welding equipment, fiber optics, photovoltaic components, and electronic specialized materials.

Note: Achieved after preheating for 30 minutes at a constant temperature of (25±0.5ºC).
