All-in-One Four-Head Laser Drilling System: Efficiency, Precision, & Automation for High-End Manufacturing

📊

Basic Information

Structure	Laser Drilling Machine
Layout	Vertical
Controlling Mode	Artificial / Automatic
Number of Shaft	Multi-Axis
Hole Diameter	<50mm
Precision	High Precision
Certification	CE, RoHS, ISO 9001
Laser Heads	4 Heads (Synchronous/Independent)
Innovation	Industry-First 4-Head Synchronous Technology
Efficiency Boost	300% Higher Output Than Single-Head

🚀

Product Description

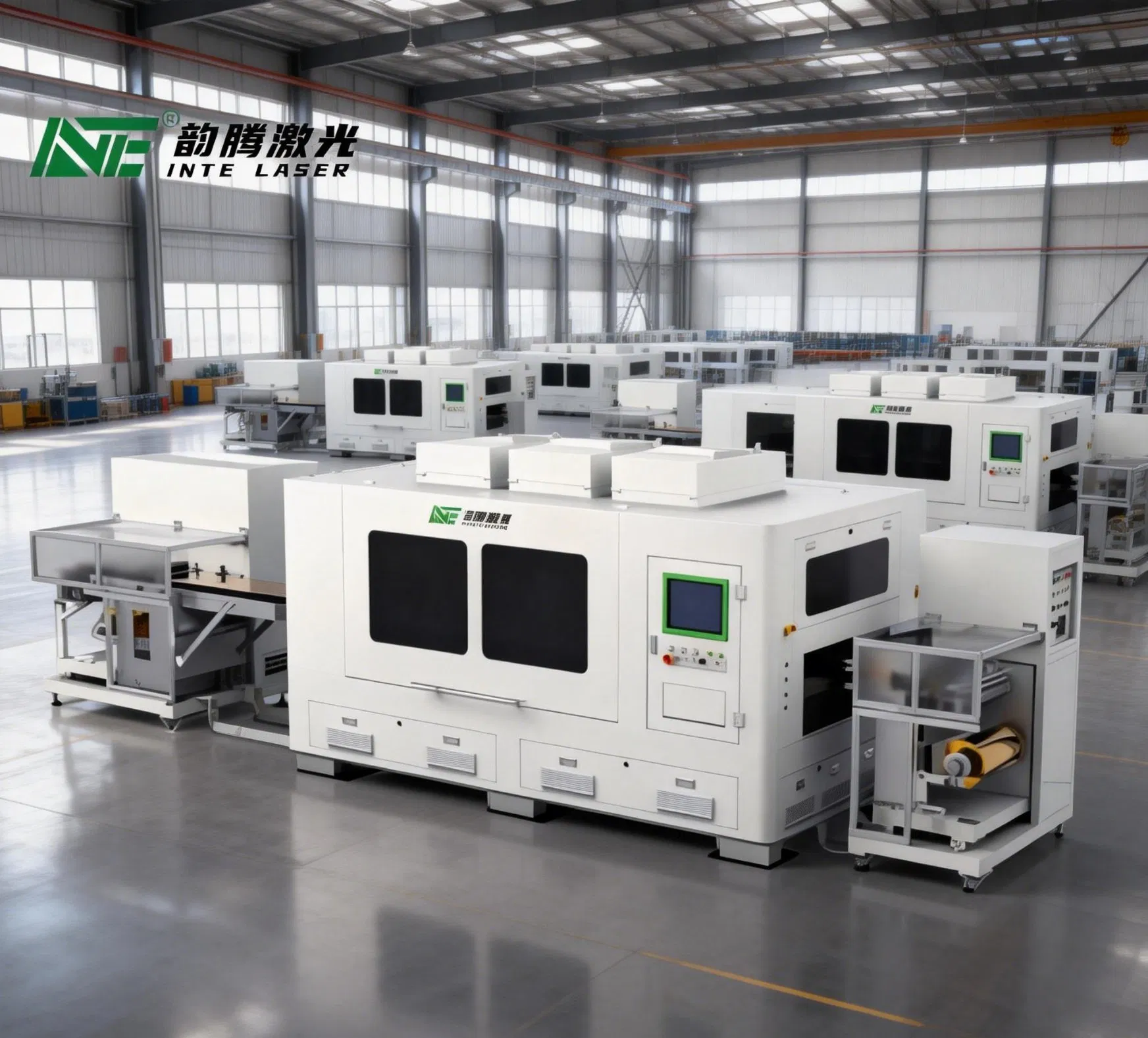

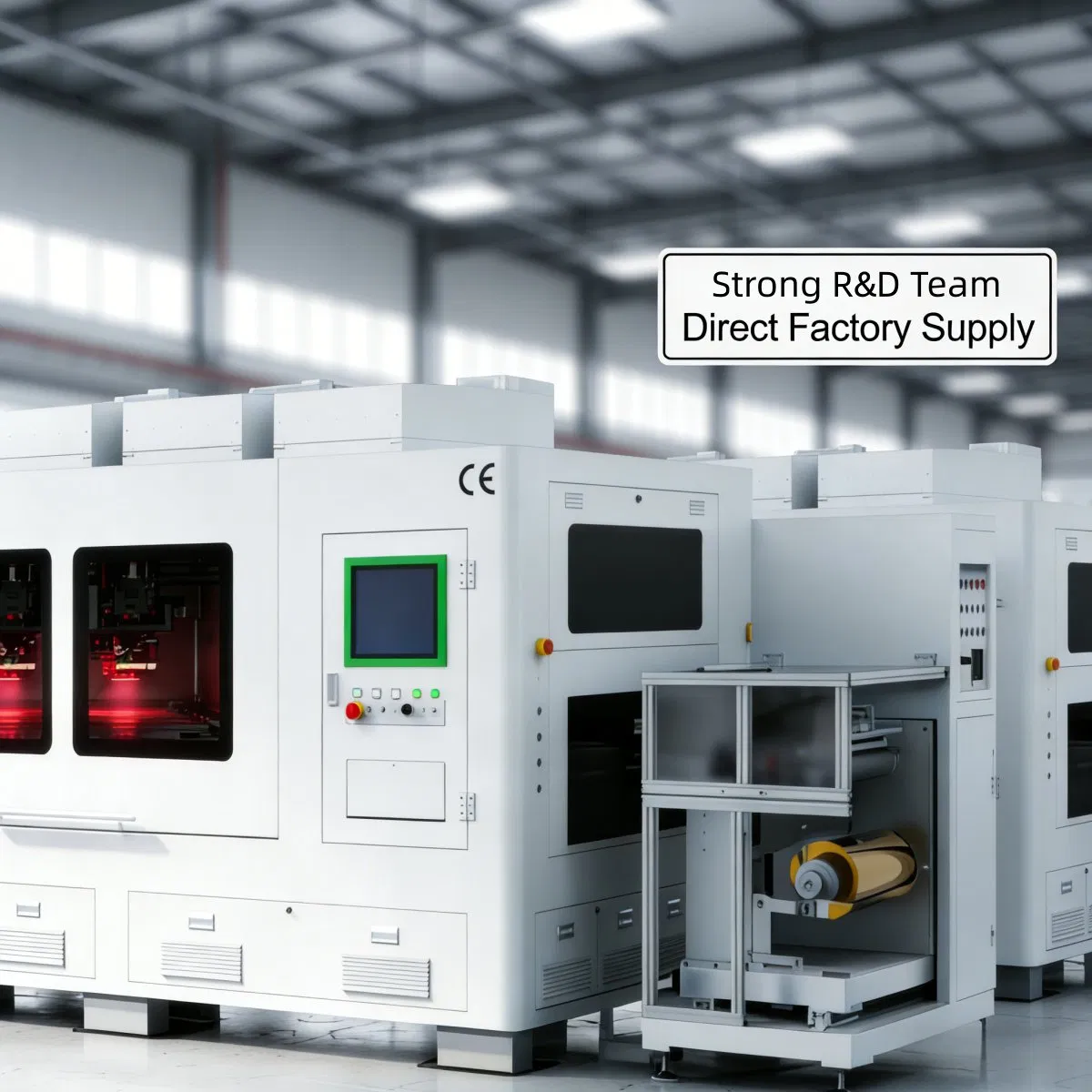

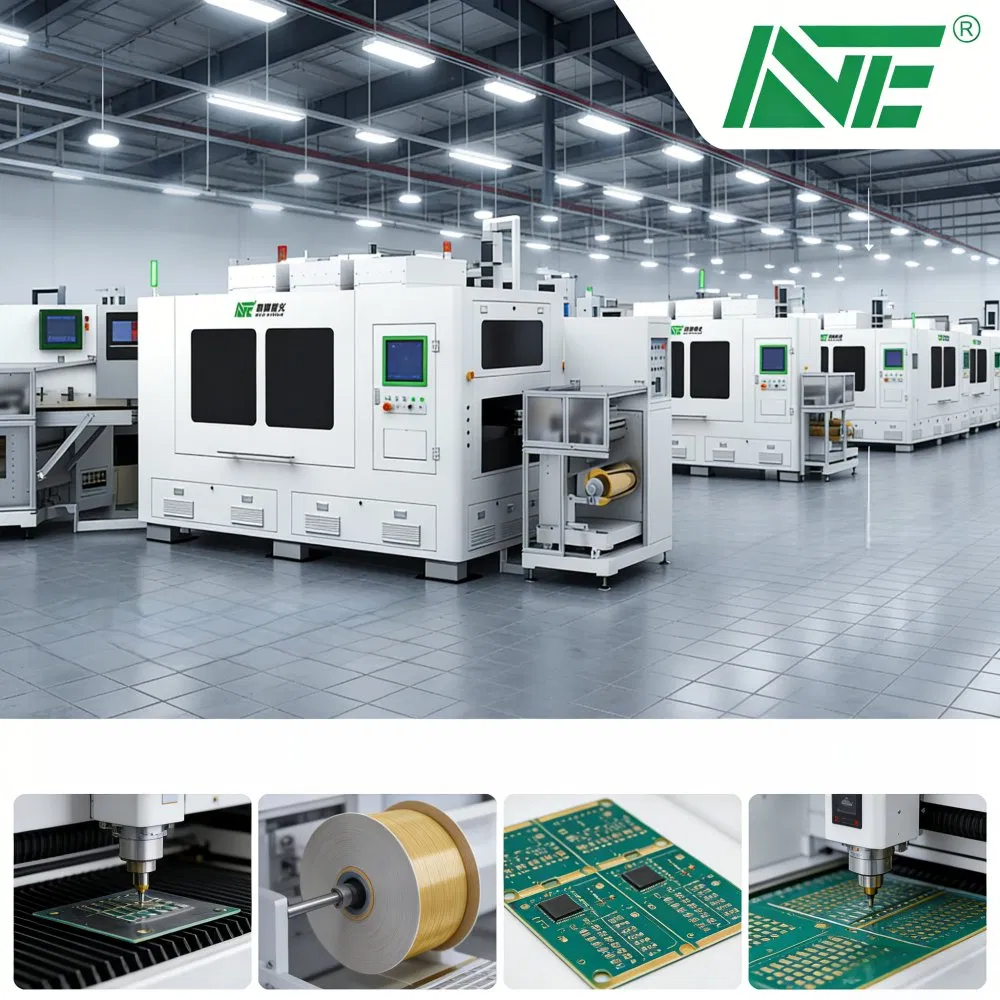

All-in-One Four-Head Laser Drilling System: Efficiency, Precision, & Automation for High-End Manufacturing

Introducing the groundbreaking Four-Head Roll-to-Roll Laser Drilling Equipment - the industry's first solution designed to revolutionize high-volume electronics manufacturing. As a pioneer in multi-head laser drilling technology, this equipment delivers unprecedented 4x efficiency improvements while maintaining superior precision standards. Engineered for the most demanding production environments, this machine represents the future of automated electronics manufacturing, combining cutting-edge technology with proven reliability.

💡

Key Highlights

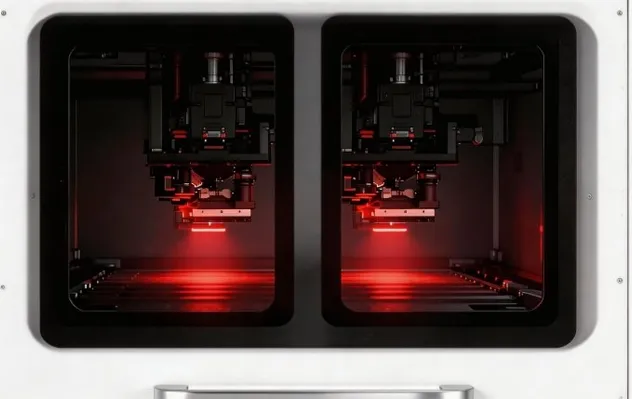

4-Head Synchronous Processing

Massive 4X Efficiency Boost: Dramatically increase output and meet tight deadlines for large orders.

Optimized Process (Plasma-Free)

Laser parameters are fine-tuned to eliminate the need for post-drilling plasma treatment. Reduce process steps and simplify your production line.

Picosecond UV Laser Source

Superior Hole Quality: No burrs, cracks, or thermal damage. Perfect for delicate materials like polyimide and glass.

🎯

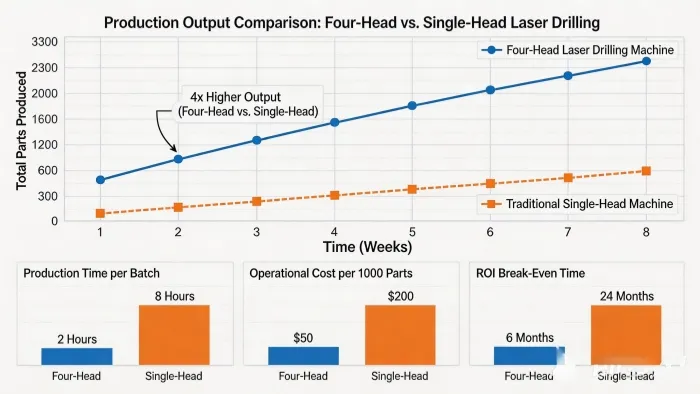

Precision & Efficiency Comparison

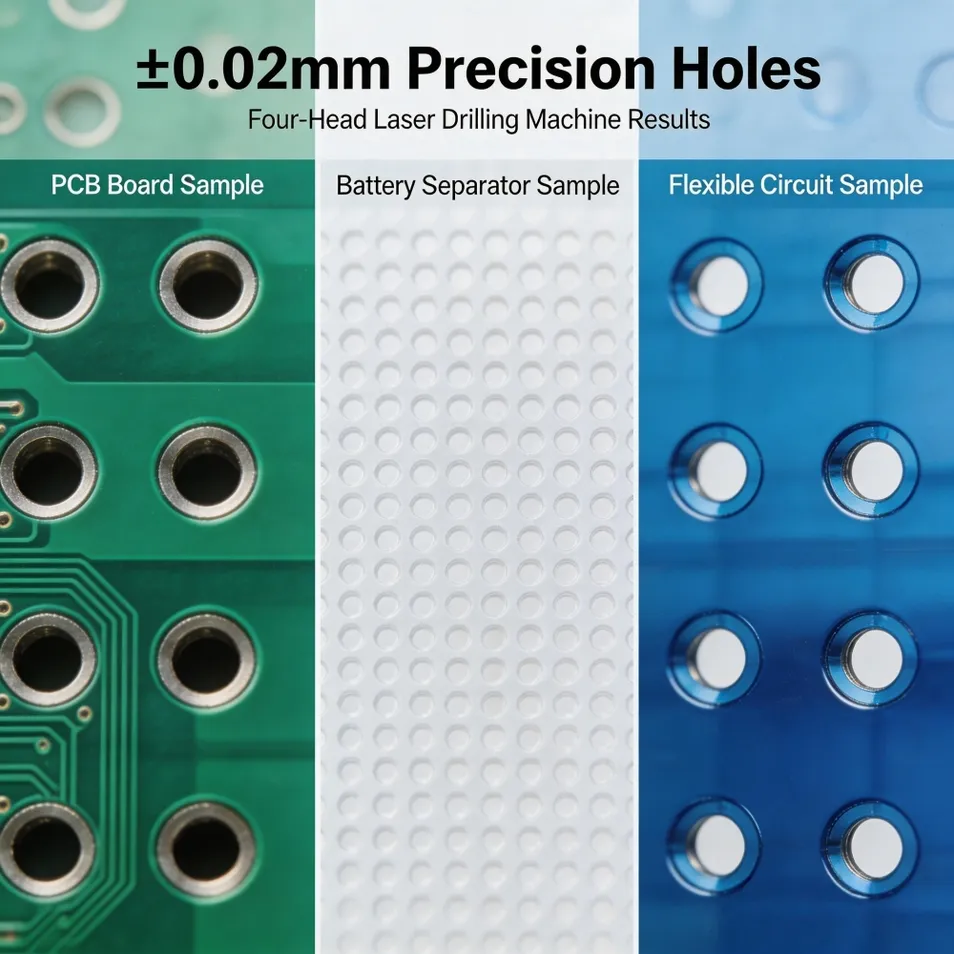

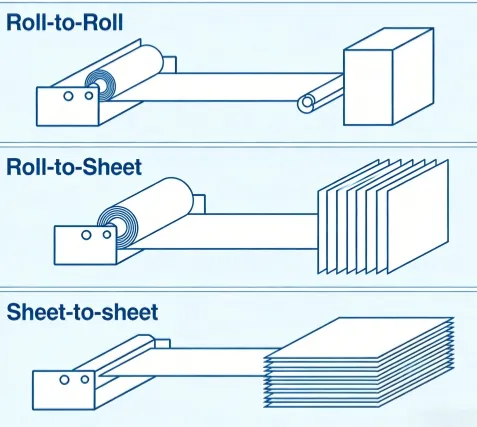

Our Four-Head Laser Drilling Machine delivers exceptional precision with microscopic accuracy. It supports roll-to-roll, roll-to-sheet, and sheet-to-sheet automation for diverse manufacturing needs.

📋

Technical Specification

Laser Type	Nanosecond UV, Picosecond UV, Picosecond green laser
Processing Area	550mm × 1500mm (customizable)
Machine Size	7200mm × 2300mm × 2250mm
Accuracy	±0.02mm
Power Load	Main Unit + 30kW Chiller + 7kW Exhaust Fan + 11kW
Weight	8000KG
Environment	Temp: 22℃±2; Humidity: 40% - 60%

🛠️

Application Areas

PCB Industry: HDI PCBs, Multi-layer Boards, High-speed through-hole & blind via drilling.

Flexible Circuits: FPC, Flex-Rigid Boards, Polyimide cutting & drilling.

Semiconductor: IC Substrates, Lead Frames, Ultra-fine micro-vias (≤0.05mm).

Consumer Electronics: Smartphones, Wearables, Mass production solutions.

🏢

R&D and Production Capability

Specializing in the independent research and development of laser generators, optical devices, equipment application processes, and integration of automation systems. We provide innovative solutions for laser micromachining including laser sources and optical systems.

📦

Packing & Delivery

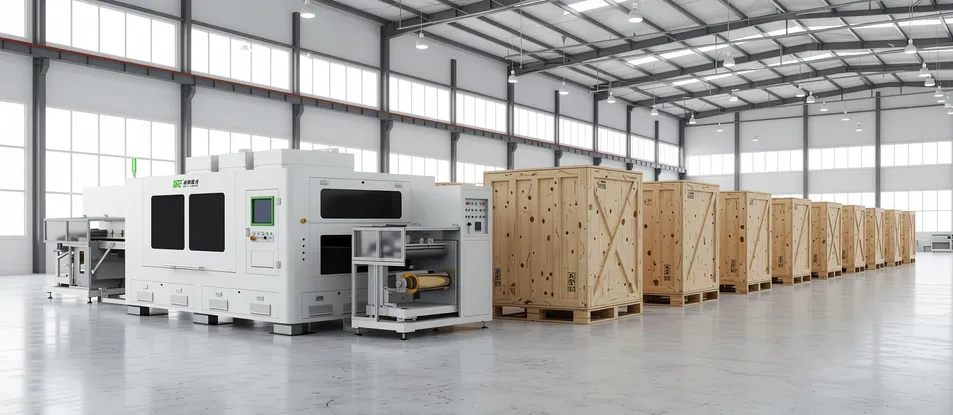

■ Packing: 1PCS/Wooden Case

■ Shipping Method: By sea or by express. Due to weight, sea freight is recommended for standard orders.

■ Delivery Time: Standard goods: 30-45 days; Customized goods: 45-90 days after deposit.

🤝

Our Clients

❓

Frequently Asked Questions

Q1: What is the advantage of 4-head synchronous laser drilling machine?

A: Our 4-head technology enables parallel processing, quadrupling throughput for HDI PCBs and Flexible Circuits (FPC) while significantly reducing cycle time.

Q2: What is the processing accuracy?

A: The system features a positioning accuracy of ±0.02mm and ±0.01mm repeatability, ensuring precise micro-vias and blind holes at high speeds.

Q3: What materials can it process?

A: It is compatible with rigid PCBs, Flexible PCBs (FPC), polyimide, ceramic substrates, and copper clad laminates.

Q4: Does it support blind vias and buried vias?

A: Yes, it handles blind via drilling (BVB), buried vias, and through-holes with minimal Heat Affected Zone (HAZ) for clean sidewalls.

Q5: Is the system automated?

A: Yes, it features CCD Vision Alignment and automated loading with real-time distortion correction for flexible boards.

Q6: Is beam quality consistent across all heads?

A: Our advanced beam splitting technology ensures uniform energy distribution across all 4 heads, guaranteeing consistent hole quality.

Product Detail
