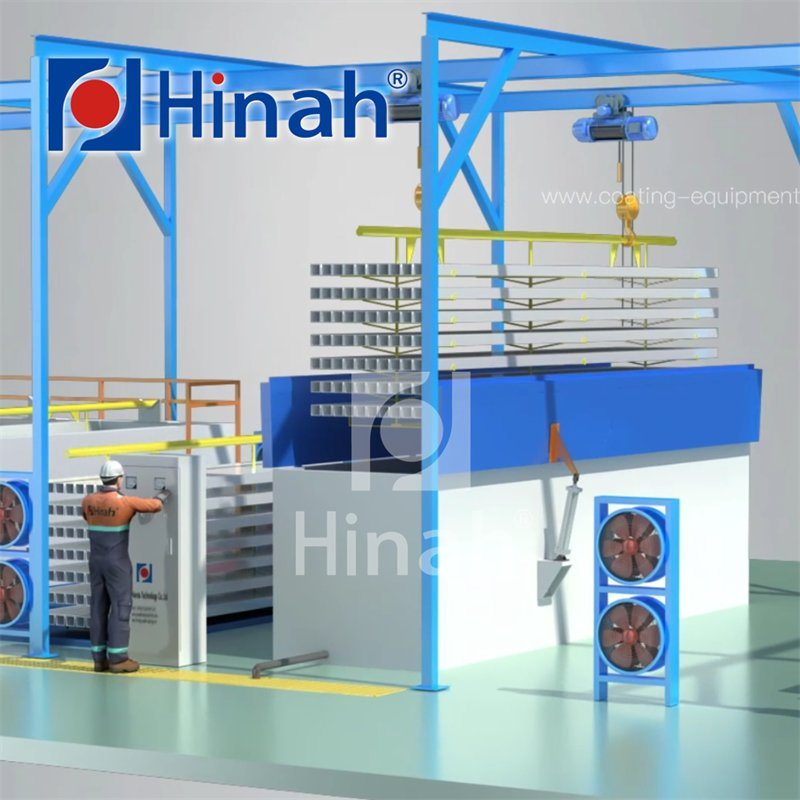

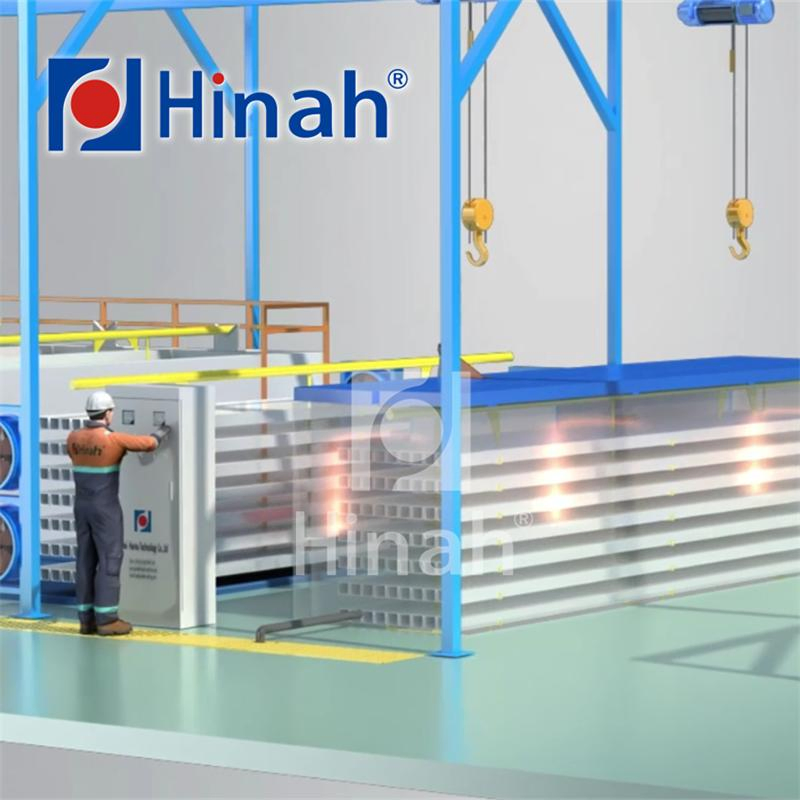

Automatic Spraying System with DIP Tank Pre-Treatment for Aluminum Profile

Basic Specifications

Model NO.FA

Heating systemDiesel, electric, gas, LPG

Warranty2 Years

TypeCoating Production Line

CoatingPowder Coating

SubstrateSteel

CertificationCE, ISO

FeaturePower and Free Conveyor System

Powder RecoveryBig Cyclone Fast Automatic Change

Oven Material150mm Rock Wool Panel

Production Capacity20 Sets/ Month

OriginChina

Product Description

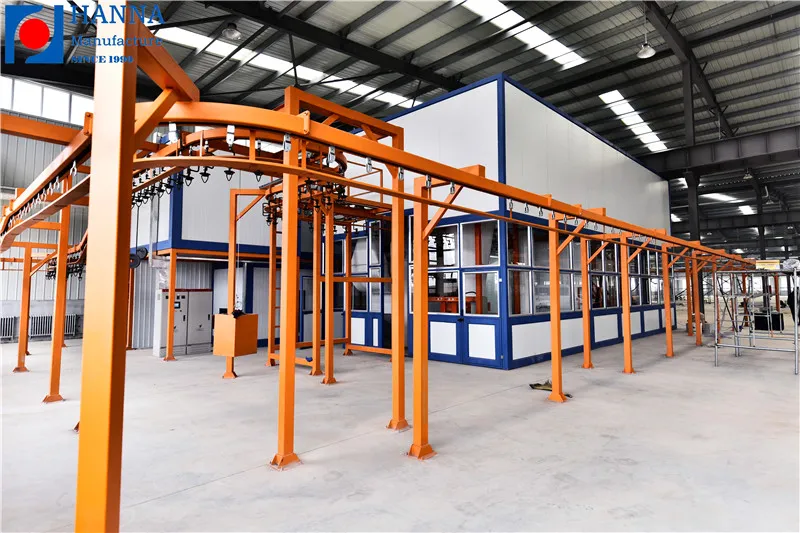

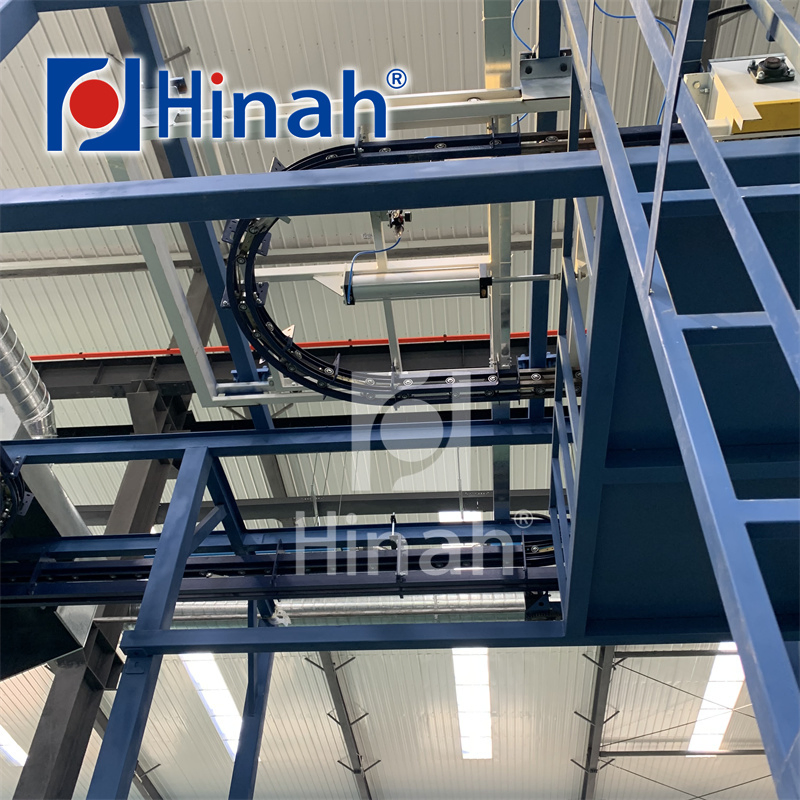

Manual Conveyor System Features

Corresponding optimal design based on specific requirements.
Fine workmanship ensures the stability of the conveyor track.
Comprehensive analysis of workpiece weight, size, and shape.
Ground rail mode design for optimal running length.

Main Advantages of the Conveyor System

Easy to assemble and disassemble with maximum flexibility.
Allows creation of transport routes of different configurations.
Excellent durability and reliability with minimum maintenance.
Flexible operation and simple management for loading/unloading.

Precision Manufacturing & Design

Our manual conveyor systems utilize forged or steel track materials for long-term durability. All sheet metal materials are laser-cut with tolerances less than 0.2 mm. Welding is performed in specialized molds to ensure the flange is perfectly perpendicular to the track corners.

Products Application

Equipment	Application Details

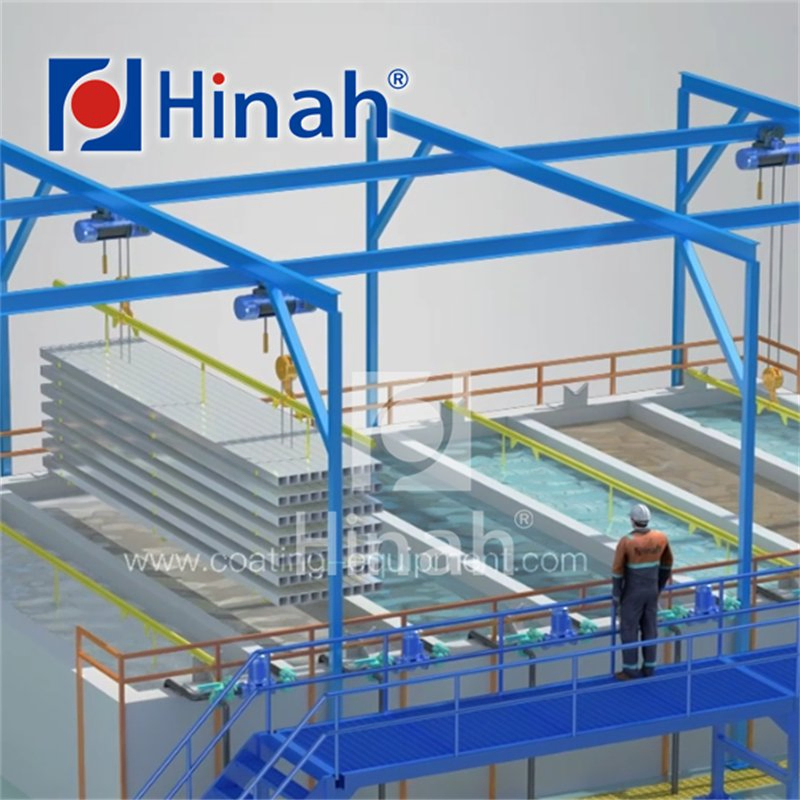

Pre-treatment System	Better powder coating of the work-piece.

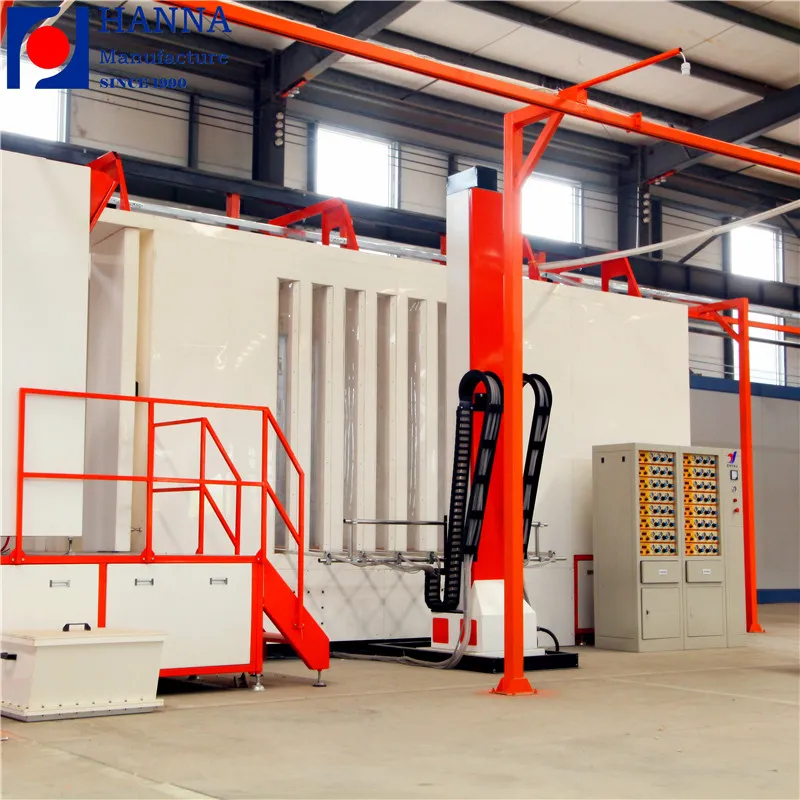

Powder Coating Room	Spraying on the surface of the work-piece.
Big Cyclone	Automatic fast color change.
Transport System	Delivery of work-pieces.
Curing Oven	Makes the powder attach to the work-piece.
Heating System	Fuel options: diesel oil, gas, electric etc.

Core Advantages

Professional Design & Installation: Pollution-free operation, maximum recovery efficiency, and quick color changes.

Intelligent Gun: Unique circuit board design solves powder groove problems in dead angles.
Temperature Control: Effective wind system keeps furnace fluctuations within 3ºC to ensure no color difference.

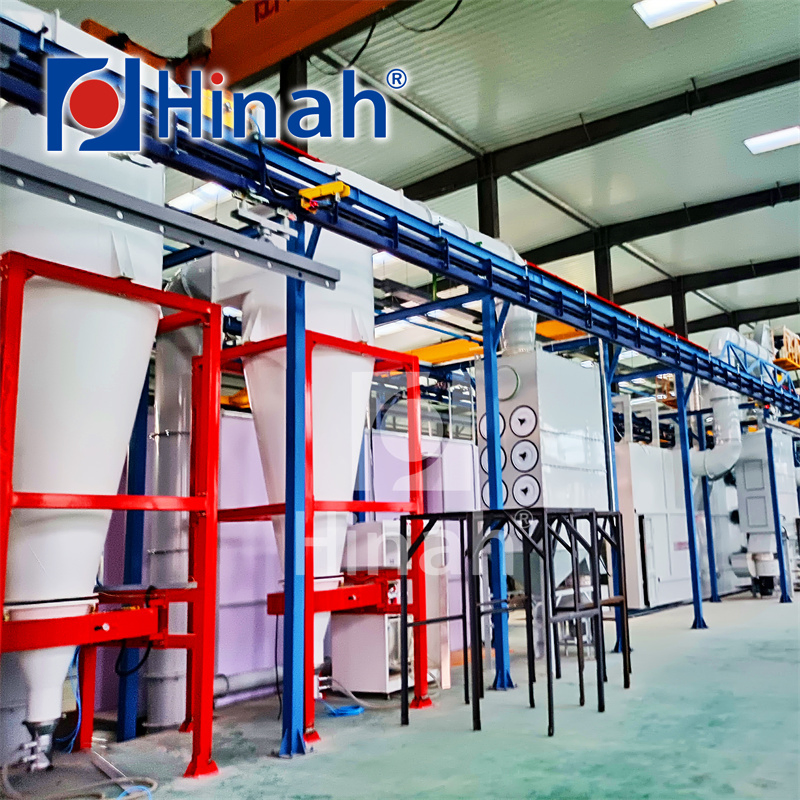

High Recovery Rate: Big cyclone system achieves 99.2% recovery with no dust spillover.
Fast Color Change: Powder supply center allows color changes in only 10 to 15 minutes.

Service Assurance

2-year equipment warranty with free spare parts for non-human factors.
Complete documentation including equipment drawings and electrical circuit charts.
Remote equipment troubleshooting via computer network authorization.
12-hour response time for any technical equipment issues.
Consumable lists provided to assist in maintenance system establishment.

Frequently Asked Questions

What types of heating systems are supported for the coating line?

The system is highly versatile and can be configured to use diesel, gas, electricity, or LPG as the primary heating fuel depending on your cost and energy availability.

How efficient is the powder recovery system?

The big cyclone recovery system is designed for maximum efficiency, reaching a powder recovery rate as high as 99.2%, which ensures a dust-free environment and saves material costs.

How long does it take to change colors in the automatic system?

With our unique fast color change powder supply center, the entire process takes only 10 to 15 minutes, significantly reducing downtime between batches.

What is included in the after-sales service and warranty?

We provide a 2-year warranty and a 60-day tracking service after delivery. Our technical team offers remote troubleshooting and guarantees solutions within 12 hours.

How do you ensure the coating quality for complex workpieces?

Our intelligent spray guns and circuit board designs are specifically engineered to solve powder penetration issues in dead angles and grooves, while precision temperature control prevents color differences.

What information is needed for a customized equipment design?

To provide an optimal design, please provide the material and dimensions (max weight/size) of your workpiece, daily output requirements, preferred heating fuel, and your factory floor dimensions.
