DO YOU PLAN TO CUSTOMIZE THE DESIGN PRODUCTS? TALK TO THE CHIEF DESIGN TEAM ABOUT YOUR PRODUCT IDEAS!
Customized Development: Bluetooth MP3 Player, Audio Recorder, FM Radio, CD Transmission, and TWS Wireless Earphones.
| Basic Information | |
|---|---|
| Model NO. | MX-P-21 |
| Layers | Double-Layer |
| Base Material | FR-4 |
| Customized | Customized |
| Condition | New |
| Model Number | Intelligent Remote Control Scheme |
| Color | Green |
| Application | Smartphone |
| Production Capacity | 5,000,000 pieces/Year |
| Product Name | Intelligent wireless remote control scheme | Color | Green |
|---|---|---|---|
| Size | 5.6*42.5*39mm | Batch Size | 1000PCS |
| Application | Smartphone | ||

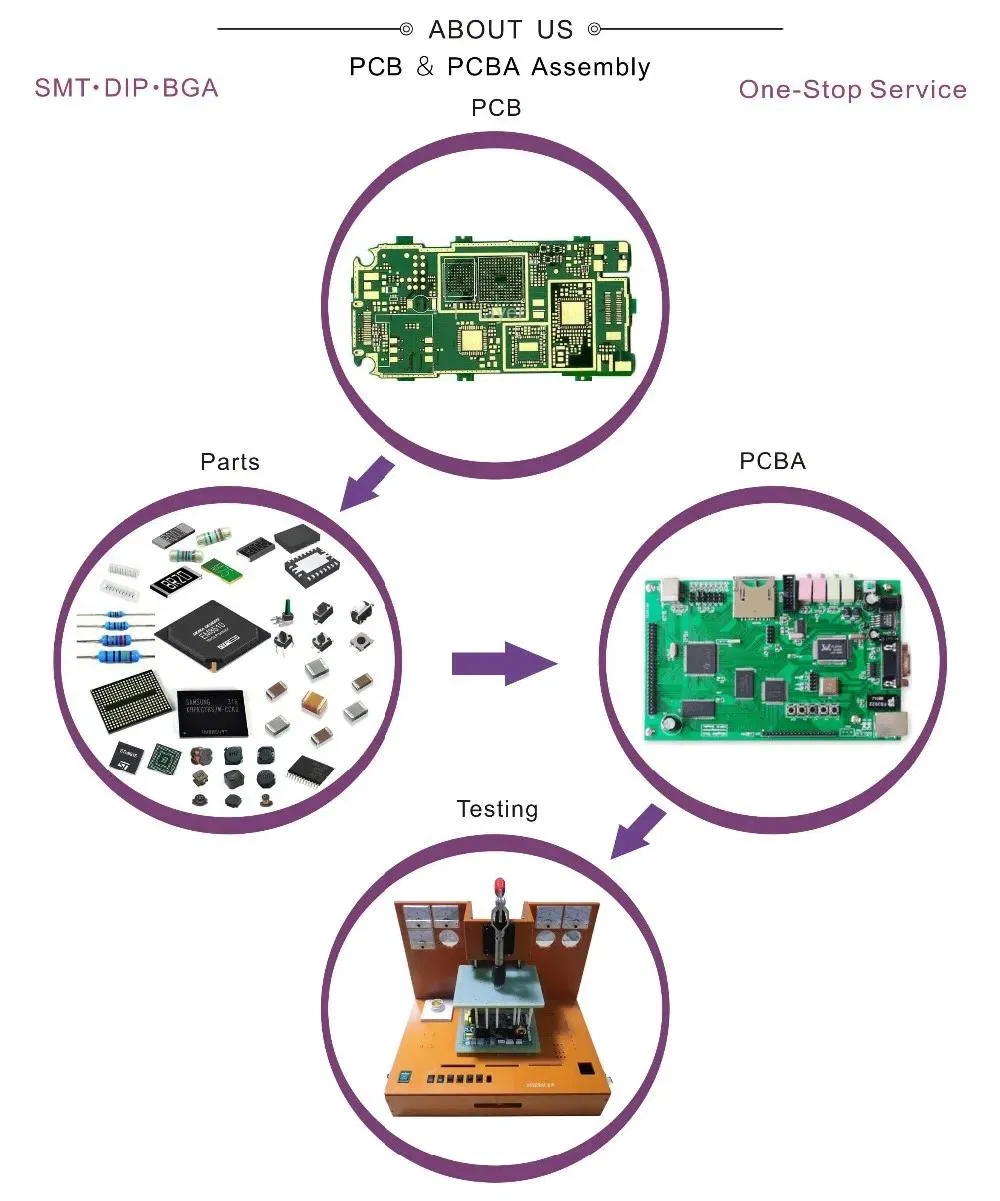

1. PCB circuit layout and production
2. Plastic and metal casing design services
3. Product customized packaging design
4. IC programming software & functional testing

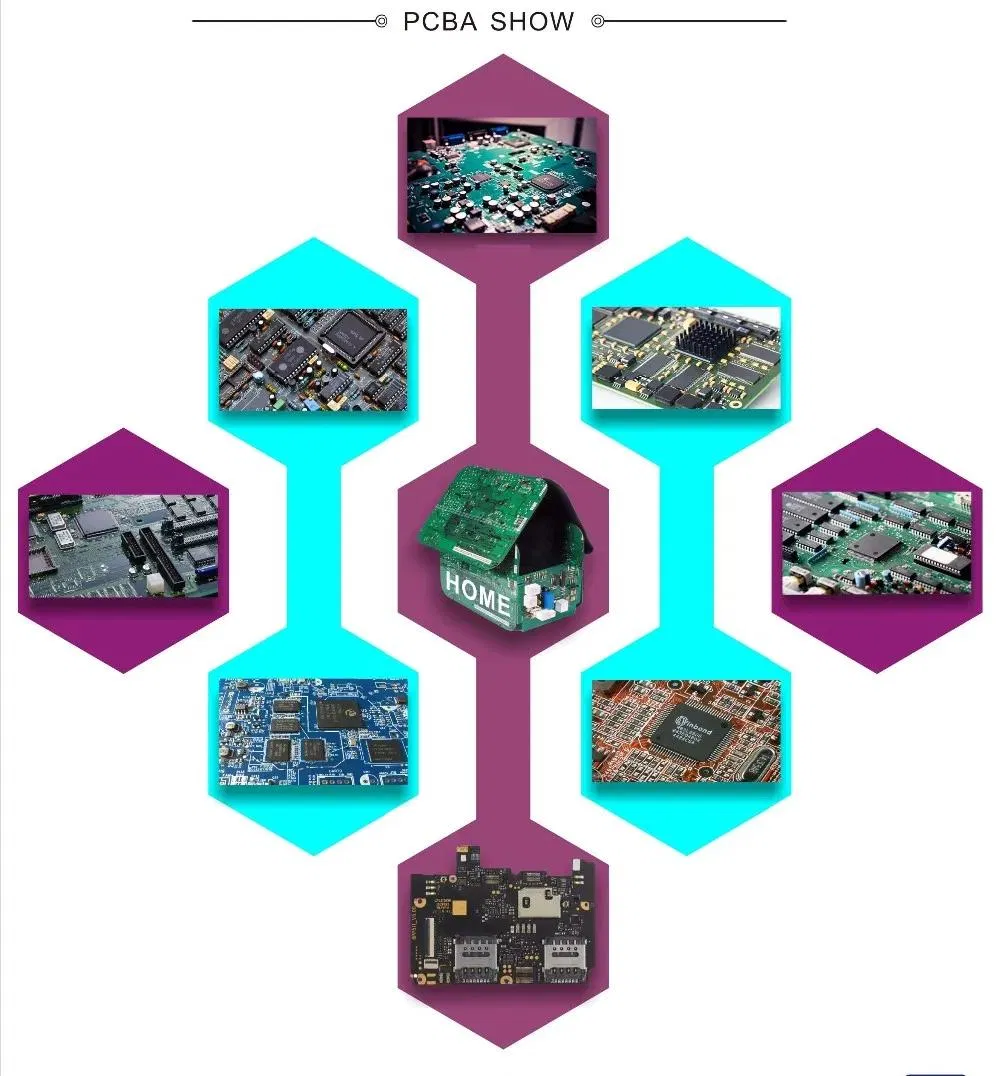

5. Complete product assembly (PCBA, motherboards, cables, switches)
6. Logistics arrangements and export services
| Item | Specification |
|---|---|
| PCB layers | 1 to 32 layers |
| Material type | FR4, High-TG FR4, CEM-1, ALU, CEM-3, Rogers, HDI |
| Max dimension | 600 x 1200mm |
| Min line width/spacing | 0.1mm |
| Pcb thickness coverage | 0.2 to 6.0mm |
| Surface finish | HASL, OSP, ENIG, Gold plating, Immersion Tin |
| Solder mask colors | Blue, Green, Black, Yellow, Red, White |
| Impedance control | ±5% |
Package Size: 19.00cm * 13.00cm * 8.50cm
Gross Weight: 1.000kg
Transport: Bubble Cotton + Cardboard Box protection for safe shipping.
