🟦 Basic Information
Cooling System
Air Cooling
Technical Class
Continuous Wave Laser
Laser Wavelength
CO2 Laser
Laser Classification
Gaseous Laser
Type
CO2 Laser Marking Machine
Marking Method
Scanning Marking
Marking Area
110*110mm, 200*200mm, 300*300mm
Transport Package
Wooden Case
Capacity
300 Sets Per Month
🟦 Product Description

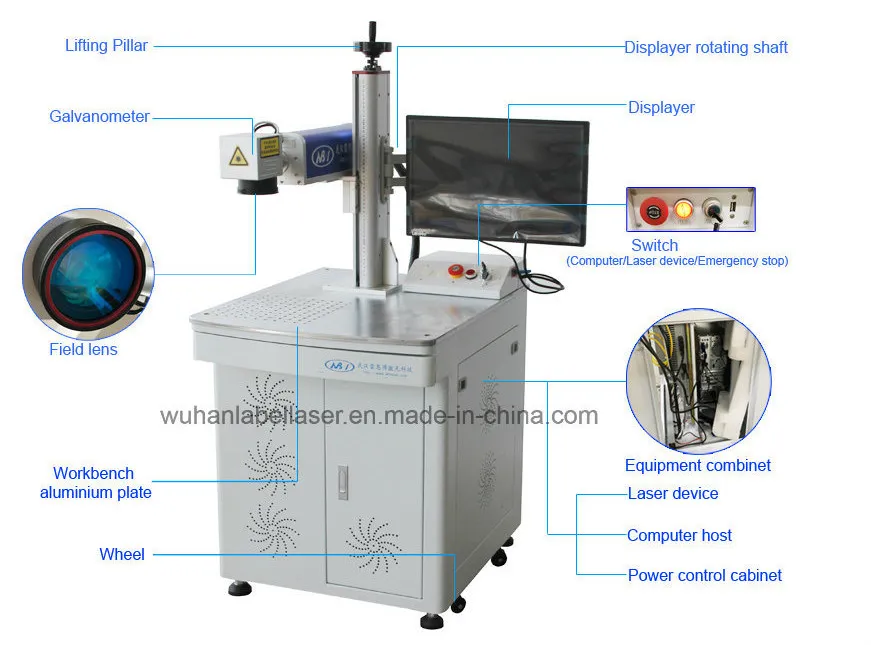

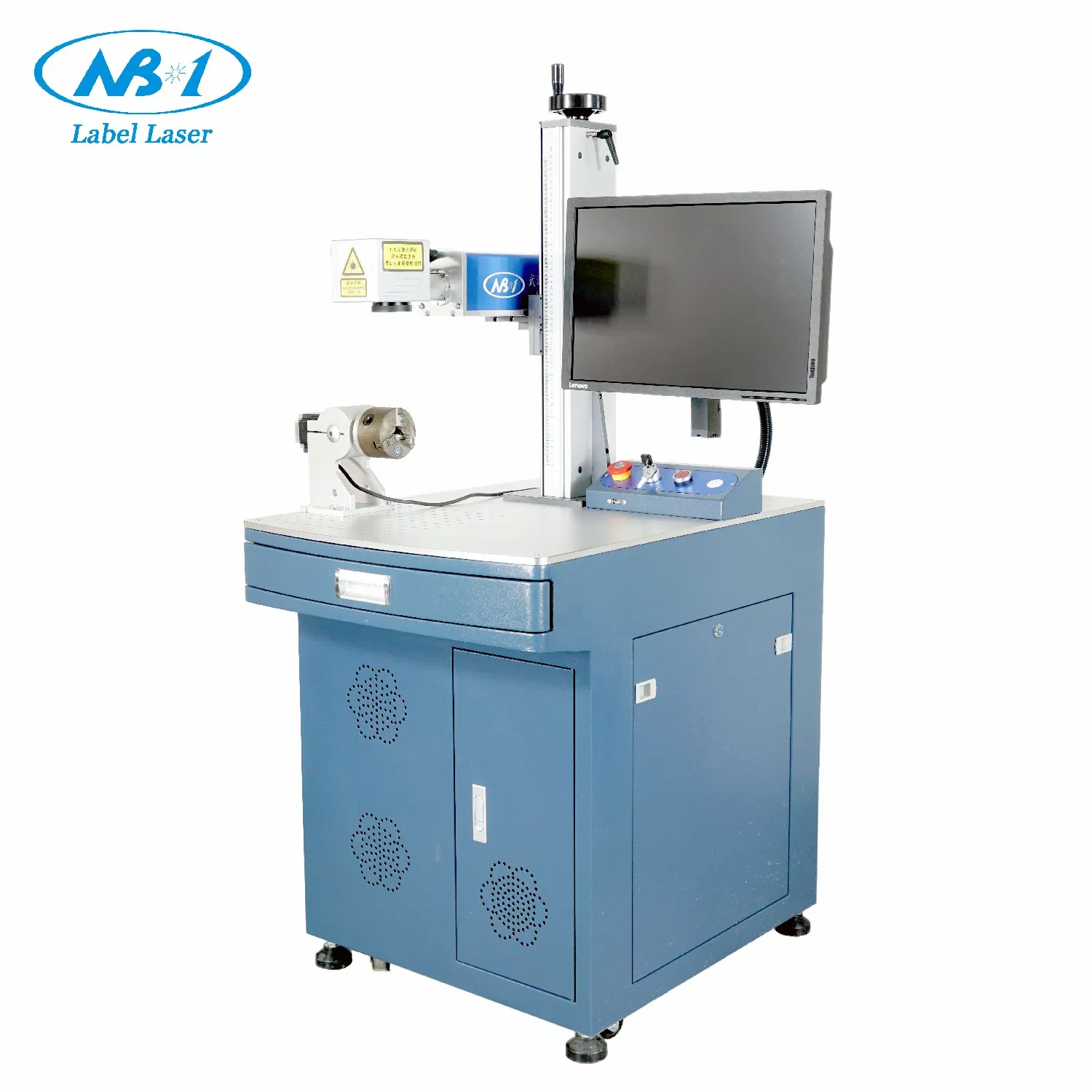

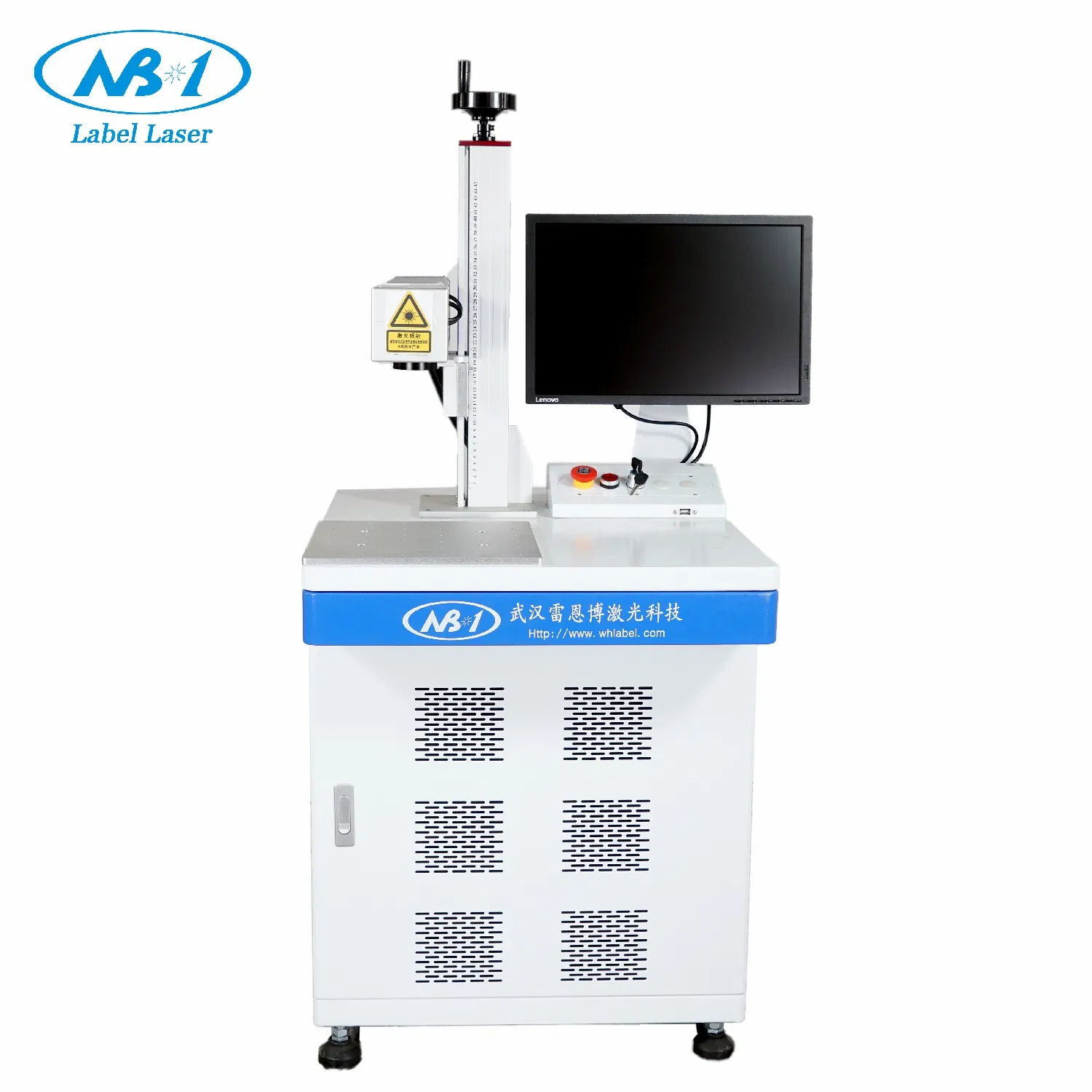

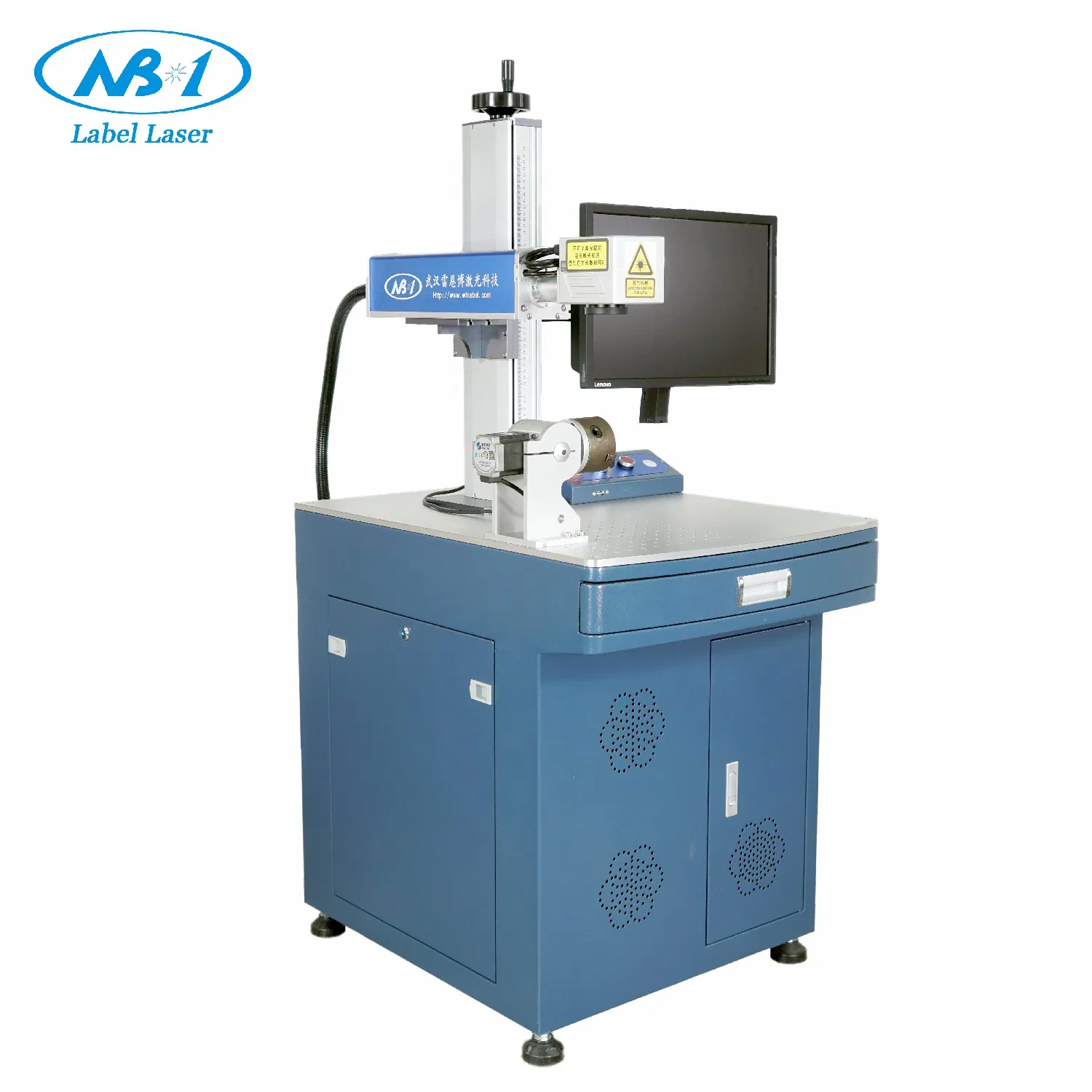

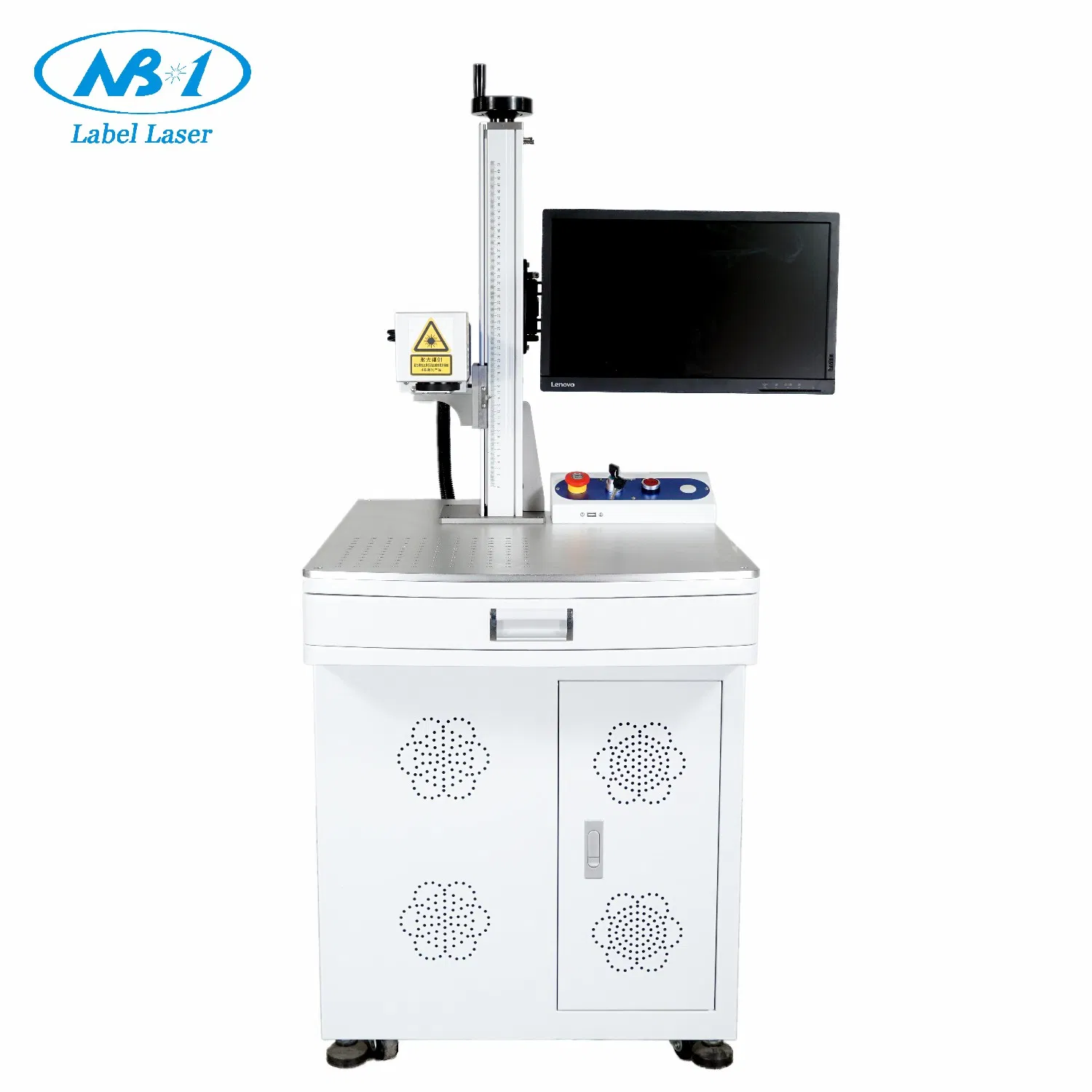

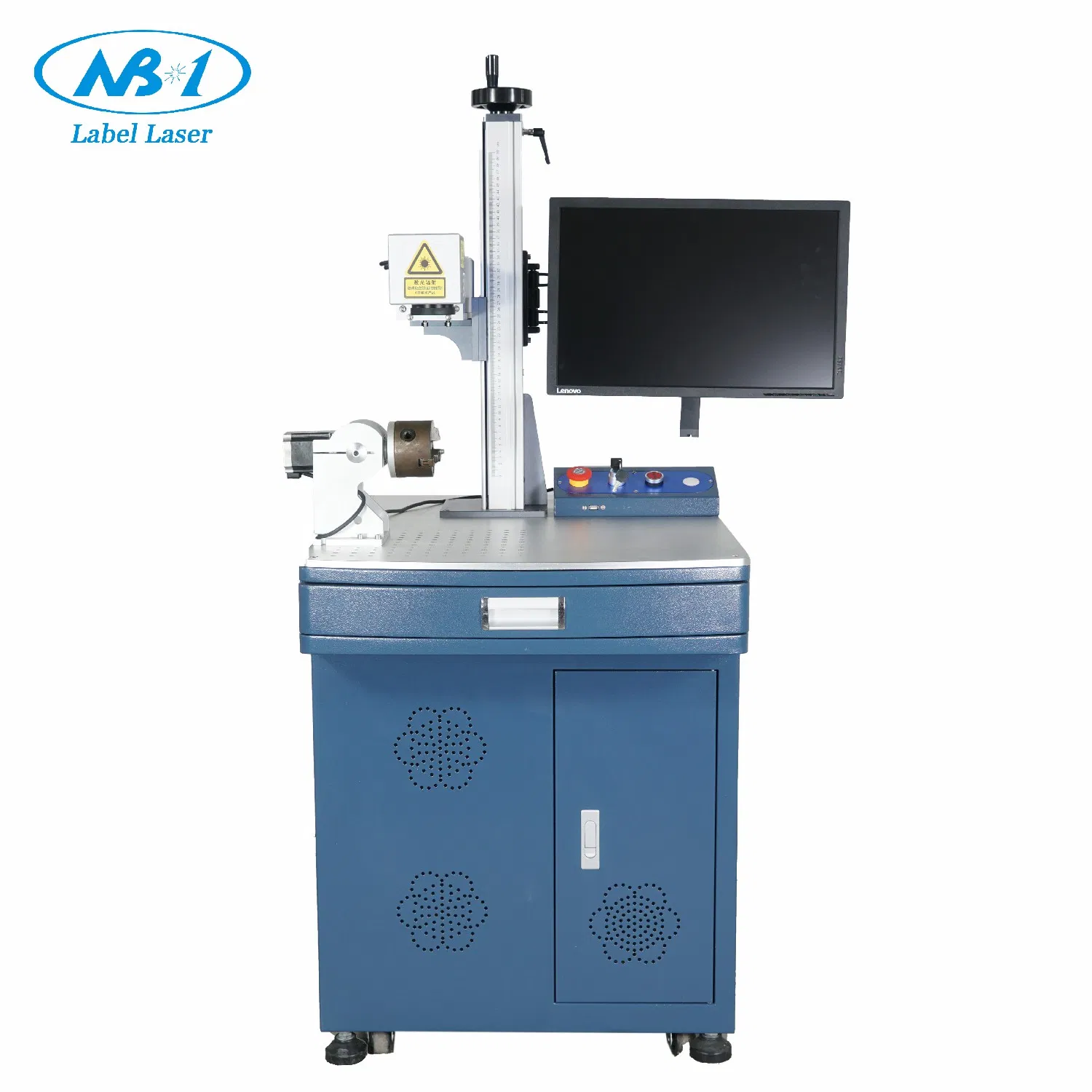

Desktop CO2 RF laser marking system for non-metal plastic
✔Automatic and delicate marking on plastic labels, wood, acrylic, and other non-metal products.
✔100,000 hours long working life with ultra-low running cost and power consumption.
✔Durable and reliable design suitable for continuous long-term operation.
✔Support Windows XP/2000, Window 7, JCZ EZCAD marking software. Easy to learn and operate.
🟦 Technical Parameters
| Laser Wavelength | 10.64μm |
| Laser Mode | TEM00 |
| Output Power | 30W, 60W |
| Model | LBCO2-500 |
| Working medium | Co2 |
| Marking Area | 110*110mm, 200*200mm, 300*300mm |
| Marking Depth | 0.02-1mm (Adjustable) |
| Marking Speed | ≤7000mm/s |
| Marking Content | English letters, characters, figures and graphics |
| Marking Function | Flat surface, small curvature arc, filled marks |
| Min. Line Width | ≥0.1mm |
| Total Power | ≤1KW |
| Cooling Mode | Air cooling |
| Operation Environment | 0ºC~40ºC (Optimal: 10ºC~35ºC) |
| Power Input | 220V (±10%) / 50Hz (±5%) single phase |
| Machine Dimension | 610*760*1427mm |

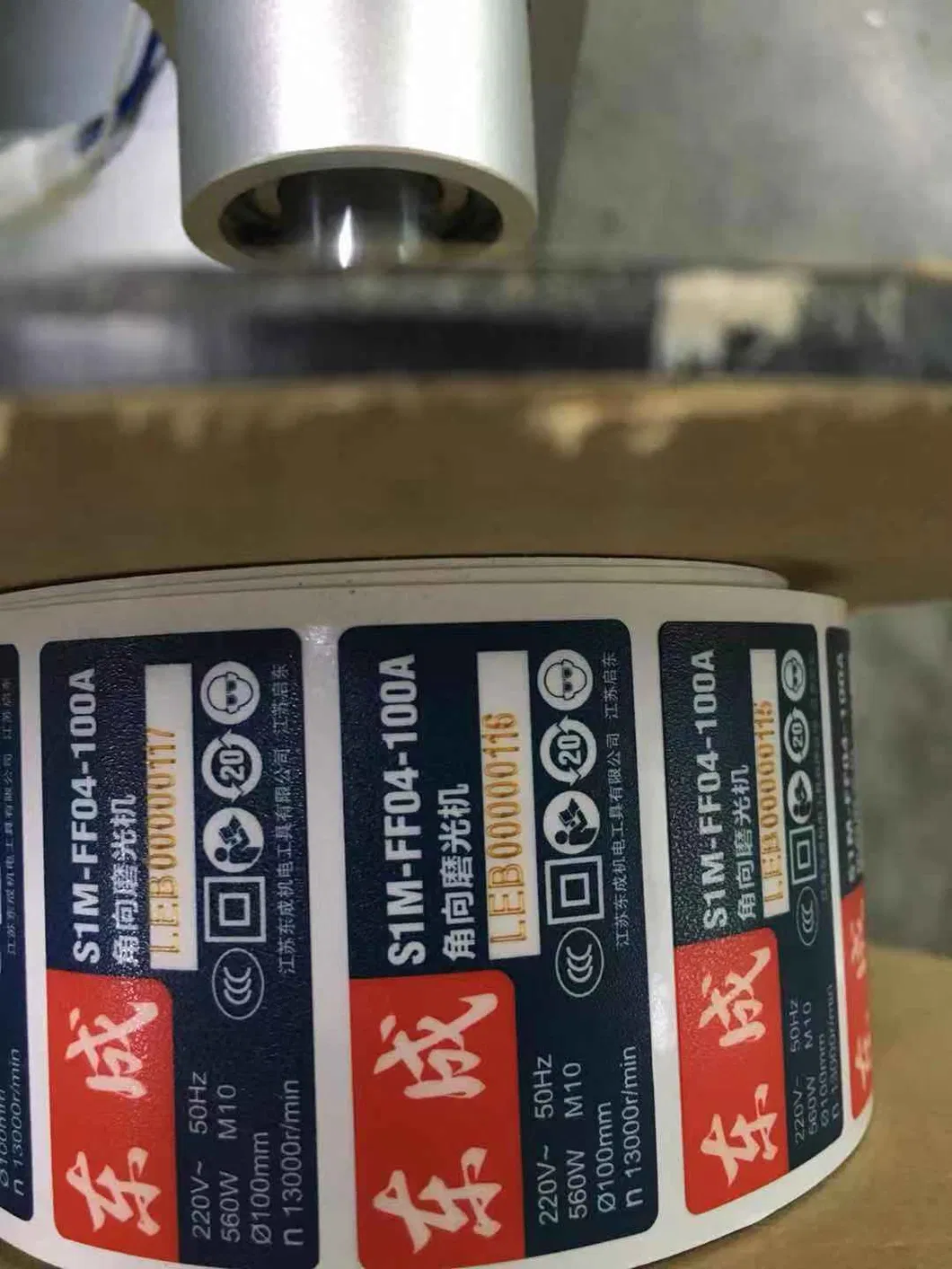

🟦 Marked Samples & Applications
Applicable Fields: PVC, PET, PP plastic labels, capacitances, inductors, IC, printed circuit boards, electrical cards, instruments, control panels, buttons, cosmetics, food and beverage packaging, stationery, crafts, etc.

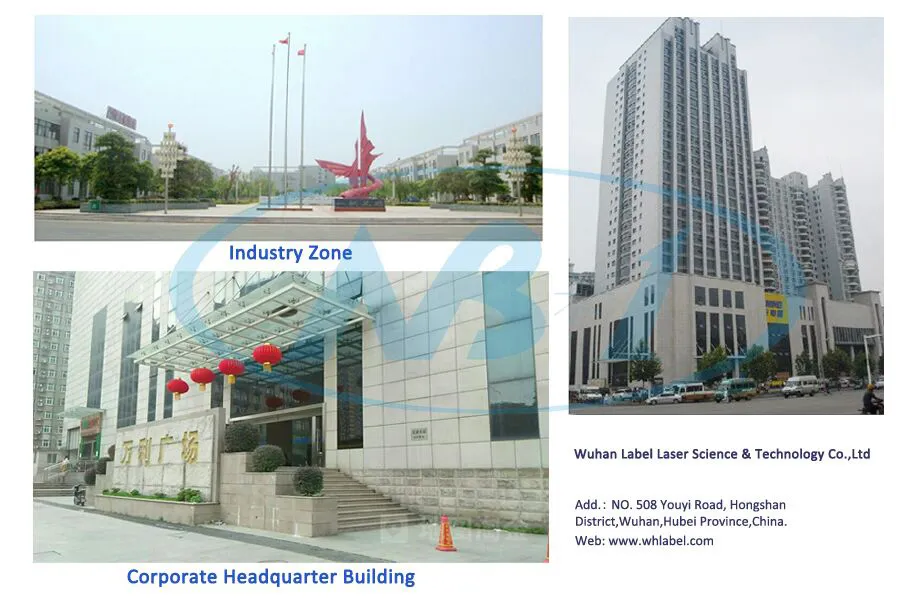

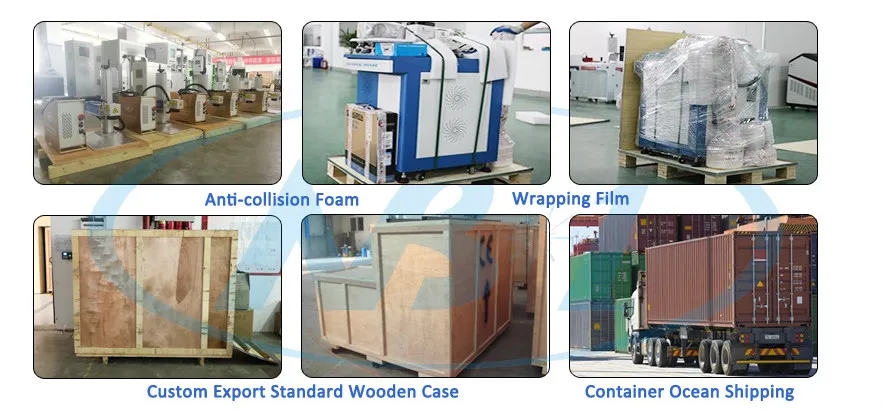

🟦 Packing & Manufacturing
🟦 Why Choose Our System
⭐ Over 18 years of experience in laser processing, manufacturing, research, and design.
⭐ Professional technical group for customized industrial laser marking solutions.
⭐ 3000+ marking solution cases accumulated in domestic and overseas markets.
⭐ 100% strict QC for both raw materials and finished products.
⭐ ISO, CE, and SGS certified equipment with complete service support.
🟦 FAQ
Q1: What type of machine is suitable for us?
Please tell us the material to be marked and the required depth. We will advise the suitable model. If you can provide material samples or pictures, we can perform marking tests and send videos for your verification.
Q2: Can you provide training if we don't know how to use the machine?
Yes, user manuals and operation videos are included with the shipment. Our technicians offer free training at our factory, and professional engineers are available for international installation and adjustment.
Q3: What is the estimated delivery time?
For standard machine configurations, the lead time is typically 10-15 days.
Q4: How long is the warranty period?
The CO2 laser marking machine comes with a 12-month warranty. We provide replacement parts for any defects and suggest keeping an extra set of spare parts to ensure continuous production.
Q5: What is the maximum marking speed and depth?
The system achieves a marking speed of up to 7000mm/s. The marking depth ranges from 0.02mm to 1mm depending on the specific material and processing requirements.
Q6: What cooling method does this machine use?
This system utilizes an efficient air-cooling mode, making it compact and easy to maintain compared to water-cooled systems.
