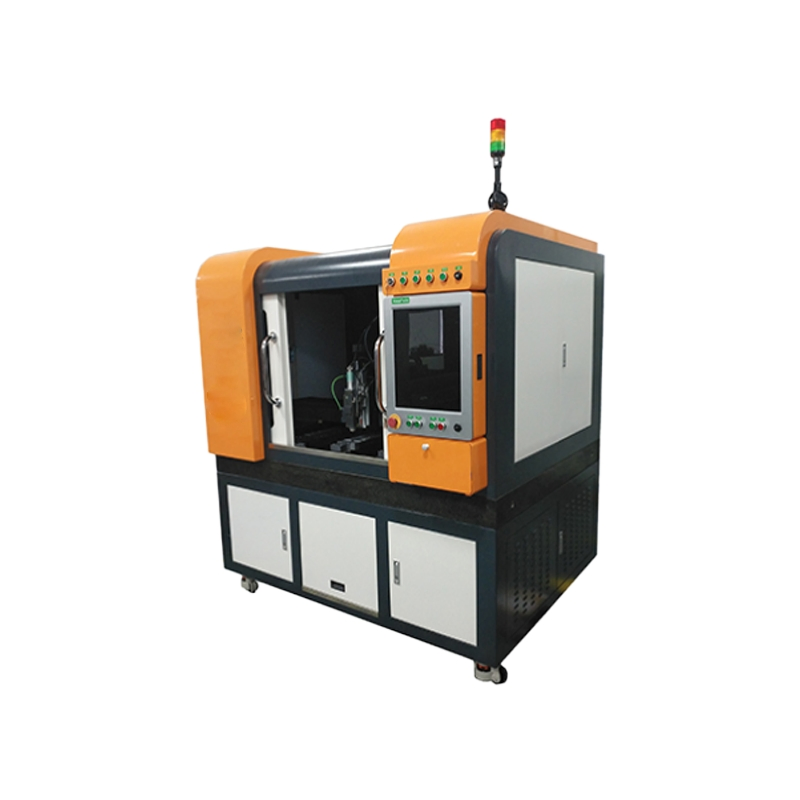

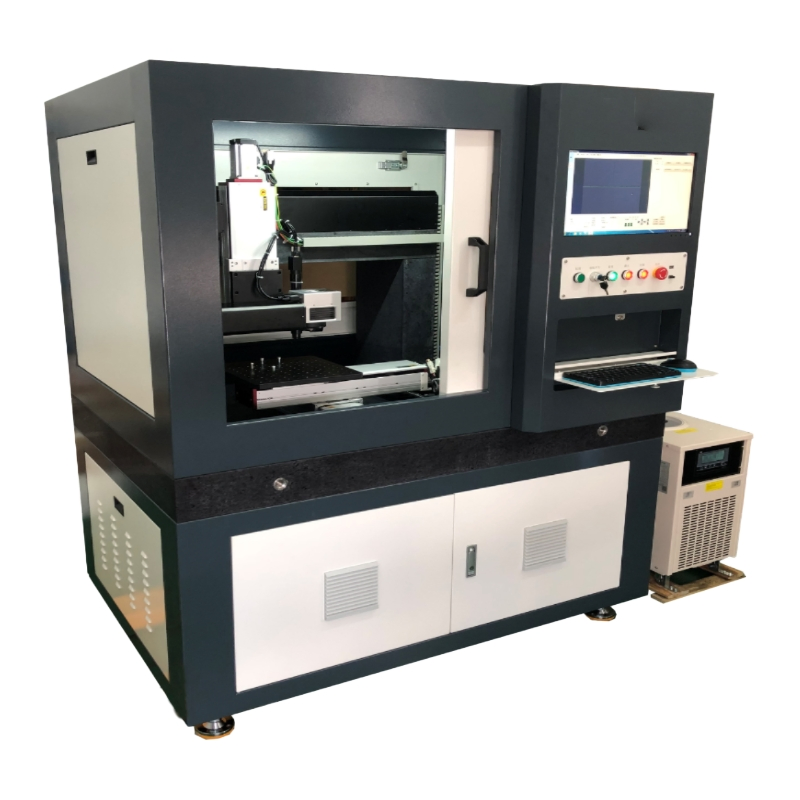

Advanced Technology High-Power Fiber Laser Cutting System

Customization:	Available
After-sales Service:	Video Support for Free
Warranty:	1year

Basic Information

Structure

Vertical Drilling Machine

Layout

Vertical

Controlling Mode

CNC

Number of Shaft

3

Automatic Grade

Automatic

Precision

High Precision

Certification

CE, ISO 9001

Condition

New

Transport Package

Polywood Box

Origin

China

Capacity

1000/ Year

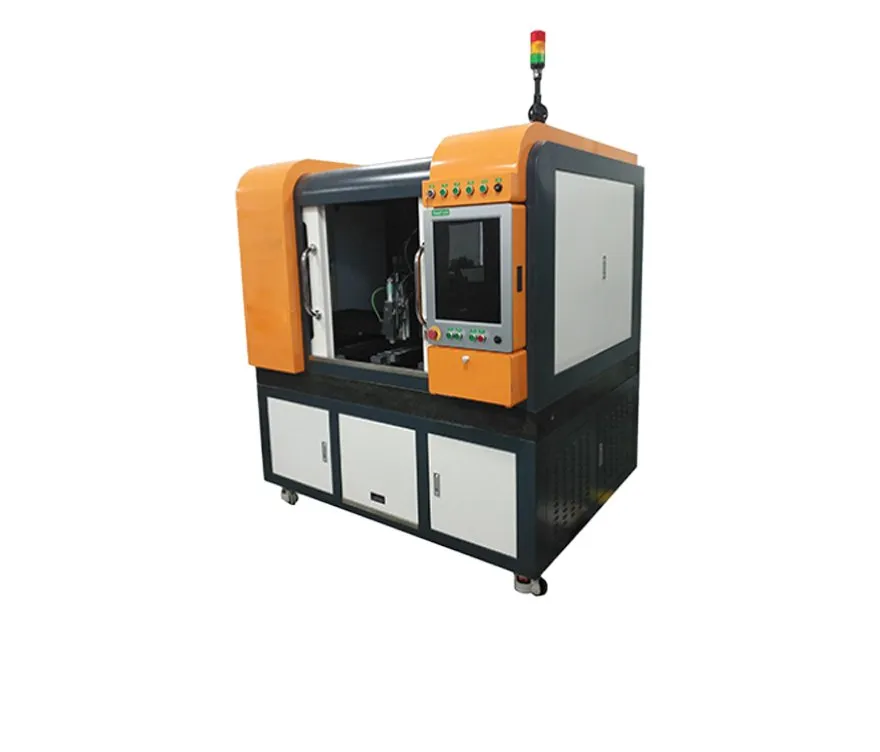

Advanced Technology Fiber Laser Cutting System

Utilizing a single-mode fiber laser, offering excellent reflection isolation and diffraction-limited beam quality, it is the preferred choice for precision cutting.
High-precision follow-up cutting head, automatic focusing, fast response speed, and high accuracy.
Precision optical path and beam control structure, resulting in excellent beam quality and spot control.
Micron-level linear dual-drive platform with high stability and acceleration exceeding 1G.

High-precision 4-axis control system, excellent machining path optimization and nesting capabilities.
High-precision off-axis vision positioning system, supporting secondary positioning and machining of parts.
High-flatness marble platform, fully enclosed structure, long-term stability.
Excellent cable management and dust removal design, requiring no maintenance for extended periods.
Minimum kerf depth to 0.05mm, machining accuracy ±0.01mm, excellent cutting effect, smooth cut, good perpendicularity, and no slag buildup. Round tube cutting and drilling can be achieved by extending the rotation axis.

Technical Specifications

Category	Parameter	FM-LPCD150/300
Laser	Wavelength	1070±10nm
	Power	150W/300W
	Modulation frequency	1~100kHz
	Beam quality M2	<1.3
	Power stability (8h)	<3%
XY Workbench	Journey	600*600mm
	Repeatability	≤±0.002mm
	Positioning accuracy	≤±0.01mm
	Acceleration	≤1G
	Speed	≤800mm/s
Z-axis	Journey	150mm
	Repeatability	≤±3μm
	Positioning accuracy	≤±5μm
Visual Positioning	Accuracy	±0.01mm
Processing Capacity	Minimum kerf (aperture)	0.05mm
	Processing thickness	≤5mm
	Machining accuracy	≤±0.01mm (plate <1mm)
	Repeatability	≤±0.003mm (plate <1mm)
	Max aspect ratio	>30:1
	Materials	Metals, alloys, ceramics
Cutting Assist Gas		High-pressure air, N2, O2
Cooling System		Water cooling
Electricity		380V 50~60Hz 15A
Power consumption		≤5kW
Size		150016001900mm
Weight		1200Kg

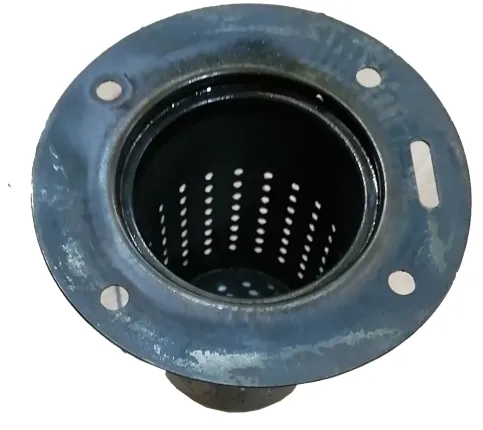

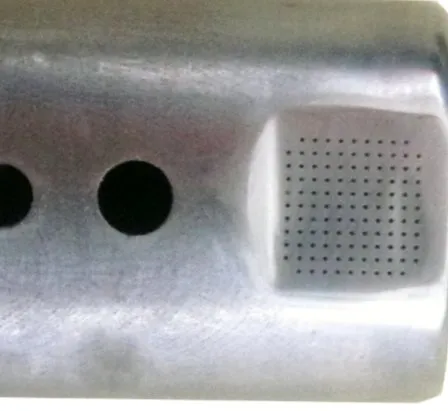

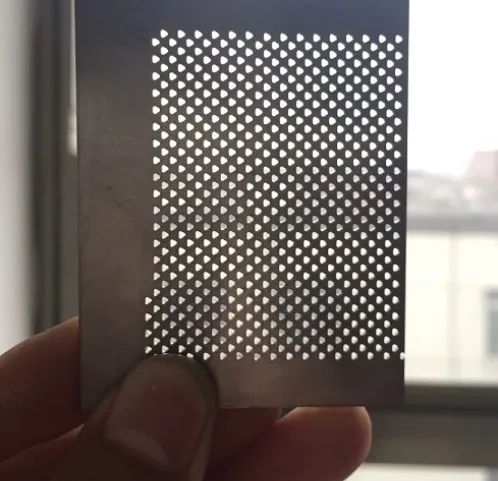

Equipment Application

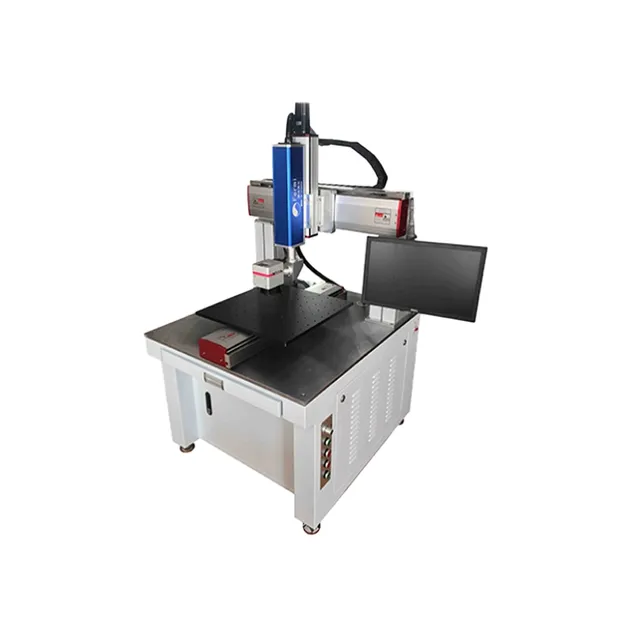

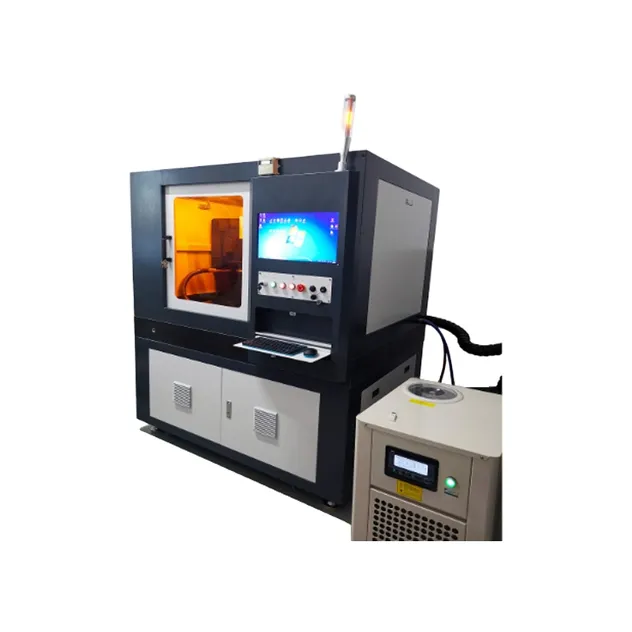

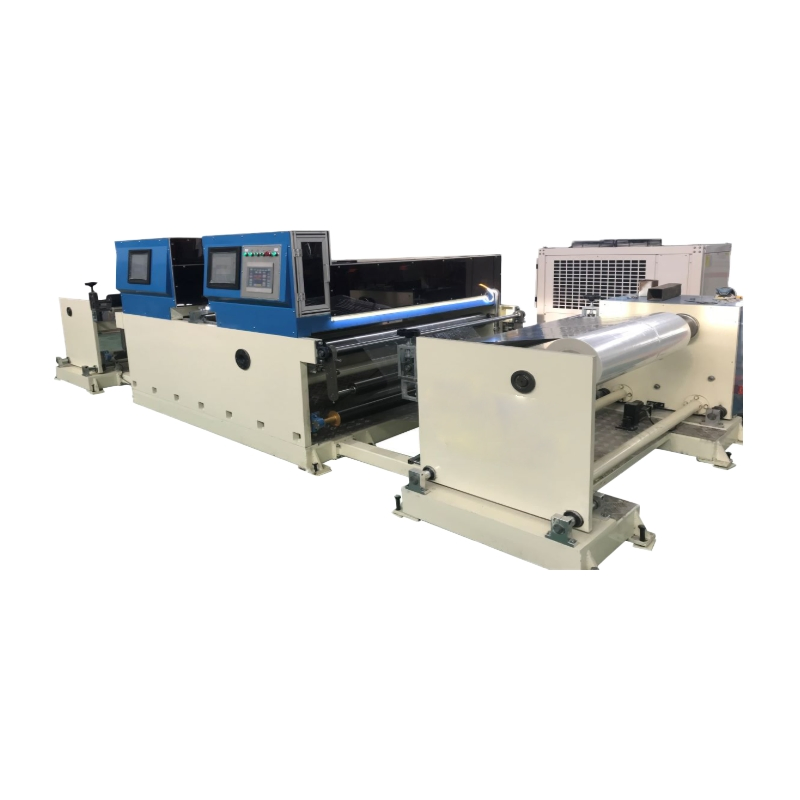

Other Product Lines

Packing & Delivery

Standard Warranty: 12 months after shipping
Extended Warranty: Optional coverage up to 36 months
Global Support: 24/7 technical assistance and service group
Training: Free on-site or remote operation and maintenance training

Manufacturing Excellence

Our factory is a technology-driven enterprise specializing in the R&D, production, and sales of industrial and scientific research laser application systems. We provide customers with precision laser application solutions for micro-hole, micro-groove, micro-welding, scribing, cutting, marking, and feature forming, with feature processing linewidths ranging from 1 to 500 μm.

Successfully developed systems include Femtosecond Laser Precision Processing, Picosecond Laser Ultra-Fine Processing, Laser Micromachining, Roll-to-Roll Thin Film Micro-Hole Processing, and more, serving industries like biomedicine, semiconductors, and new energy.
