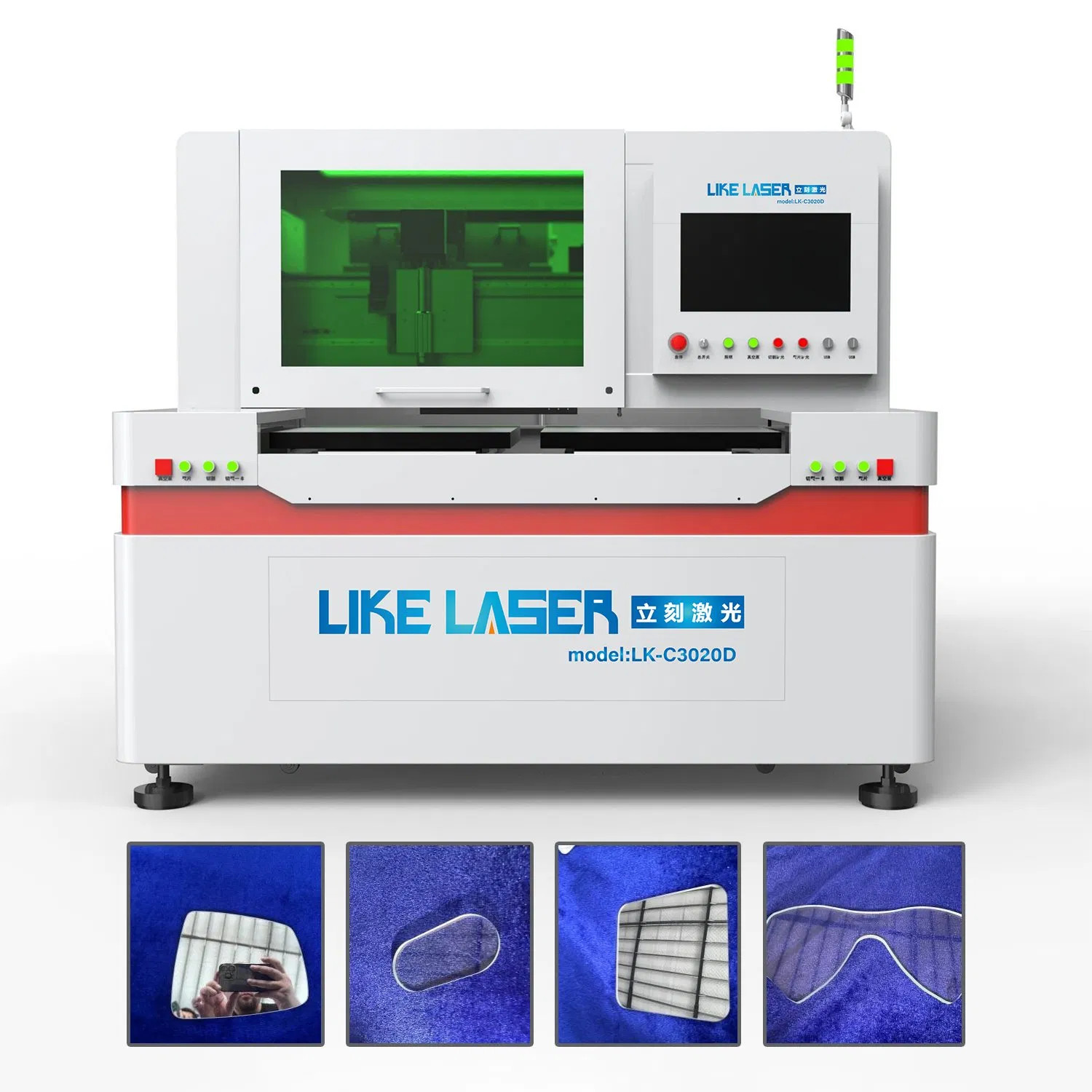

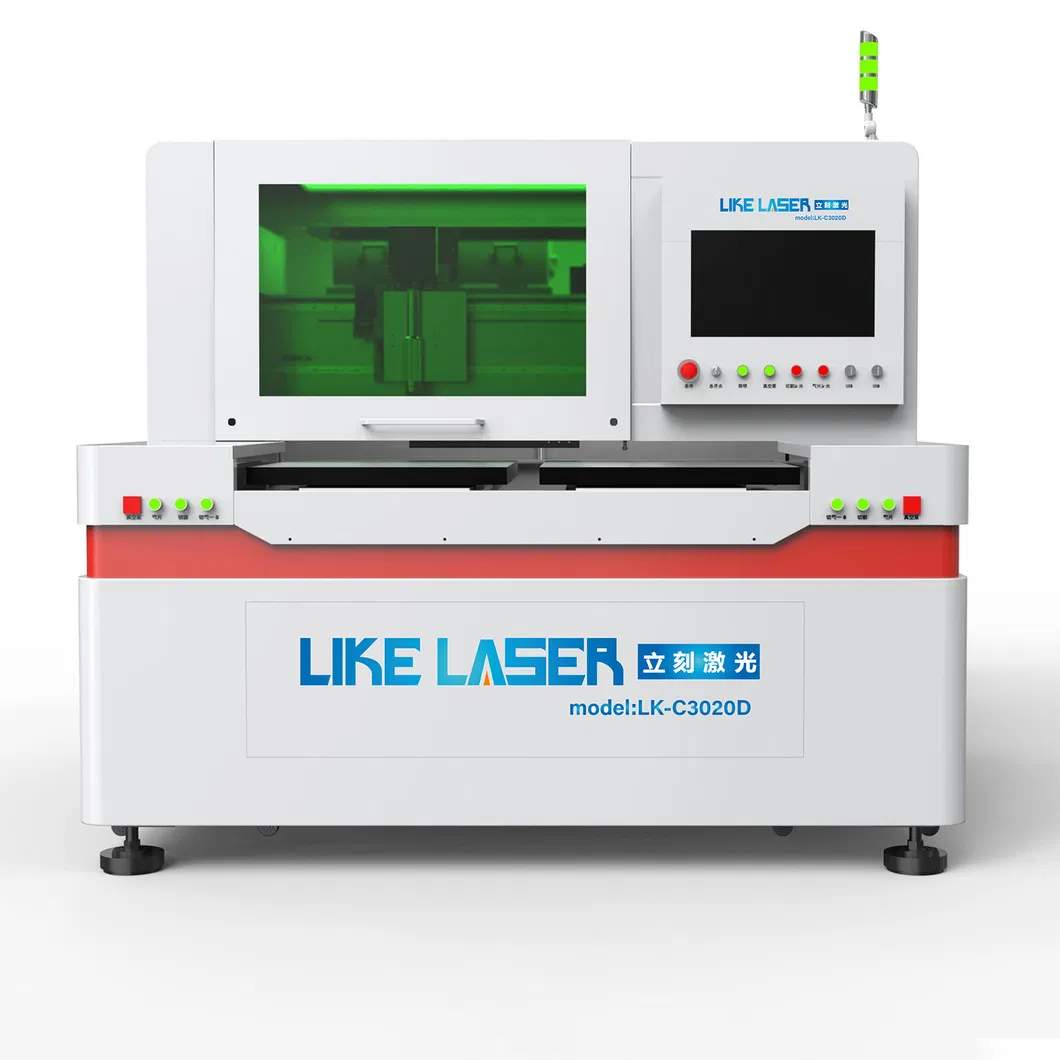

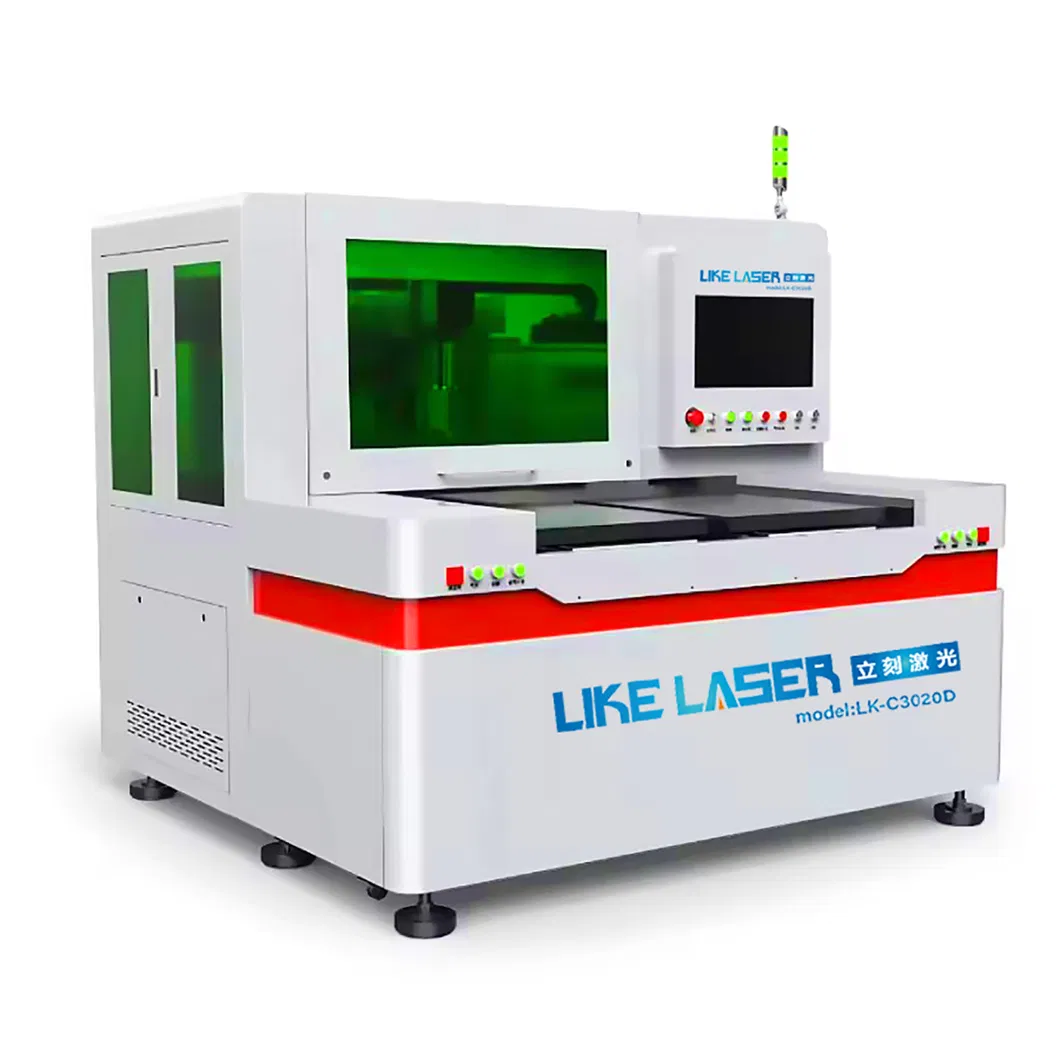

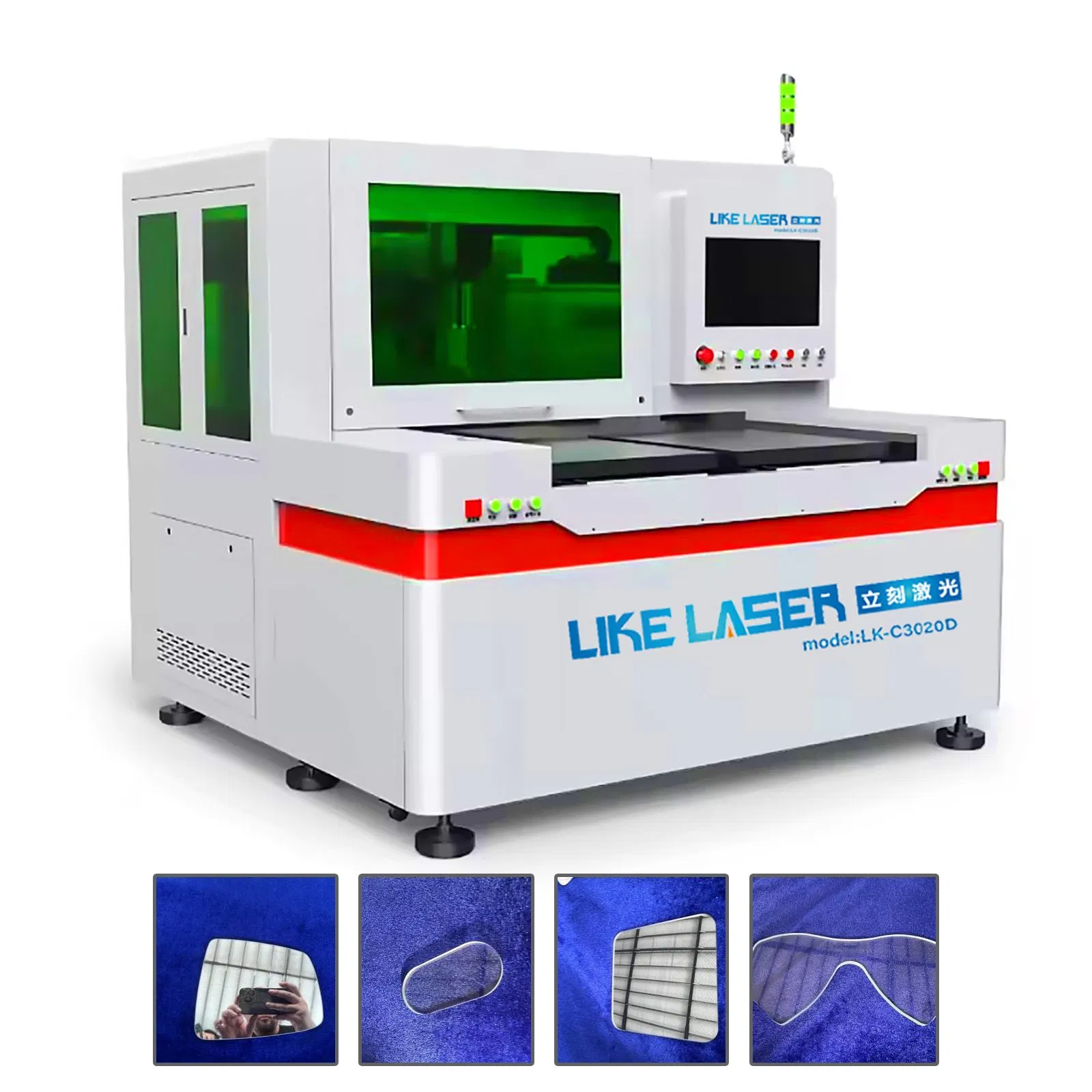

The Picosecond laser glass cutting machine is a high-efficiency, automatic system designed for precision processing. By utilizing both picosecond laser sources and RF CO2 laser technology, it delivers superior results in the glass cutting industry.

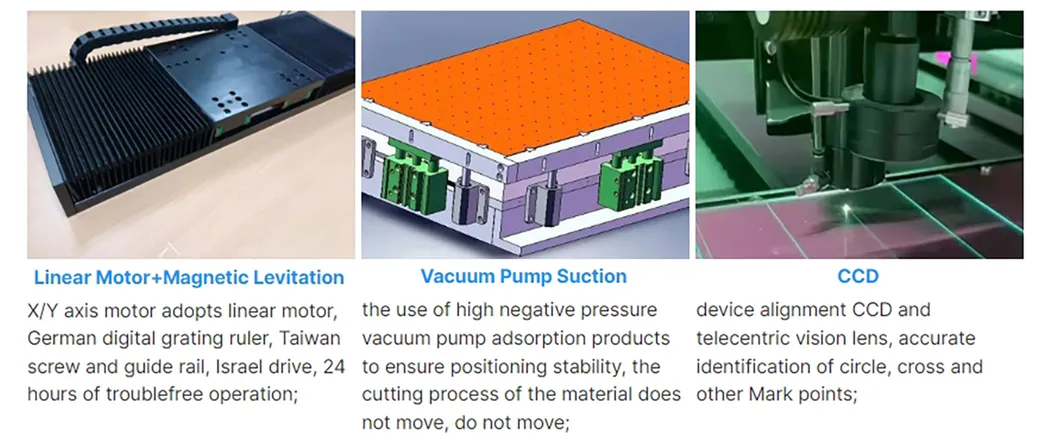

Our ultra-fast glass laser cutting machine features a self-developed AI control system and a high-end custom picosecond light source. Equipped with double-drive linear motors and a marble work surface, it achieves processing accuracy up to ± 2 microns.
| Model | Standard Size | Workbench |
|---|---|---|
| LK-GC7060D | 700*600mm | 2 |
| LK-GC8060D | 800*600mm | 2 |
| LK-GC1380A | 1300*800mm | 1 |
| LK-GC2010D | 2000*1000mm | 1 |
| LK-GC3020A | 3000*2000mm | 1 |

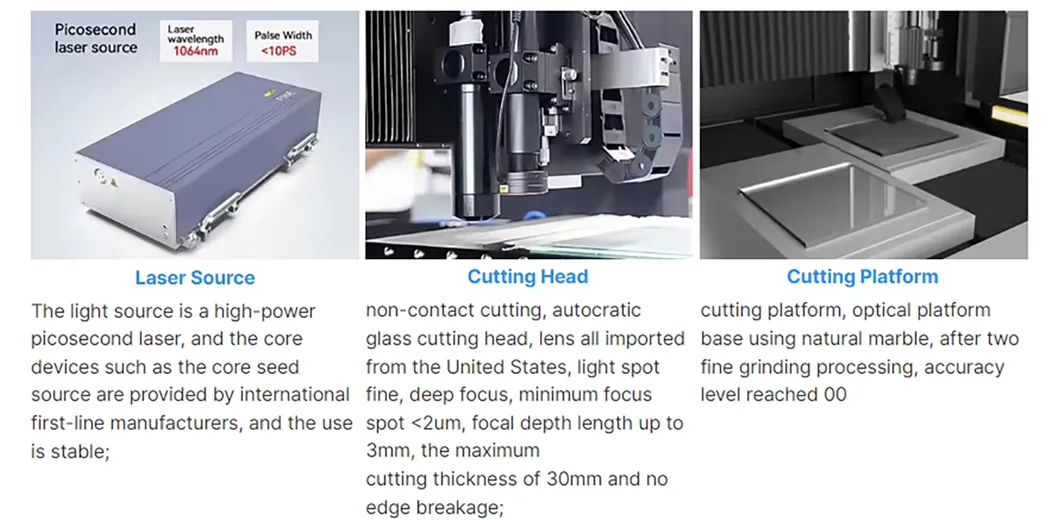

| Cutting Light Source Specifications | |
|---|---|
| Laser Type | Picosecond pulse laser |
| Wavelength | 1064nm, beam quality: M2 < 1.3 |
| Pulse Length | < 10PS; Frequency: 1Hz-1000kHz |
| Cooling Mode | Water Cooling |
| Visual System | 5 million CCD Camera |
