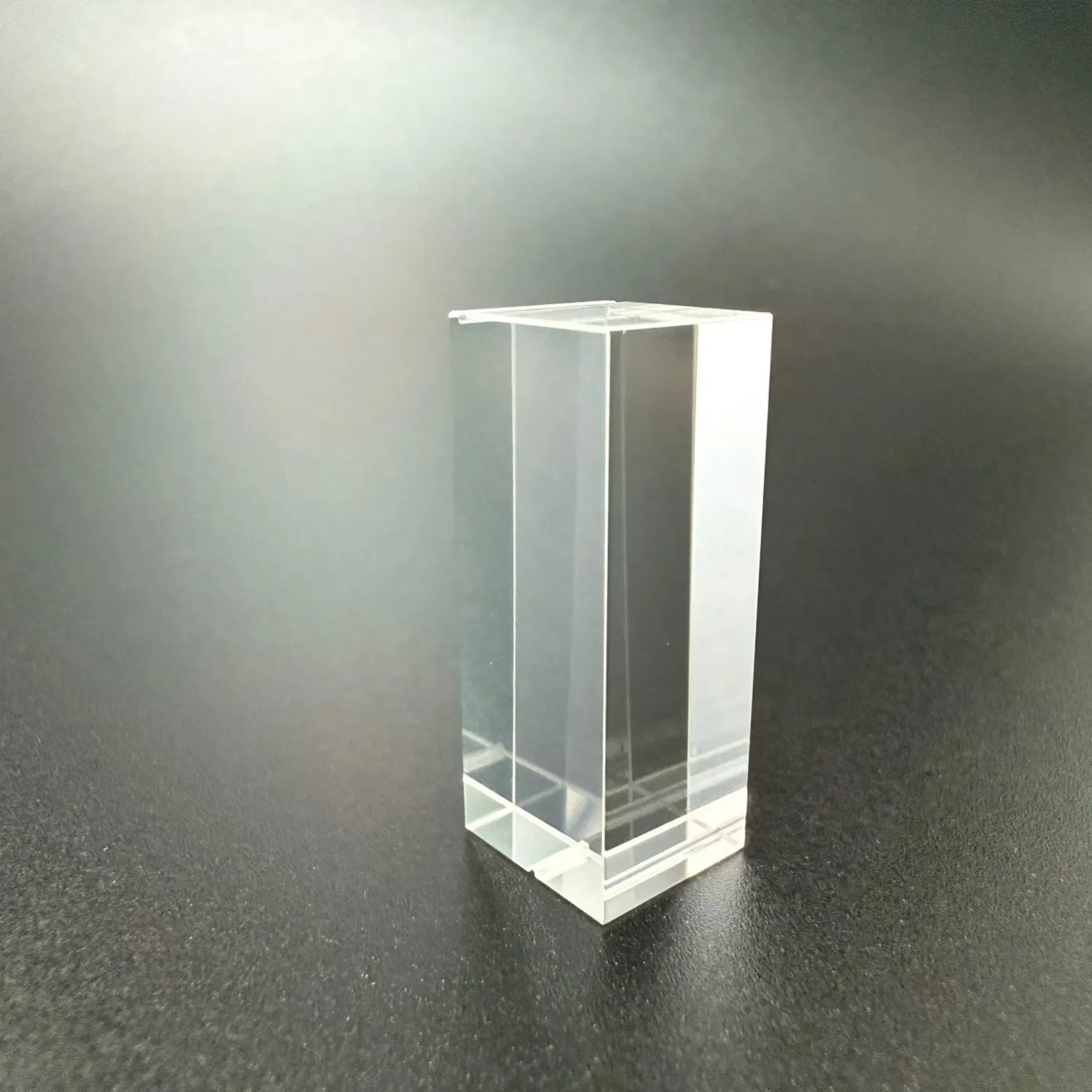

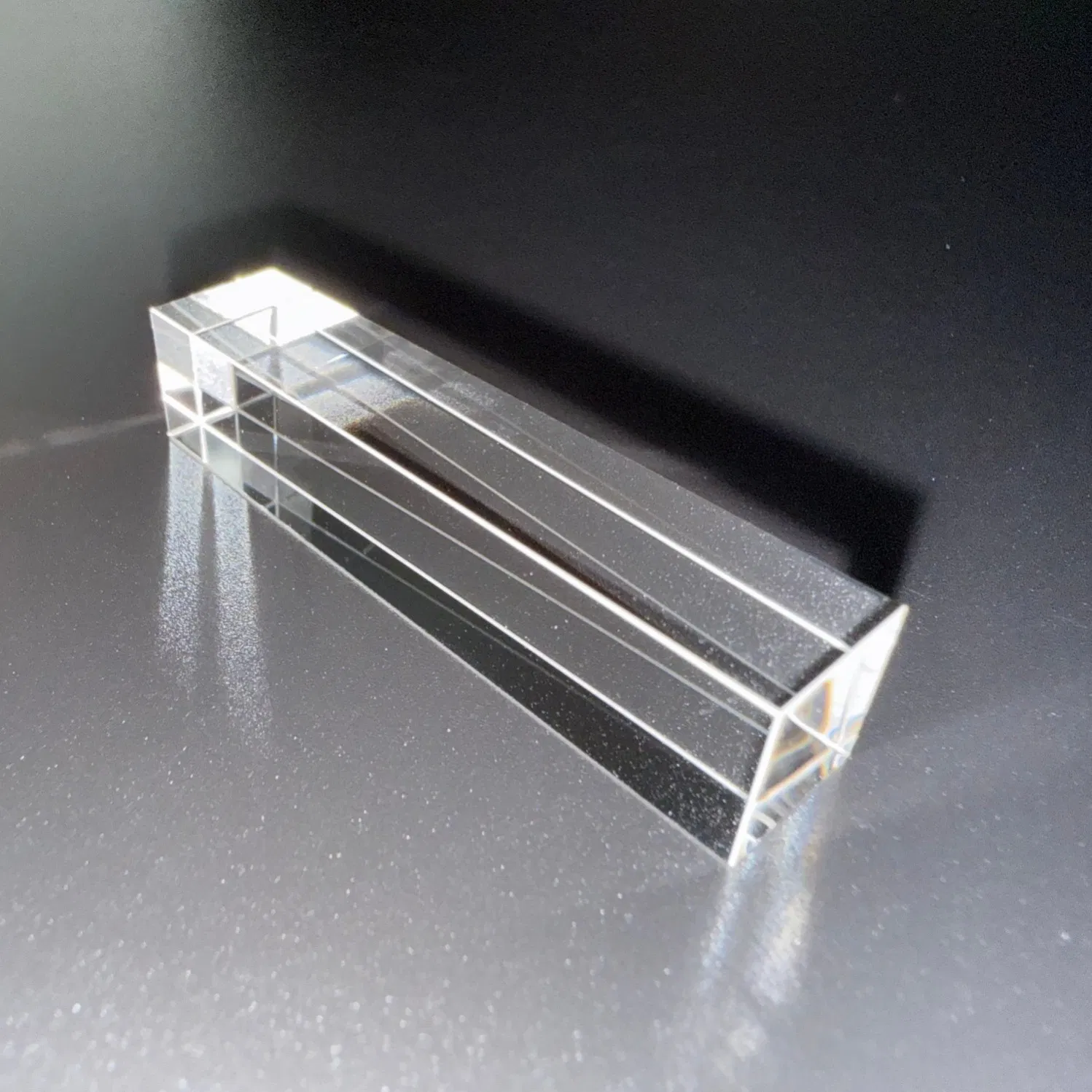

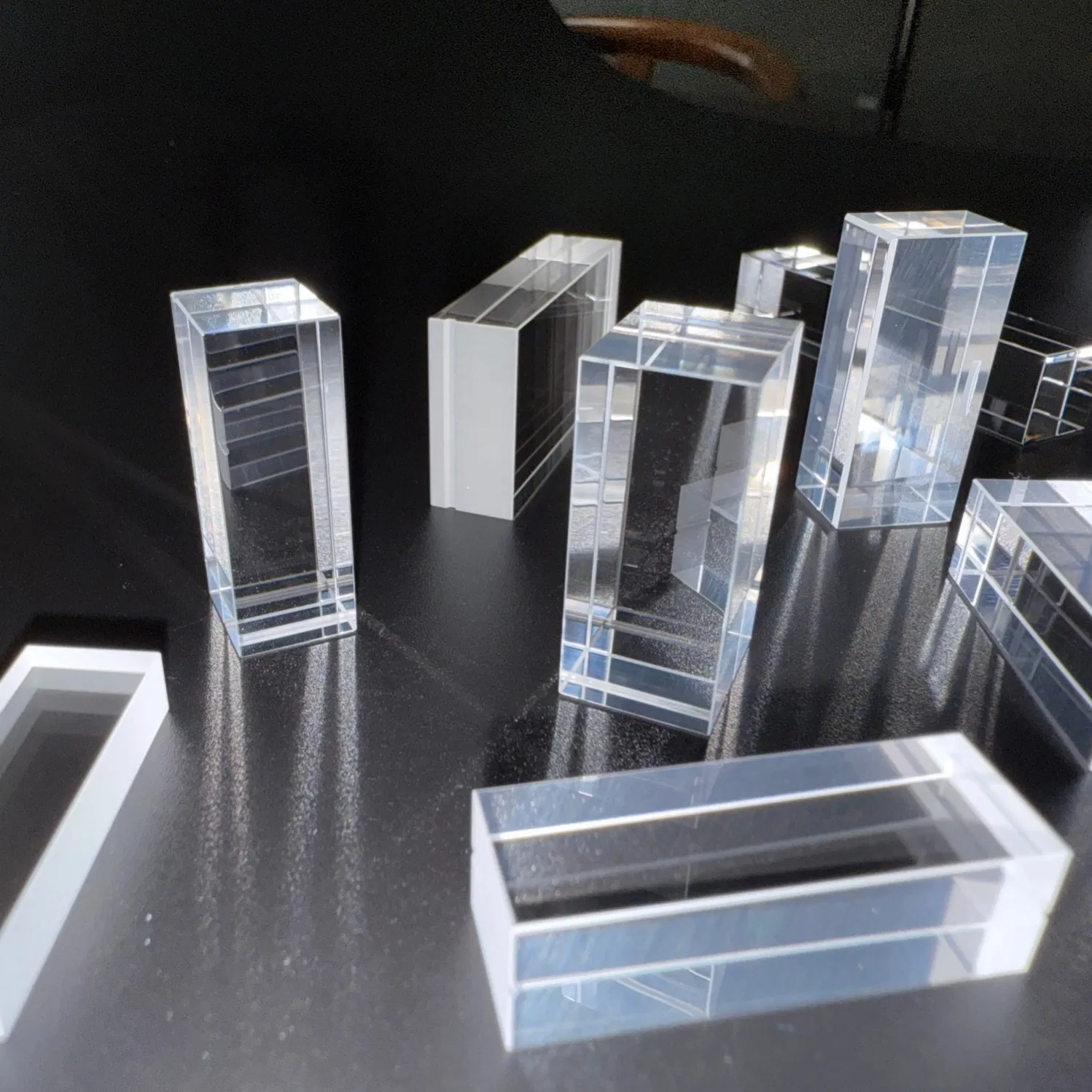

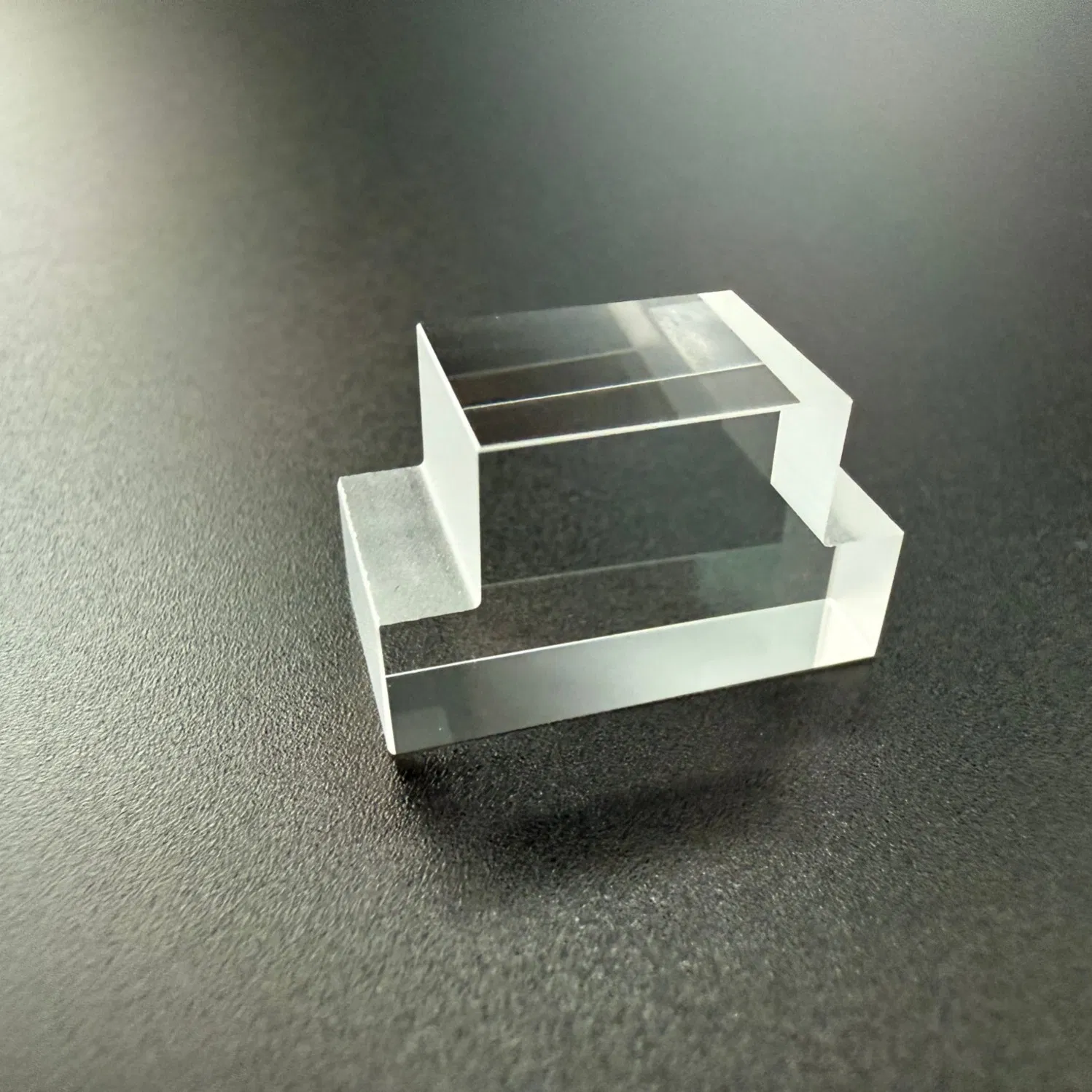

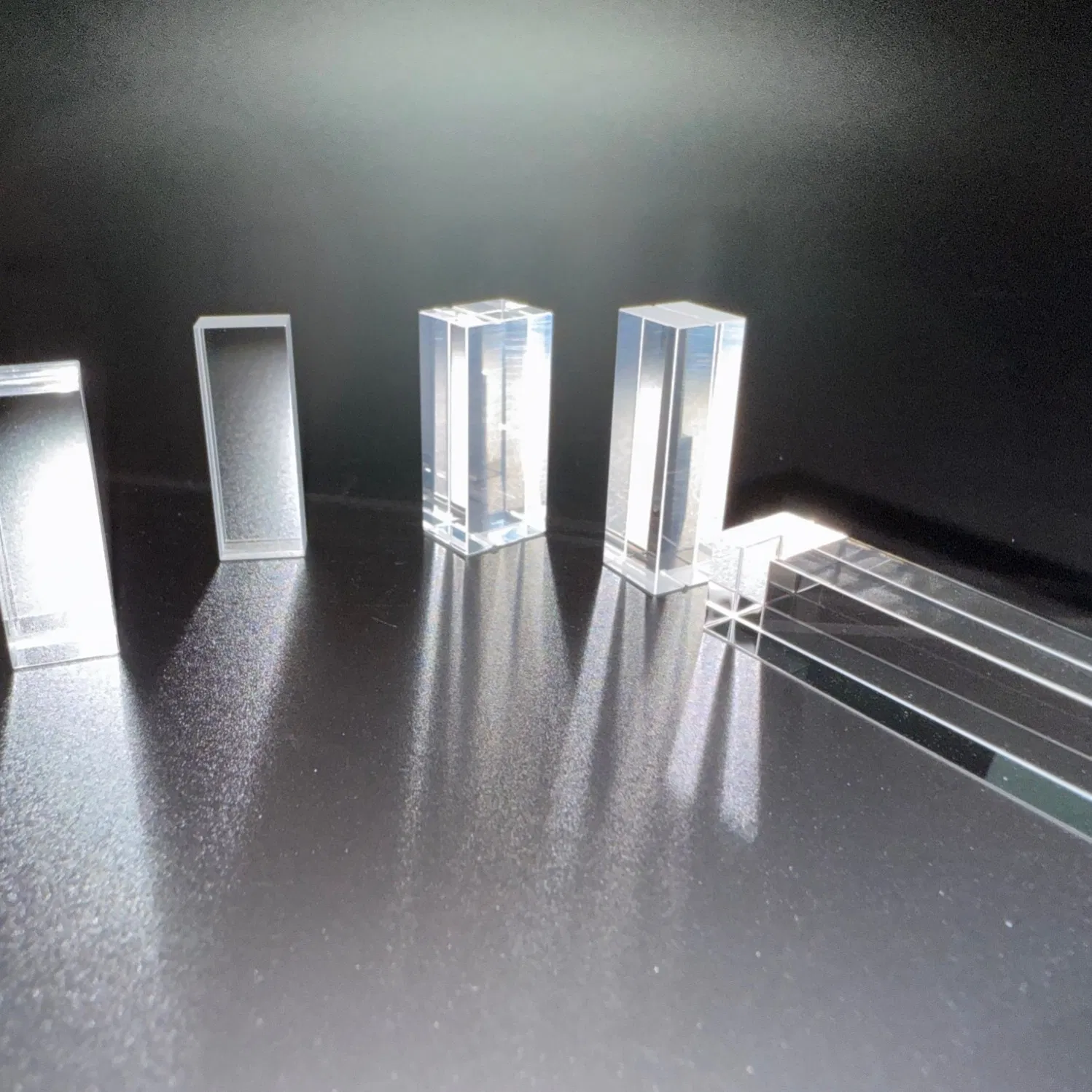

Precision-Ground Laser Systems Sapphire Glass Optical Lens
Precision-Ground Laser Systems Sapphire Glass Optical Lens
Precision-Ground Laser Systems Sapphire Glass Optical Lens
Precision-Ground Laser Systems Sapphire Glass Optical Lens
Precision-Ground Laser Systems Sapphire Glass Optical Lens
1 / 5
Precision-Ground Laser Systems Sapphire Glass Optical Lens
Precision-Ground Laser Systems Sapphire Glass Optical Lens
Precision-Ground Laser Systems Sapphire Glass Optical Lens
Precision-Ground Laser Systems Sapphire Glass Optical Lens
Precision-Ground Laser Systems Sapphire Glass Optical Lens

Precision-Ground Laser Systems Sapphire Glass Optical Lens

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Information
Model NO.
custom
Type
Rectangular Prism
Usage
Beam Dispersion, Beam Split, Medical, Optical
Shape
Cube Corner Prism
Material
Glass
Application
Medical Instrument
Transmittance
>95%
Certification
RoHS, ISO9001
Hardness
Mohs Hardness of 9
Material Type
Synthetic Sapphire Glass
Density
3.98 G/Cm³
Refractive Index
1.761.77 (@589nm)
Product Description
Sapphire Glass Optical Lens Overview

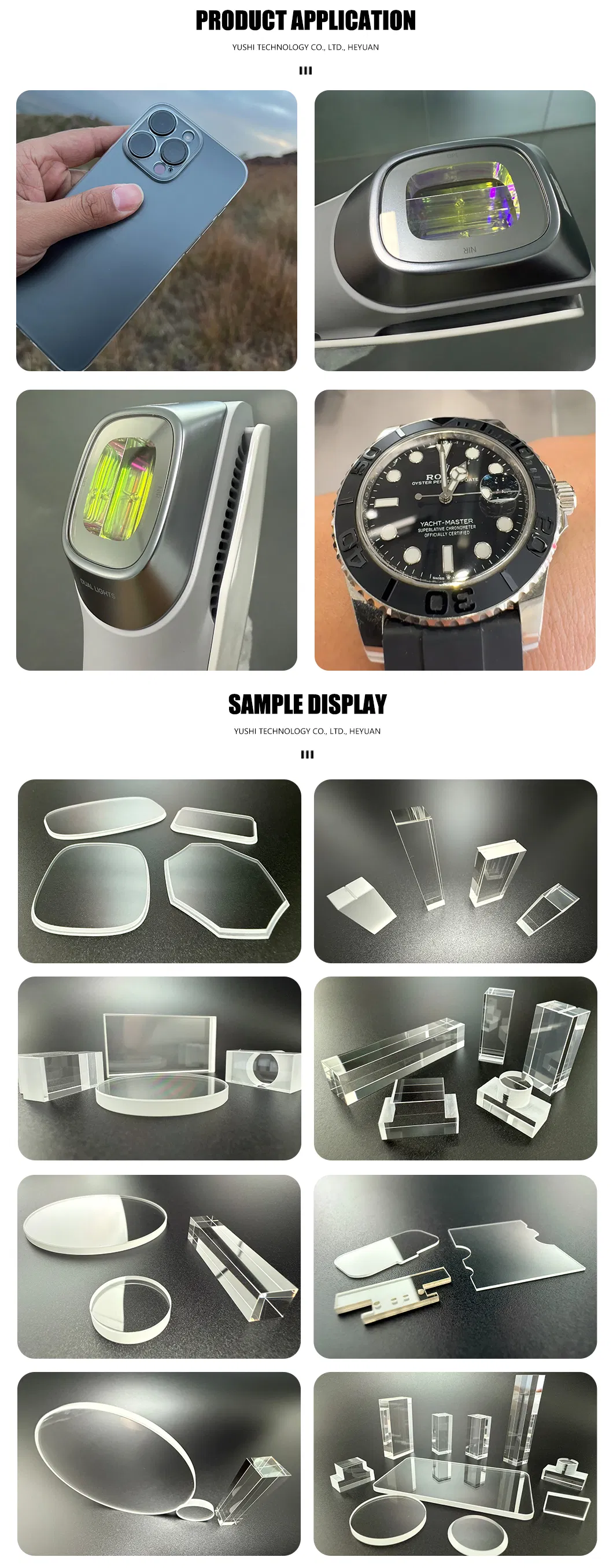

Precision-Ground Laser Systems Optical Lens Detail
Parameter Category Parameter Name Value / Description Notes
Basic Information Product Name Sapphire Glass Optical Window -
Physical Properties Density 3.97 - 3.99 g/cm³ -
Physical Properties Mohs Hardness 9 Second only to diamond (10)
Physical Properties Young's Modulus 345 GPa -
Thermal Properties Melting Point 2040 °C -
Optical Properties Transmission Range 0.15 μm - 5.5 μm Deep UV to Mid-IR
Optical Properties Internal Transmittance >85% @ 0.3μm 1mm thick
Surface Specifications Flatness λ/10 @ 632.8nm High Precision
Surface Specifications Surface Finish 10-5 Scratch-Dig MIL-PRF-13830B
Coating Options AR Coating Reduces reflection losses Single side R<0.25%

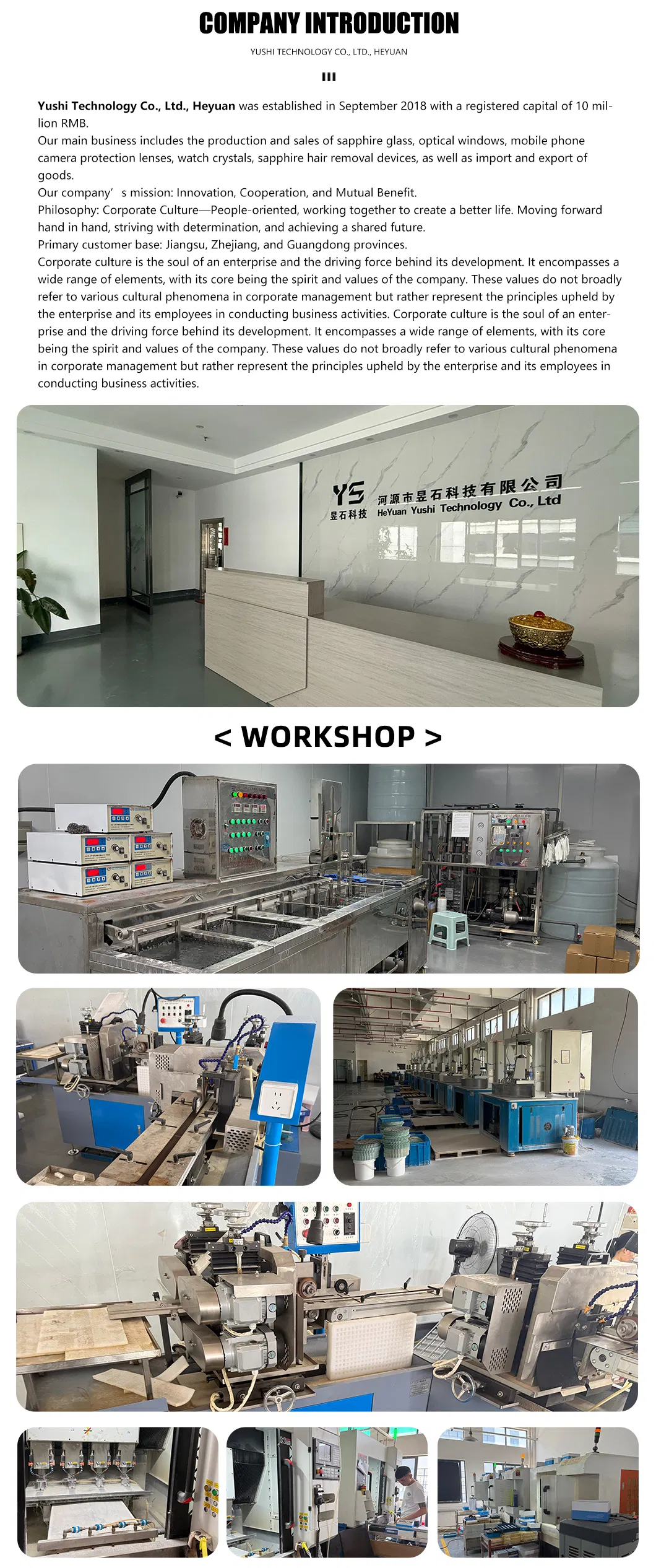

Technical Specifications Detail
Certifications
Certification Documents
Frequently Asked Questions
Is sapphire glass made from real natural sapphires?
No, sapphire glass is a synthetic sapphire crystal. It is created by crystallizing aluminum oxide at high temperatures, resulting in a manmade material with identical physical properties to natural sapphire.
Why is sapphire glass more expensive than standard glass?
The complex manufacturing process and the extreme temperatures required for crystallization make it more costly. However, its unparalleled scratch resistance and durability provide long-term value by reducing replacements.
What is the primary advantage of sapphire glass?
Its core advantage is its exceptional hardness. With a Mohs rating of 9, it is highly resistant to scratches from everyday materials like keys, knives, or sand, maintaining pristine clarity.
Does sapphire glass offer good visibility in different lighting?
Yes, it offers excellent optical transmittance. When combined with anti-reflective (AR) coatings, it ensures perfect readability and visibility in almost any lighting condition.
Is sapphire glass shatterproof and impact-resistant?
High hardness does not equal high impact resistance. Sapphire glass is brittle; while it resists scratches perfectly, severe concentrated impacts may cause it to chip or shatter compared to softer materials.
How is the impact resistance of sapphire components improved?
Resistance is often improved through structural design, such as domed shapes and increased thickness, though avoiding severe direct impacts is still recommended for longevity.
