Innovative Cold Storage Systems with Cutting-Edge Refrigeration Technology

Customization:	Available
After-sales Service:	1 Year
Temperature:	-10-0℃

Send Inquiry

Product Description

ℹ️

Basic Information

Refrigerant

Freon

Size

Custom

Structure

Assembled

Use Nature

Production

Suitable for

Factory

Usage

Fresh Keeping, Frozen, Deep Freezer

Warranty

1-2 Years

Certification

ISO, CE, CCC

Condition

New

Materials

Refrigeration System

Brand Compressor Unit

Refrigeration Valves

Brands Valves

Condenser

Air Cooling

HS Code

8418699090

Production Capacity

Customer Request Custom

🖼️

Product Showcase

📝

Product Description

Our cold rooms are crafted with precision and innovation, featuring a cutting-edge Polyurethane insulation board design. The core steel structure ensures effortless and swift construction. Additionally, our portable sliding doors are engineered for your convenience, providing seamless access and ensuring user-friendly operation.

Experience unparalleled efficiency with our water defrosting evaporator, designed to expedite the defrosting process while significantly reducing operational costs. Our cold storage doors are equipped with advanced anti-shock protection, enhancing overall reliability.

Key Project Features

✓ Temperature range: -40ºC to +20ºC available.
✓ Custom Size: Solutions tailored to fit specific needs.
✓ Versatile Functions: Fresh-keeping, freezing, quick-freezing, fire-proofing, and explosion-proofing.
✓ Automatic Control: Fully integrated system for seamless operation.
✓ Easy Installation: Designed for rapid assembly and dismantling.
✓ Advanced Monitoring: Temperature Alarms and Data Loggers included.
✓ High-End Electronics: PLC controls using LG, Siemens, and Omron components.

Premium Components

⚙️ Condensing Unit: Technology from Germany, USA (Copeland), and Italy (Frascold).

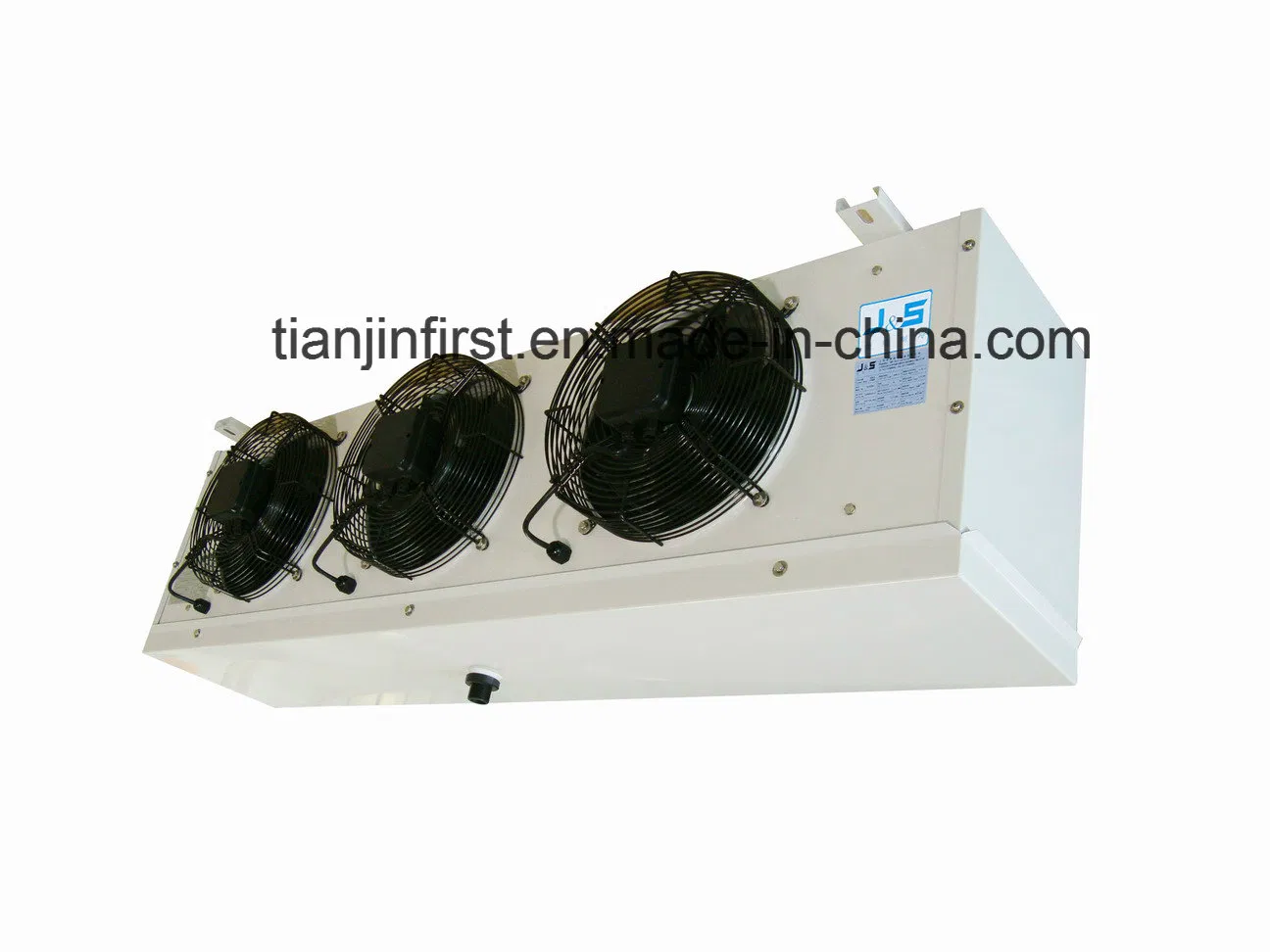

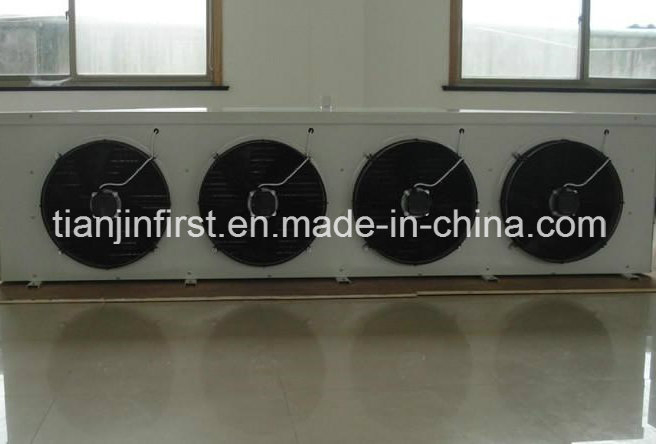

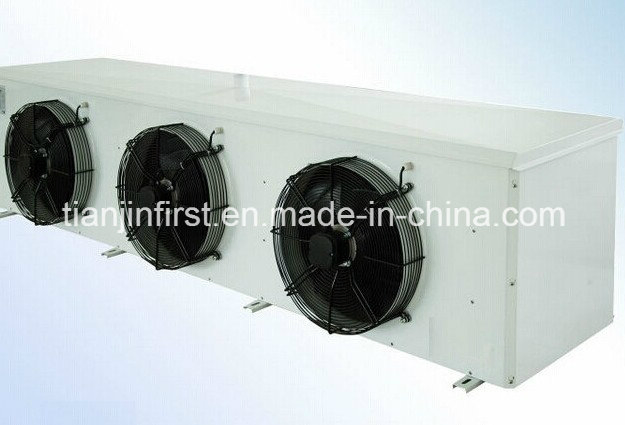

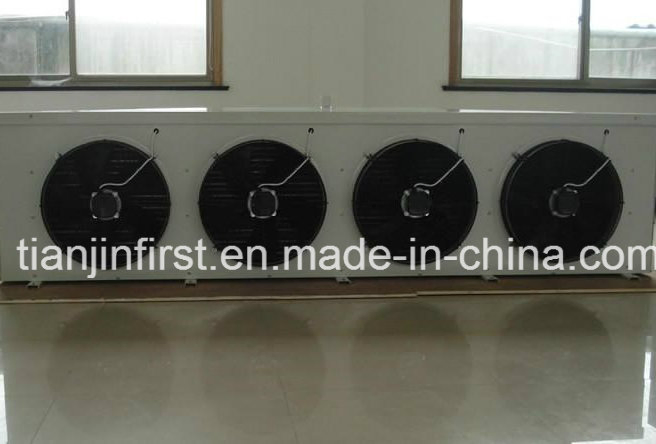

⚙️ Evaporator: State-of-the-art air-coolers for efficient regulation.
⚙️ Insulation: Premium 100% Polyurethane (PU) panels.
⚙️ Accessories: Globally recognized brands like Castle, Every Control, Siemens, and LG.

📊

Product Parameters

Evaporator Specifications

Type	Specifications
Air Cooled Type	Ceiling type DL (5-20ºC), DD (-5~+5ºC), DJ (-18~-20ºC)
Aluminum Shelving	Customize -18ºC or -35ºC
Evaporator Cooled Type	Evaporator Condenser DJS (-30~-40ºC)

Temperature Reference Table

Goods Type	Temperature Range
Processing Room	10ºC
Fruit, Vegetable, Dry Food	0~-5ºC
Medicine, Pastry, Chemical	0~-5ºC
Ice Storage Room	-5~-10ºC
Fish, Meat Storage	-18~-25ºC
Deep Freezer	-25ºC~-35ºC

Panel Thickness Selection

Application Temp	PU Panel Thickness
10ºC (Processing)	50mm / 75mm
-5ºC	75mm / 100mm
-18ºC	100mm / 150mm
-25ºC to -35ºC	150mm / 200mm

❓

Frequently Asked Questions

1. What is the supported temperature range for these cold storage rooms?

Our cold storage solutions offer a wide range of temperatures from -40ºC up to +20ºC, suitable for everything from fresh-keeping to deep freezing.

2. What kind of insulation materials are used in the panels?

We use 100% polyurethane (PU) insulation panels with a density of approximately 38~42kg/m3. These panels are flame retardant and fire-resistant.

3. Can the cold room size be customized for specific factory layouts?

Yes, all our cold storage systems are fully customized. We provide solutions for mini, small, medium, and large scale requirements exceeding 5000m³.

4. What brands of compressors and control components do you use?

We utilize top-tier components from globally recognized brands including Bitzer (Germany), Copeland (USA), Frascold (Italy), and PLC electronics from LG, Siemens, and Omron.

5. What types of doors are available for the cold storage units?

You can choose between swing and sliding doors. Options include manual or automatic operation, featuring advanced anti-shock protection and high-quality PU material.

6. Are these systems suitable for medical or chemical storage?

Absolutely. Our cold rooms are widely applied across sectors including food processing, medicine/pharmaceuticals, chemical materials, and electronics.
