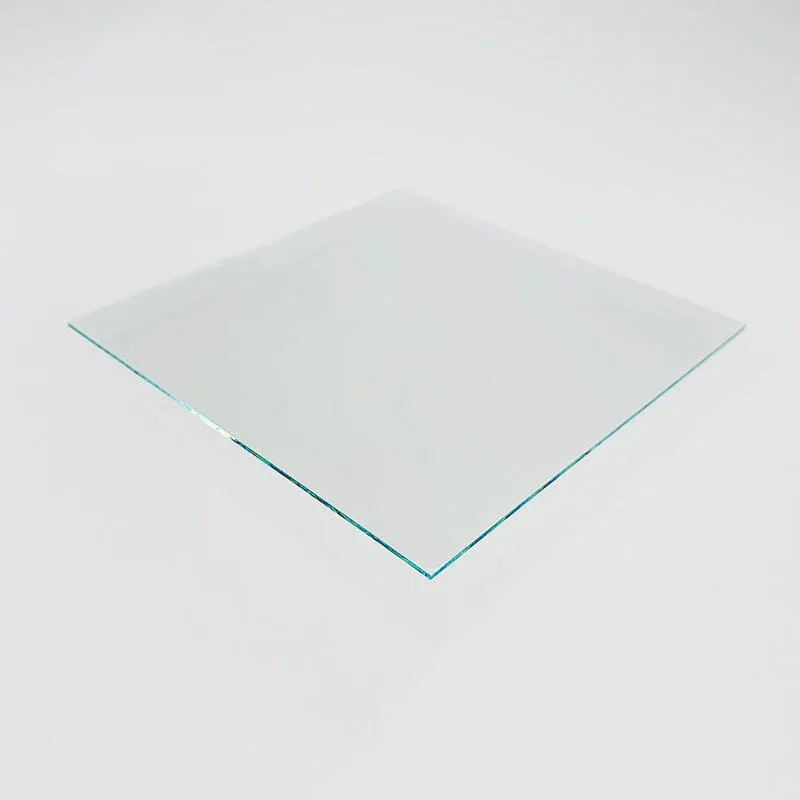

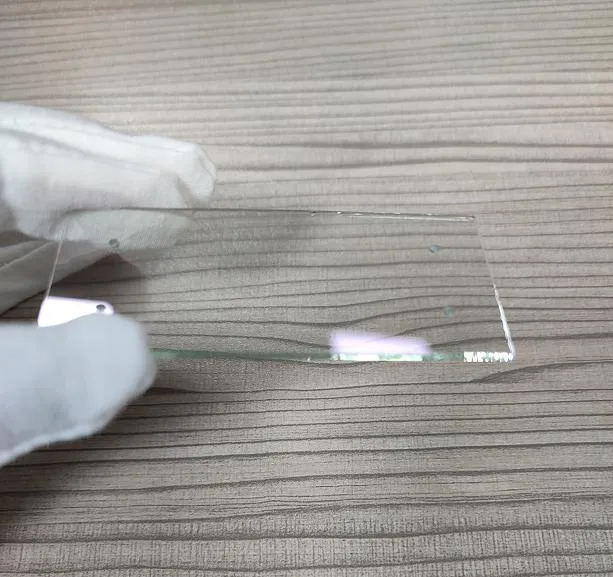

ITO Conductive Glass: Manufactured by depositing silicon dioxide (SiO2) and indium tin oxide (ITO) thin films on soda-lime or borosilicate glass using magnetron sputtering. It features high light transmittance and low resistivity, ideal for solar cells and optoelectronic devices.
FTO Conductive Glass: Fluorine-doped SnO2 transparent conductive glass. It offers a wide band-gap, stable chemical properties, and strong resistance to acid and alkali at room temperature.

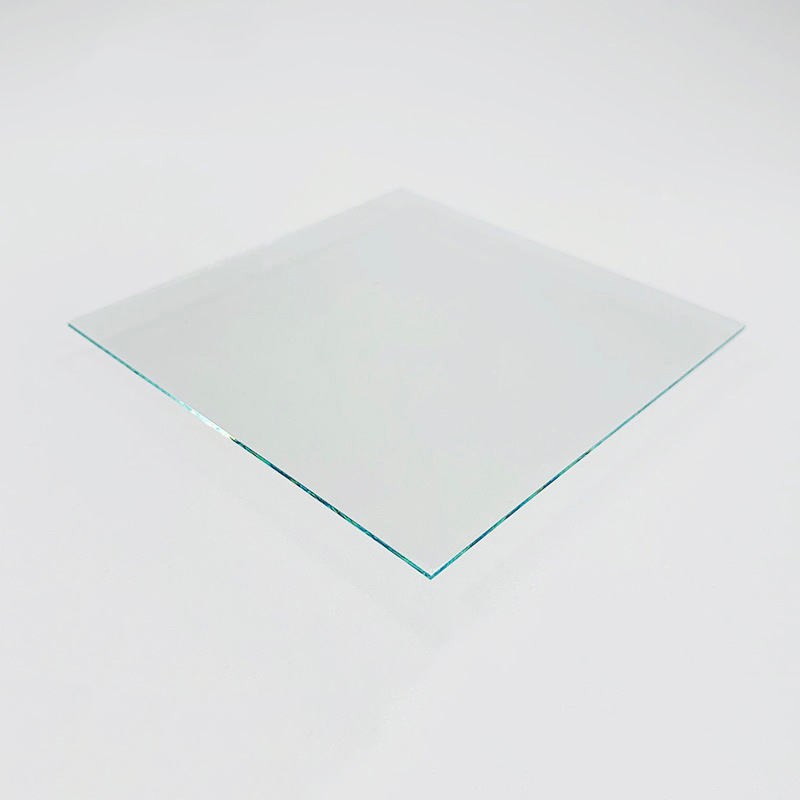

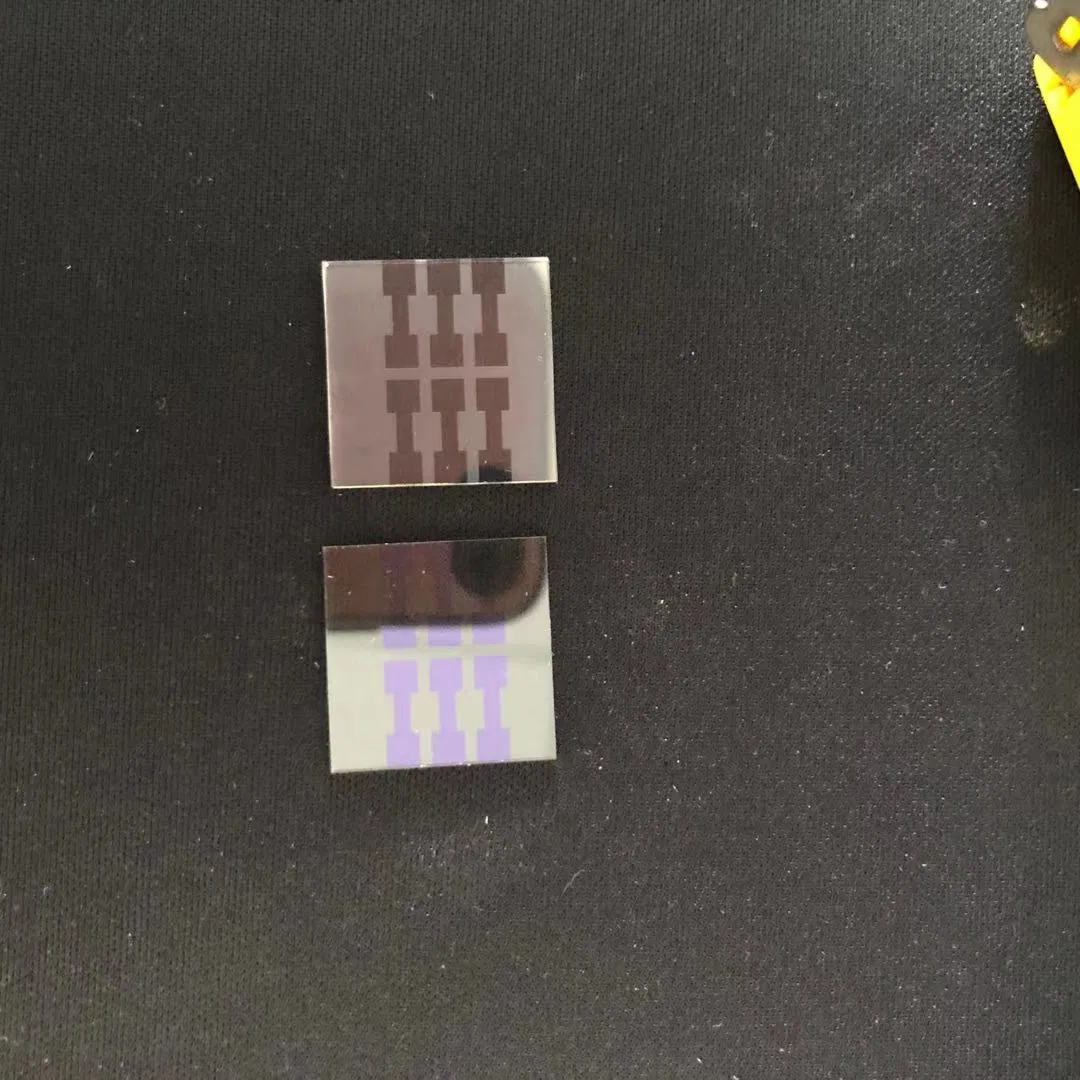

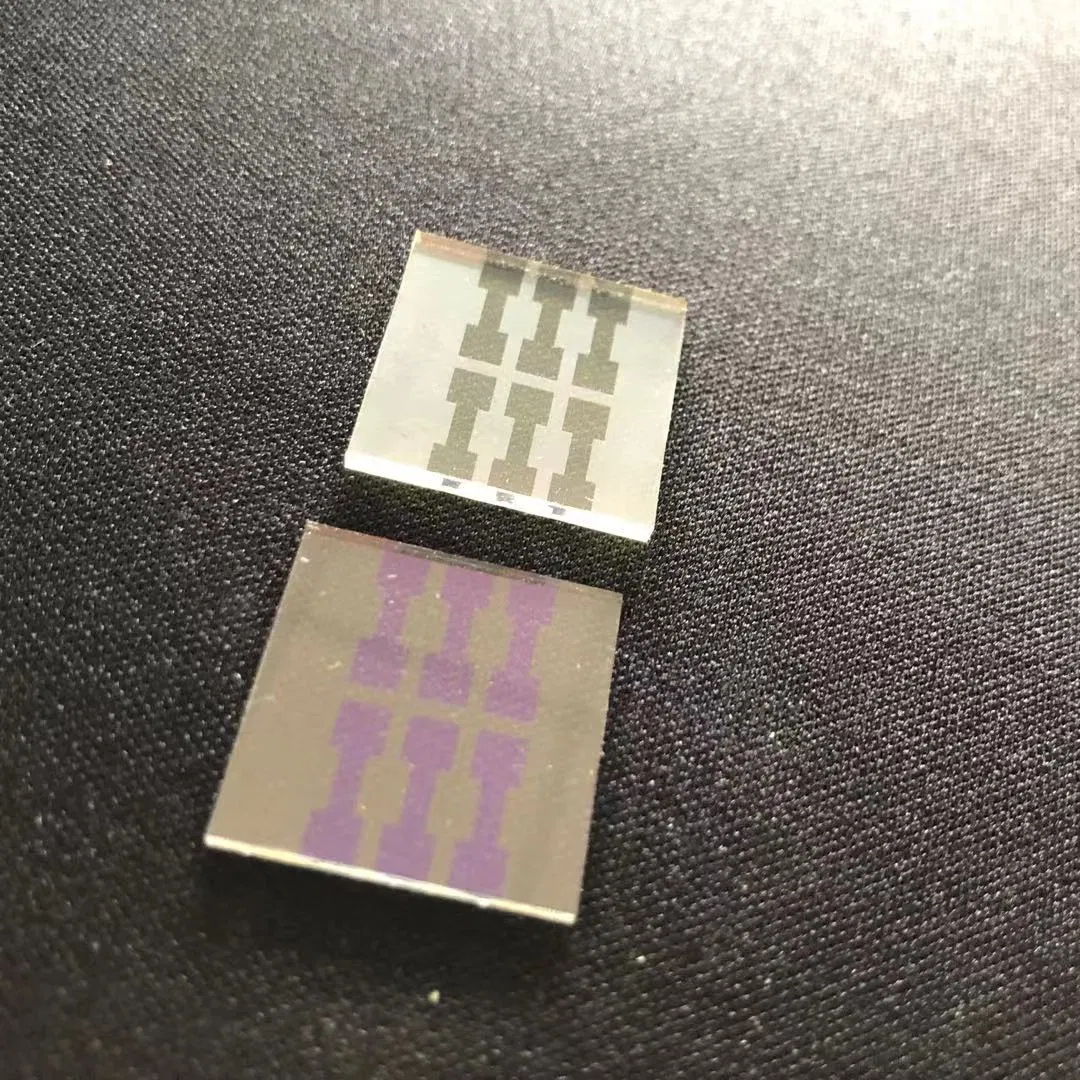

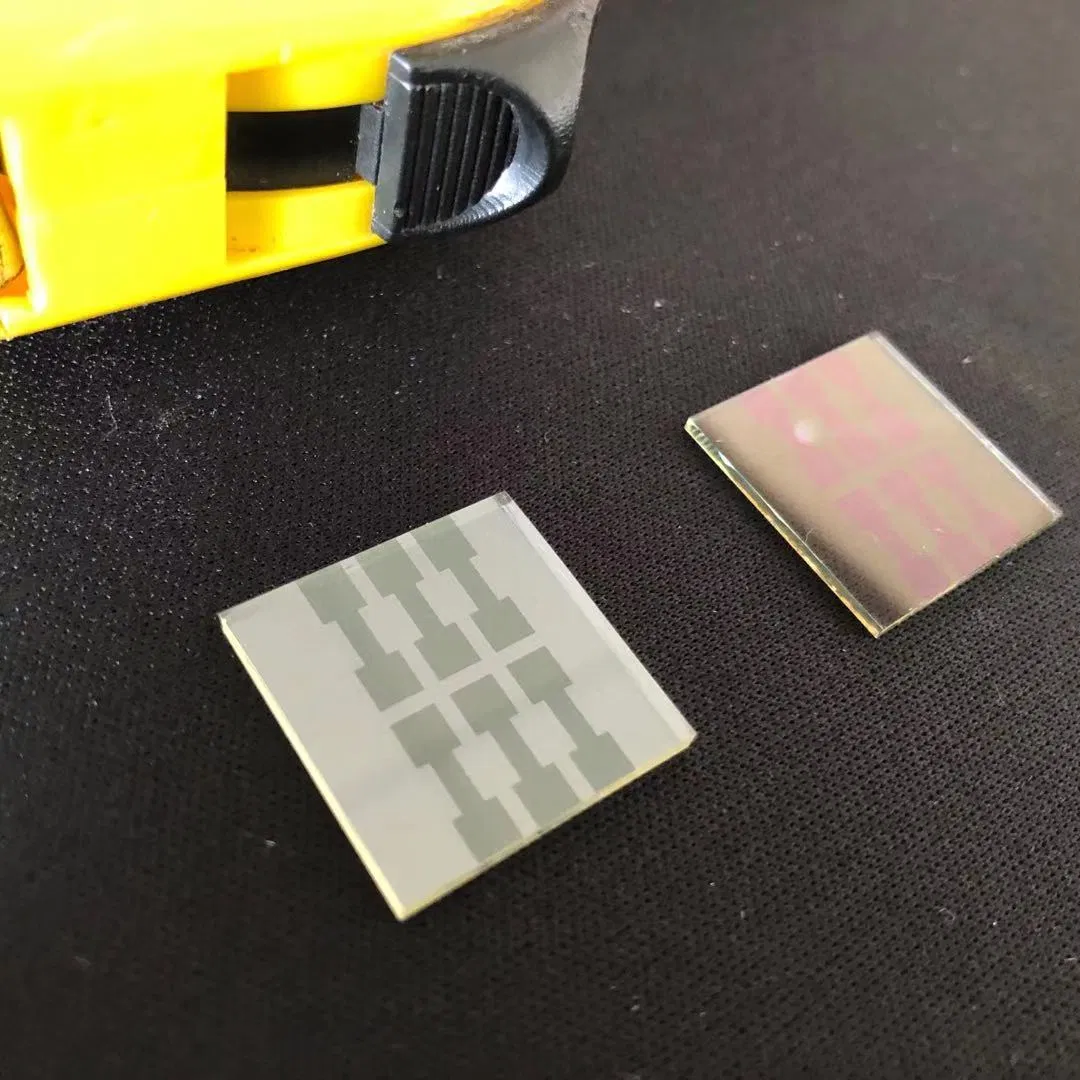

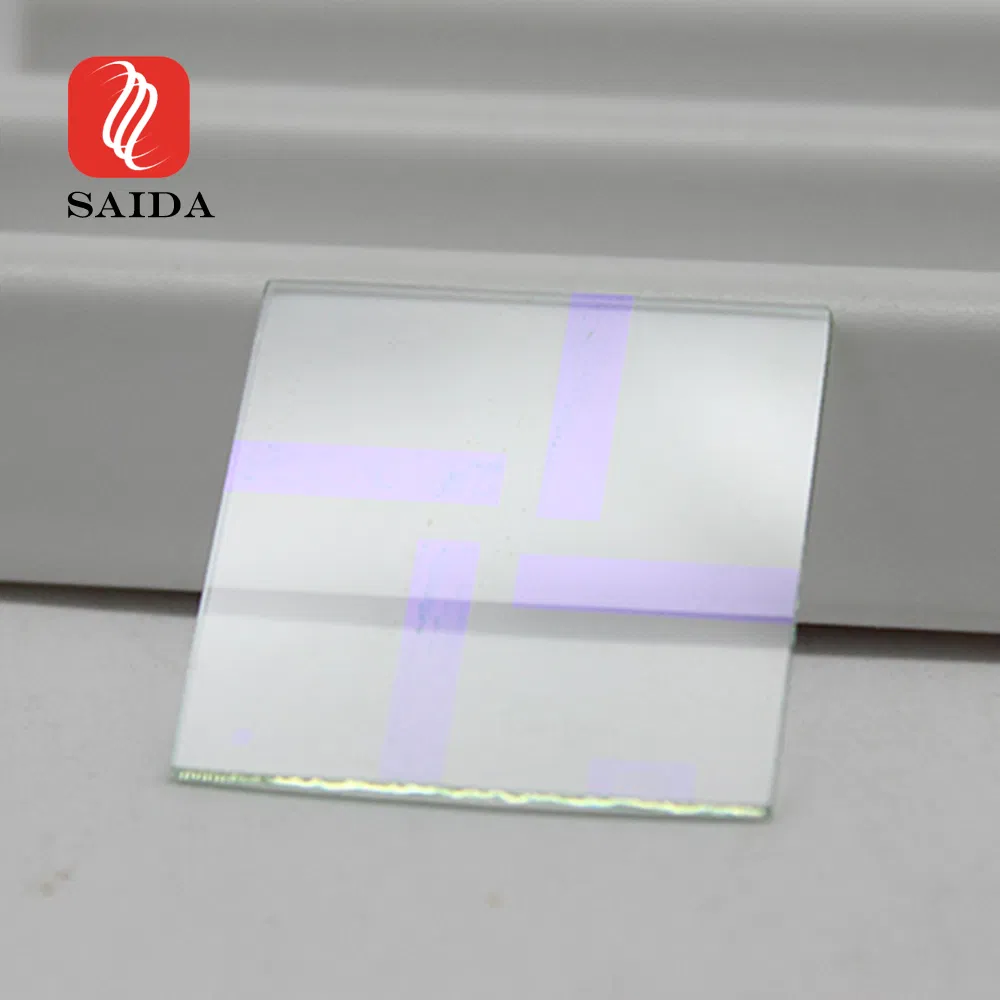

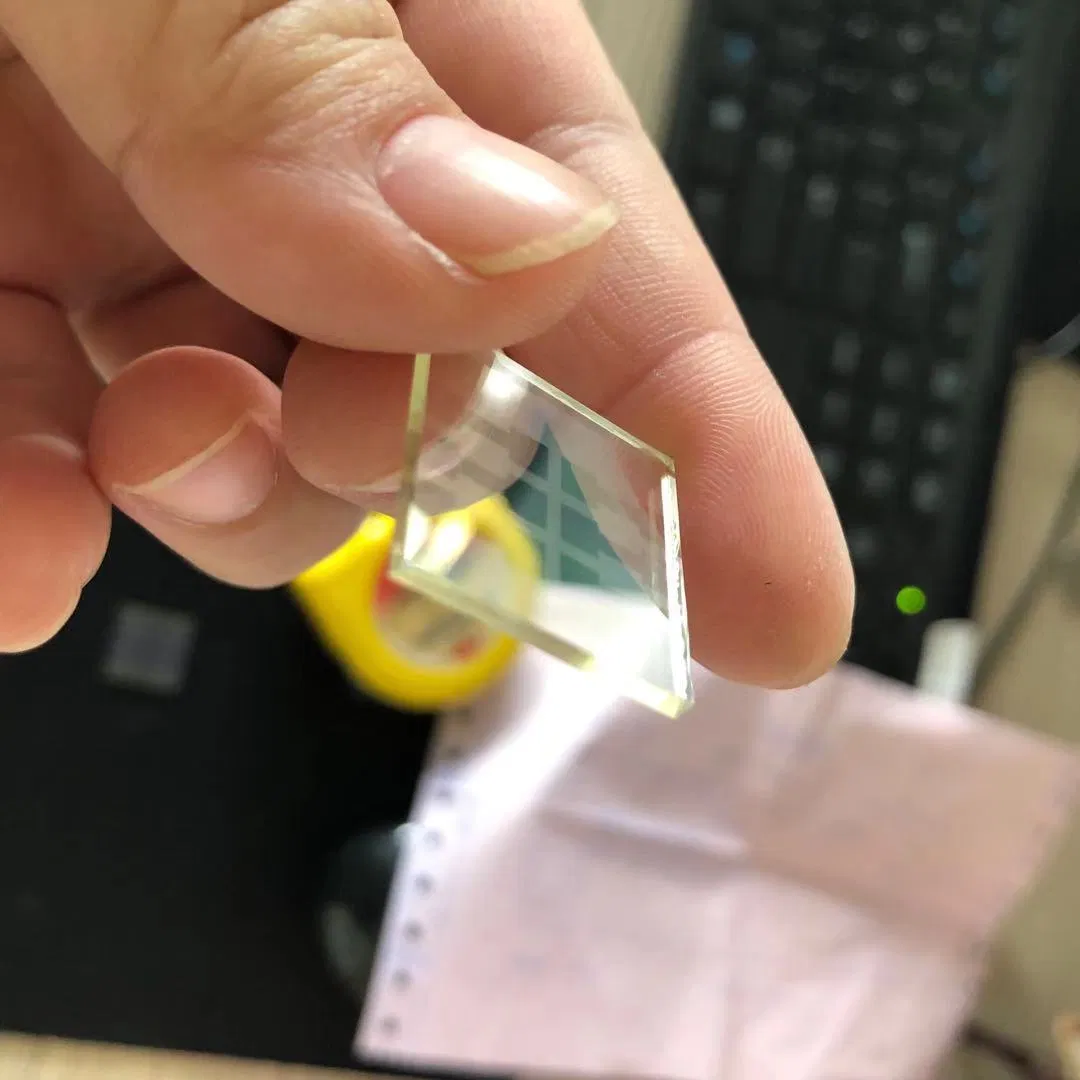

| Product Name | ITO Glass / FTO Glass with Pattern for Laboratory |
| Standard Size | 25.4x76.2mm, 25.4x25.4mm, 50x50mm, 100x100mm, 300x300mm (Customized available) |
| Standard Thickness | 0.5mm, 0.7mm, 1.1mm, 2.0mm, 3.0mm |

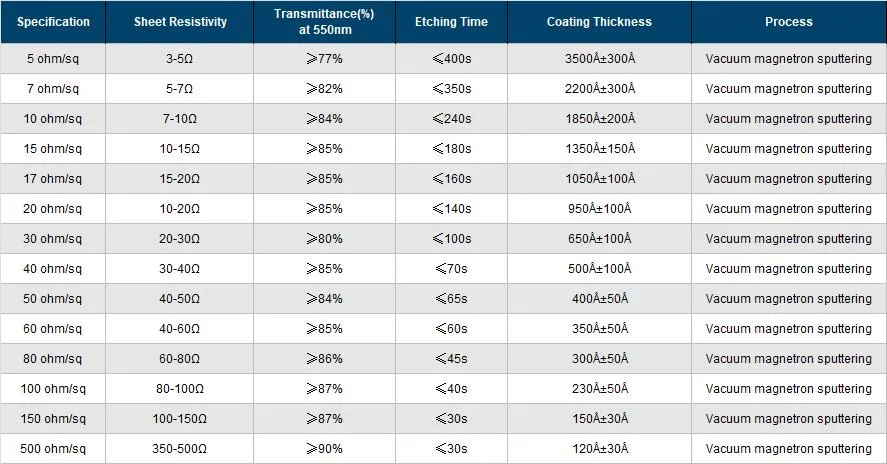

| Resistance | 4~5, 6~8, 10~15, 20~30, 30~40, 60~80, 80~100, 300~500 ohm/sq |
| Transmittance | ≥87% (at 550nm wavelength) |
| Substrate | Soda-lime glass |
| Applications | Mobile screens, solar cells, biological experiments, university laboratories, electromagnetic shielding. |
| Package Size | 50.00cm * 50.00cm * 45.00cm |
| Gross Weight | 50.000kg |

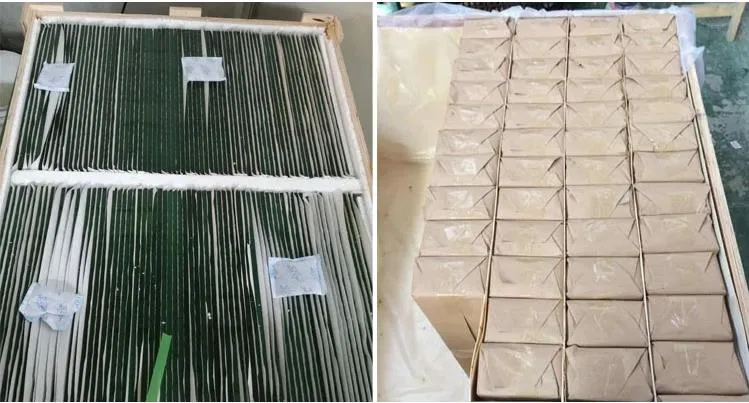

| Materials | Plastic paper + Pearl cotton + Kraft paper + Carton box + Wood case |
