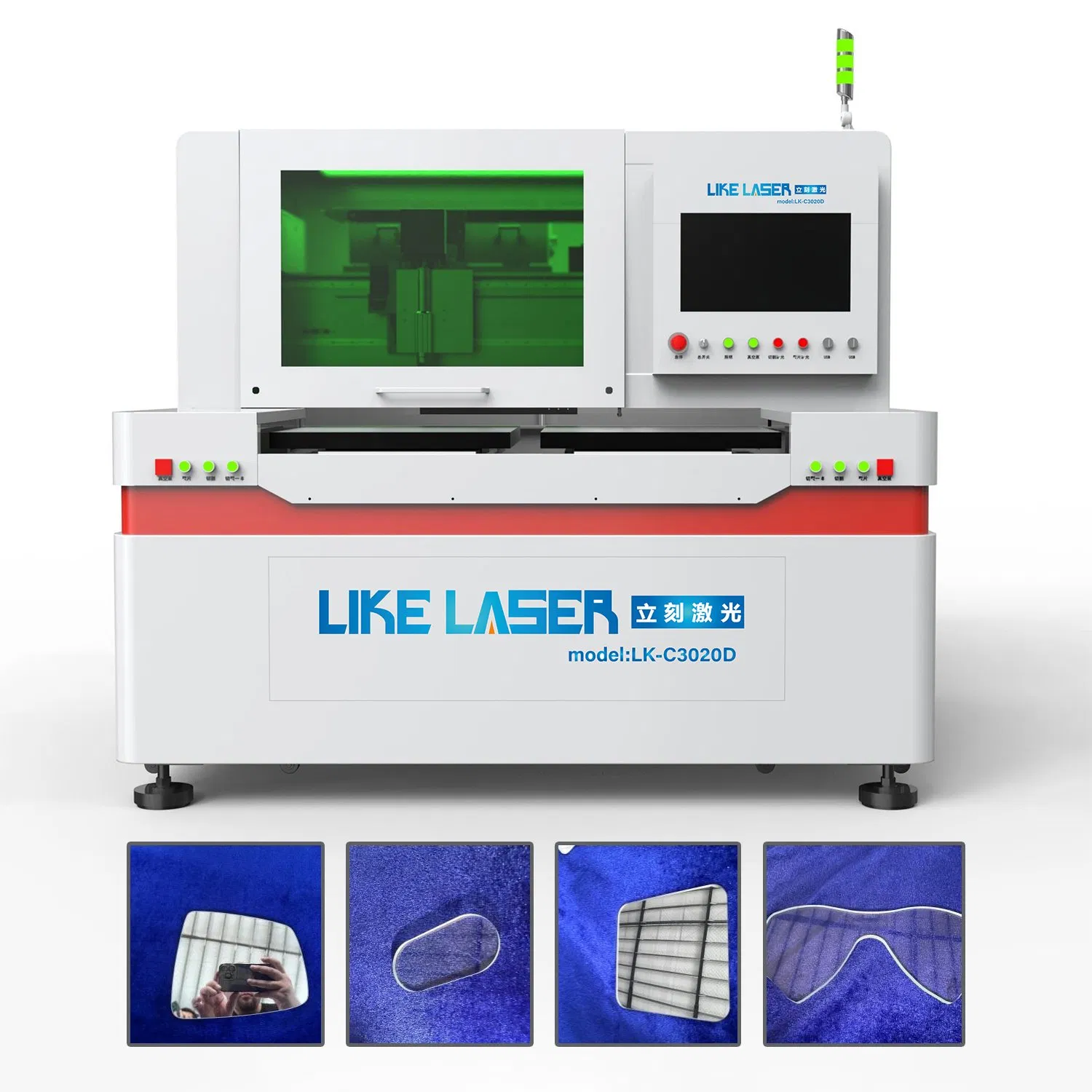

Laser Glass Cutting Machine CCD Visual Positioning Cutting
Laser Glass Cutting Machine CCD Visual Positioning Cutting
Laser Glass Cutting Machine CCD Visual Positioning Cutting
Laser Glass Cutting Machine CCD Visual Positioning Cutting
Laser Glass Cutting Machine CCD Visual Positioning Cutting
1 / 5
Laser Glass Cutting Machine CCD Visual Positioning Cutting
Laser Glass Cutting Machine CCD Visual Positioning Cutting
Laser Glass Cutting Machine CCD Visual Positioning Cutting
Laser Glass Cutting Machine CCD Visual Positioning Cutting
Laser Glass Cutting Machine CCD Visual Positioning Cutting

Laser Glass Cutting Machine CCD Visual Positioning Cutting

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

🔵 Overview - Basic Information
Model NO.
LK-GC6070D
Application
Home Appliance, Petroleum, Agriculture, Aerospace, Automotive, Woodwork
Cooling System
Water Cooling
Technical Class
PS/CO2
Applicable Material
Glass
Structure Type
Gantry Type
Laser Technology
Laser Control Fault Cutting
Laser Power
120W
Laser Lifetime
100000h
Max Glass Thickness
20mm
Minimum Aperture
0.3mm
Dimension
3000mm*1500mm*1100mm
⚙️ Product Description

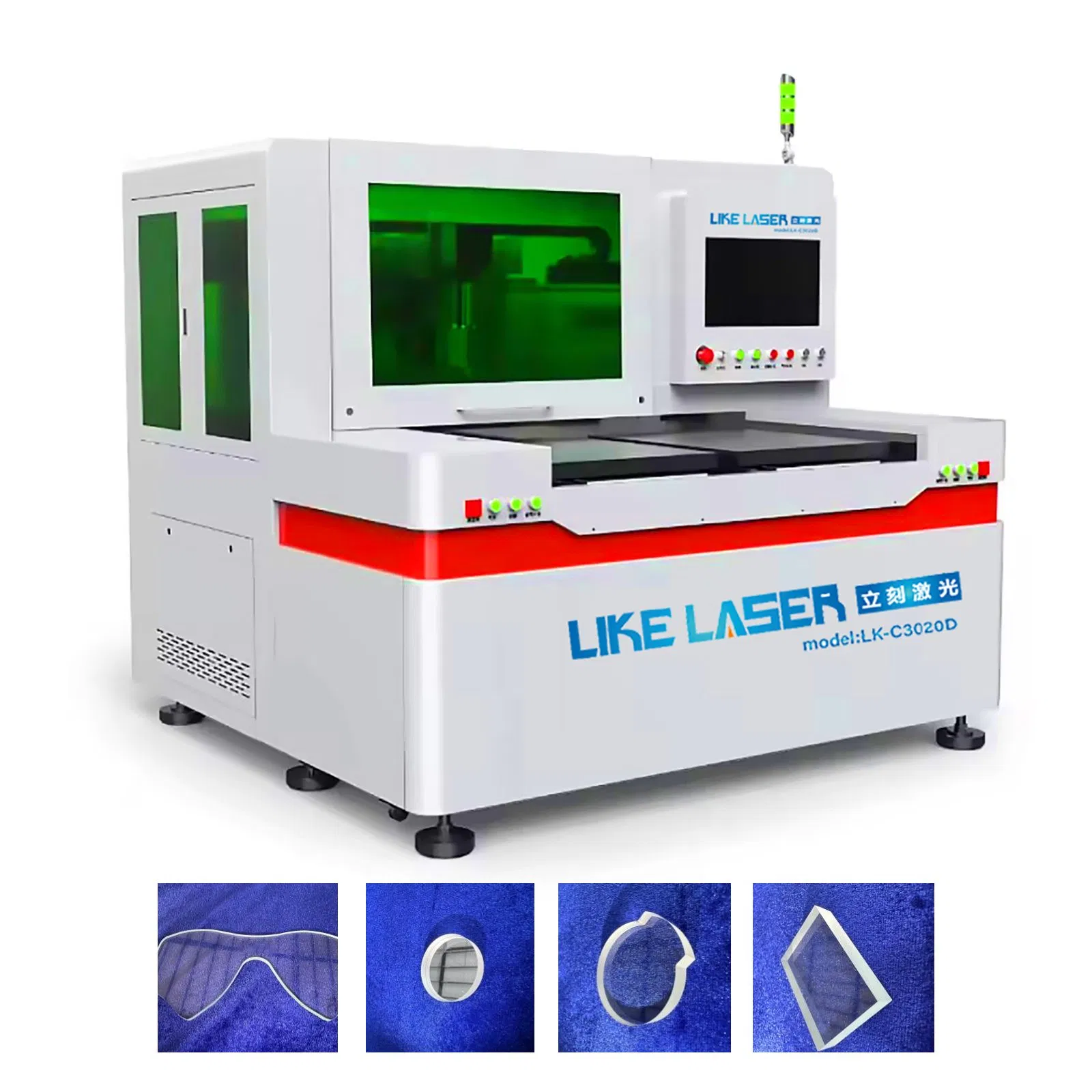

LK-C3020D Laser Glass Cutting Machine is a high-efficiency, automatic system utilizing picosecond laser and RF CO2 laser technology. This integration is designed specifically for precision glass cutting in high-demand industries.

✅ Highly efficient automatic glass cutting
✅ Picosecond laser source for ultra-fine processing
✅ Integrated RF CO2 laser technology

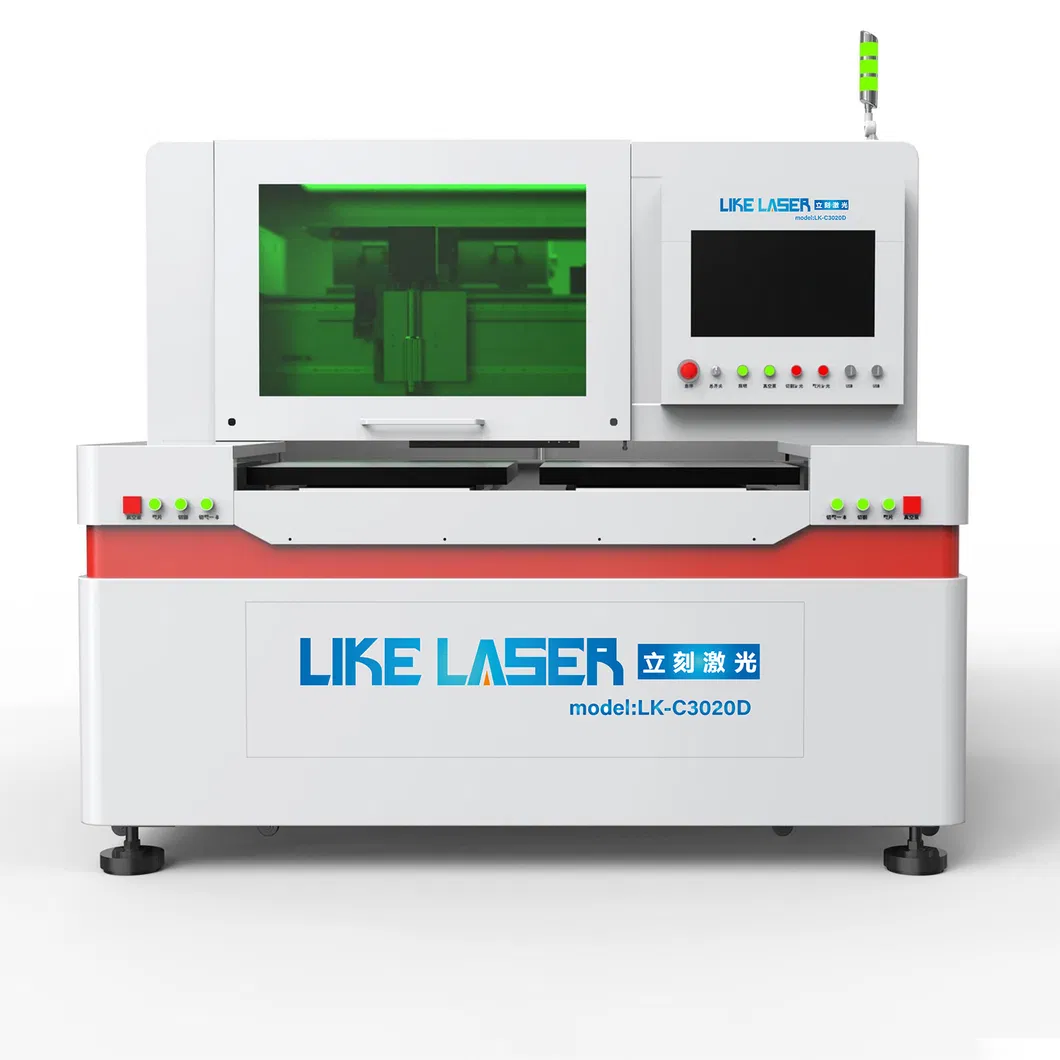

Laser Glass Cutting Machine

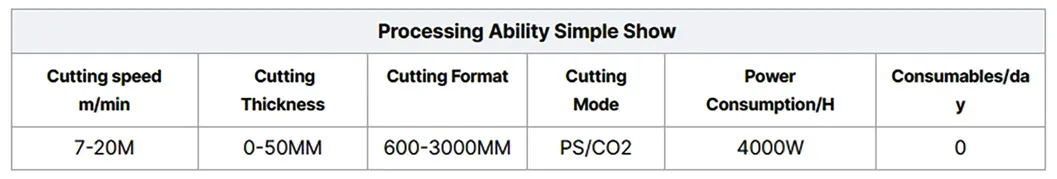

Detail View
📱 Scope of Application
🔹 Reinforced & Non-reinforced Glass: Mobile phone covers, car glass, and camera plates.
🔹 Sapphire Glass: Mobile covers, sapphire light strips (LED), and camera lenses.
🔹 LCD Glass: Shaped LCD screen cutting (R/U/C Angles).
🔹 Optical Glass: Filters, mirrors, and precision optical components.
🔹 Common Glass: High borosilicate, quartz glass, white glass, and bathroom mirrors.
🔹 Curved Surfaces: Single-sided and double-sided curves (optional).

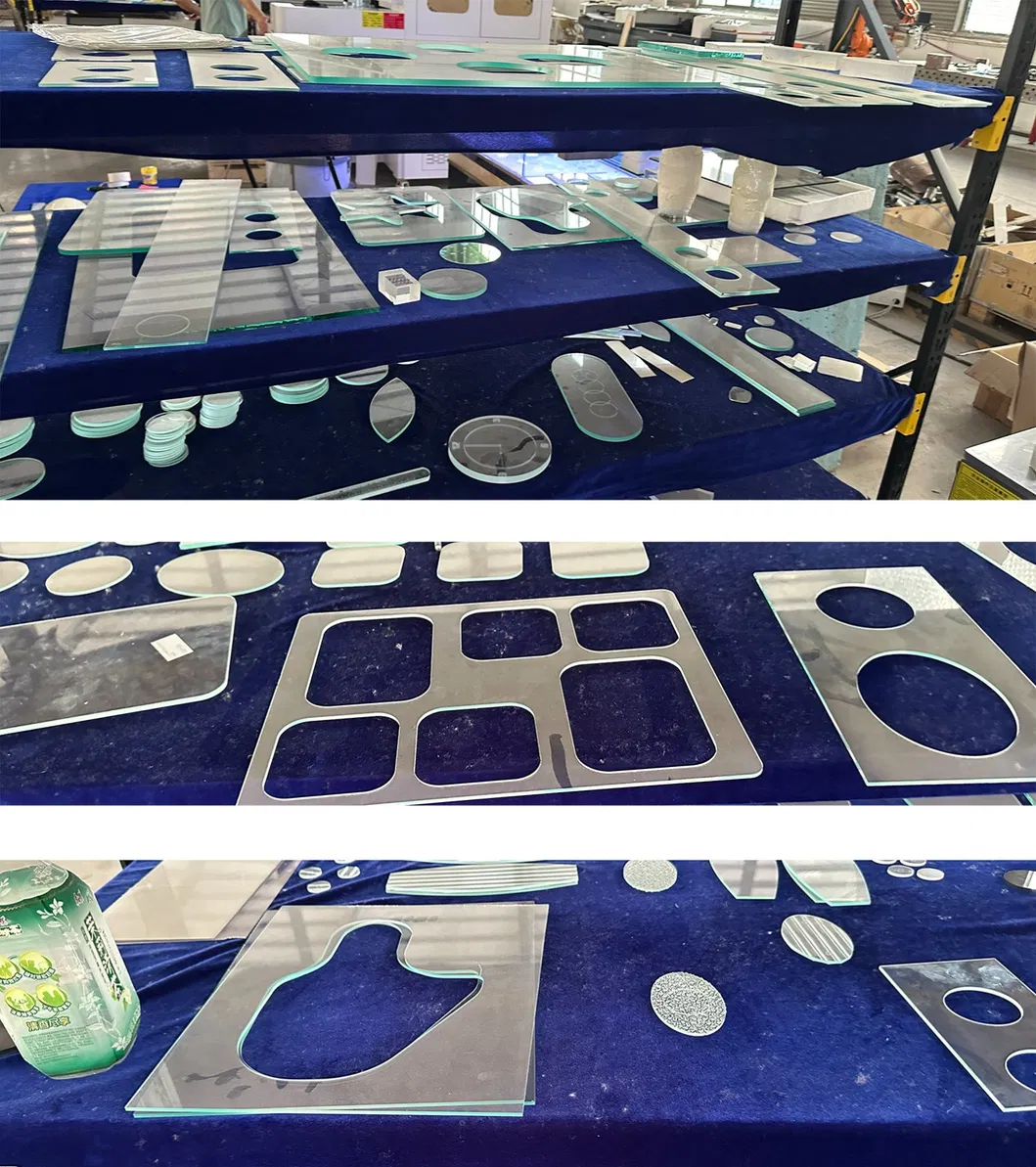

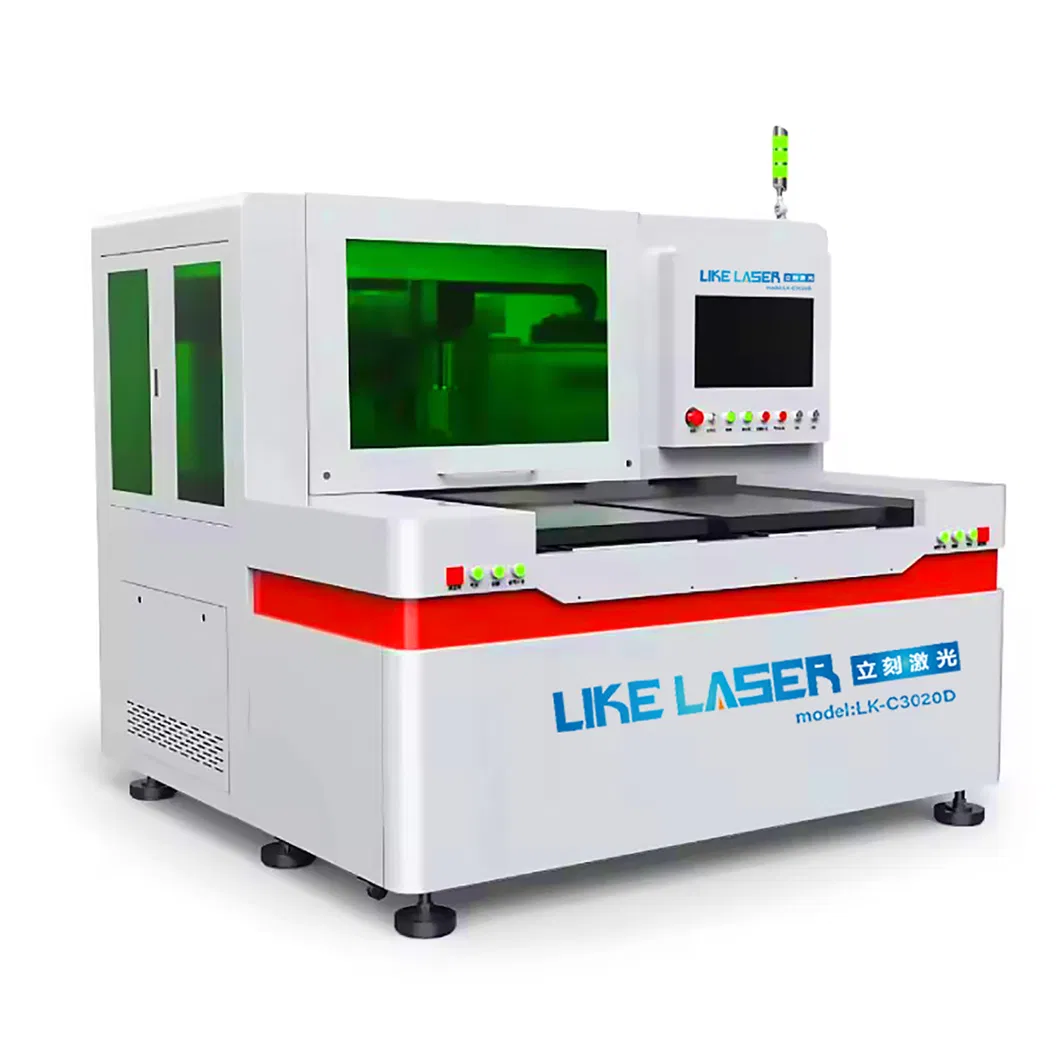

Application Sample 1 Application Sample 2
🚀 The Biggest Features & Advantages

Utilizing a self-developed AI control system and high-end custom picosecond light source, this machine achieves an accuracy of up to ±2 microns.

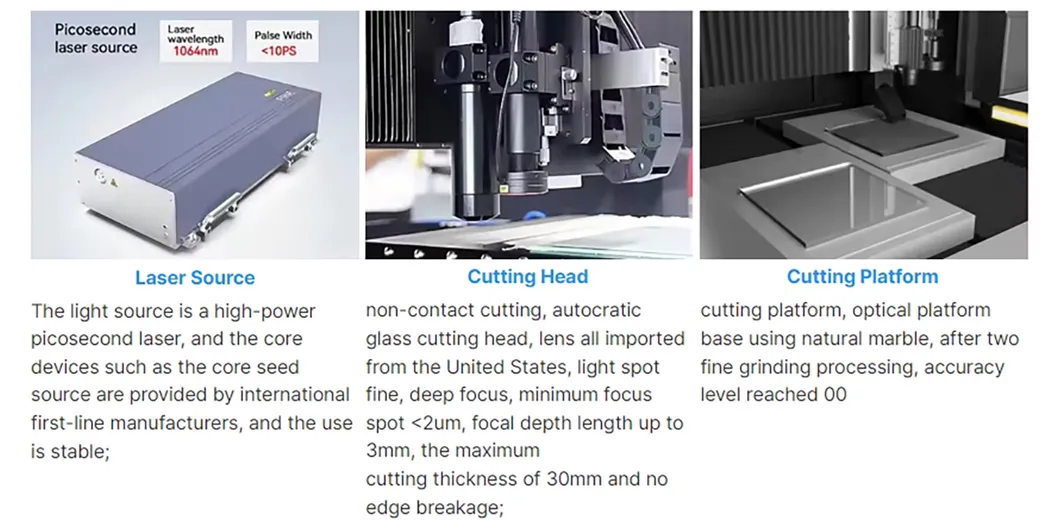

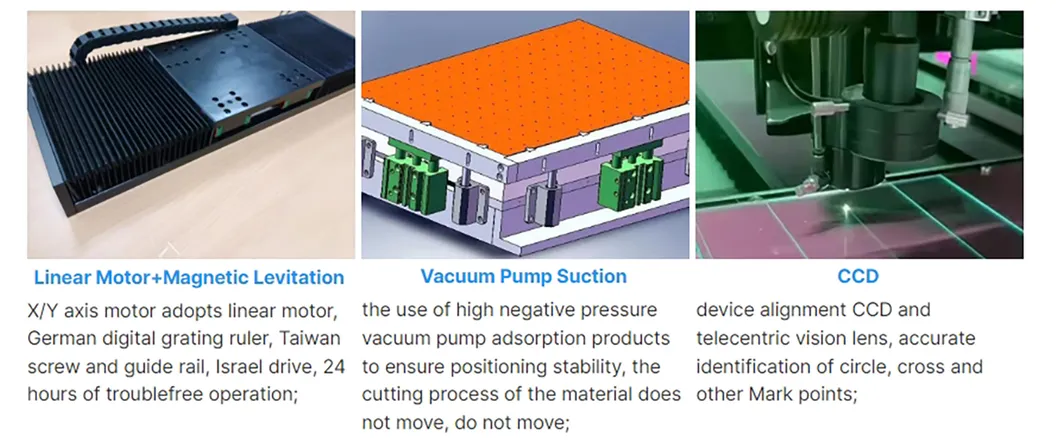

Advantage 1 Advantage 2

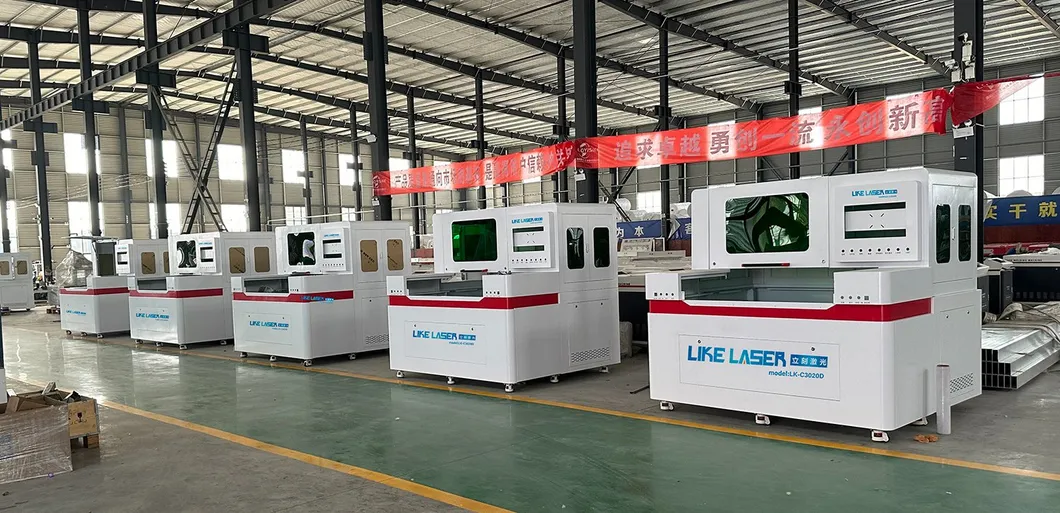

Advantage 3 Advantage 4
Why choose Laser over traditional CNC?
- Non-contact cutting: Simple operation and no consumables.
- High Efficiency: Cutting speeds up to 15m/min.
- Precision: No edge collapse, no pollution, and extremely low scrap rates.
📊 Technical Parameters
Model Working Size Workbench
LK-GC7060D700*600mm2
LK-GC8060D800*600mm2
LK-GC1380A1300*800mm1
LK-GC2010D2000*1000mm1
LK-GC2412D2400*1200mm1
LK-GC3020A3000*2000mm1
Light Source & Positioning Specs
Laser TypePicosecond pulse laser (seed source: Nlight)
Wavelength1064nm, Beam quality: M2<1.3
Pulse Length<10PS; Frequency: 1Hz-1000kHz
CoolingWater Cooling
Visual System5 million CCD Camera
Focus Spot<2um
📦 Packaging & Shipping

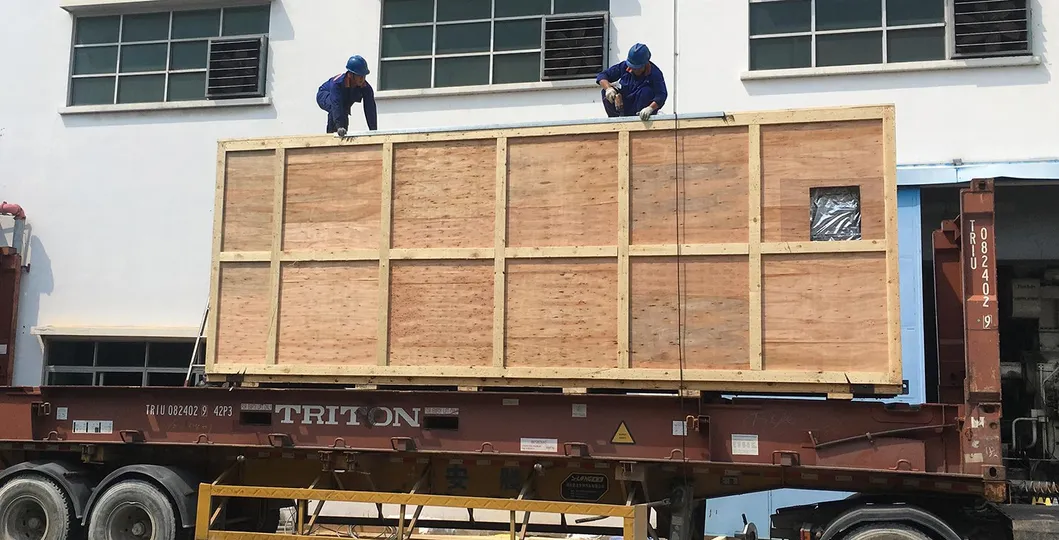

Packaging Shipping

Package Size: 2300cm * 2200cm * 1900cm | Gross Weight: 8000kg | Material: Wooden Packing

📜 Certificates
Certificates
❓ Frequently Asked Questions
What materials can this laser machine cut?
It is designed for reinforced and non-reinforced glass, sapphire glass, LCD screens, optical filters, quartz glass, and common white glass.
What is the cutting accuracy of the LK-GC series?
The machine utilizes an AI control system and precision linear motors to achieve an accuracy of up to ±2 microns.
How does laser glass cutting compare to traditional CNC?
Unlike traditional CNC, laser cutting is a non-contact process. It eliminates edge collapse, requires no consumables, and significantly reduces the scrap rate while being much faster (up to 15m/min).
Does the machine require a long preheating time?
No, the system is designed for high efficiency and has a preheating time of less than one minute.
What is the maximum glass thickness the machine can handle?
The machine can process glass with a maximum thickness of up to 20mm.
What kind of visual positioning system is used?
It is equipped with a 5-million pixel CCD visual counterpoint system with an adjustable ring-type light source for high-precision alignment.
