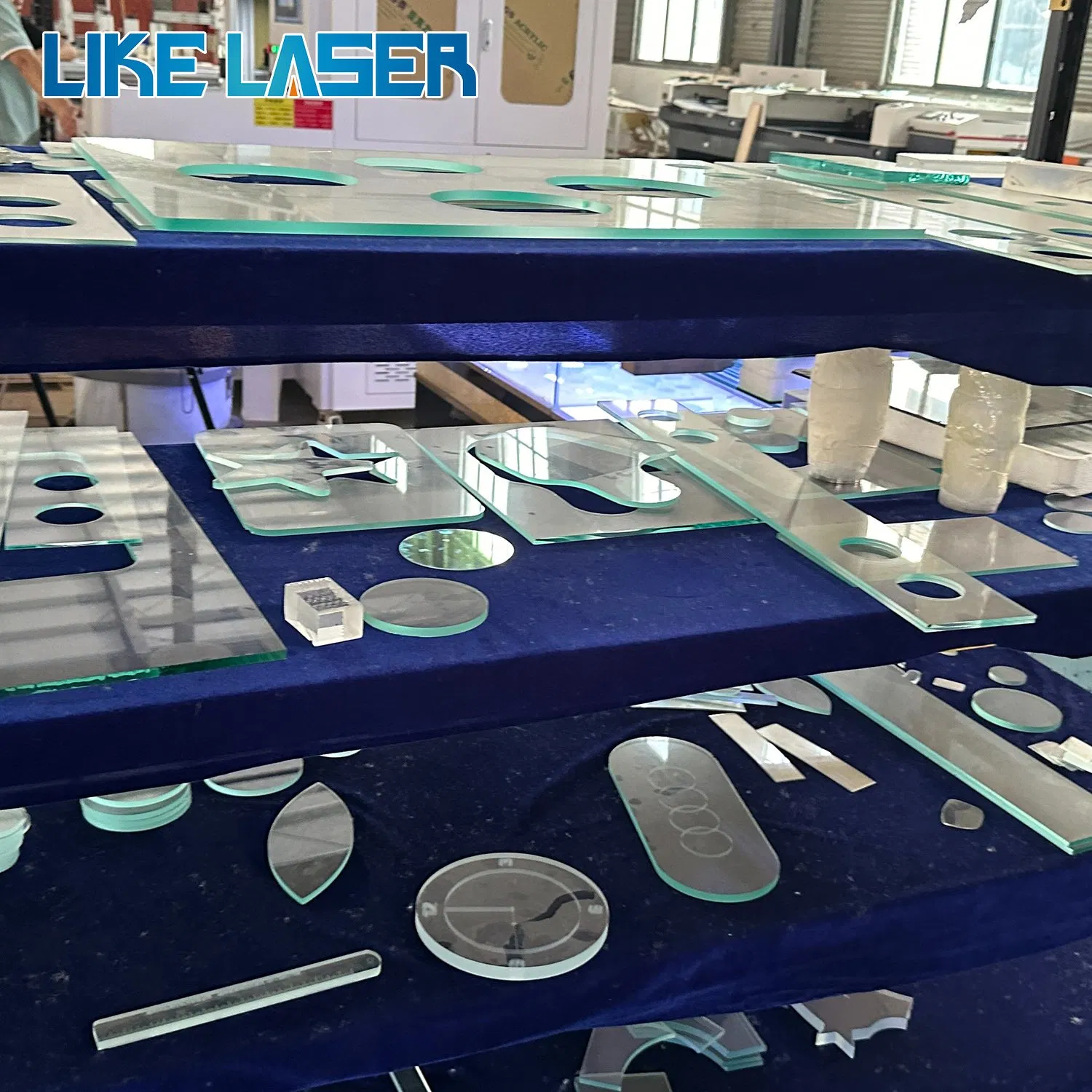

Picosecond Glass Cutting Machine Laser Cuts Glass Laser Industrial Laser Glass Cutting Machine Price

Still deciding? Get samples of $ !
Order Sample

Product Description

📊 Basic Information
Model LK-GC6070D
Laser Power 120W
Cooling System Water Cooling
Applicable Material Glass
Laser Lifetime 100,000h
Max Thickness 20mm
Min Aperture 0.3mm
Preheating Time < 1 Minute
Certificate CE
💡 Product Description

The Picosecond Laser Glass Cutting Machine is a high-efficiency, automatic system utilizing picosecond laser sources and RF CO2 laser technology. Designed for precision, this machine is widely adopted across various high-end industries including lens manufacturing, smart wearables, automotive glass, and medical instruments.

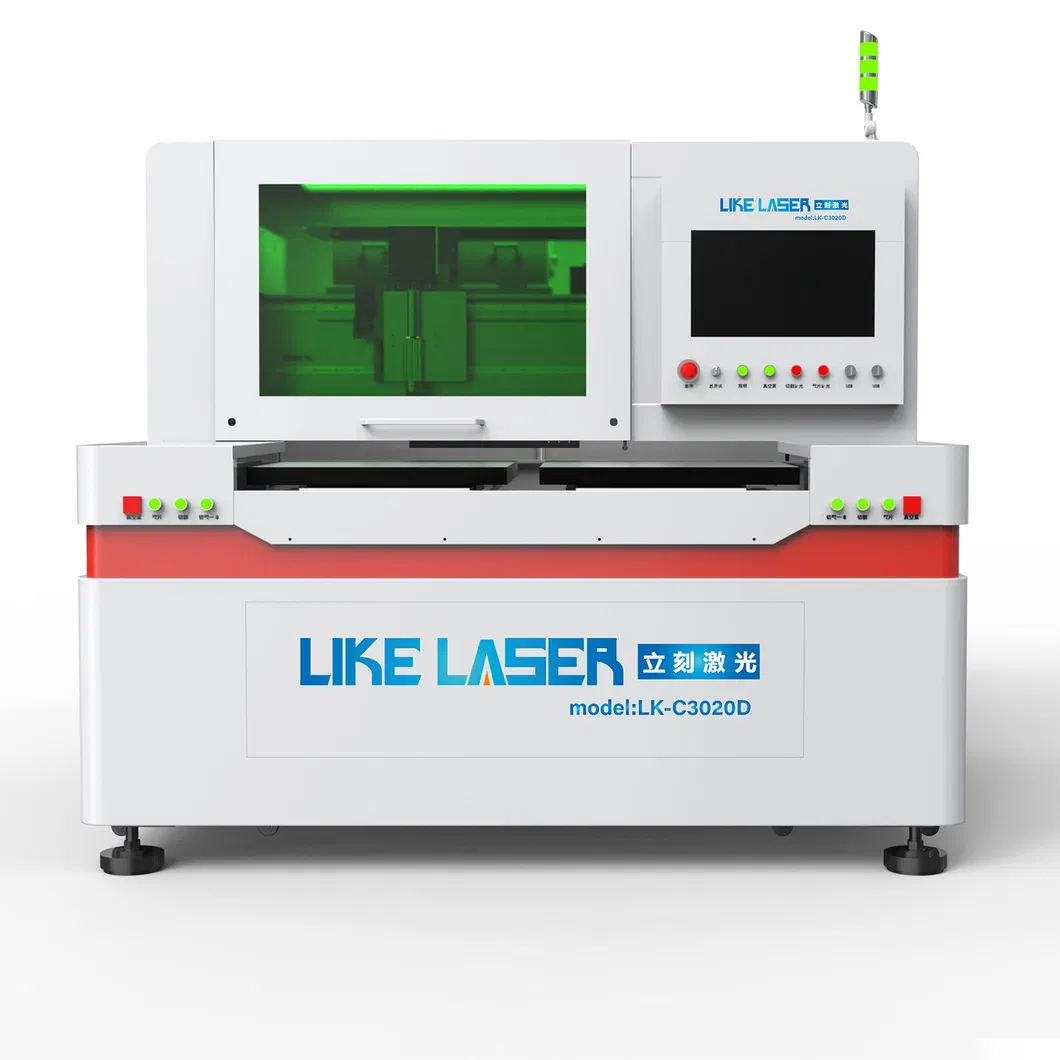

Picosecond Glass Cutting Machine
Scope of Application:
  • Reinforced and non-reinforced glass (mobile phone/car/camera covers)
  • Sapphire glass cutting (cover plates, light strips, LED components)
  • LCD glass cutting (shaped screens, inverted R/U/C Angles)
  • Optical glass (filters, mirrors)
  • Common glass (high borosilicate, quartz, bathroom glass, mirrors)
  • Curved screen processing (single and double-sided curves)
🚀 Key Advantages

Equipped with a self-developed AI control system and high-end custom picosecond light sources, this machine features a double-drive linear motor and marble work surface. It achieves processing accuracy up to ±2 microns.

Unlike traditional CNC or water knife processing, laser cutting is a non-contact process. It ensures no consumables, no pollution, no edge collapse, and low power consumption. With cutting speeds up to 15m/min, it significantly improves efficiency and reduces scrap rates compared to traditional methods.

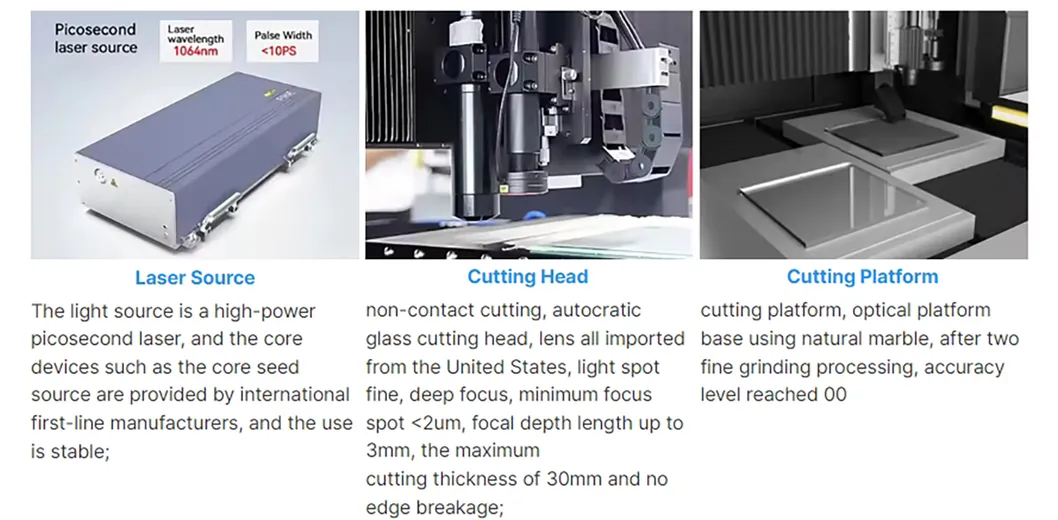

Laser Cutting Advantage 1

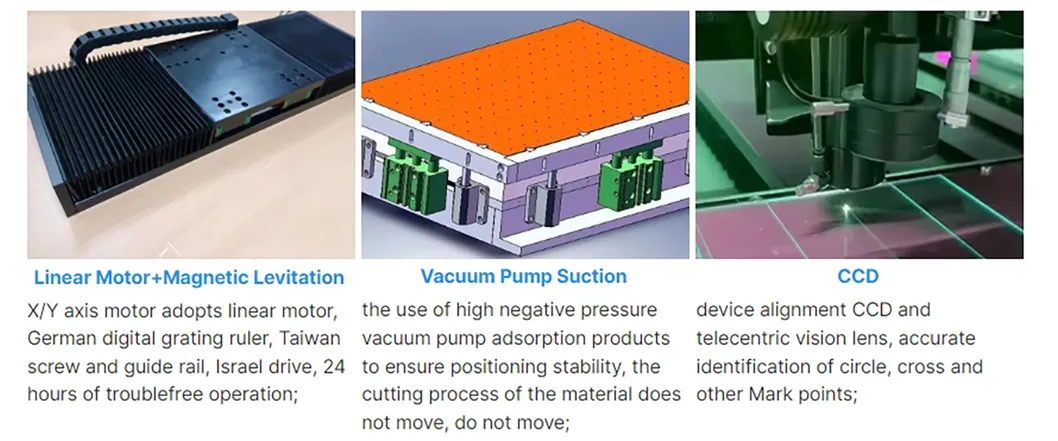

Laser Cutting Advantage 2

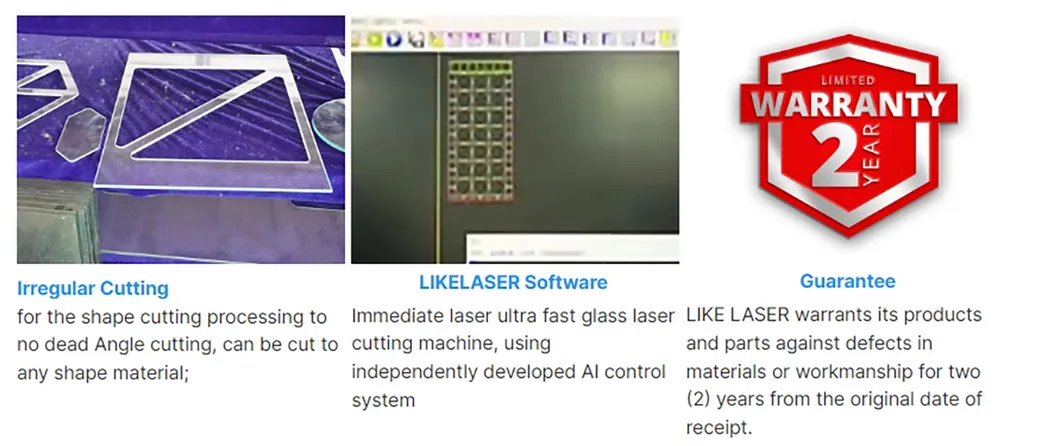

Laser Cutting Advantage 3
⚙️ Product Parameters
Model Working Size Workbench
LK-GC7060D 700*600mm 2
LK-GC8060D 800*600mm 2
LK-GC1380A 1300*800mm 1
LK-GC2010D 2000*1000mm 1
LK-GC2412D 2400*1200mm 1
Optical Specifications
Feature Picosecond Pulse Laser Segmented Source (CO2)
Wave length 1064nm (M2<1.3) 1064nm (M2<1.3)
Pulse length <10PS <30PS
Frequency 1Hz-1000kHz 1Hz-1000kHz
Cooling Water Cooling Water Cooling
🖼️ Application Gallery

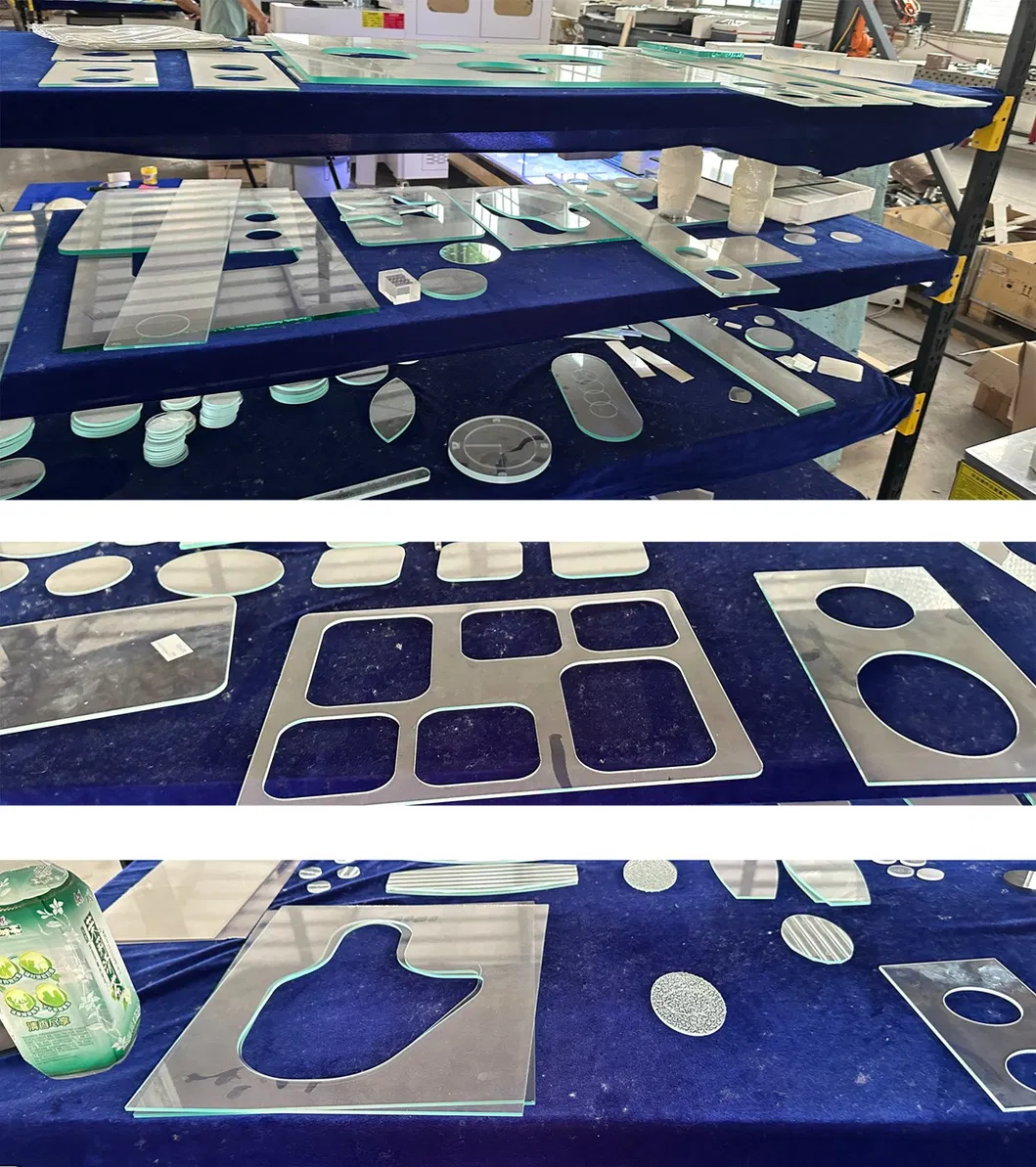

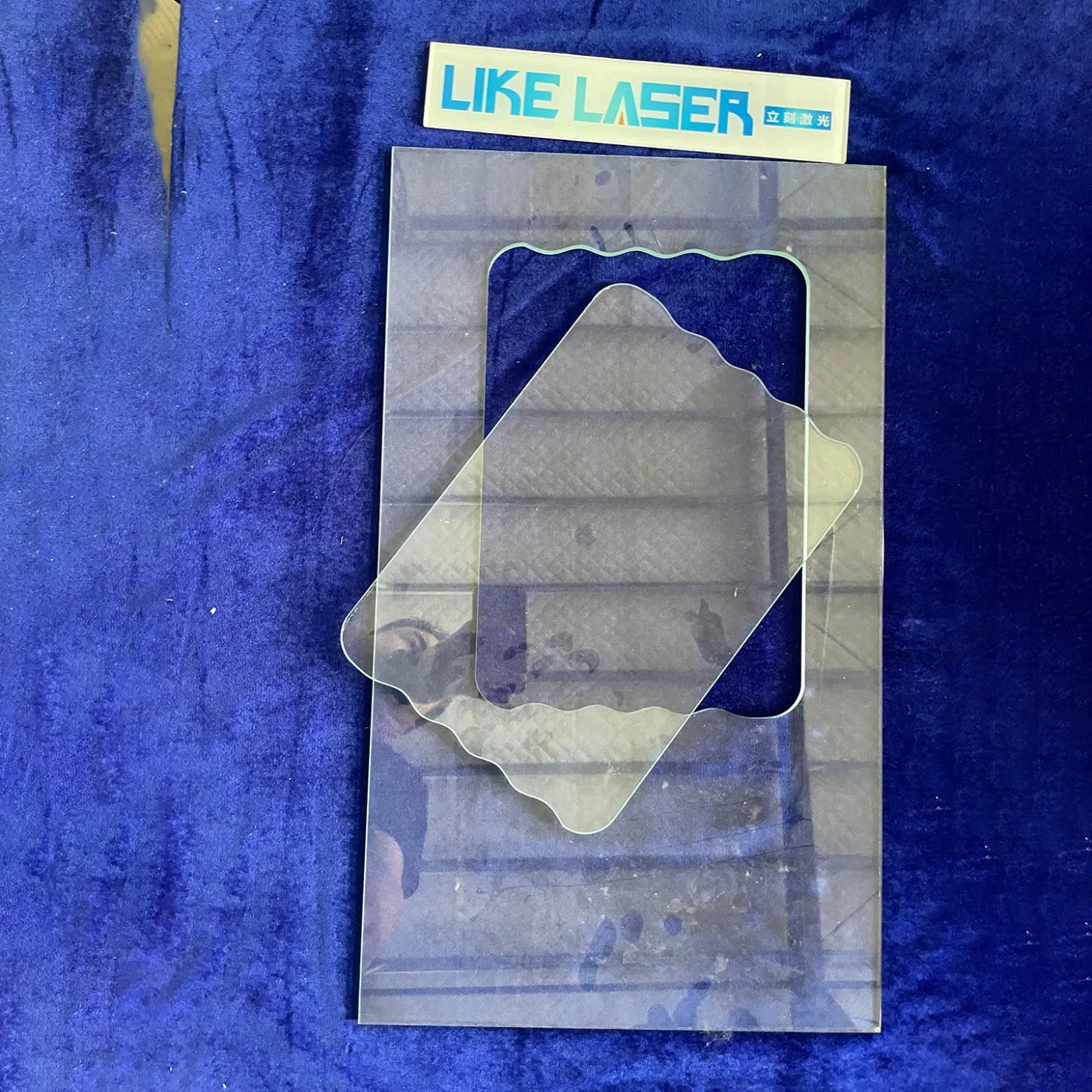

Glass Application

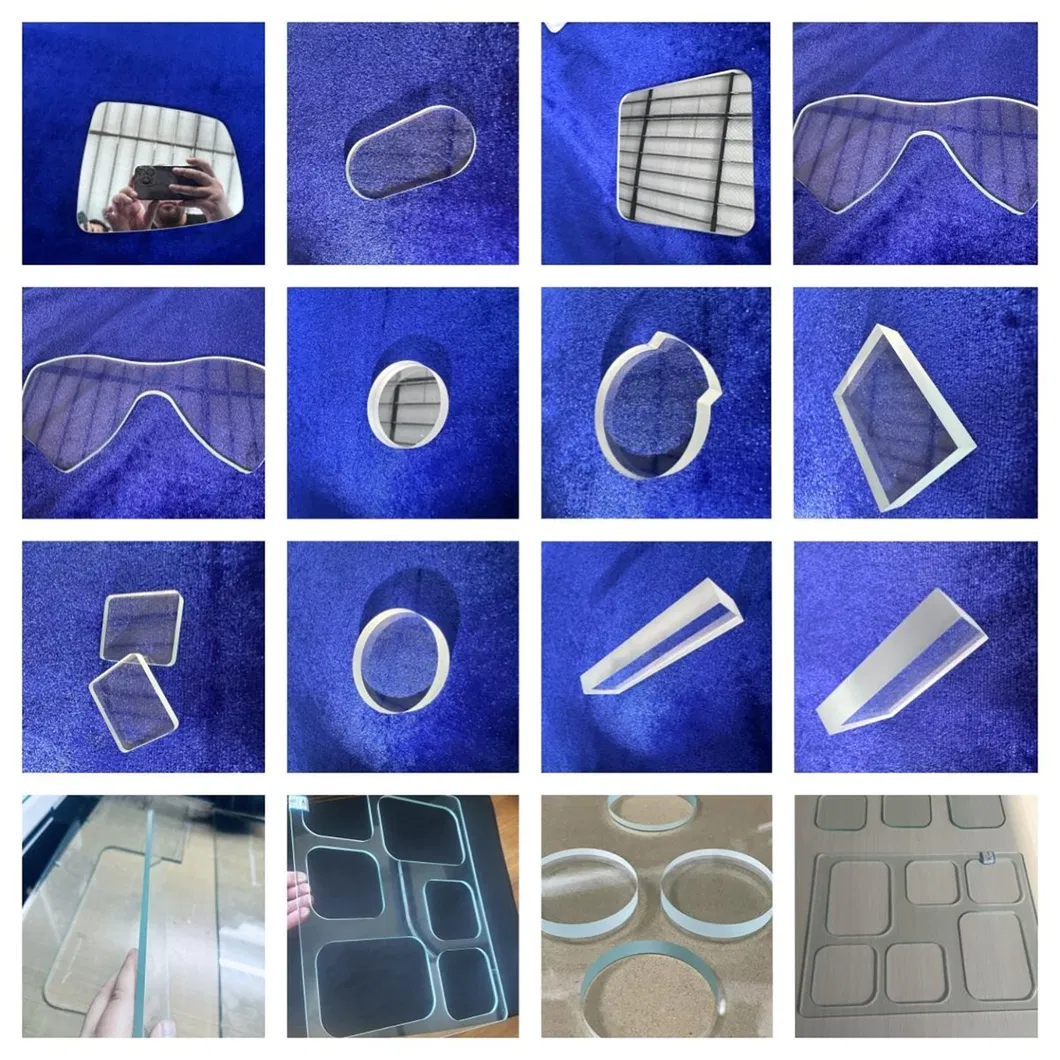

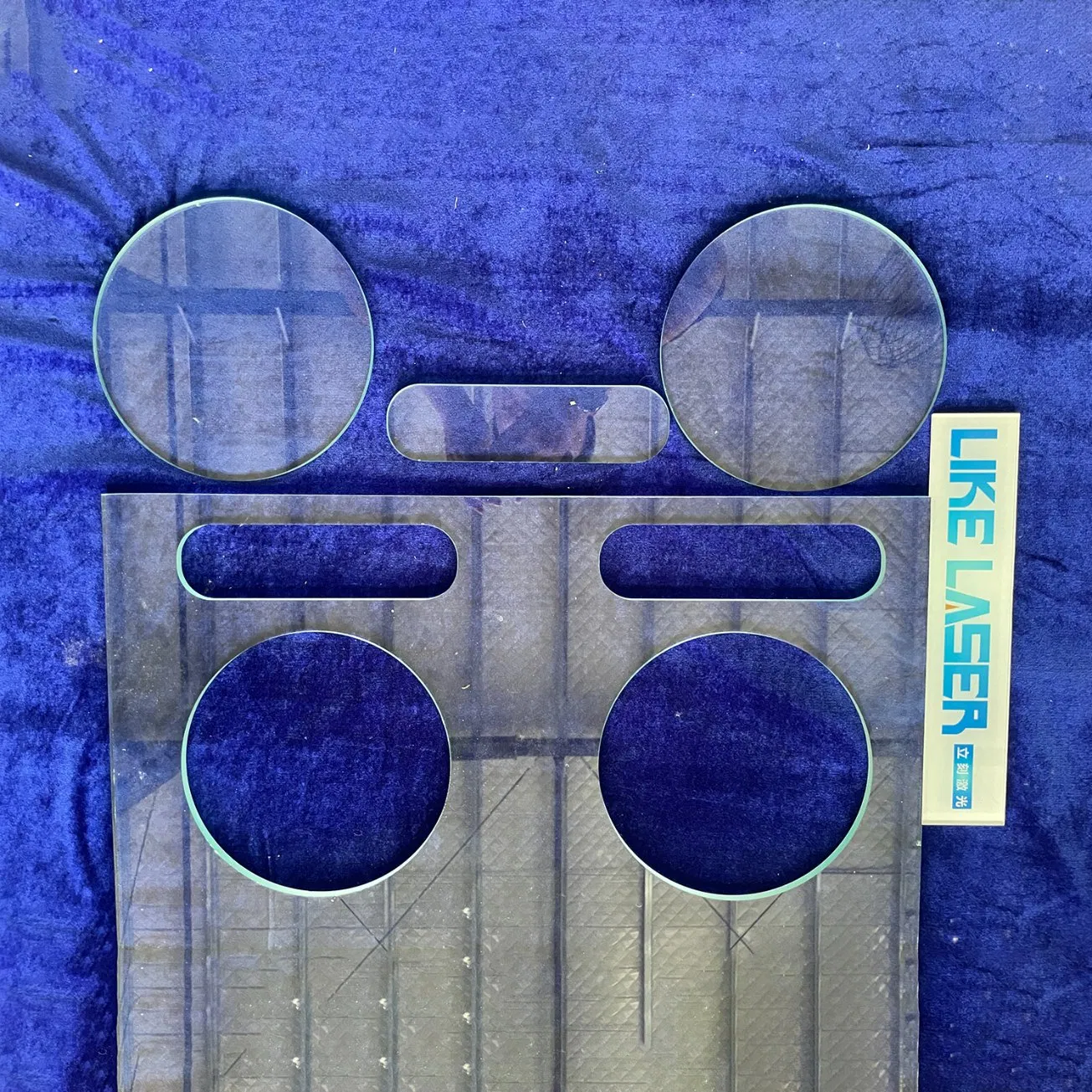

Processing Example
📦 Packaging & Shipping
Package Size 2300cm * 2200cm * 1900cm
Gross Weight 6000.00kg
Packing Type Professional Wooden Packing

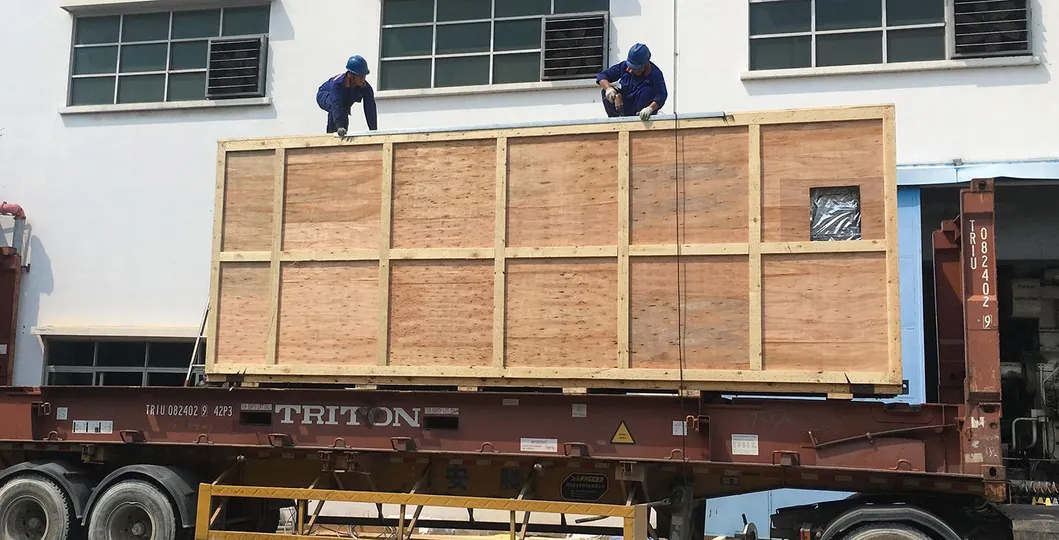

Wooden Package
Shipping Logistics
Frequently Asked Questions (FAQ)
Q1: What materials can this laser machine cut?
The machine is designed for various glass types including sapphire, reinforced glass, LCD screens, high borosilicate, quartz, and optical filters.
Q2: What is the precision of the picosecond laser cutting?
The machine utilizes an AI control system and linear motors to achieve a high processing accuracy of ±2 microns.
Q3: How does laser cutting compare to traditional CNC methods?
Laser cutting is a non-contact process that eliminates bit loss and edge collapse. It is faster (up to 15m/min), produces no pollution, and requires no consumables.
Q4: Can the machine handle curved glass processing?
Yes, it supports optional modules for single-sided (1200-2000) and double-sided (400-2000) curve processing.
Q5: What are the cooling requirements for continuous operation?
The system is equipped with an integrated water cooling system to ensure the stability of the picosecond pulse laser during high-intensity production.
Q6: Is the machine certified for international standards?
Yes, the equipment has passed ISO9001 quality system certification, European Union CE certification, and American certification standards.
