Precision Planetary Gearbox Hollow Rotating Platform Gear Reducer Dg Series for Laser Processing
Precision Planetary Gearbox Hollow Rotating Platform Gear Reducer Dg Series for Laser Processing
Precision Planetary Gearbox Hollow Rotating Platform Gear Reducer Dg Series for Laser Processing
Precision Planetary Gearbox Hollow Rotating Platform Gear Reducer Dg Series for Laser Processing
Precision Planetary Gearbox Hollow Rotating Platform Gear Reducer Dg Series for Laser Processing
1 / 5
Precision Planetary Gearbox Hollow Rotating Platform Gear Reducer Dg Series for Laser Processing
Precision Planetary Gearbox Hollow Rotating Platform Gear Reducer Dg Series for Laser Processing
Precision Planetary Gearbox Hollow Rotating Platform Gear Reducer Dg Series for Laser Processing
Precision Planetary Gearbox Hollow Rotating Platform Gear Reducer Dg Series for Laser Processing
Precision Planetary Gearbox Hollow Rotating Platform Gear Reducer Dg Series for Laser Processing

Precision Planetary Gearbox Hollow Rotating Platform Gear Reducer Dg Series for Laser Processing

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

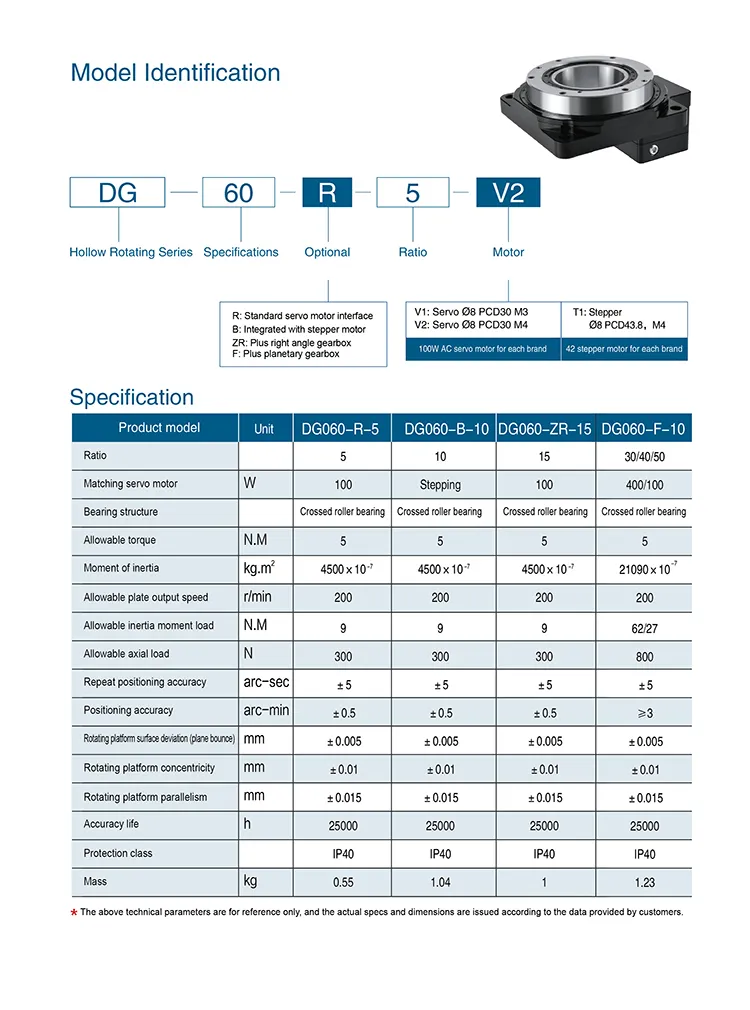

Basic Specifications
Model NO.
DG Series
Installation
90 Degree
Layout
Coaxial
Gear Shape
Bevel Gear
Step
1-2stage
Type
Planetary Gear Reducer
Bearing Structure
Crossed Roller Bearing
Warranty
1 year
Color
Black or Gold
Output Torque
5-80nm
Efficiency
94%~97%
Ratio
5-100
Output Form
Rotary Flange Output
Package Size
38.00cm * 35.00cm * 33.00cm

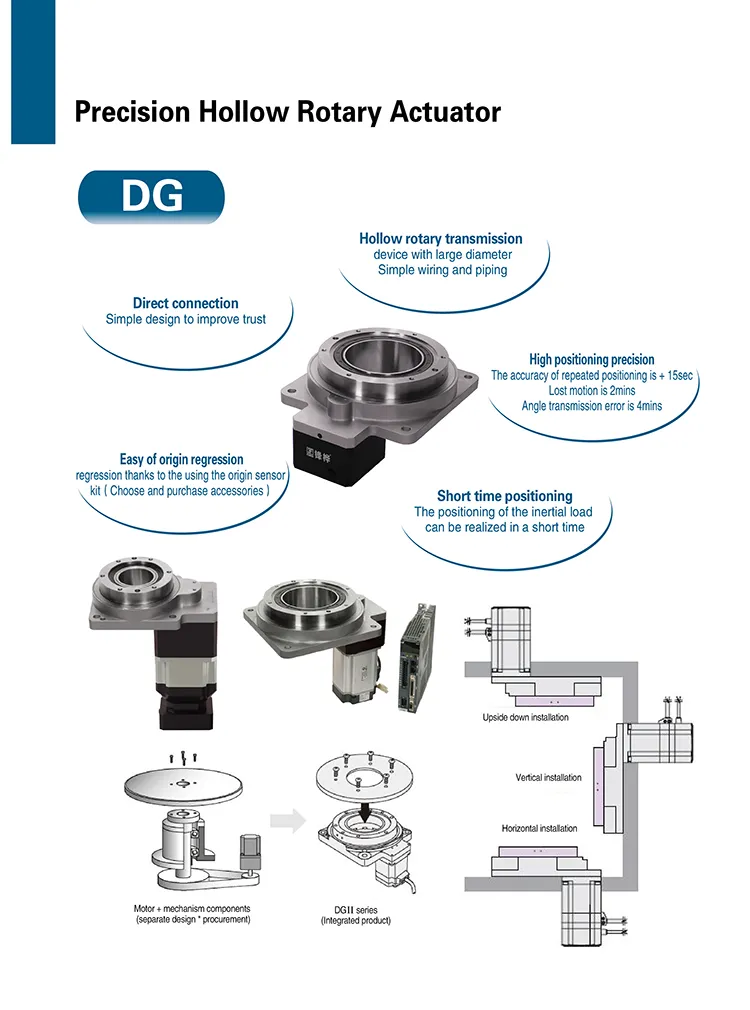

Product Highlights
1

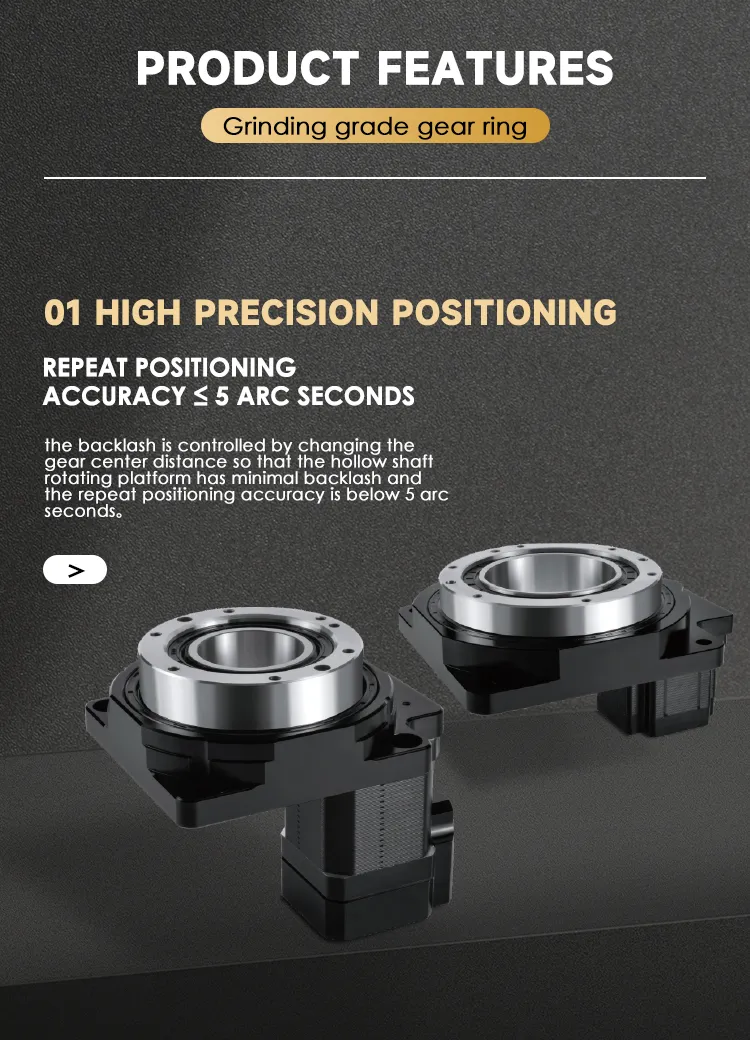

High Positioning Accuracy: Repeatable positioning accuracy is ±15 sec and idling accuracy is 2 min. Ultra-precision machined gears eliminate backlash through an adjustment mechanism.
2
Direct Locking: The rotating disk surface can directly lock working objects, improving convenience for workpiece transfer.
3

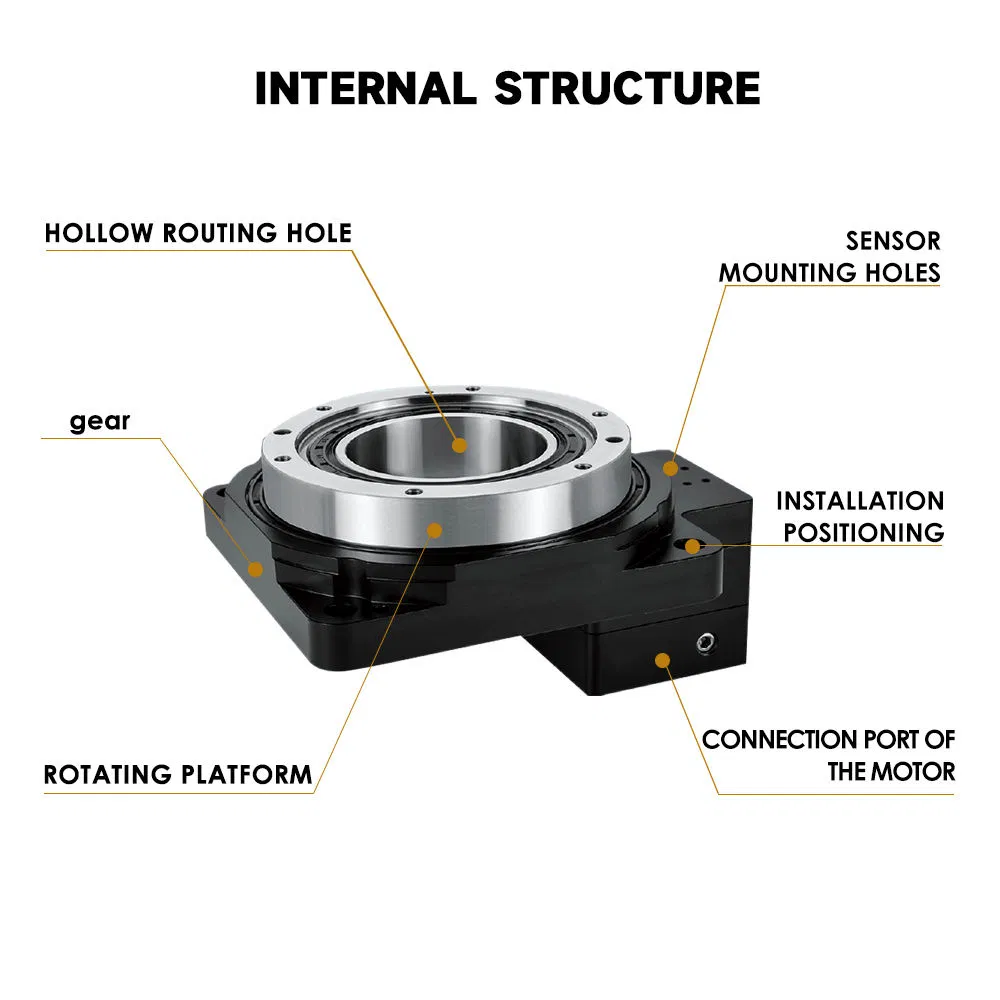

Hollow Design: Featured with a hollow center, the platform is highly convenient for internal wiring or piping.
4
Cost-Effective Alternative: Successfully balances the performance of D.D motors and cam splitters, providing high precision and digital control at a significantly reduced cost.
Product Visuals

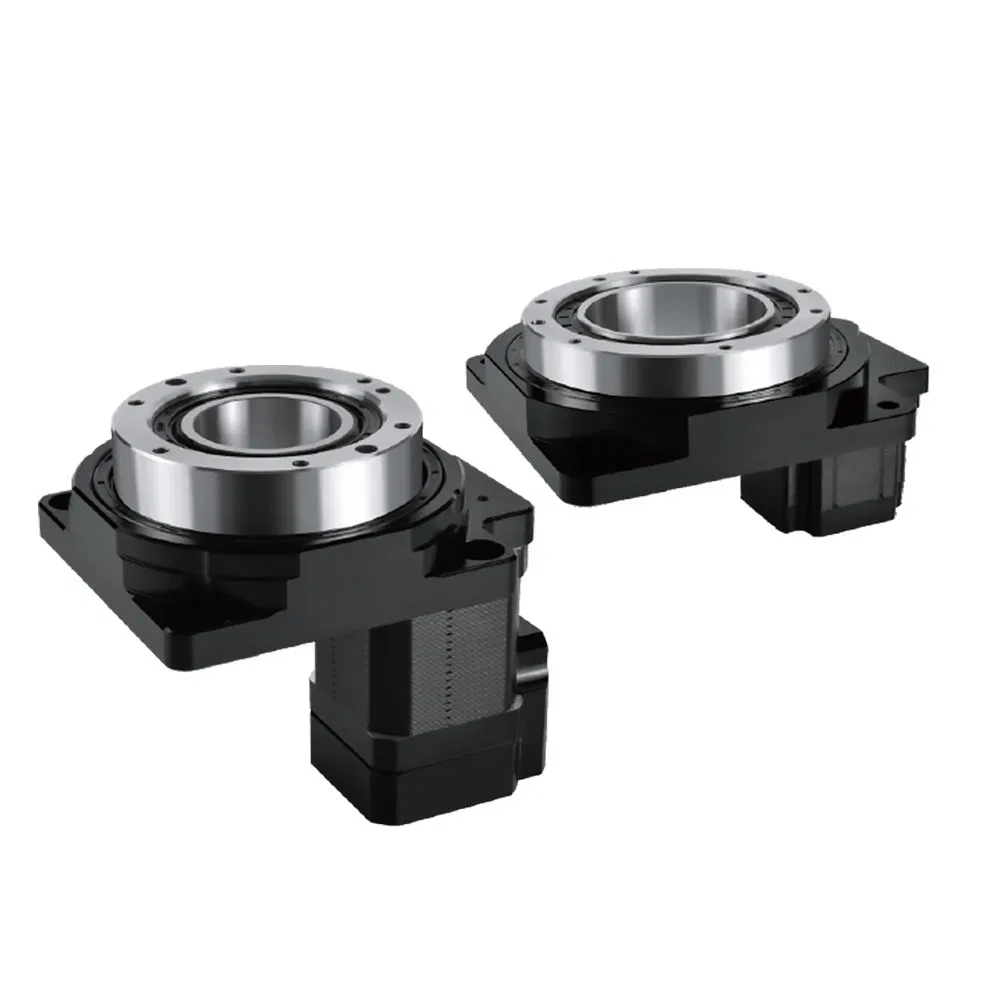

Hollow Rotating Platform
Precision Gearbox

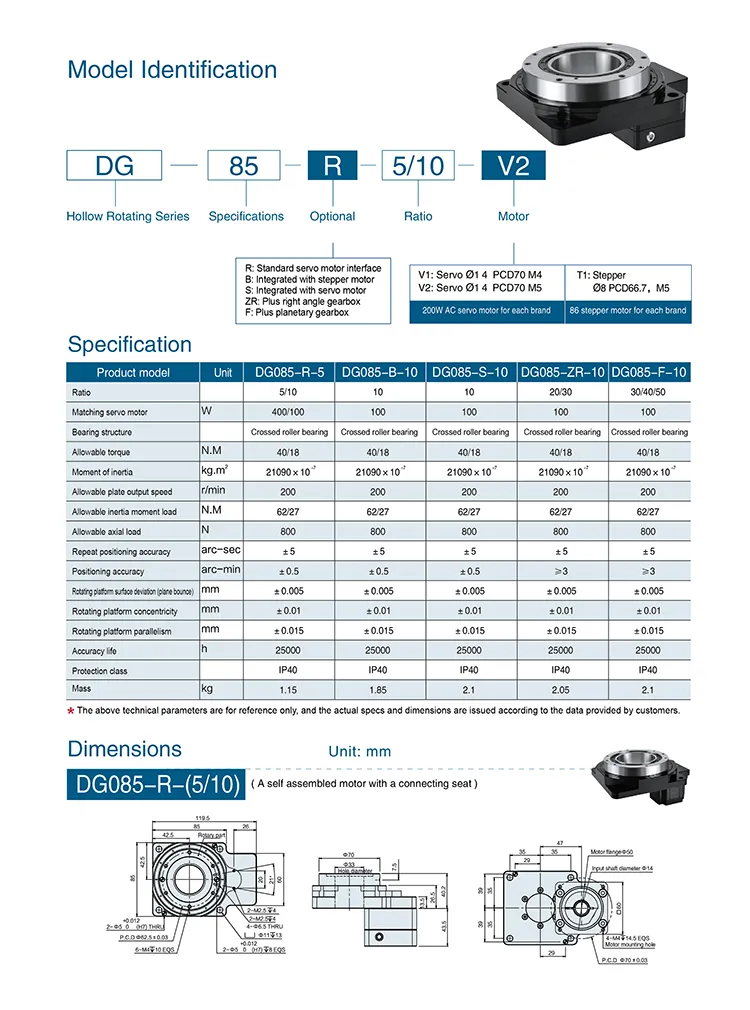

ModelDG060, DG085, DG130, DG200, DG280, DG450
Max Output Torque5~387 Nm
BacklashLess than 1arcmin (1 stage); Less than 3arcmin (2 stage)
EfficiencyAbove 97% for 1 Stage; Above 94% for 2 Stage
DeliveryWithin 15 days
PackagingCarton & Wooden Box

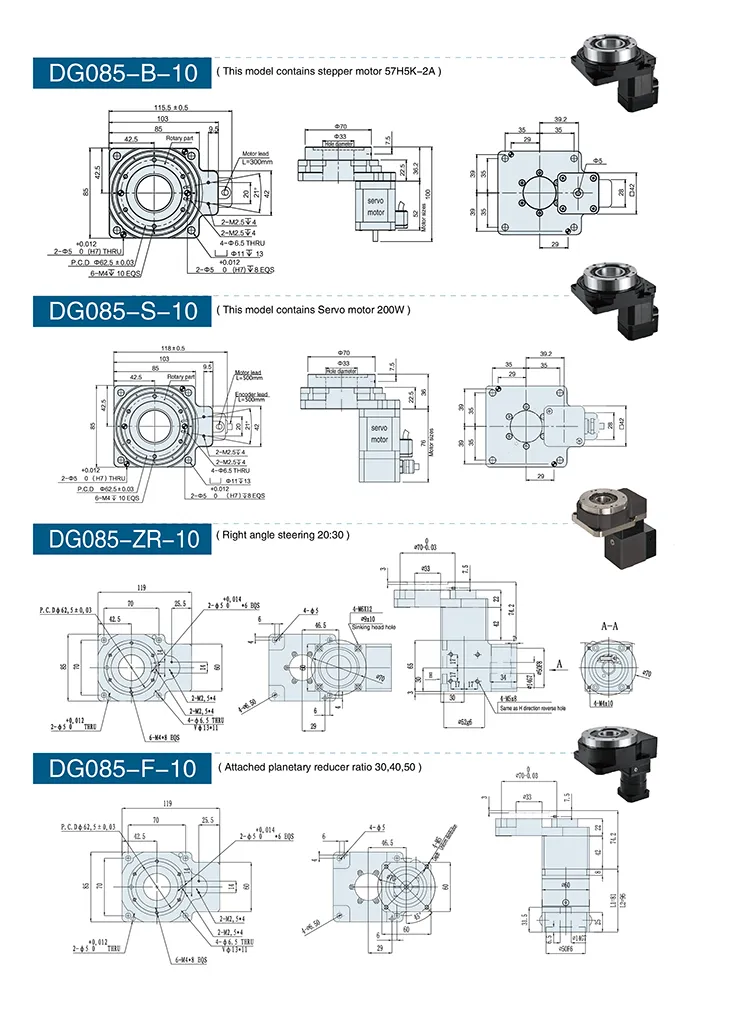

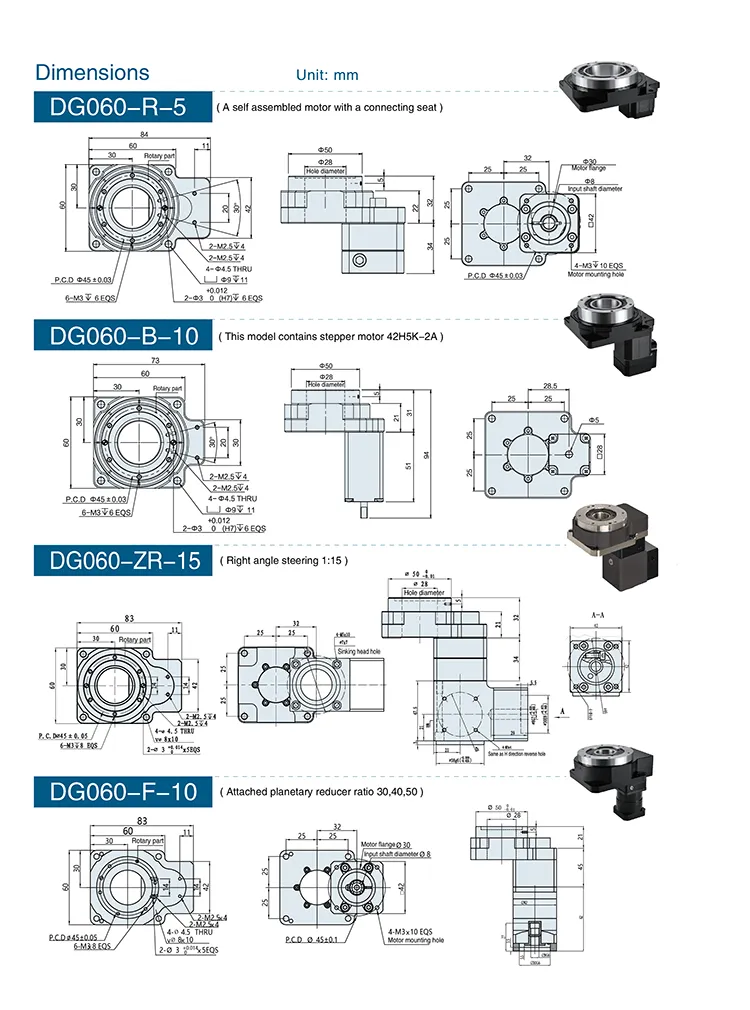

Technical Drawing
Frequently Asked Questions

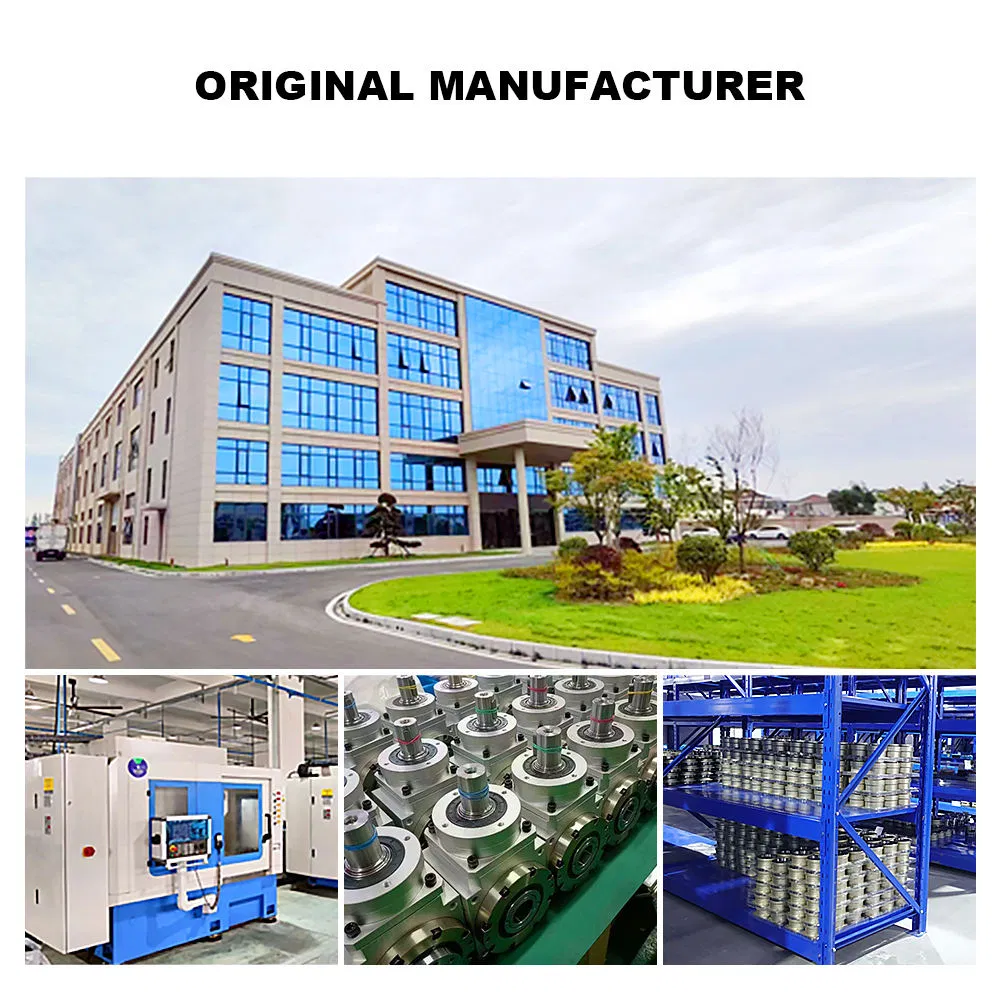

Q: Are you a manufacturer or trader? A: We are a manufacturer. You are welcome to visit our facility or arrange a video conference to see our production process.
Q: What are your main products? A: Our current range includes planetary gearboxes, harmonic gearboxes, steering gearboxes, RV cycloidal pin-wheel gearboxes, worm gearboxes, servo/stepper motors, electric cylinders, and couplings.
Q: How do I select the suitable gearbox for my needs? A: Please provide your motor details, working conditions, load requirements, output torque, speed, and reduction ratio. Our team will guide you step-by-step through the selection process.
Q: Can I obtain 3D and 2D drawings for integration? A: Yes, we provide standard 2D and 3D drawings. The input size of the gearbox can also be customized to match your specific motor requirements.
Q: Do you offer individual design services? A: Yes, we can design products tailored to individual customer needs. Please note that this may involve development costs and design charges.
Q: What is the typical lead time for orders? A: We maintain stock for many standard products. If stock is unavailable, production typically takes 15-20 days. Customized products may require a slightly longer lead time.
