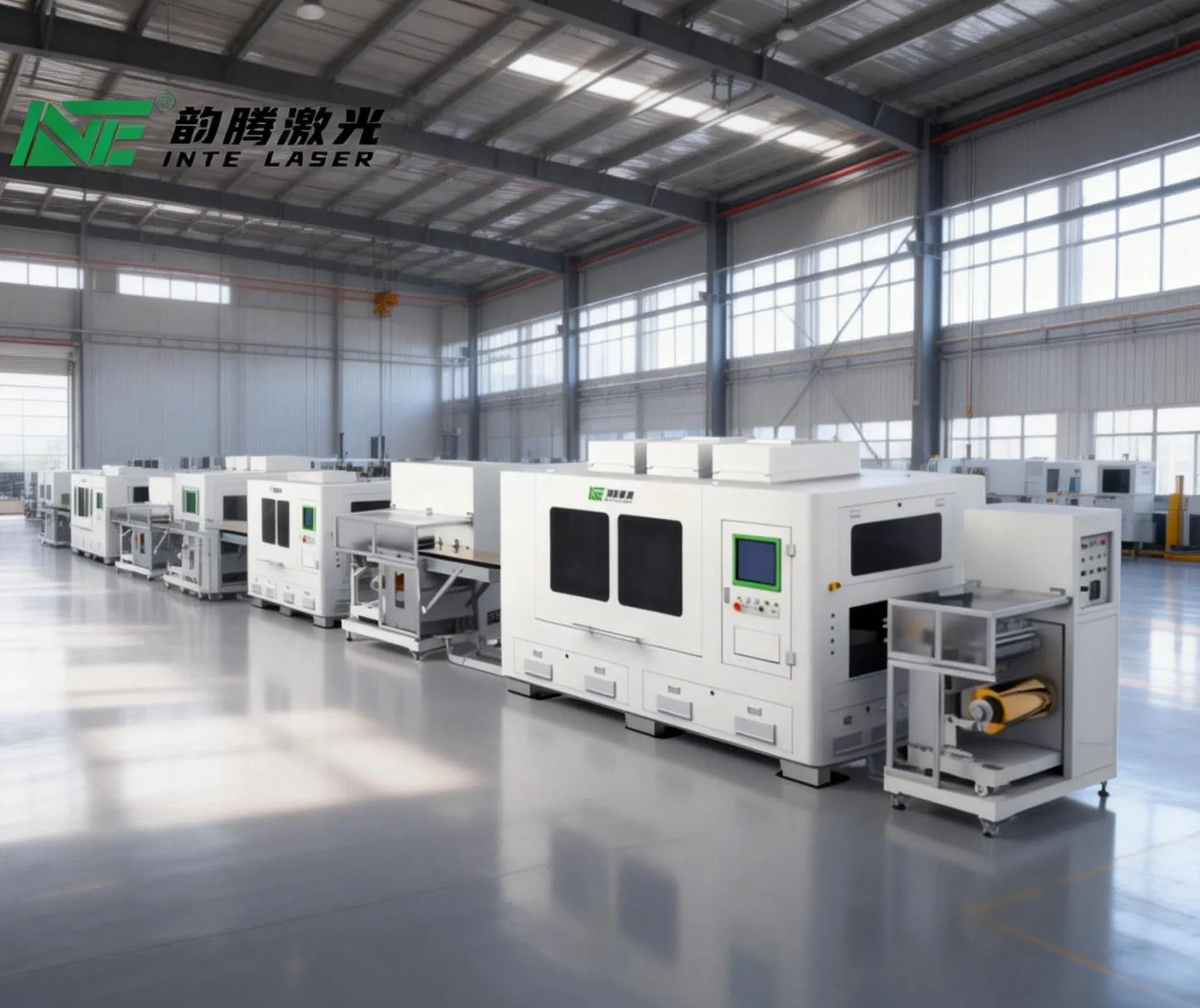

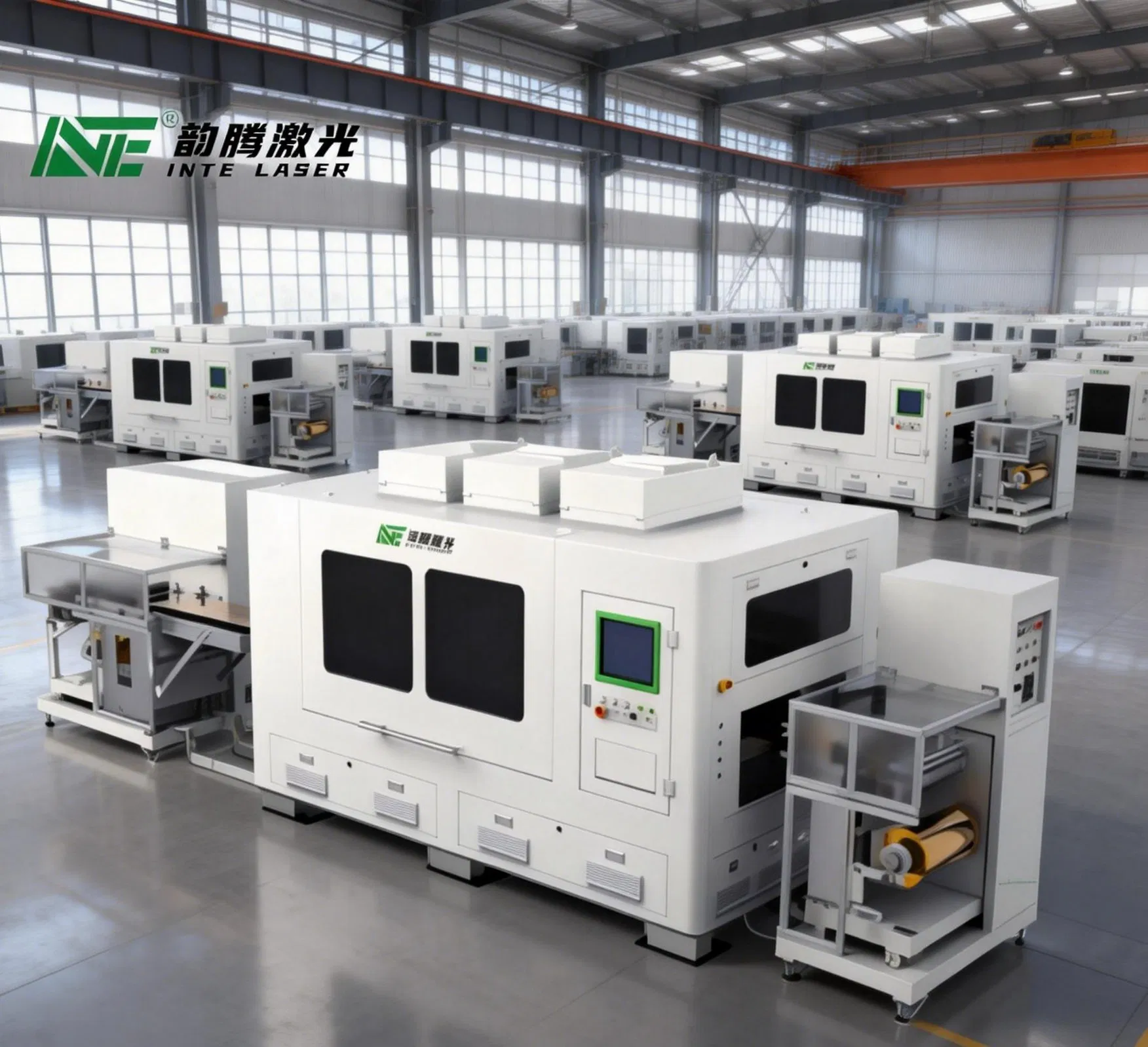

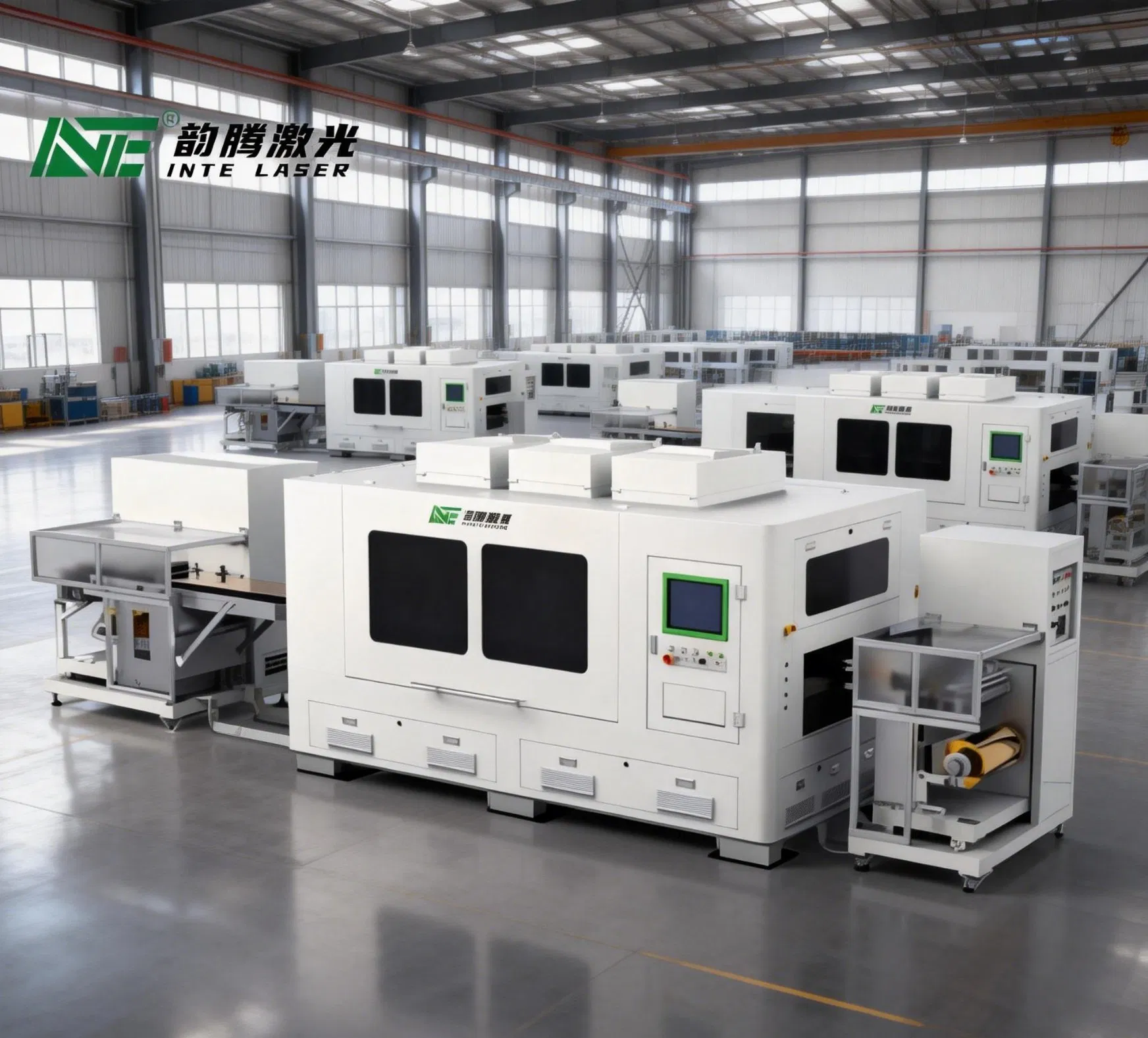

Game-Changing 4-Head Laser Drilling Equipment: Revolutionary Simultaneous Processing for Next-Generation Electronics Manufacturing

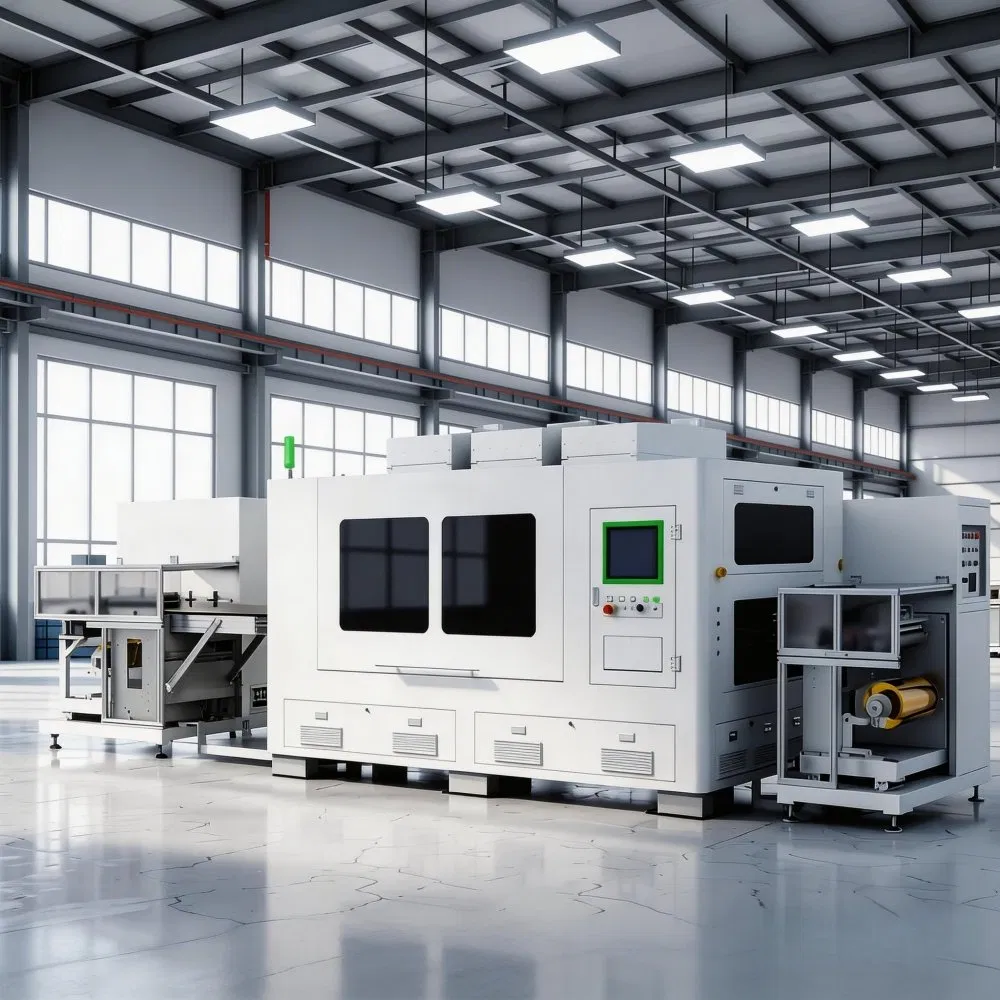

Introducing the groundbreaking Four-Head Roll-to-Roll Laser Drilling Equipment - the industry's first solution designed to revolutionize high-volume electronics manufacturing. As a pioneer in multi-head laser drilling technology, this equipment delivers unprecedented 4x efficiency improvements while maintaining superior precision standards.

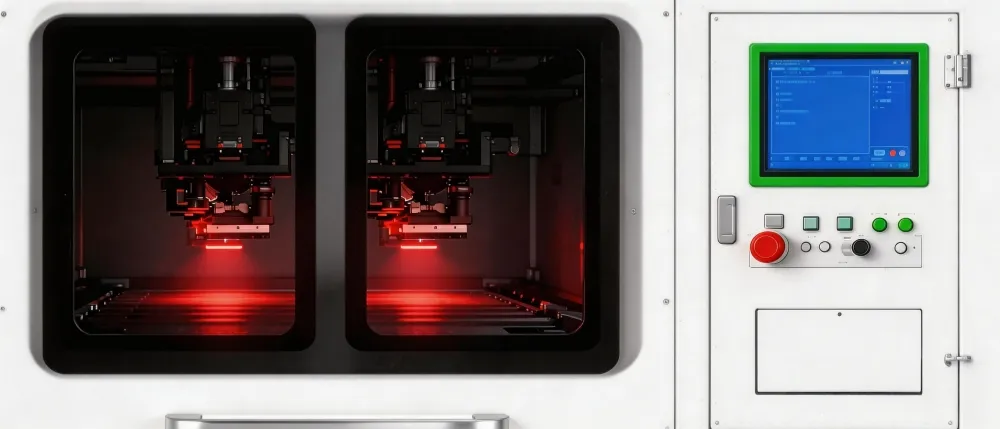

🌟 Key Highlights
Unmatched Efficiency & Throughput
- Four heads operate simultaneously, delivering 4x higher production capacity
- Supports roll-to-roll, roll-to-sheet, and sheet-to-sheet automation
- Dramatically reduces production cycle times
Precision Engineering
- High-precision linear motor system with integrated CCD
- ±0.02mm accuracy guarantee for superior product quality
- Professional laser source and F-theta lens technology
Advanced Process Optimization
- Eliminates traditional plasma treatment requirements
- Enables direct copper plating and reduces production steps
- Improves overall manufacturing yield rates
Versatile Applications
- High-density HDI PCB and Flexible circuit (FPC) production
- Lithium battery separator drilling
- Semiconductor wafer processing and automotive electronics
📋 Technical Specifications
| Structure | Laser Drilling Machine |
| Controlling Mode | Artificial / Automatic |
| Laser Type | Nanosecond UV, Picosecond UV, Picosecond Green Laser |
| Processing Area | 550mm×1500mm (customized) |
| Machine Accuracy | ±0.02mm |
| Number of Laser Heads | 4 Heads (Synchronous/Independent) |
| Hole Diameter | <50mm |
| Processing Materials | Copper Clad Laminate, Fr4, Polyimide, Glass Epoxy, Ceramic |
| Efficiency Boost | 300% Higher Output Than Single-Head |
| Machine Size | 7200mm×2300mm×2250mm |
| Machine Weight | 8000KG |
| Environment Requirements | Temperature: 22℃±2; Humidity: 40% - 60% |

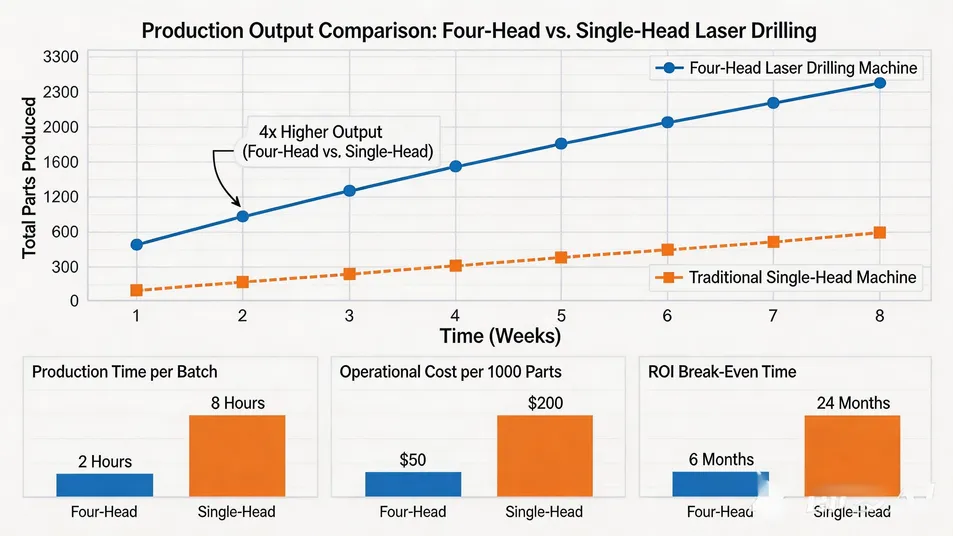

🔬 Precision & Efficiency Comparison
The comparison clearly illustrates the dramatic efficiency gains achieved with our Four-Head system. Each hole is perfectly round and uniform, showcasing the machine's ability to maintain consistent quality across high-volume production runs.

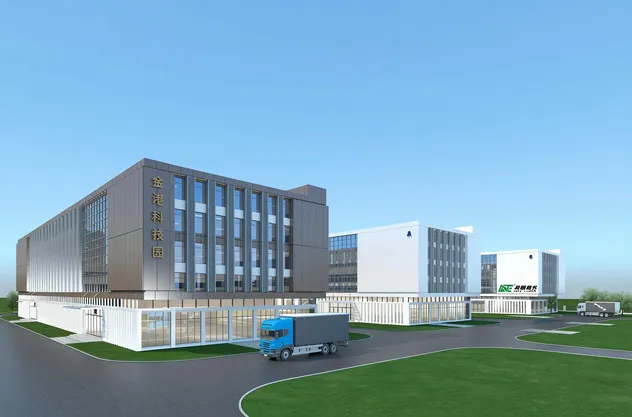

🏢 Research & Manufacturing Capabilities
Specializing in the independent research and development of laser generators, optical devices, and integration of automation systems. We provide innovative solutions for laser micromachining applications, including processing technology for printed circuit boards, consumer electronics, semiconductors, and new energy power batteries.

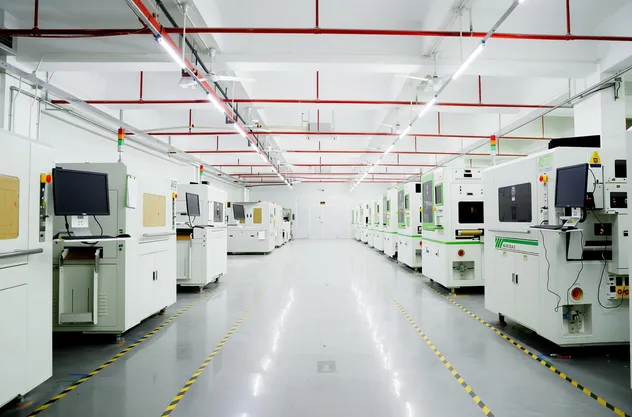

Expert R&D Team & Facilities
📦 Packing & Delivery

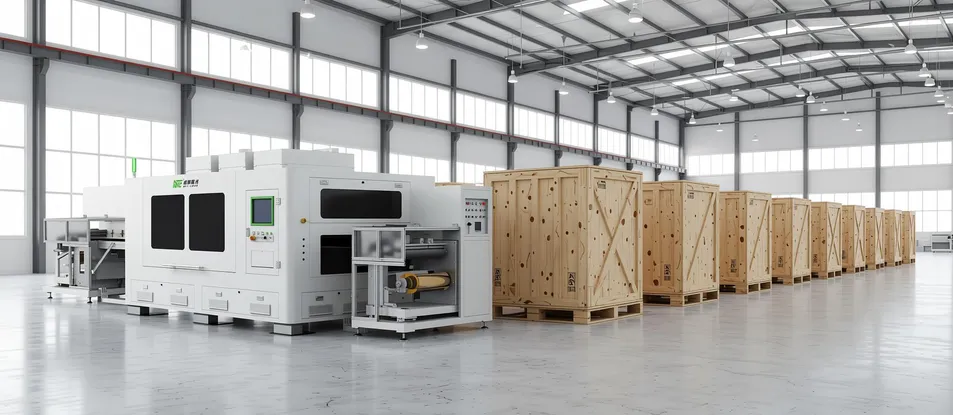

Packing: 1PCS/Wooden Case
Shipping: By sea or by express. Given the weight, sea shipping is recommended for standard orders.
Delivery Time: 30-45 days for standard goods; 45-90 days for customized solutions.
❓ Frequently Asked Questions
What is the main advantage of 4-head synchronous drilling?
Our 4-head technology enables parallel processing, quadrupling throughput for HDI PCBs and Flexible Circuits (FPC) while significantly reducing cycle time.
What is the processing accuracy of the system?
The system features a positioning accuracy of ±0.02mm and ±0.01mm repeatability, ensuring precise micro-vias and blind holes at high speeds.
Which materials can be processed by this equipment?
It is fully compatible with FR4, rigid PCBs, Flexible PCBs (FPC), polyimide, ceramic substrates, and copper clad laminates.
Does the machine support blind and buried vias?
Yes, it handles blind via drilling (BVB), buried vias, and through-holes with minimal Heat Affected Zone (HAZ) for clean sidewalls.
Is the equipment fully automated?
Yes, it features CCD Vision Alignment and automated loading with real-time distortion correction for flexible boards.
How is beam quality consistency maintained across all 4 heads?
Our advanced beam splitting technology ensures uniform energy distribution across all 4 heads, guaranteeing consistent hole quality for every part.
Transform your production capabilities with advanced laser technology.
Contact our team for a customized solution to revolutionize your manufacturing processes.
