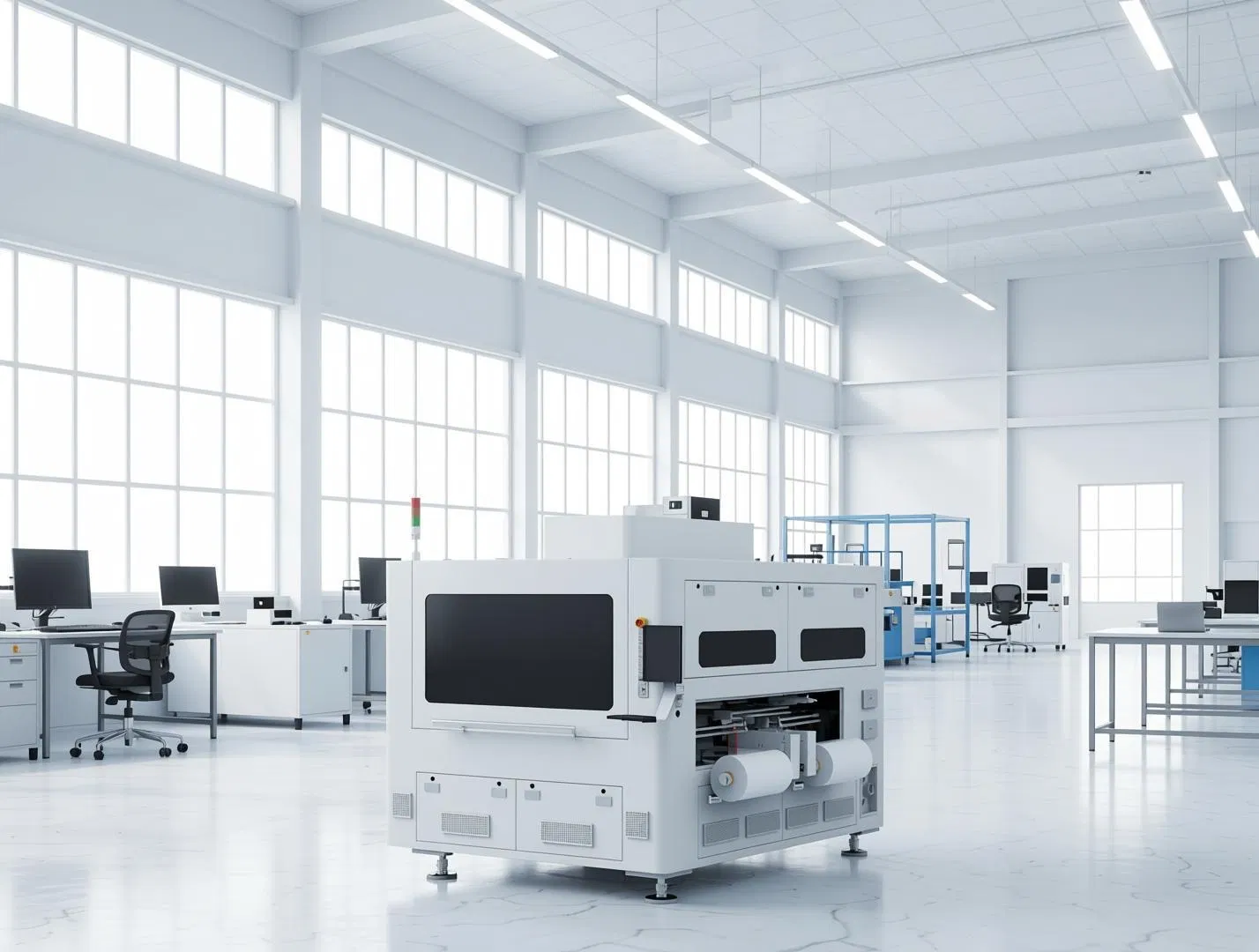

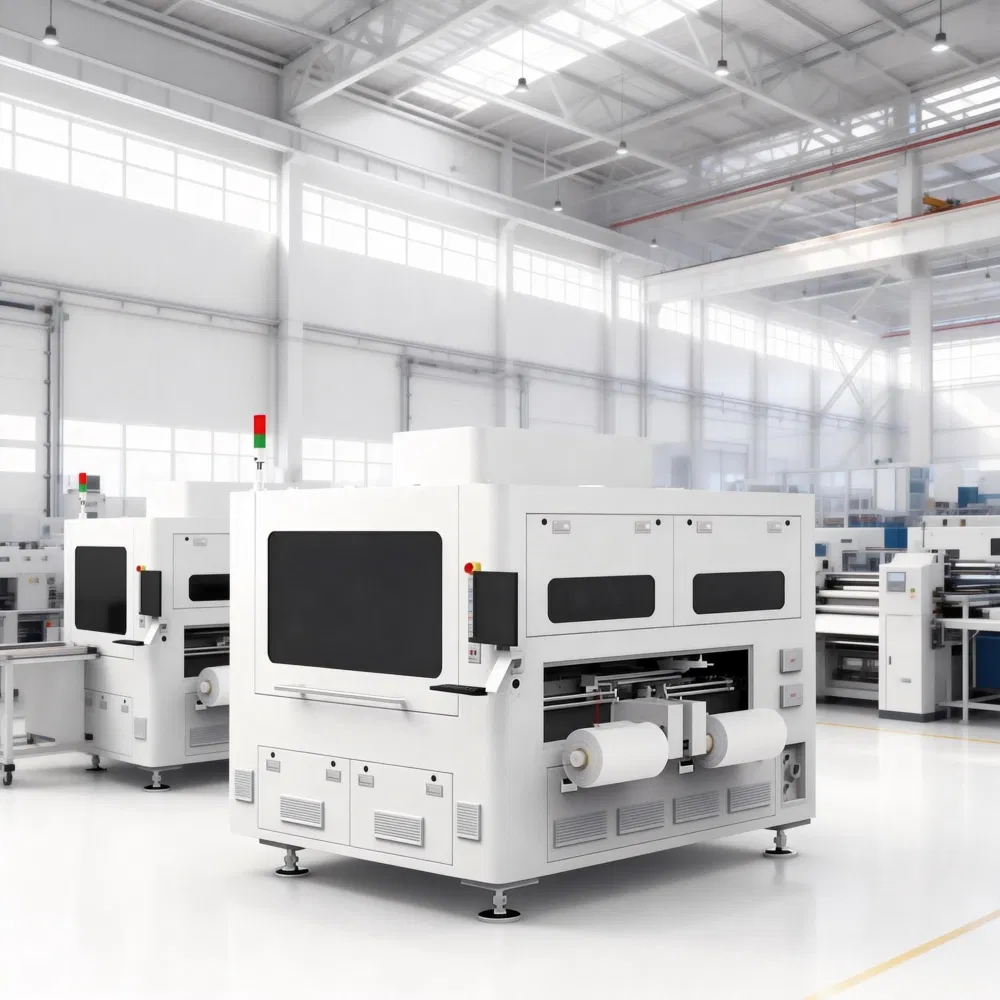

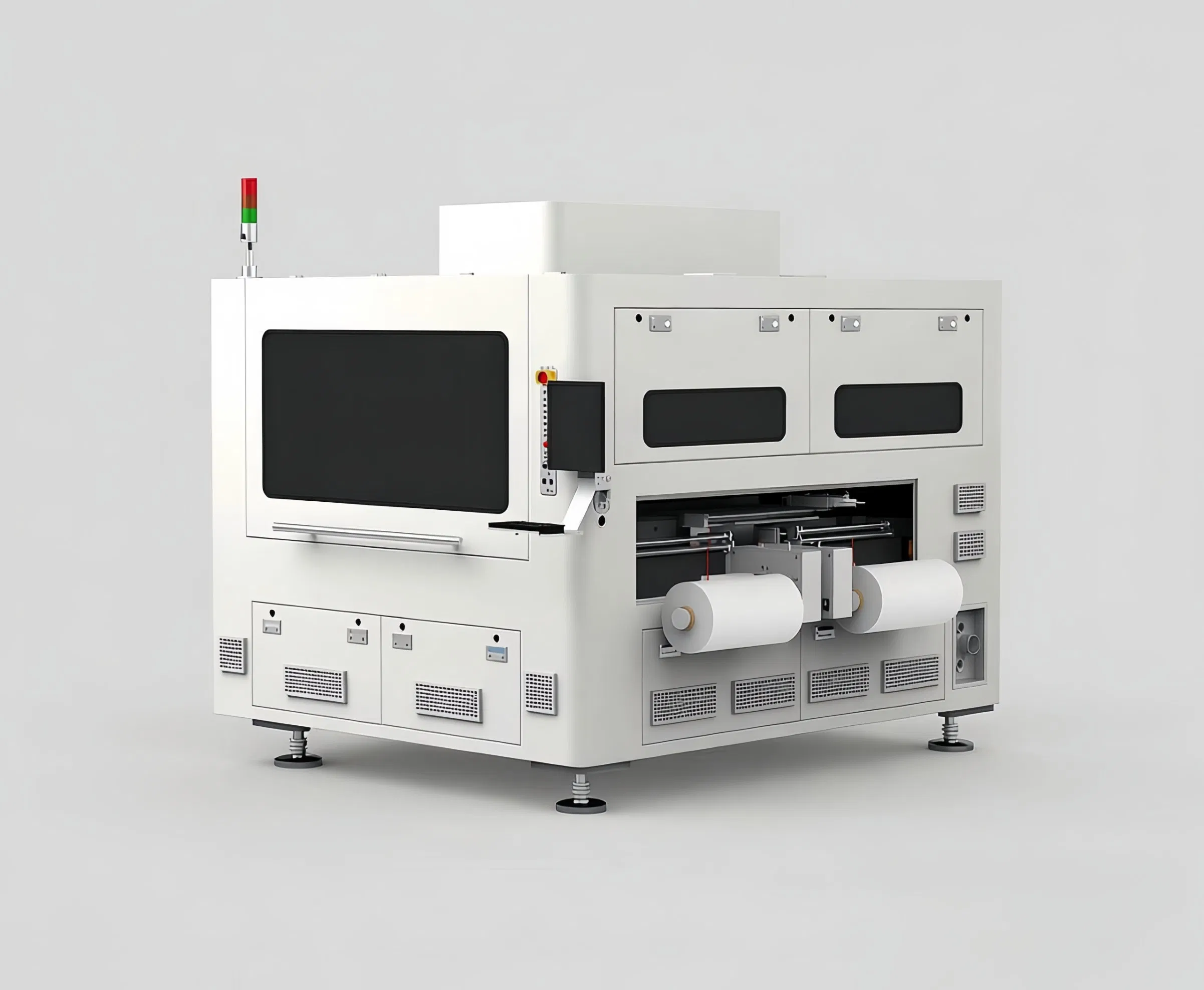

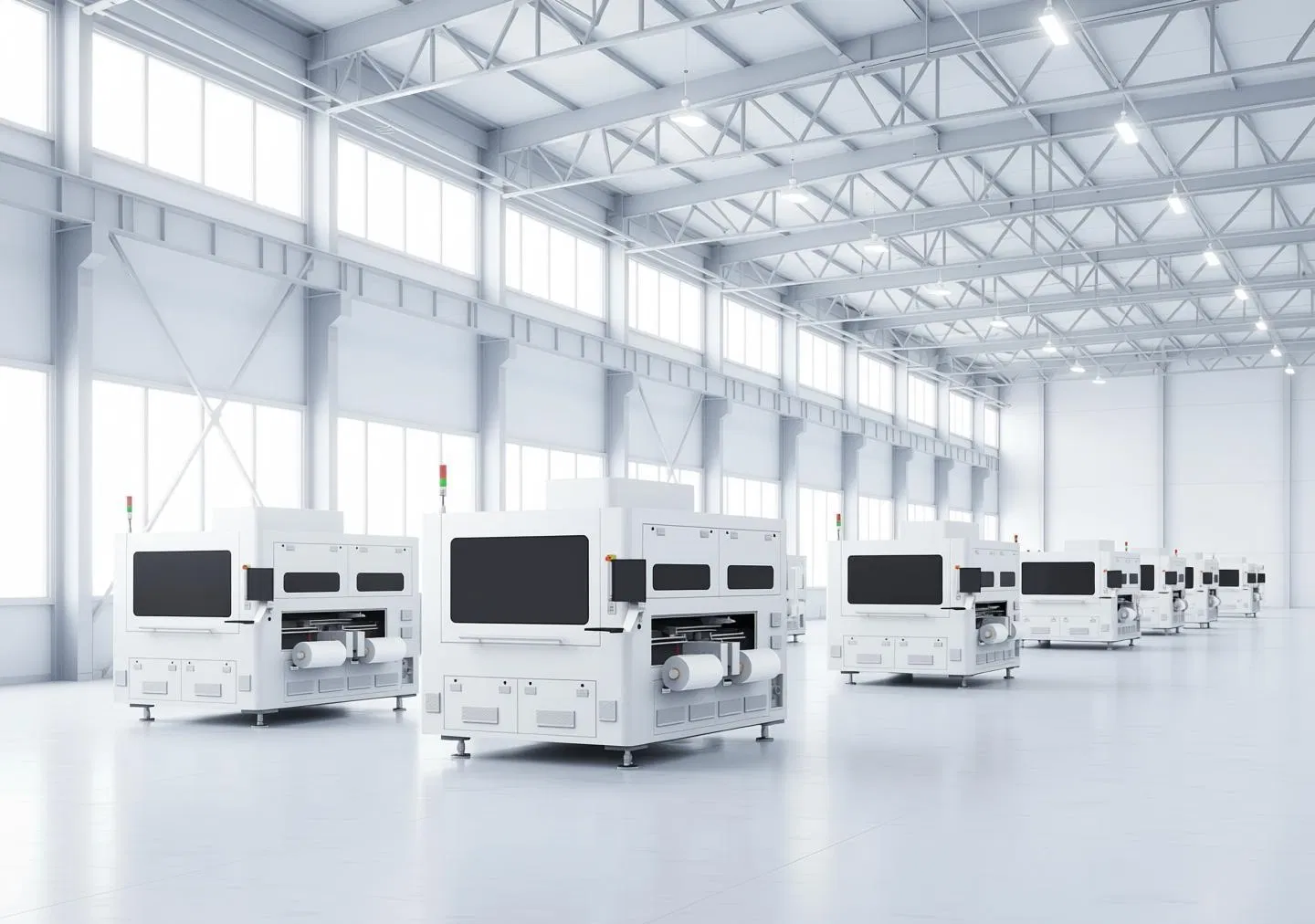

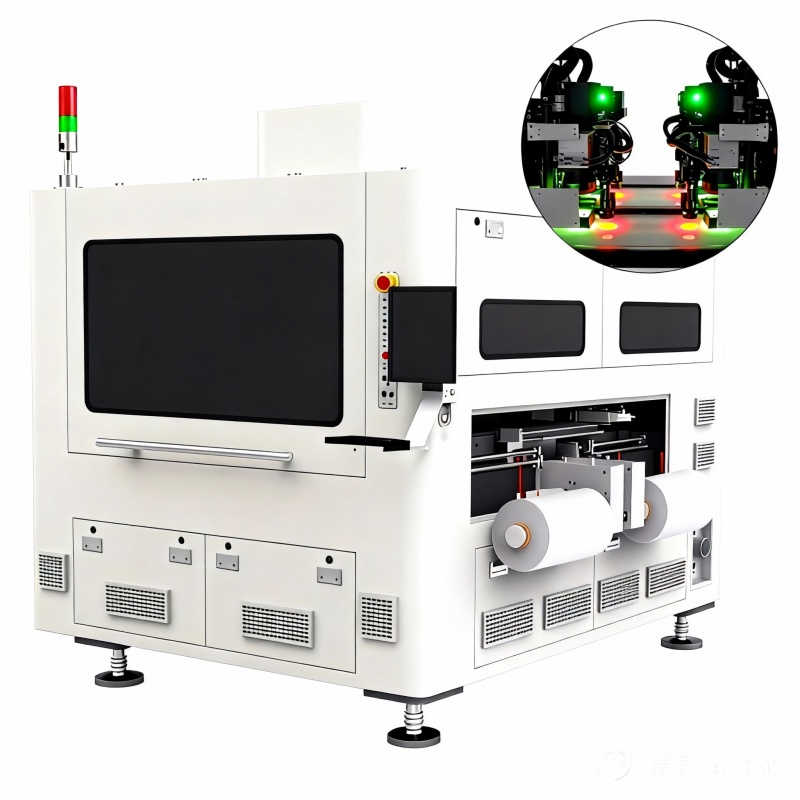

4-Head Roll-to-Roll Coverlay Laser Cutting Machine High-Speed Precision for FPC Manufacturing
4-Head Roll-to-Roll Coverlay Laser Cutting Machine High-Speed Precision for FPC Manufacturing
4-Head Roll-to-Roll Coverlay Laser Cutting Machine High-Speed Precision for FPC Manufacturing
4-Head Roll-to-Roll Coverlay Laser Cutting Machine High-Speed Precision for FPC Manufacturing
4-Head Roll-to-Roll Coverlay Laser Cutting Machine High-Speed Precision for FPC Manufacturing
1 / 5
4-Head Roll-to-Roll Coverlay Laser Cutting Machine High-Speed Precision for FPC Manufacturing
4-Head Roll-to-Roll Coverlay Laser Cutting Machine High-Speed Precision for FPC Manufacturing
4-Head Roll-to-Roll Coverlay Laser Cutting Machine High-Speed Precision for FPC Manufacturing
4-Head Roll-to-Roll Coverlay Laser Cutting Machine High-Speed Precision for FPC Manufacturing
4-Head Roll-to-Roll Coverlay Laser Cutting Machine High-Speed Precision for FPC Manufacturing

4-Head Roll-to-Roll Coverlay Laser Cutting Machine High-Speed Precision for FPC Manufacturing

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

4-Head Roll-to-Roll Coverlay Laser Cutting Machine | High-Speed Precision for FPC Manufacturing

The 4-Head Roll-to-Roll Coverlay Laser Cutting System is engineered specifically for high-volume Flexible Printed Circuit (FPC) manufacturers. Designed to eliminate bottlenecks in the coverlay cutting process, this machine combines a quadruple laser head configuration with an advanced roll-to-roll material handling system. It delivers ultra-high precision cutting at industrial speeds, ensuring mass production capabilities without compromising on quality.

Basic Specifications
Model NO. MLPC30A-C
Application Home Appliance, Petroleum Machinery, Aerospace, Automotive, FPC, PCB, 5G Materials, Flexible OLED Displays
Cooling System Water Cooling
Technical Class Pulse Laser / Ultrafast Laser
Applicable Material Nonmetal (PI, PET, PC, etc.)
Structure Type Gantry Type
Processing Accuracy ± 0.03mm
Dimensions 2650*2500*2150mm
Our Core Advantages
Quadruple-Head Efficiency Equipped with four independent laser cutting heads working simultaneously, boosting capacity by up to 4 times compared to single-head machines.
Advanced Roll-to-Roll (R2R) Automation Stable automatic feeding and unwinding system with tension control to handle large rolls without wrinkles or misalignment.
Ultra-Precision Cutting Achieves clean, smooth edges with no burrs or carbonization, ensuring optimal electrical performance for FPCs.
High-Speed Camera Positioning Integrated CCD camera for real-time scanning and positioning, automatically correcting material deformation.
Intelligent Control Software User-friendly interface compatible with Gerber and DXF, featuring automatic nesting to maximize material utilization.
Industrial-Grade Durability Heavy-duty welded frame designed for 24/7 continuous operation in demanding environments.
Technical Parameters
Laser Type Nanosecond UV, Picosecond UV, Nanosecond Green Laser
Processing Area 2 X 250mm X 500mm (Customizable)
Processing Accuracy ± 0.03mm
Machine Weight 3500 KG
Max Table Size 520mm x 2200mm
Environment Temp: 22°C ± 2°C; Humidity: 30%~60% (Non-condensing)
Voltage AC 380V
Applications

Ideal for precision cutting of Coverlay, Overlayer, and protective films in the following fields:

Flexible Printed Circuits (FPC)
Precision Electronic Manufacturing
Mobile Phone Components
Automotive Electronics
5G Advanced Materials
Packaging & Delivery
Package Type Professional Standard Wooden Box
Package Size 305.00cm * 290.00cm * 245.00cm
Gross Weight 4000.000kg
Origin China
Product Display

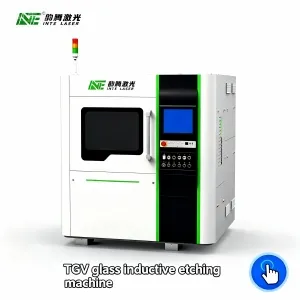

Laser Cutting Equipment 1

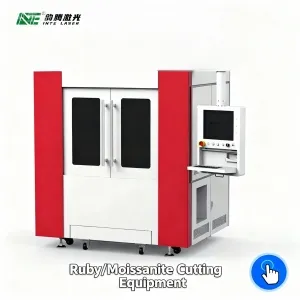

Laser Cutting Equipment 2

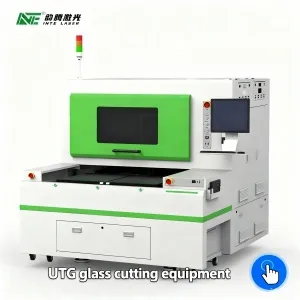

Laser Cutting Equipment 3
Frequently Asked Questions
What is the cutting precision of the 4-head roll-to-roll machine?
Our machine ensures a cutting precision of ±0.03mm. The four independent heads are designed for high consistency, ensuring each piece meets strict quality standards for Coverlay films.
What materials are compatible with this machine?
It is specifically designed for flexible materials, including Polyimide (PI), PET, PC, and various adhesive films. It handles thicknesses ranging from 25μm to 200μm effectively.
What is the advantage of the 4-head design compared to a single head?
The 4-head configuration significantly boosts production efficiency—up to 4 times that of a single-head machine. It allows for simultaneous processing, which is ideal for large-volume orders and reduces unit costs.
Does the machine support automatic loading and unloading?
Yes, it features a fully automated roll-to-roll system with an advanced tension control mechanism, ensuring smooth material feeding and preventing scratches or deformation during high-speed processing.
What type of laser source is used?
We utilize high-quality UV laser sources. UV lasers are preferred for Coverlay cutting because they produce a "cold cutting" effect, leaving no thermal burrs or carbonization on the edges.
What is the warranty period for this equipment?
We offer a 1-year warranty on the entire machine and a 2-year warranty on the laser source. During this period, any non-artificial damage parts will be replaced.
