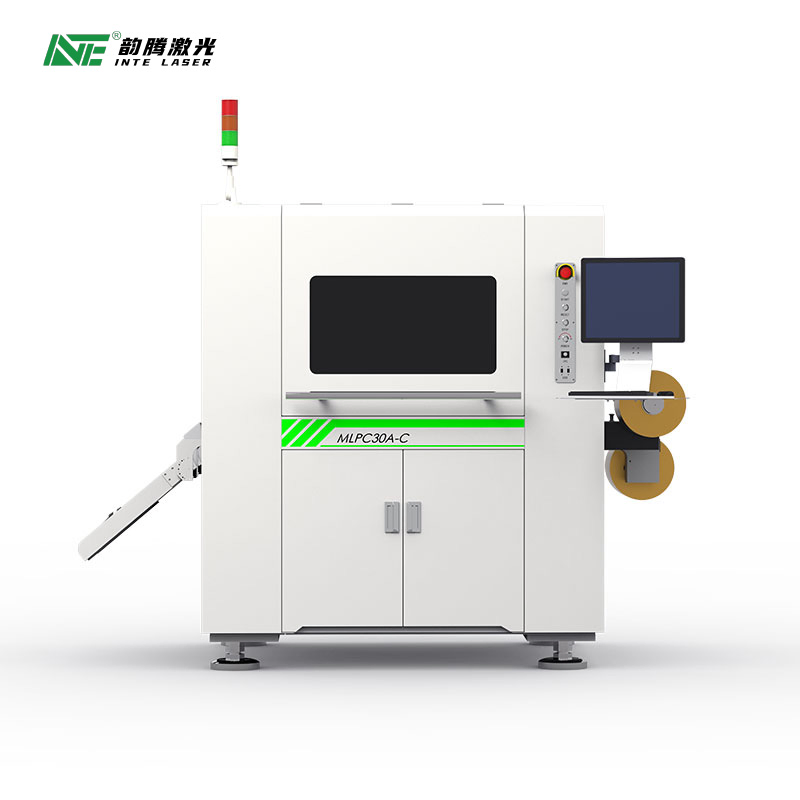

| Model NO. | MLPC30A-C |
| Application | Home Appliance, Petroleum Machinery Manufacturing, Aerospace Industry, Automotive Industry, FPC, PCB, 5G Materials, Flexible OLED Displays etc. |
| Cooling System | Water Cooling |
| Technical Class | Pulse Laser |
| Applicable Material | Nonmetal |
| Structure Type | Gantry Type |
| Laser Classification | Solid Laser |
| Laser Technology | Ultrafast Laser |
| OEM&ODM | Accepted |
| Certificates | CE, ISO9001 |
| Specification | 2350*1450*2200mm |
| Production Capacity | 100 sets/Month |

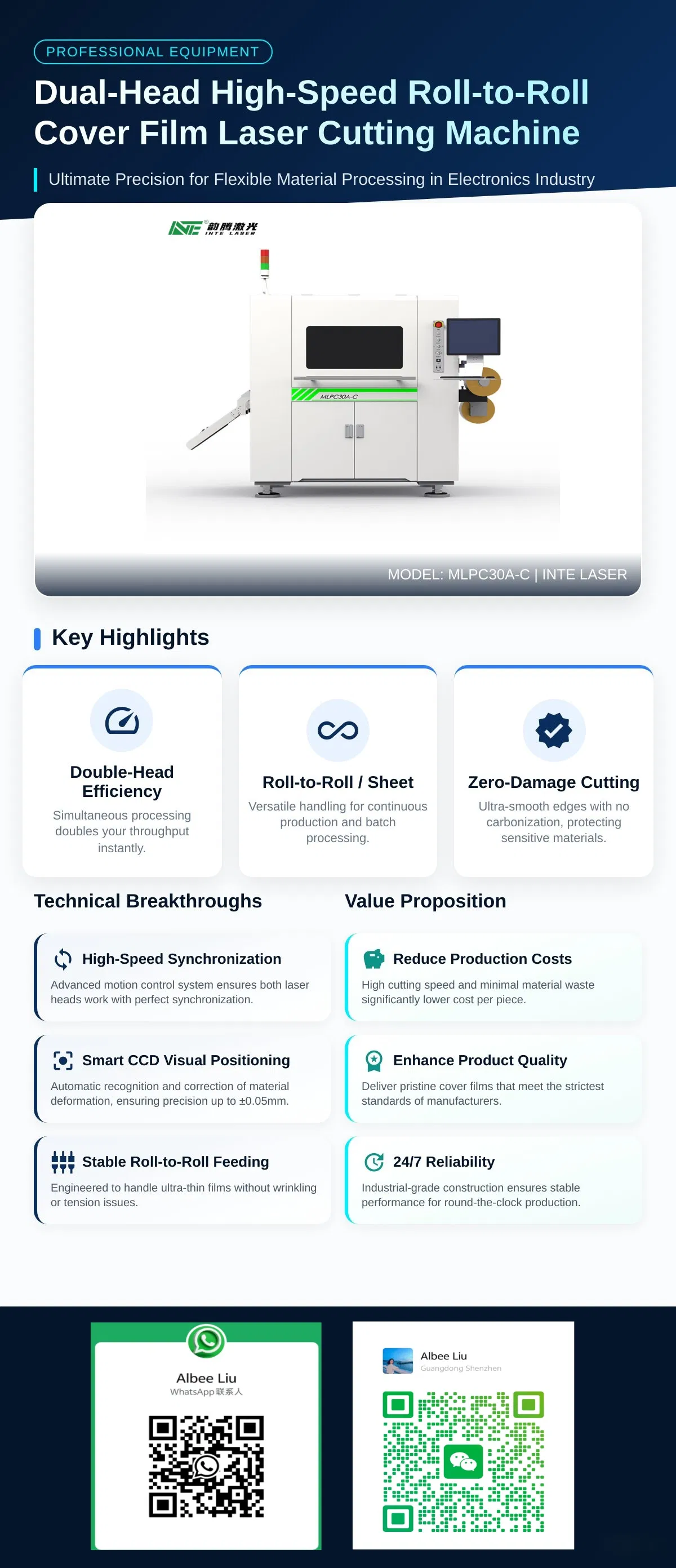

Precision Redefined for Flexible Circuit & Cover Film Cutting Processing
In the competitive electronics manufacturing industry, material waste and slow processing speeds are profit killers. Traditional mechanical punching often leads to material deformation and high maintenance costs, while single-head laser systems struggle to meet high-volume demands.

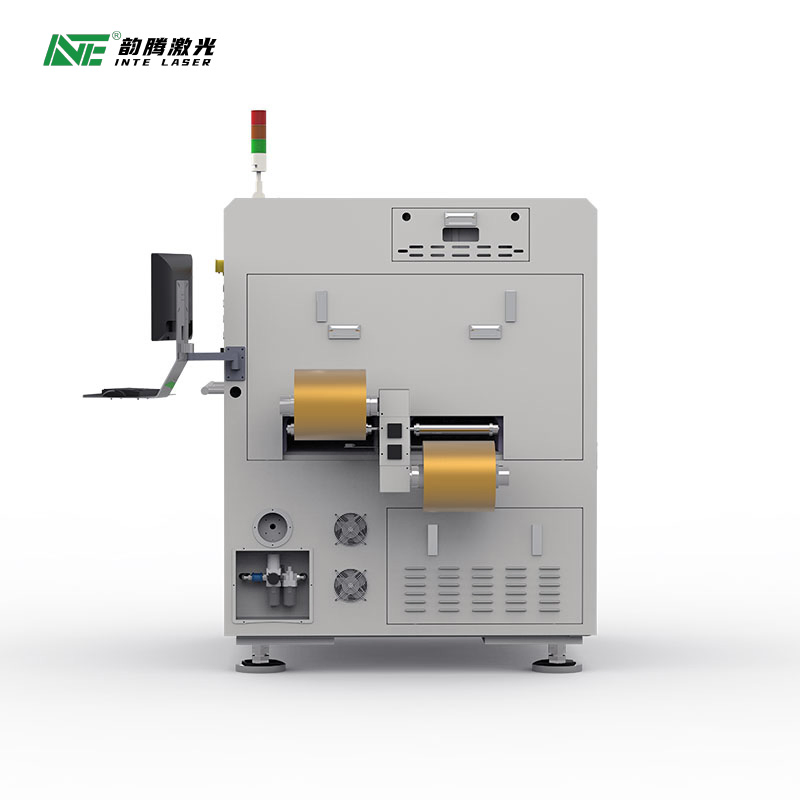

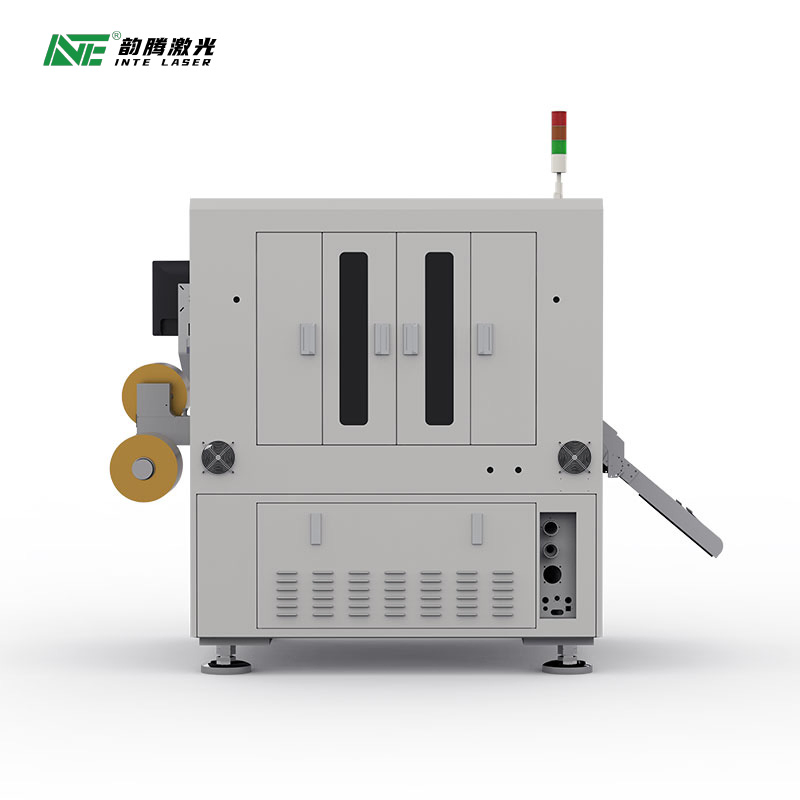

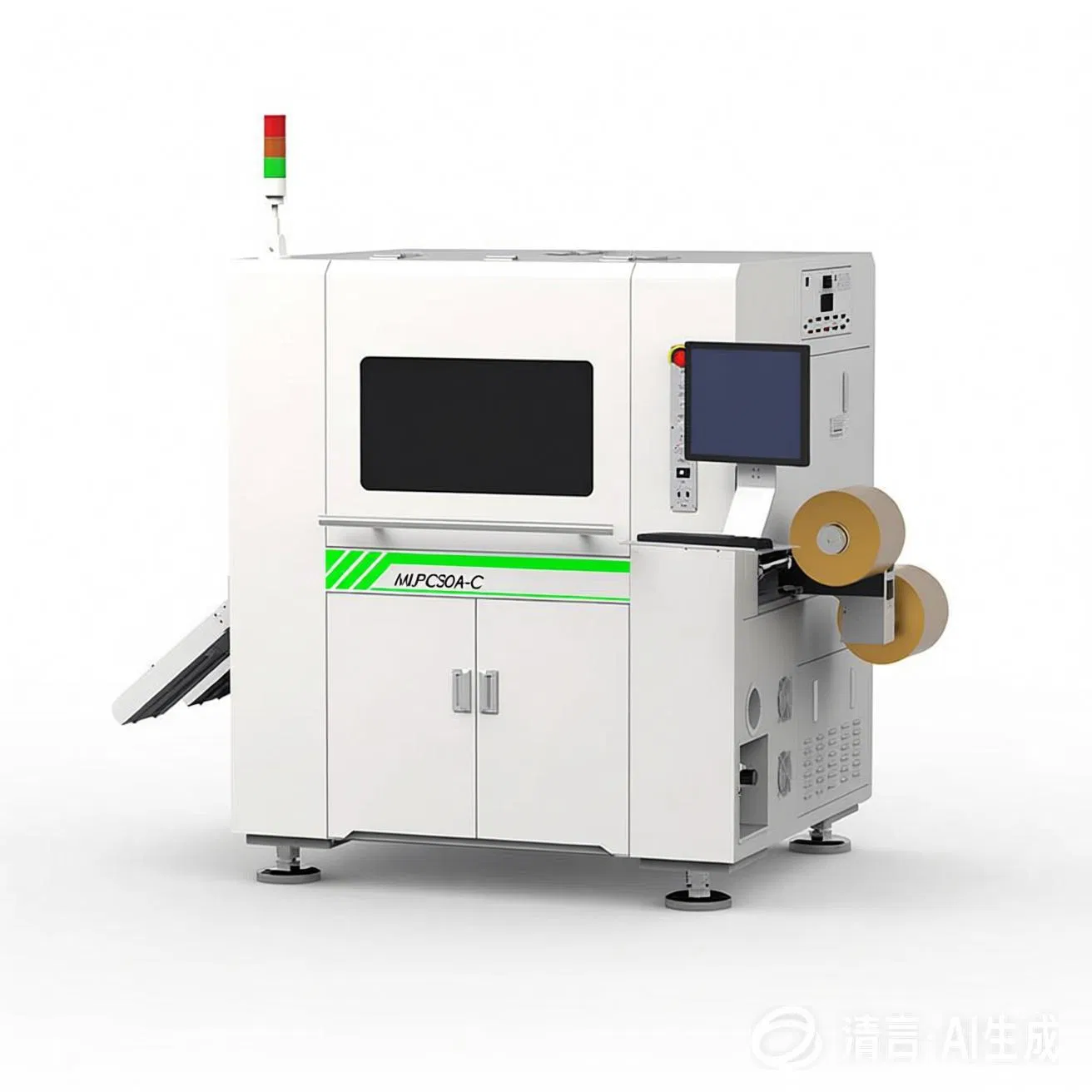

Our Dual-Head Roll-to-Roll Laser Cutting Machine is engineered to solve these challenges. By integrating dual laser heads with advanced roll-to-roll handling, we deliver a solution that not only maximizes throughput but also guarantees the pristine edge quality required for high-end electronics.
| Laser Type | Nanosecond UV, Picosecond UV, Nanosecond green laser |
| Processing Area | 2X250mmX500mm (customized) |
| Machine Dimensions | 2350mmX1450mmX2200mm |
| Processing Accuracy | ± 0.03mm |
| Total Power Consumption | 3 KW |
| Machine Weight | 2000 KG |
| Processing Table Size | 520mm x 2200mm |
| Environment Requirements | Temperature: 22°C ± 2°C; Humidity: 30%~60% |
Dual-Head Synchronous Processing: Break the bottleneck of single-head machines. Our Dual-Head system works simultaneously to double production capacity instantly.
Smart Nesting & Narrow Seam Technology: Advanced software optimizes the cutting path, saving up to 15% on raw material costs over time.
Ultra-Cold Laser Source Technology: Specific wavelength ensures smooth, burr-free edges without carbonization or yellowing.
Advanced Roll-to-Roll Tension System: Sophisticated servo system maintains constant tension, preventing wrinkling or stretching.
Hybrid Roll-to-Roll & Roll-to-Sheet Mode: Switch seamlessly between continuous roll processing for bulk orders and sheet-fed mode for specific batch requirements.
CCD Visual Positioning System: Automatically detects fiducial marks to compensate for material deformation, keeping accuracy within ±0.05mm.

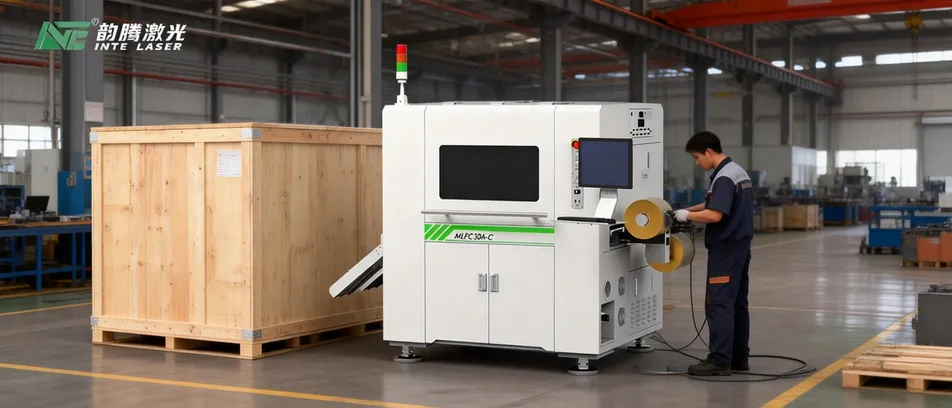

Packing: 1PCS / Wooden Case
Shipping Method: Sea shipping (recommended for weight) or International Express (urgent orders).
Delivery Time: Standard goods: 30-45 days; Customized goods: 45-60 days.
