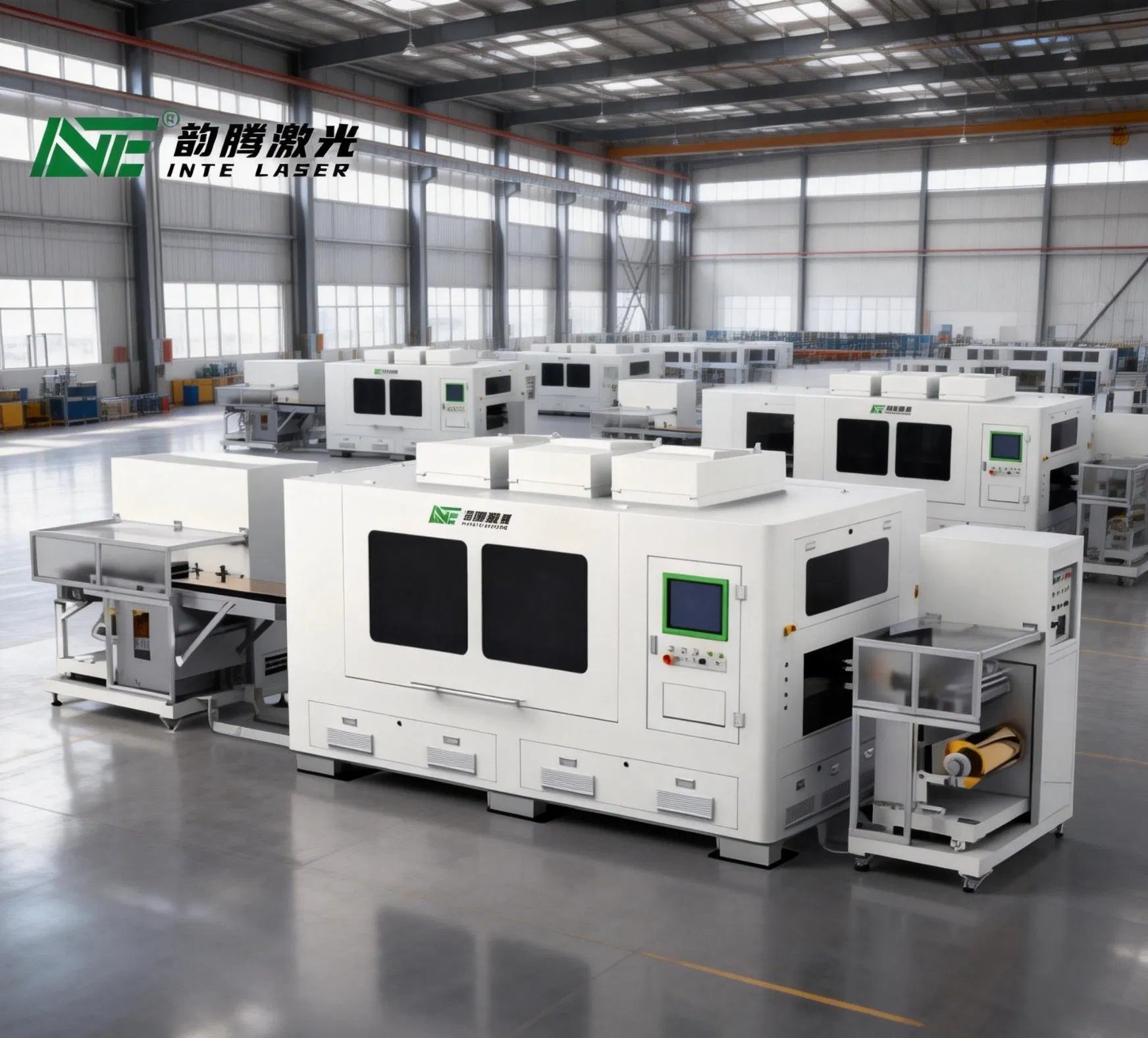

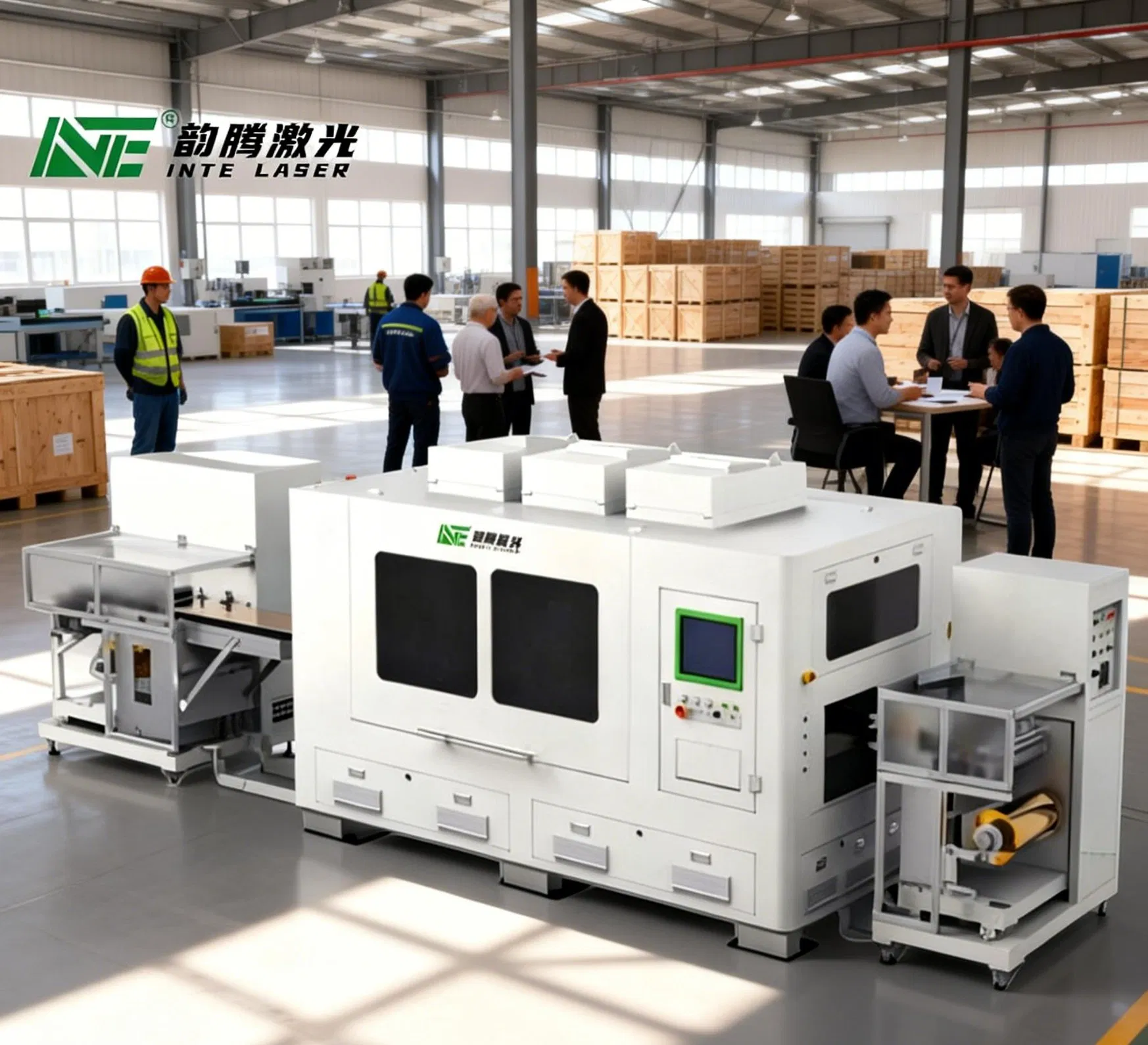

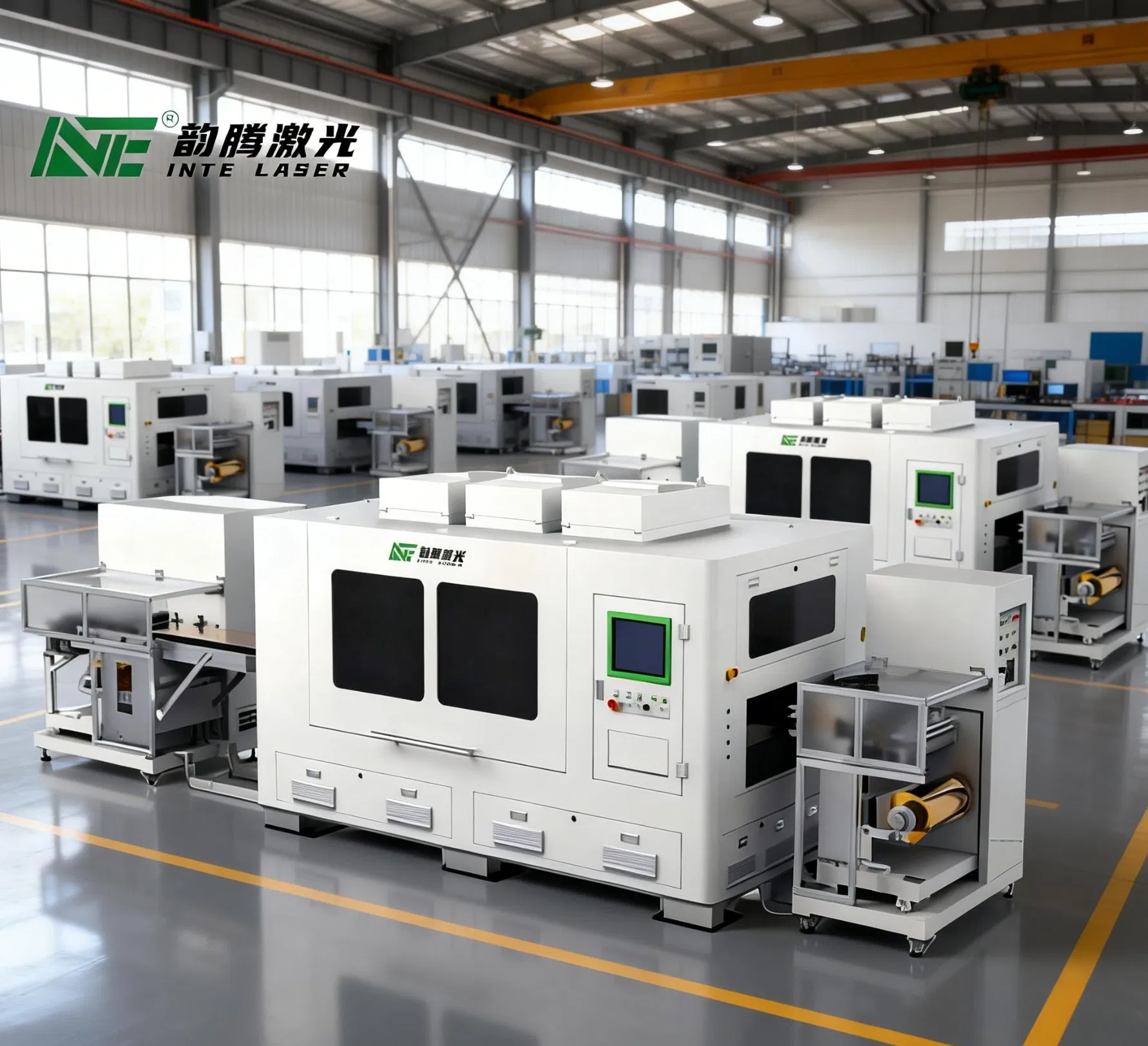

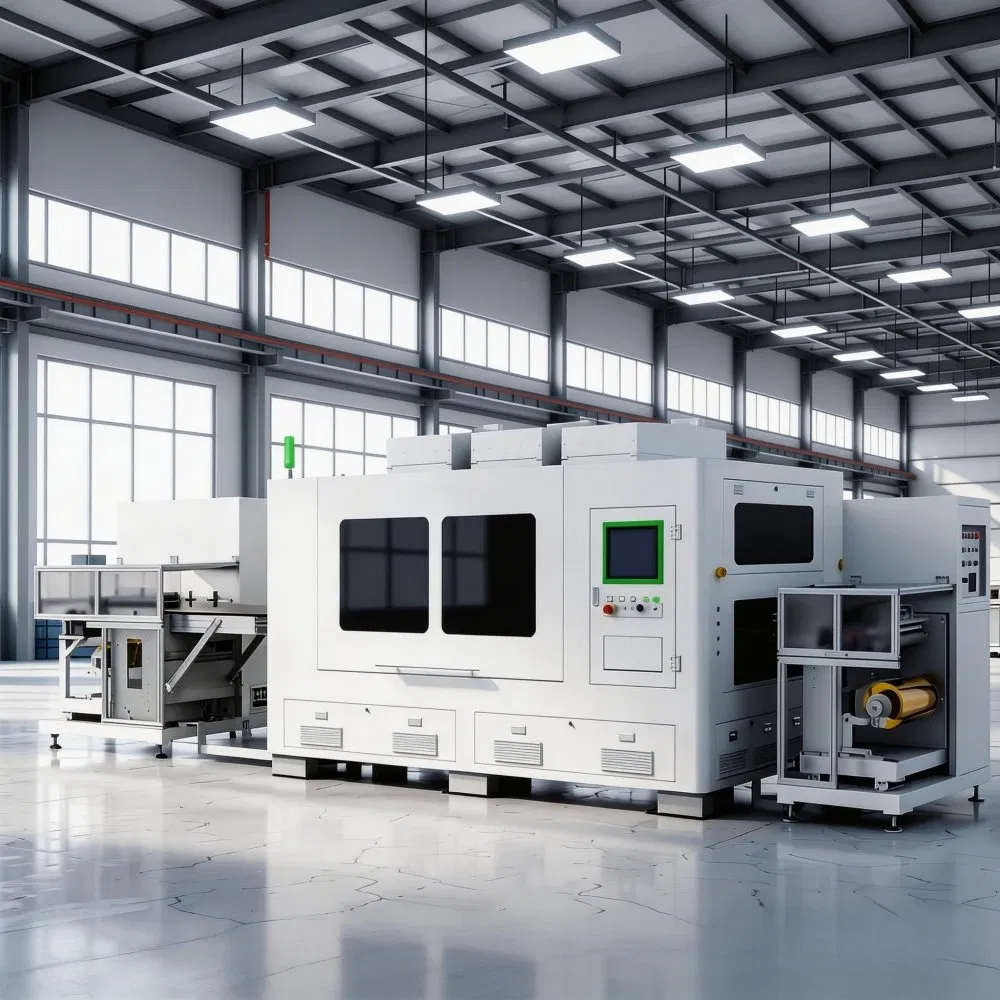

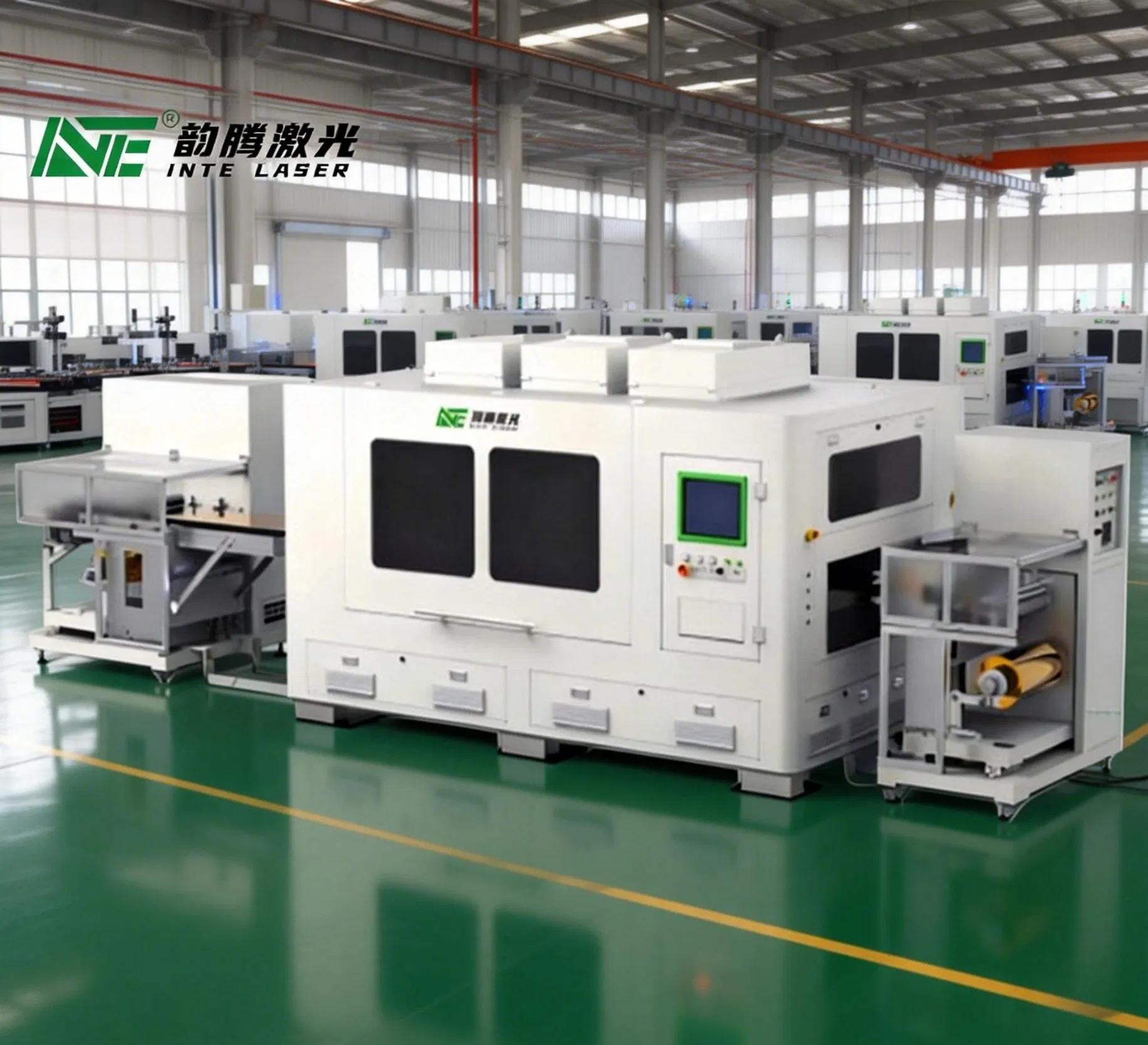

Introducing the groundbreaking Four-Head Roll-to-Roll Laser Drilling Equipment - the industry's first solution designed to revolutionize high-volume electronics manufacturing. As a pioneer in multi-head laser drilling technology, this equipment delivers unprecedented 4x efficiency improvements while maintaining superior precision standards.

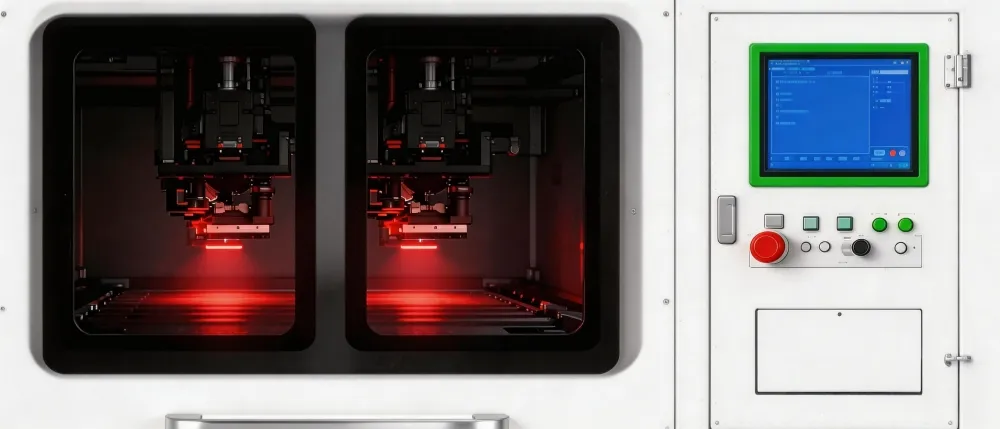

1. Four heads operate simultaneously, delivering 4x higher production capacity.
2. Supports roll-to-roll, roll-to-sheet automation.
3. Dramatically reduces production cycle times.
1. High-precision linear motor system with integrated CCD.
2. ±0.02mm accuracy guarantee for superior quality.
3. Professional laser source & F-theta lens technology.
1. Eliminates traditional plasma treatment requirements.
2. Enables direct copper plating.
3. Improves manufacturing efficiency and yield rates.
High-density PCB, Lithium battery separator drilling, Flexible circuit board (FPC), Semiconductor wafer processing, and Automotive electronics.
| Product Name | Market-Leading 4-Head Roll-to-Roll Laser Drilling System |
| Laser Type | Nanosecond UV, Picosecond UV, Picosecond Green Laser |
| Processing Area | 550mm × 1500mm (Customized) |
| Machine Size | 7200mm × 2300mm × 2250mm |
| Accuracy | ±0.02mm |
| Loading | Main Unit + 30kW Chiller + 7kW Exhaust Fan + 11kW |
| Weight | 8000 KG |
| Environment | Humidity: 40%-60%; Temperature: 22℃±2 |

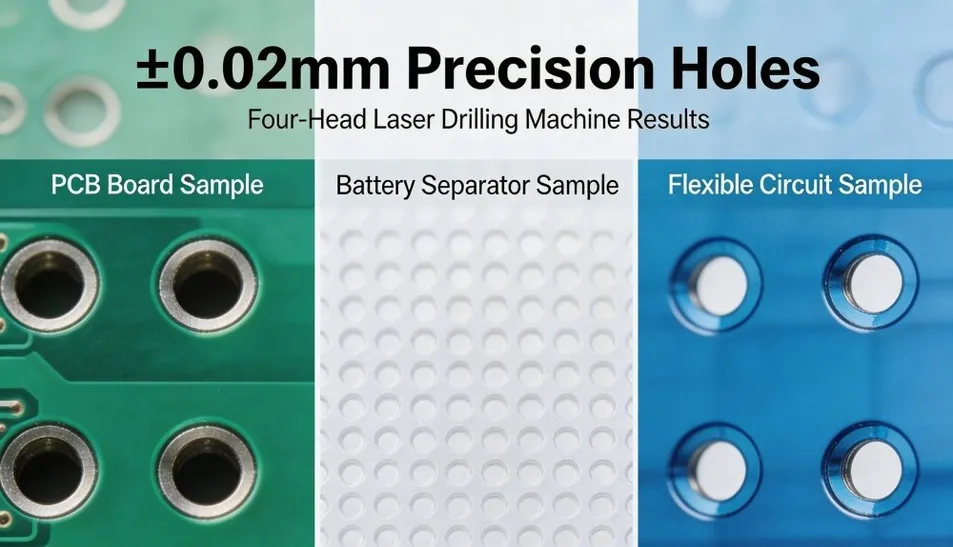

Precision & Quality Assurance

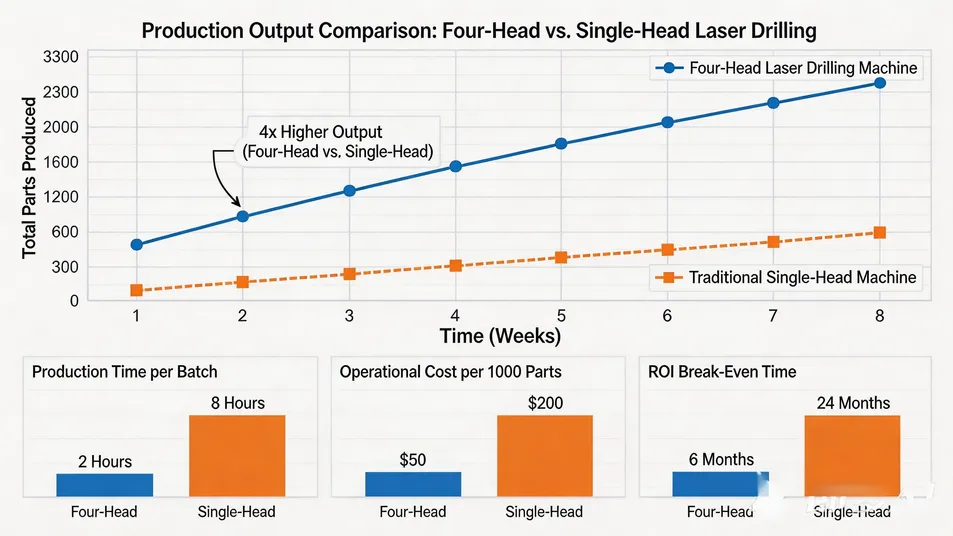

Efficiency Comparison Chart
Specializing in independent research and development of laser generators, optical devices, and equipment application processes. We provide innovative solutions for laser micromachining including laser sources, optical systems, and automation integration.

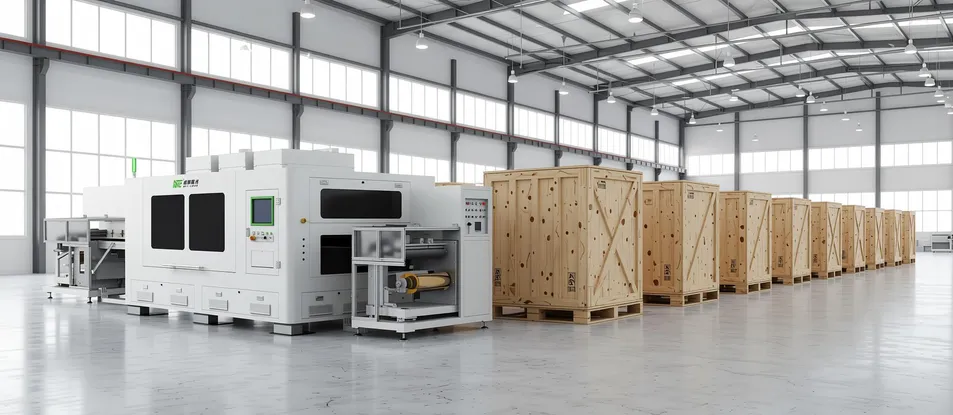

Packing: 1PCS/Wooden Case
Shipping Method: By sea or by express. Considering the packed goods weight, sea shipping is recommended for standard orders.
Delivery Time: 30-45 days for standard goods; 45-90 days for customized equipment.
