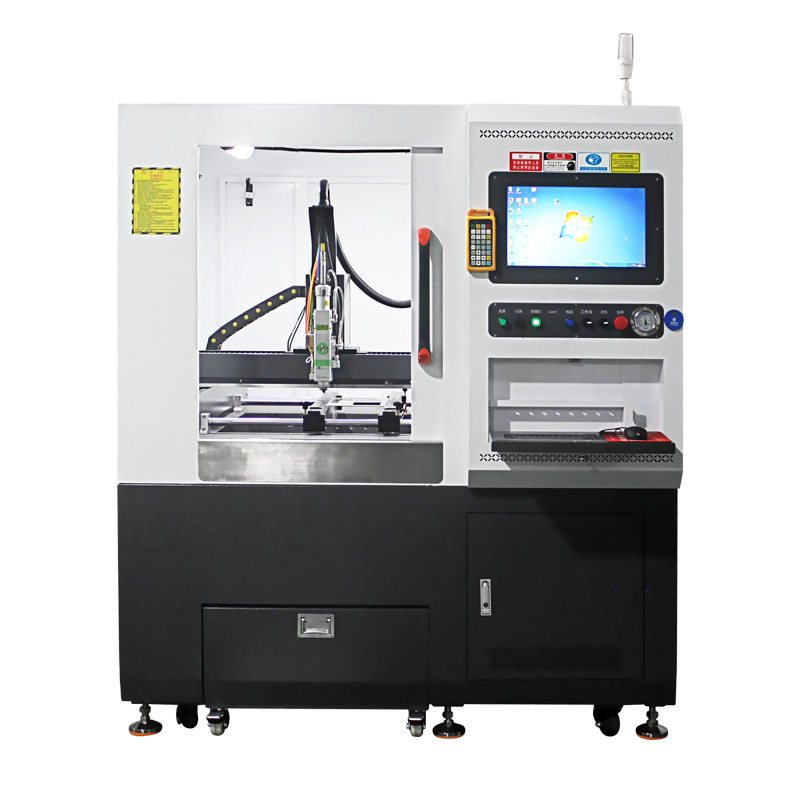

High Accuracy FPC FPCB Flexible PCB UV Nanosecond Picosecond Laser Engraving Cutting Machine
High Accuracy FPC FPCB Flexible PCB UV Nanosecond Picosecond Laser Engraving Cutting Machine
High Accuracy FPC FPCB Flexible PCB UV Nanosecond Picosecond Laser Engraving Cutting Machine
High Accuracy FPC FPCB Flexible PCB UV Nanosecond Picosecond Laser Engraving Cutting Machine
High Accuracy FPC FPCB Flexible PCB UV Nanosecond Picosecond Laser Engraving Cutting Machine
1 / 5
High Accuracy FPC FPCB Flexible PCB UV Nanosecond Picosecond Laser Engraving Cutting Machine
High Accuracy FPC FPCB Flexible PCB UV Nanosecond Picosecond Laser Engraving Cutting Machine
High Accuracy FPC FPCB Flexible PCB UV Nanosecond Picosecond Laser Engraving Cutting Machine
High Accuracy FPC FPCB Flexible PCB UV Nanosecond Picosecond Laser Engraving Cutting Machine
High Accuracy FPC FPCB Flexible PCB UV Nanosecond Picosecond Laser Engraving Cutting Machine

High Accuracy FPC FPCB Flexible PCB UV Nanosecond Picosecond Laser Engraving Cutting Machine

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📊

Basic Information

Model NO. LK-NP Cooling System Water Cooling
Technical Class Continuous Wave Laser Applicable Material Metal
Laser Classification Picosecond/ Nanosecond Wavelength 1064nm
Cutting Speed 25m/Min Software Cypcut
Precision of X Y +0.02mm Processing Material Flexible PCB
Package Size 1970.00cm * 1550.00cm * 2080.00cm
📝

Product Description

High Accuracy FPC FPCB Flexible PCB UV Nanosecond Picosecond Laser Engraving & Cutting Machine

  • ▶ Max working speed: 300mm/s(X); 100mm/s(Z); 600rpm(θ)
  • ▶ Thickness Range: 0.1-1.0mm (Length not limited)
  • ▶ Laser Tube Type: Optical fiber laser
  • ▶ Mini Width of Slit: ±5um

⚙️Material Processing Characteristics

1. Small Deformation: The laser beam focuses into a small spot for high power density. The process ensures no burrs, no wrinkles, and extreme precision.
2. Non-contact Processing: Hardness of the material does not affect performance; it can cut through any hard material without physical contact.
3. Flexibility: Controllable laser beam adapts easily to automation equipment, facilitating an automated cutting workflow.
Laser Cutting Material Characteristics

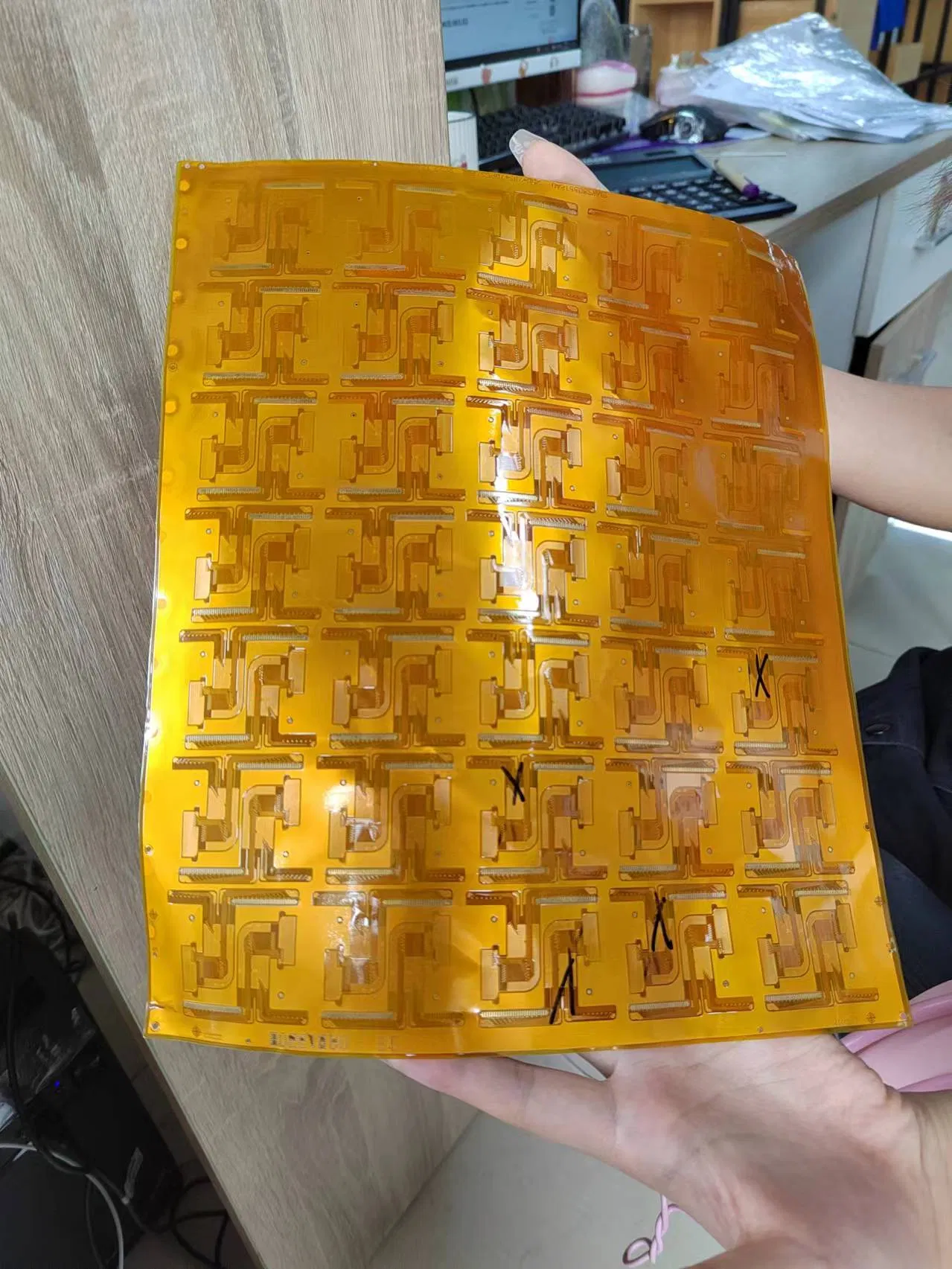

High Accuracy Cutting Display
📋

Technical Parameters

Model LK-CWF Laser Power 1000W/1500W/2000W (Optional)
Wavelength 1064nm Laser Type Optional Fiber
Working Speed X/Y: 300mm/s, Z: 100mm/s Slit Width 20um
Frequency 0-50KHZ Cutting Head Raytools
Motor System Linear Motor Cutting Area Up to 1000*1000mm
🖼️

Detailed Photos

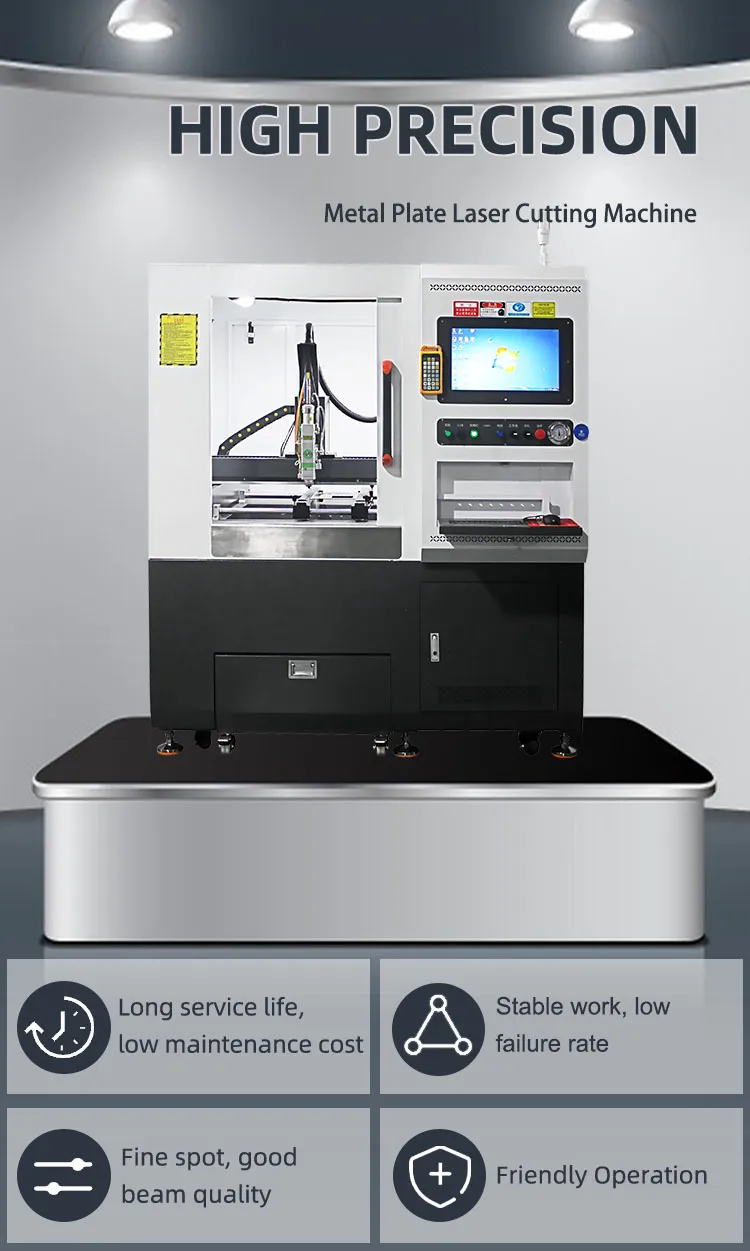

Detail Photo 1

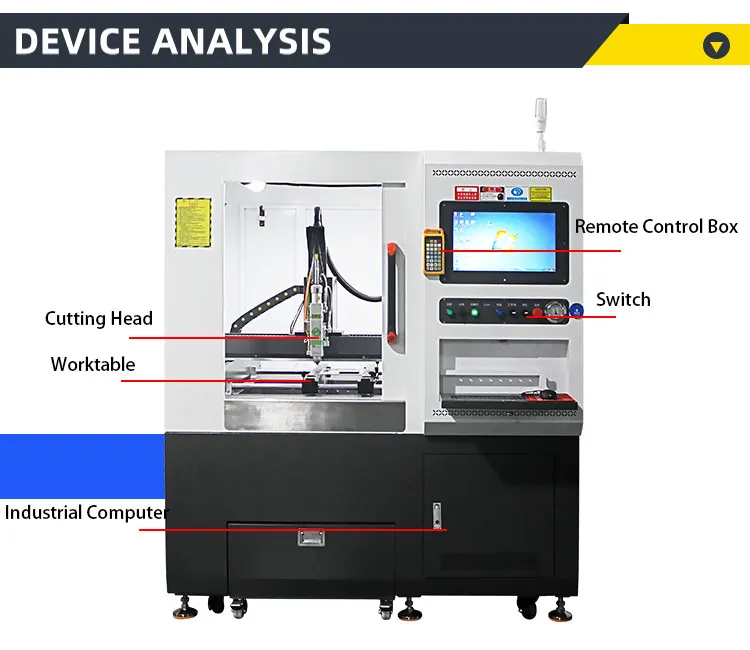

Detail Photo 2

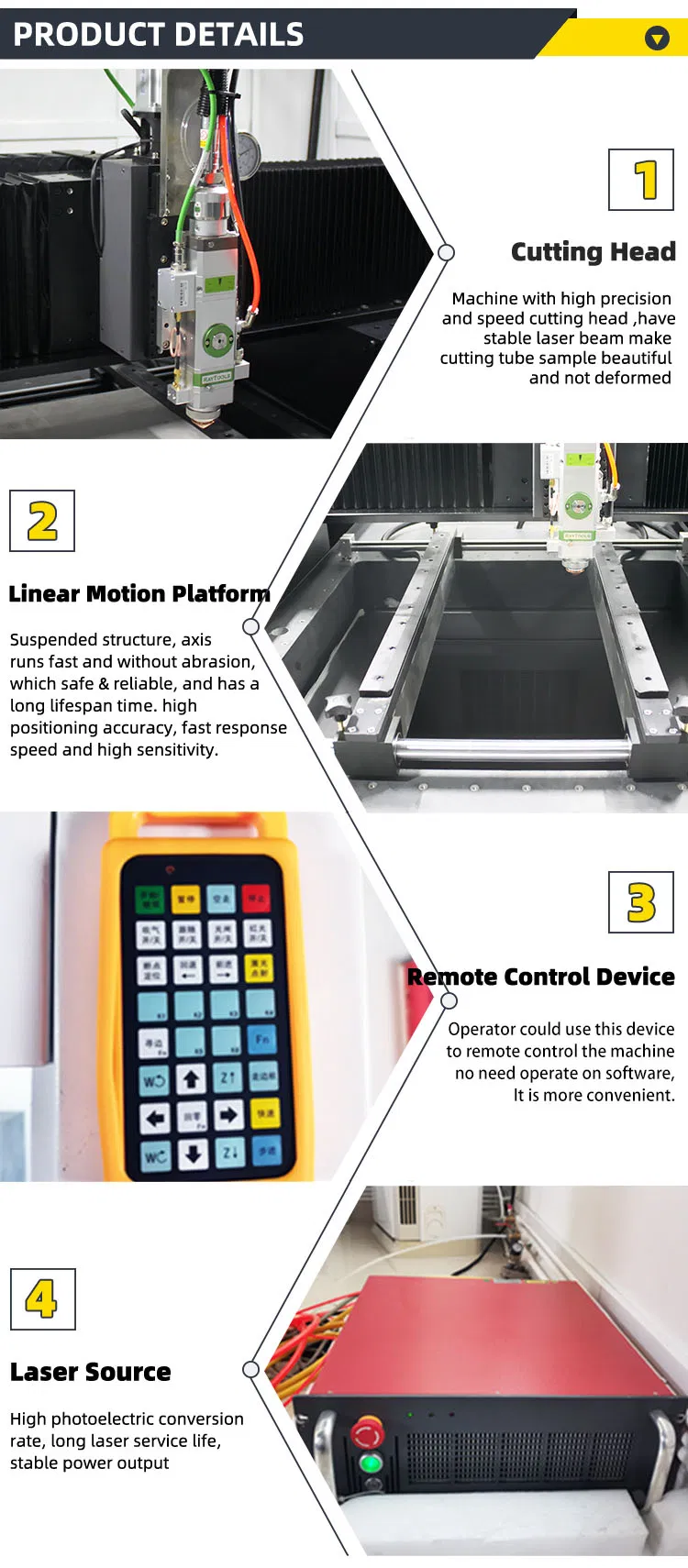

Detail Photo 3

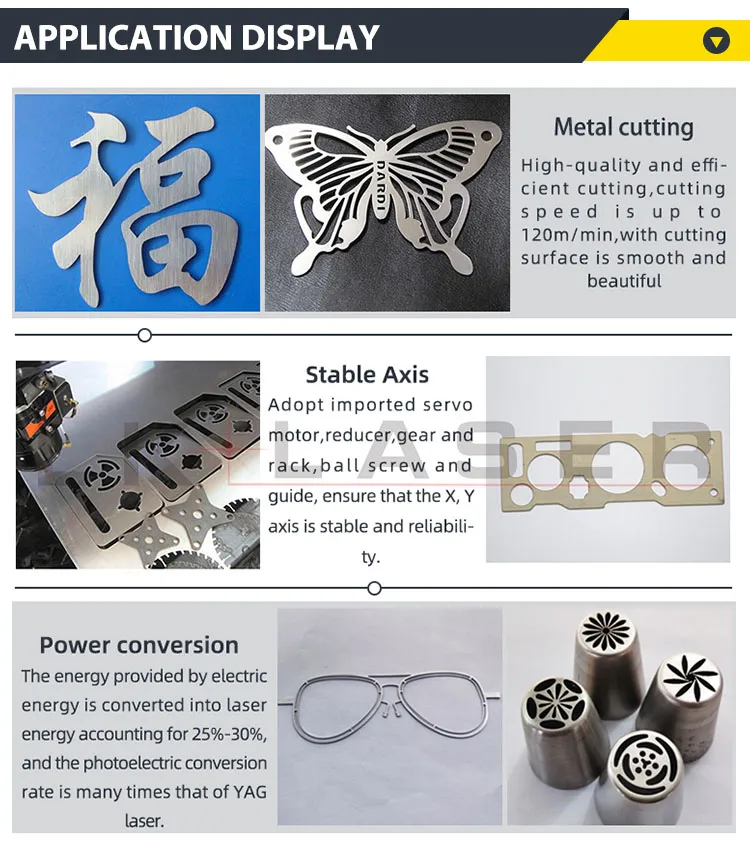

Detail Photo 4
Detail Photo 5
Detail Photo 6
Detail Photo 7

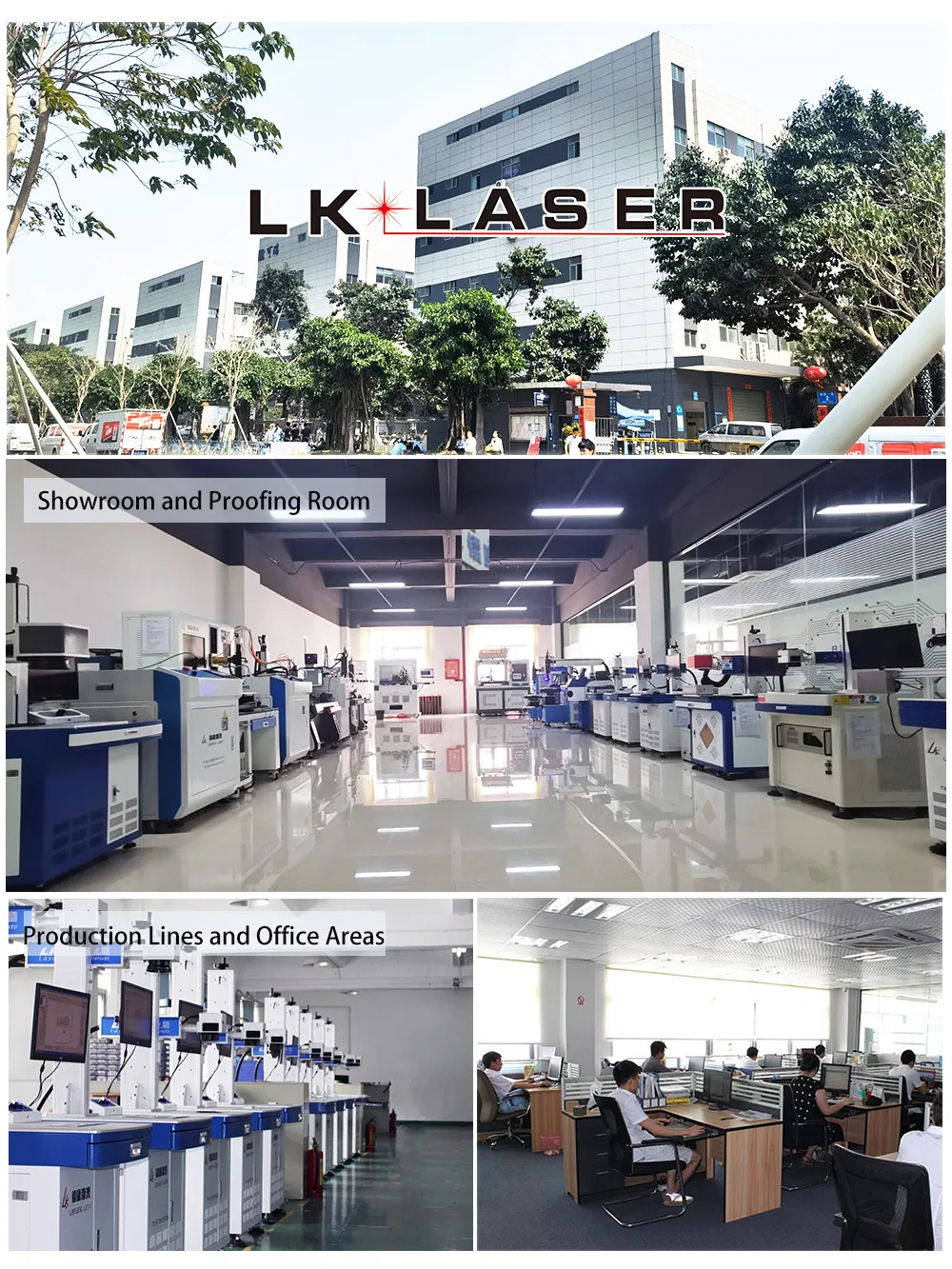

Detail Photo 8
❓

Frequently Asked Questions

Q1: I know nothing about the laser cutting machine, what kind of machine should I choose?
It is very easy to choose. Just tell us your cutting material, thickness, and accuracy requirements. Sending a sample picture is even better. We will provide perfect solutions and professional suggestions.
Q2: When I get this machine, I don't know how to use it. What should I do?
We provide an English manual and training videos. If doubts remain, we can communicate via telephone or online conferencing. Engineers are also available for site visits for installation or adjustments if necessary.
Q3: If problems happen during the warranty period, what should I do?
We supply free replacement parts during the warranty period for any machine issues. We also provide lifelong after-service. Solutions are typically provided within 30 minutes of inquiry.
Q4: How long is the delivery time?
Standard machines usually take 10-15 days, while customized machines typically require 15-20 days.
Q5: How is the packaging handled for shipping?
The machine is first wrapped in plastic for moisture-proofing, then placed in a sturdy plywood case for safety during transport before being loaded into a container.
Q6: What software is used to operate the machine?
The machine typically uses Cypcut software, which is highly reliable and user-friendly for laser cutting operations.
