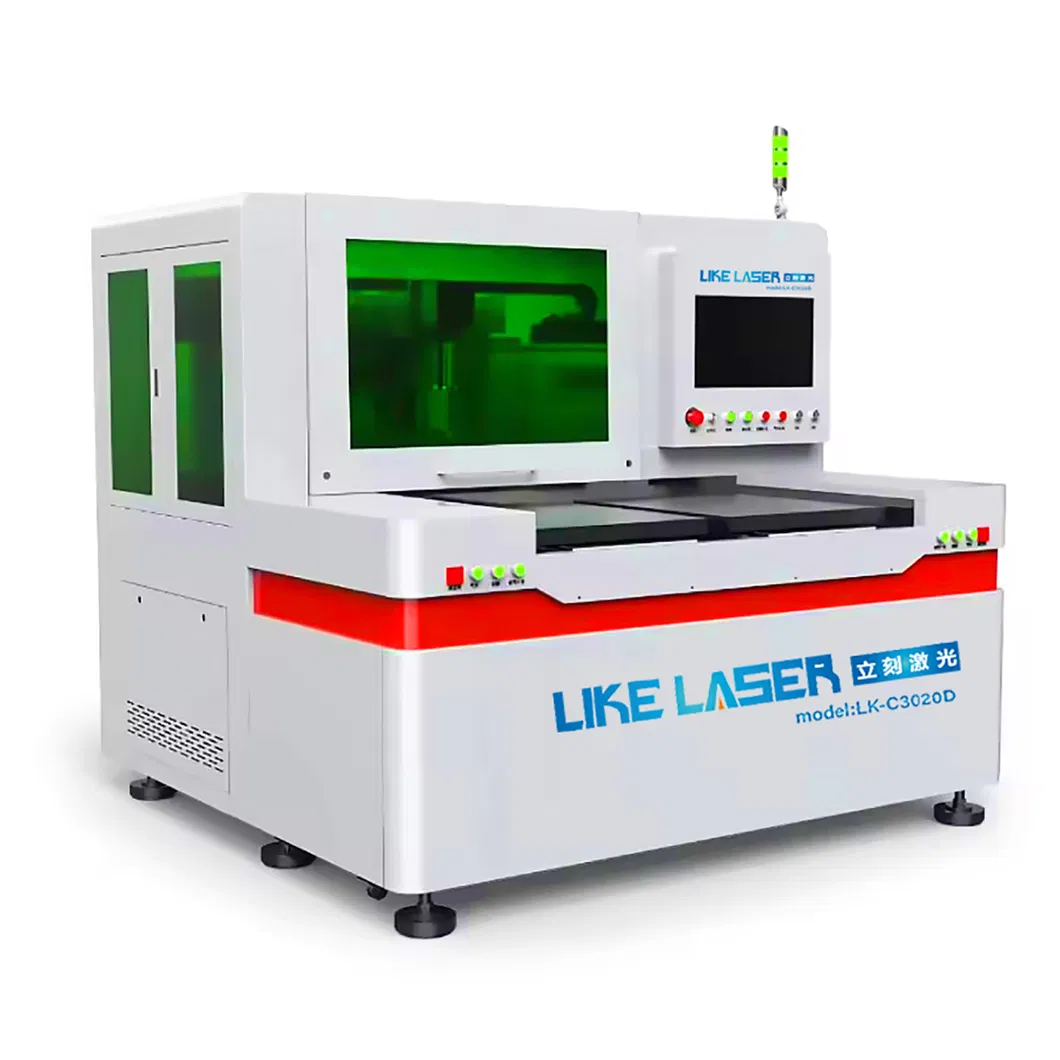

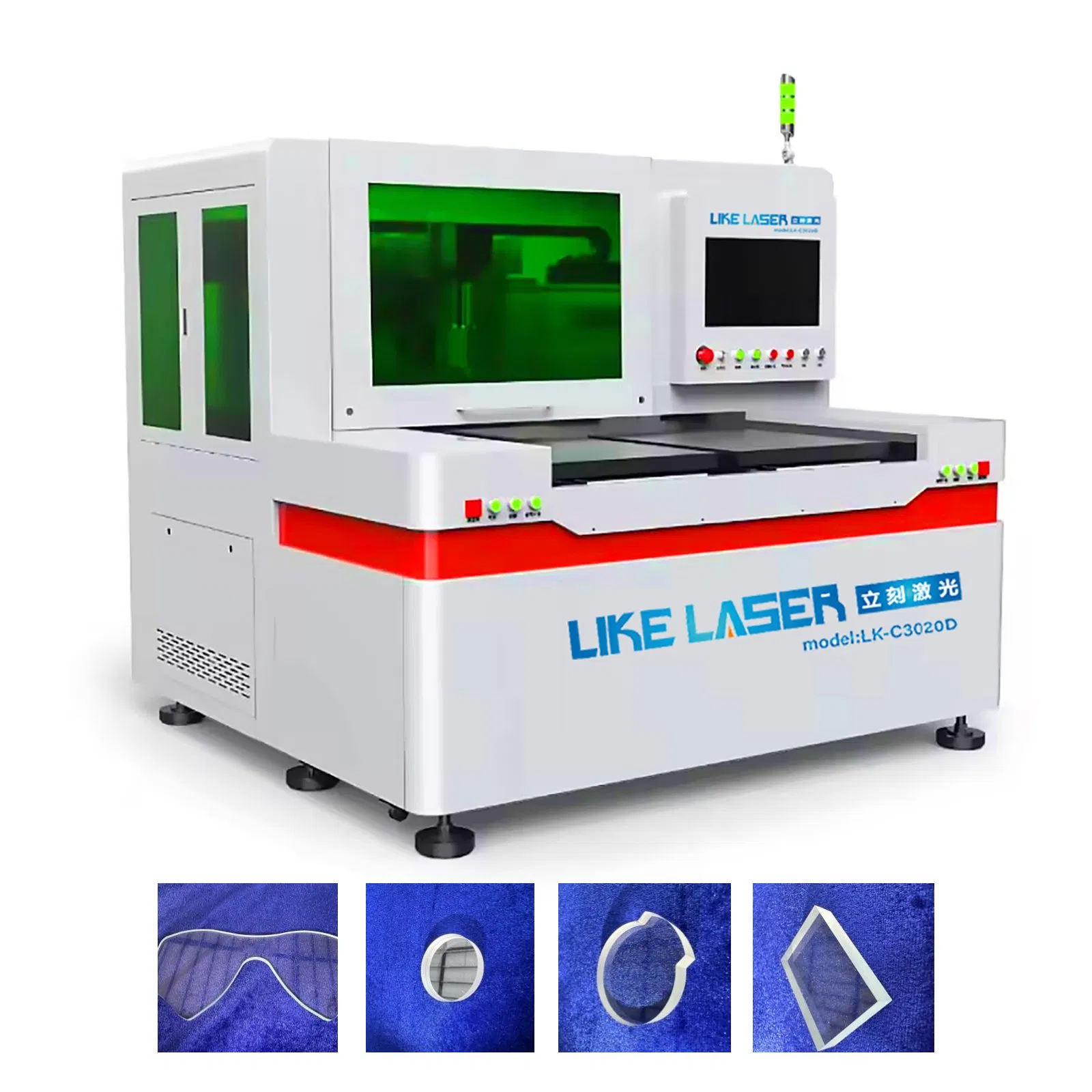

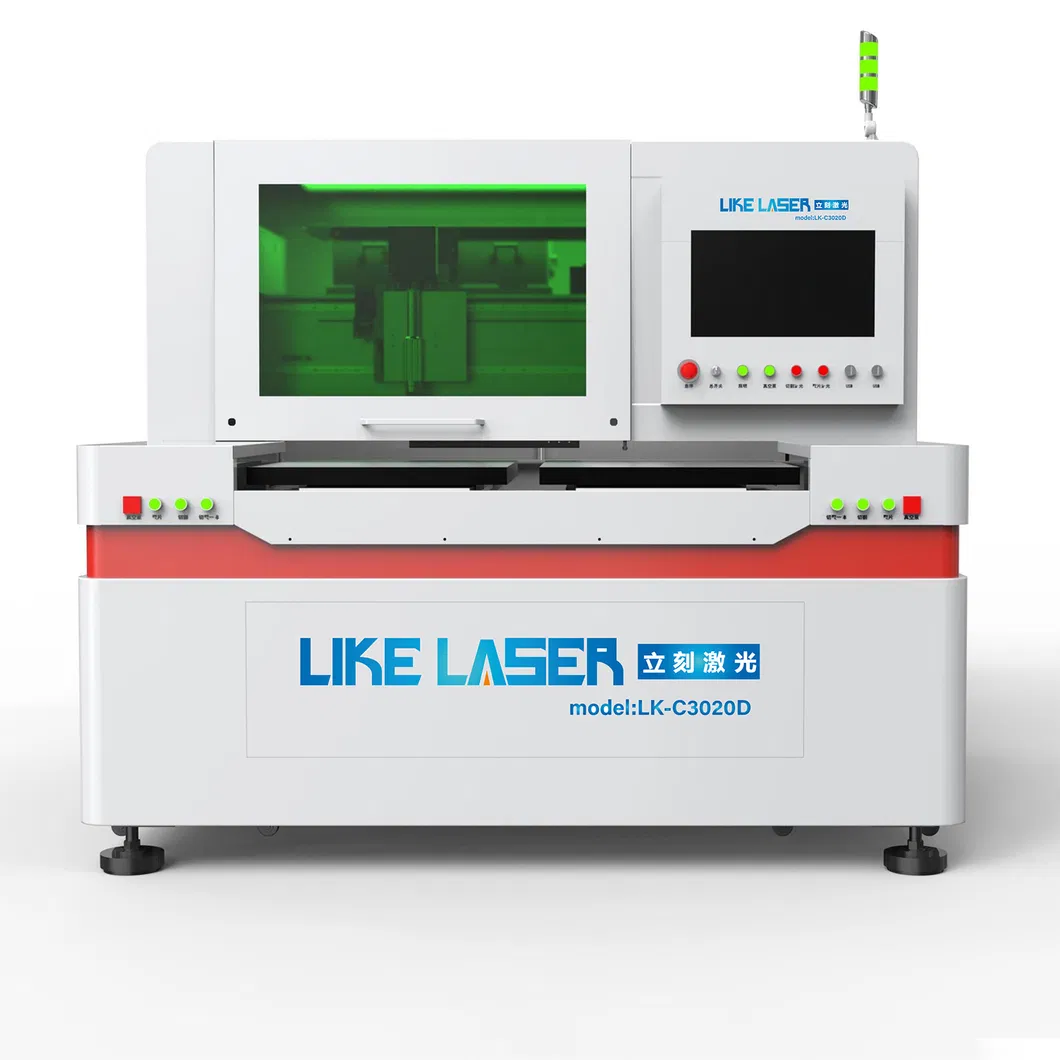

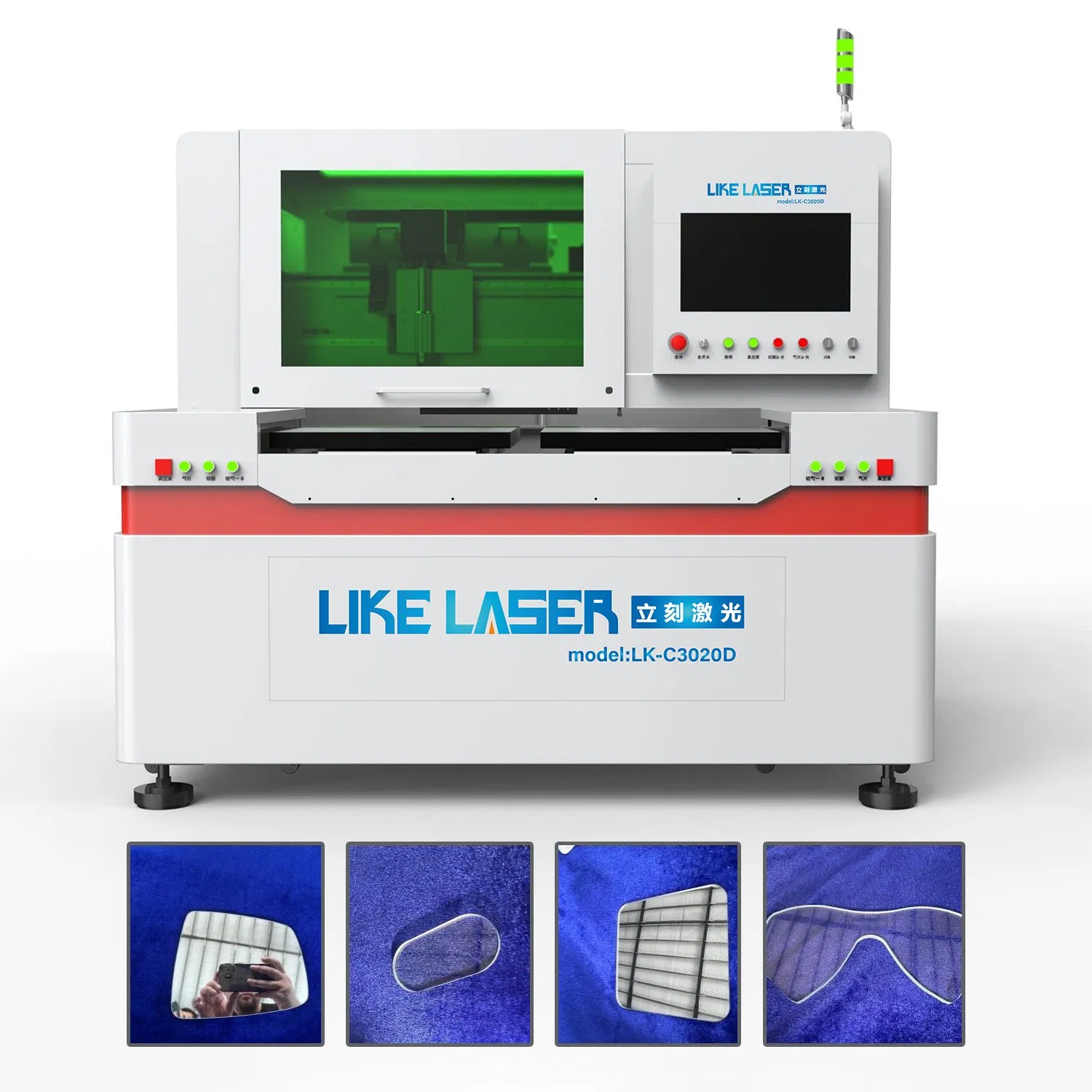

LK-C3020D Laser Glass Cutting Machine

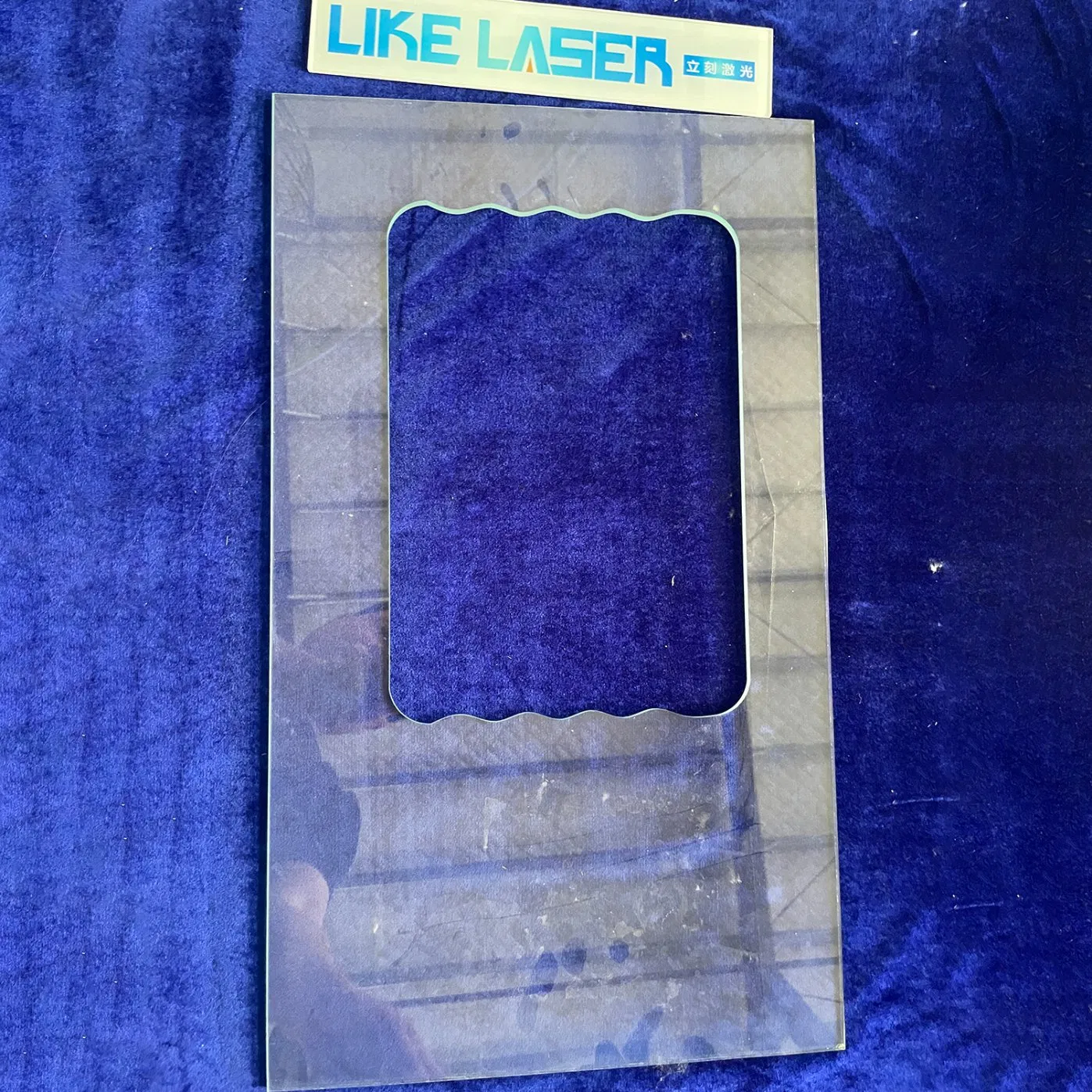

The picosecond laser glass cutting machine is a high-efficiency, automatic system utilizing picosecond laser sources and RF CO2 laser technology. It is widely applied across multiple industries including eyewear, lenses, camera optics, medical devices, smart wearables, automotive mirrors, and cosmetics.
🚀 Core Advantages:

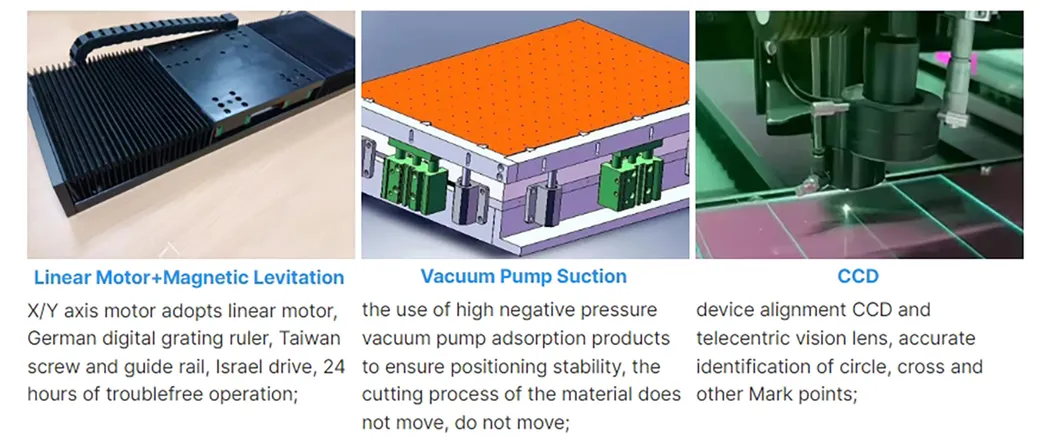

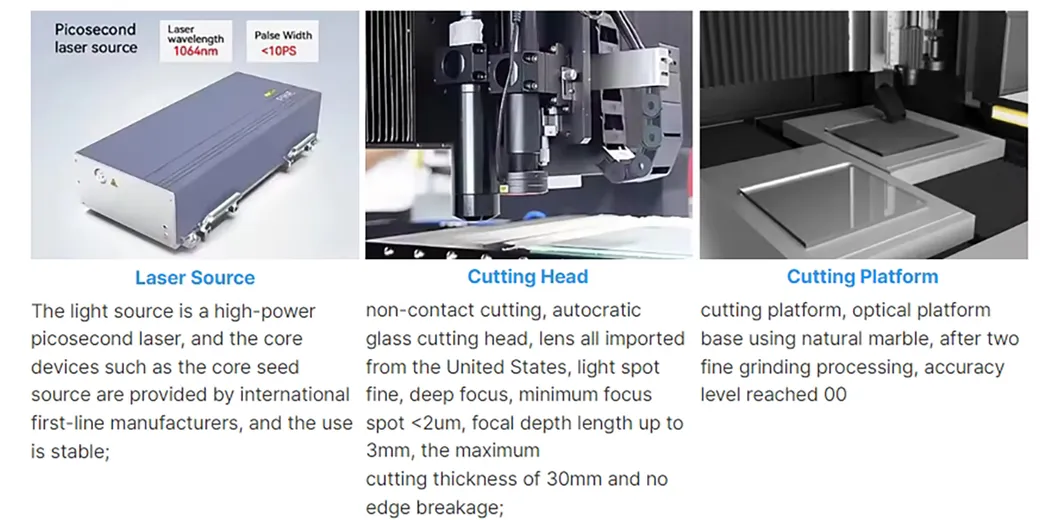

Utilizing a self-developed AI control system, high-end custom picosecond light source, and double drive linear motors. Features a stable marble work surface with processing accuracy up to ± 2 microns. Unlike traditional CNC or water knife processing, laser cutting offers non-contact, high-speed (up to 15m/min) processing without consumables or edge collapse.
| Model | LK-GC7060D | LK-GC8060D | LK-GC1380A |
|---|---|---|---|
| Size | 700*600mm | 800*600mm | 1300*800mm |
| Workbench | 2 | 2 | 1 |
| Feature | Picosecond Light Source | Segmented CO2 Source |
|---|---|---|
| Wave Length | 1064nm (M2<1.3) | 1064nm (M2<1.3) |
| Pulse Length | <10PS | <30PS |
| Frequency | 1Hz-1000kHz | 1Hz-1000kHz |
| Cooling | Water Cooling | Water Cooling |
| System | Specification |
|---|---|
| Visual Counterpoint | 5 Million CCD Camera |
| Illuminant | Ring-type adjustable brightness |
| Focusing Spot | <2um |
Our research focuses on advanced machine tools and automation. With years of development in laser technology, the production line handles fiber laser cutting, metal/non-metal processing, and specialized glass engraving. The equipment is compatible with carbon steel, stainless steel, aluminum, wood, acrylic, jade, and more.
