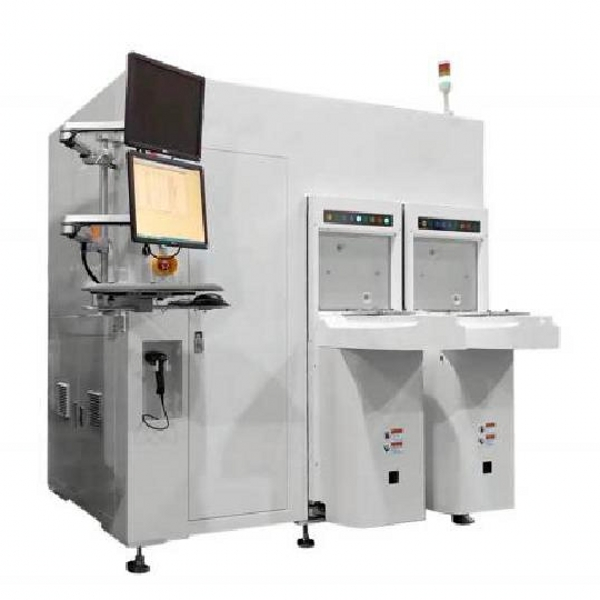

Advanced Liquid Dispensing System with Innovative PCB Heating Technology

Customization:	Available
After-sales Service:	Provided
Precision:	High Precision

Basic Information

Model NO.

iJet-7H

Condition

New

Certification

RoHS, ISO, CE

Warranty

12 Months

Automatic Grade

Automatic

Driven Type

Electric

Product Name

Dispensing Machine

Origin

China

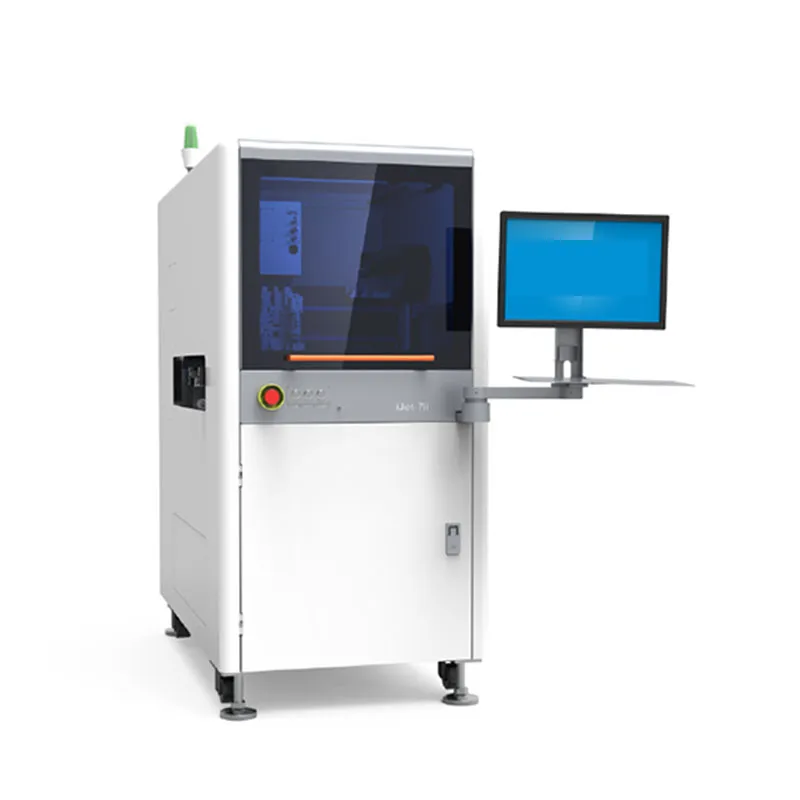

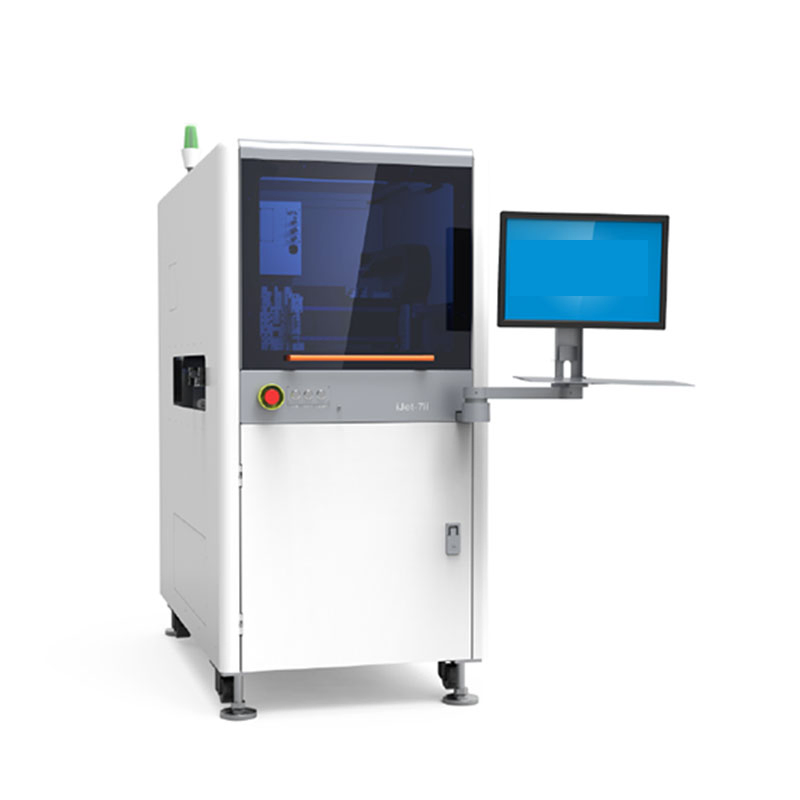

Product Overview

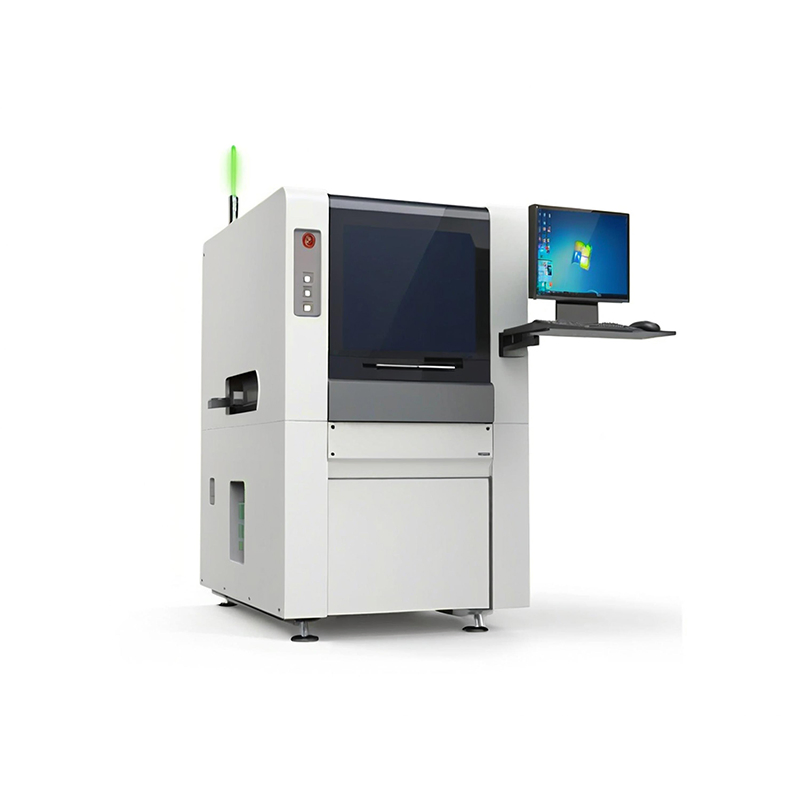

Automatic Dispensing Machine with High Efficiency PCB Heater

Standard Features

✓ Computer control with Windows OS

✓ CCD visual positioning system

✓ Servo motor with ball screw

✓ Inline CCD visual programming or gerber upload

✓ UPS and voltage stabilizer

✓ ESD grounding point

✓ CE certified

Optional Features

+ Heated valves for viscosity control

+ 35 degree tilt and 360 degree rotation

+ PCB heater for underfill applications

+ Precision weight measurement

+ Multiple valve types available

+ Laser height detection (Z-axis)

Product Advantages

★ Cost-effective: High-performance dispensing solution.

★ Precision: Non-contact injection valve for smaller diameters.

★ Efficiency: Improved reliability, consistency, and material utilization.

★ Underfill Excellence: Minimum overflow width of only 0.2mm.

★ Smart Positioning: Recognizes chip body for superior accuracy.

★ Intelligent Manufacturing: Identity recognition and automatic data statistics.

Technical Specifications

Specifications	iJet-7H Dispensing Machine
Dimension (mm)	L790 × W1600 × H1600
Dispensing Area (Dual)	X:300 Y:200 Z:30
Dispensing Area (Single)	X:380 Y:480 Z:30
Repeatability (mm)	±0.01
Maximum Moving Speed	1000 mm/s
Maximum Acceleration	1.5 g
Standard Config	Electrostatic interface, LED lighting, CCD Positioning
Optional Config	Booster pump, UPS, Barcode scanner, Micro-balance

Exhibition & Customers

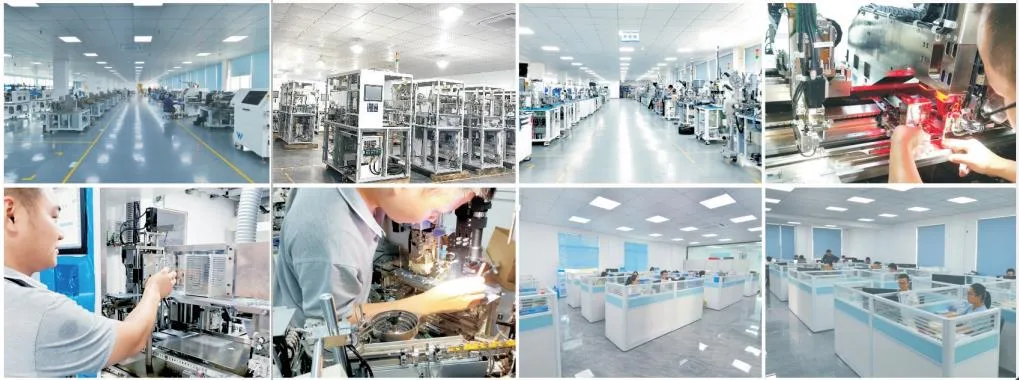

Established in 2019, our company is mainly engaged in international trade and integration of semiconductor industry equipment. The equipment is currently exported to over 30 countries, with over 200 customers and suppliers. Our main product range includes Die Bonder, Wire Bonding, Laser Marking, Laser Grooving, Laser Cutting, and Automatic Silicone Dispensing Equipment.

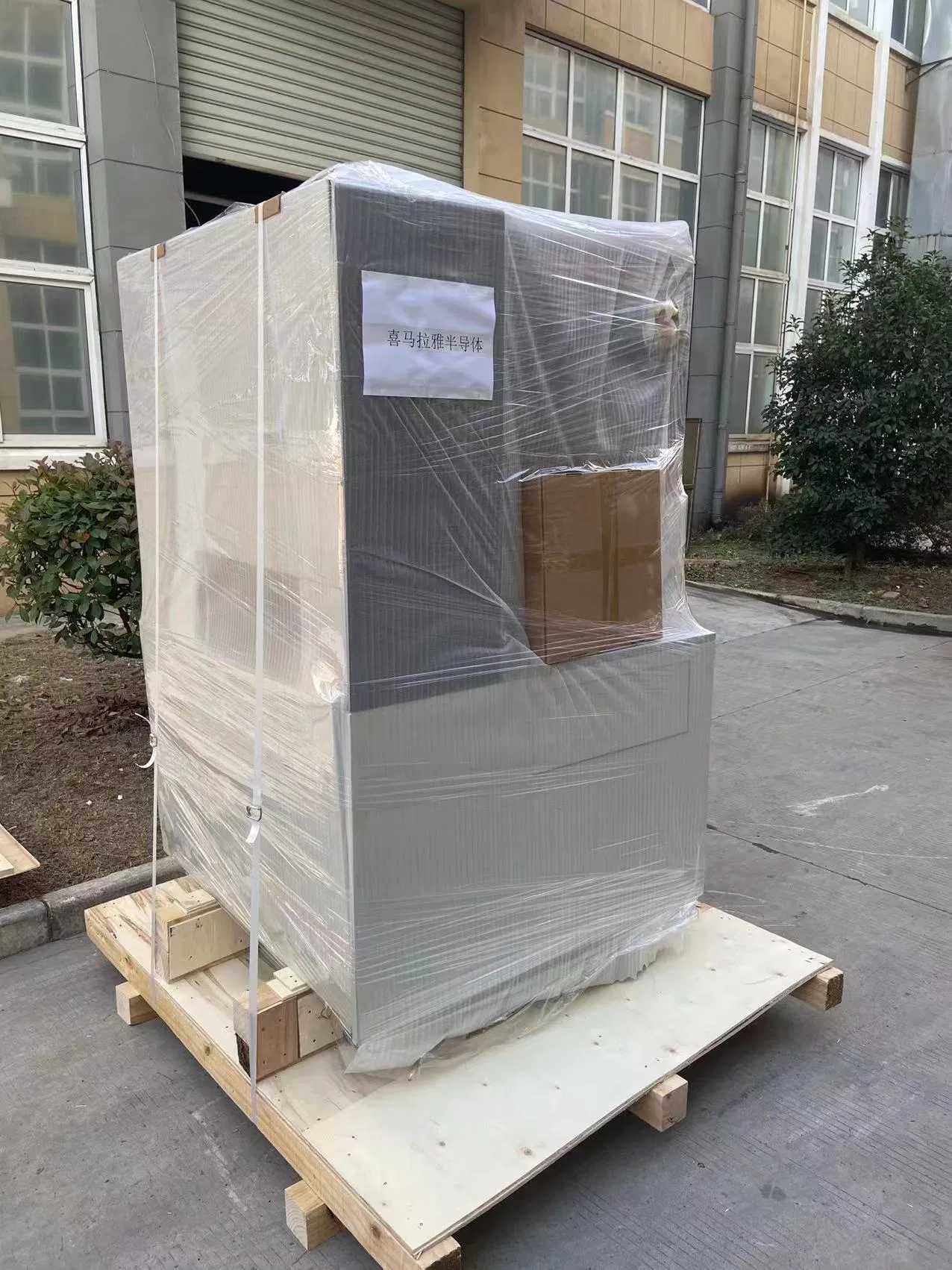

Packaging & Shipping

Frequently Asked Questions

Q1: How to choose a suitable machine?

A1: You can provide us with the workpiece material, size, and specific function requests. Based on our extensive experience, we will recommend the most suitable machine for your needs.

Q2: What is the warranty period for the equipment?

A2: We provide a one-year warranty along with 24-hour online professional technical support to ensure your operations run smoothly.

Q3: Why choose our equipment solutions?

A3: We offer comprehensive OEM/ODM and specialized design services, ensuring high-performance equipment that is cost-effective and reliable.

Q4: What certifications does the iJet-7H machine carry?

A4: The machine is fully certified with RoHS, ISO, and CE standards, meeting international quality and safety requirements.

Q5: What is the repeatability accuracy of the dispensing system?

A5: The system features high precision with a repeatability accuracy of ±0.01mm, making it ideal for delicate semiconductor applications.

Q6: What are the moving speed and acceleration capabilities?

A6: The machine supports a maximum moving speed of 1000mm/s and a maximum acceleration of 1.5g, ensuring high productivity and efficiency.
