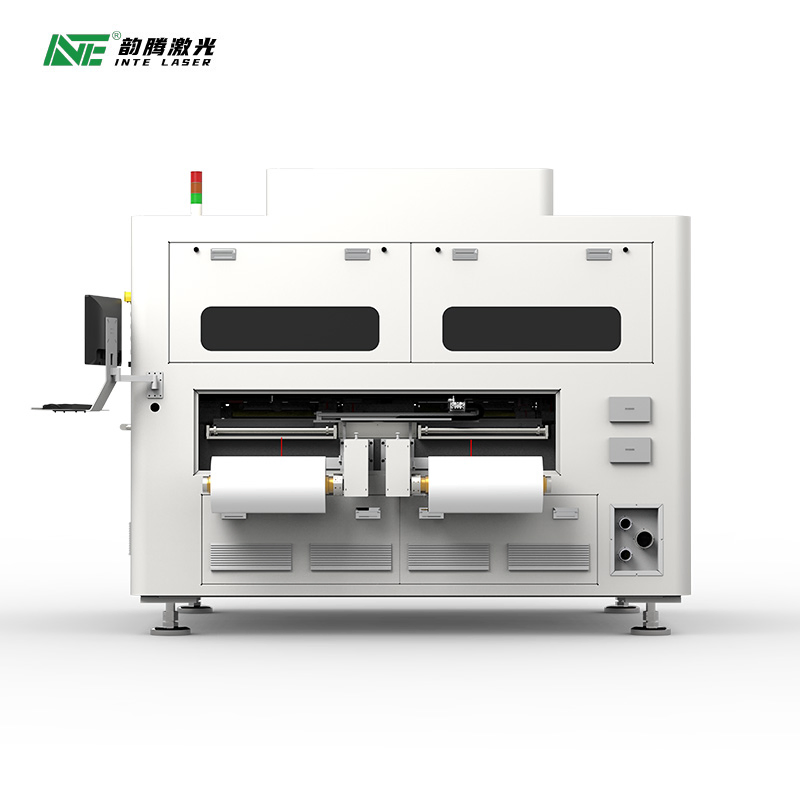

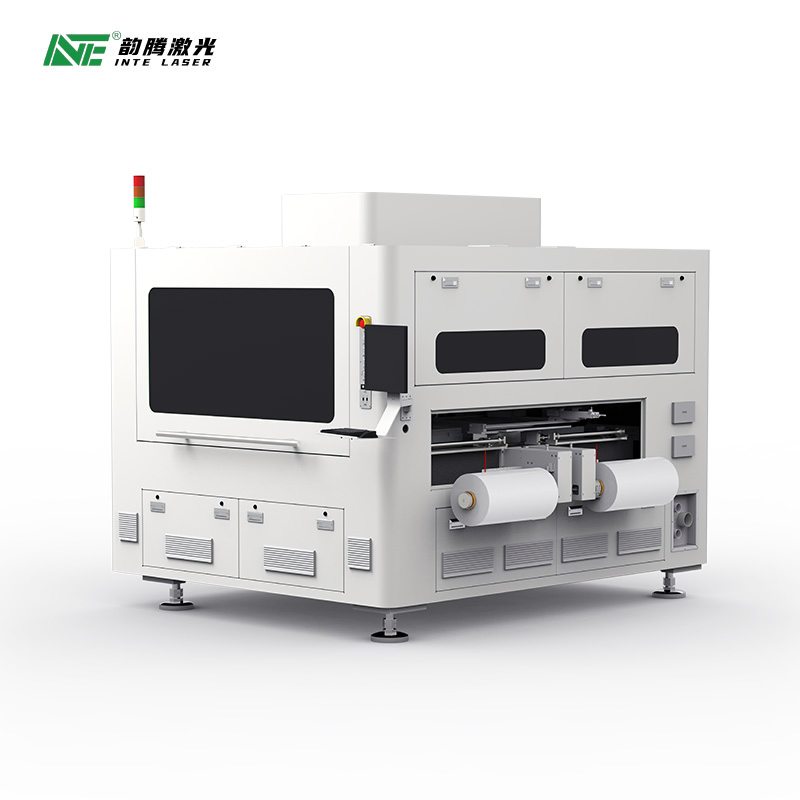

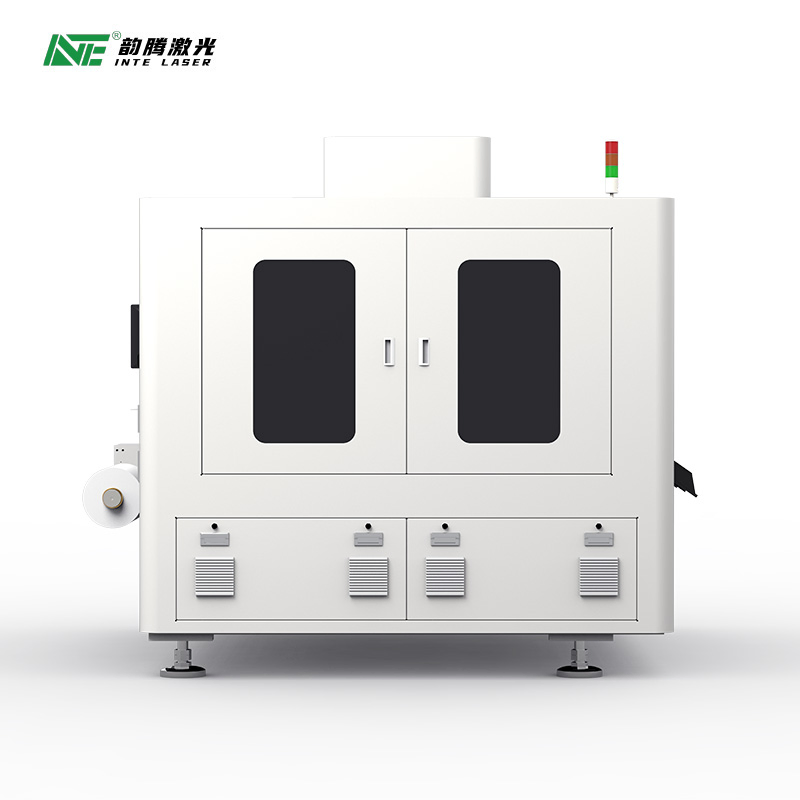

Four Head Roll-to-Roll Coating Film Laser Cutting Machine for Precision FPC Manufacturing

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Information

Application:
Home Appliance, Petroleum Machinery Manufacturing, Aerospace Industry, Automotive Industry, FPC, PCB
Cooling System:
Water Cooling
Technical Class:
Pulse Laser
Applicable Material:
Nonmetal
Structure Type:
Gantry Type
Laser Classification:
Solid Laser
Laser Technology:
Ultrafast Laser
OEM & ODM:
Accepted
Certificates:
CE, ISO9001
Package Size:
305.00cm * 290.00cm * 245.00cm
Gross Weight:
4000.000kg
Capacity:
100 sets/Month

Product Description

Laser Cutting Machine Banner

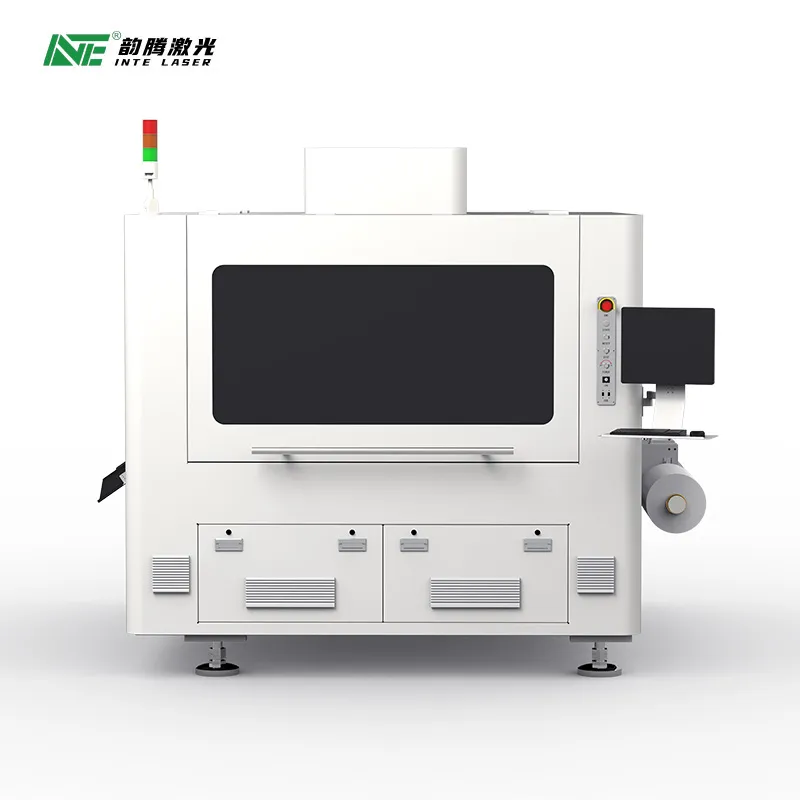

Machine Detail 1 Machine Detail 2
Machine Detail 3 Machine Detail 4
Laser TypeNanosecond UV, Picosecond UV, Picosecond green laser
Processing Area250mmX500 / 500x600 / 500x2000mm (customized)
Machine Size2650mmX2500mmX2150mm
Processing Accuracy± 0.02mm
Machine Power5KW
Weight3500KG
EnvironmentHumidity: 30% to 60%; Temp: 22ºC ± 2

Industry Applications

Industry Header
🔹
Coverlay window opening: High-precision laser cutting and windowing of FPC coverlay, preparing for subsequent component soldering and circuit connection.
🔹
FPC coverlay processing: Suitable for cutting coverlay made of flexible materials such as PI and PET, meeting the manufacturing needs of FPCs in 3C electronic products like smartphones and wearable devices.
🔹
Other roll-to-roll thin film processing: Can also be extended to precision cutting of roll-to-roll materials such as electronic tapes and thermal transfer films.

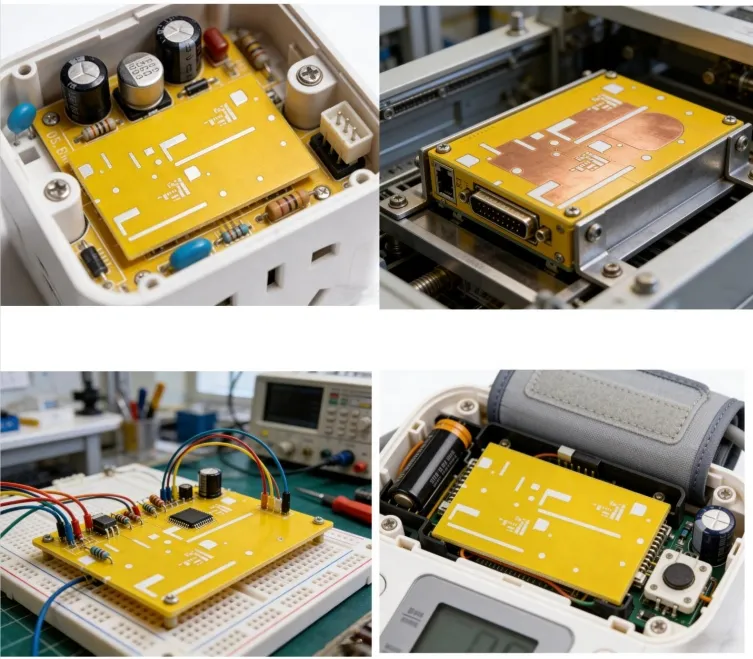

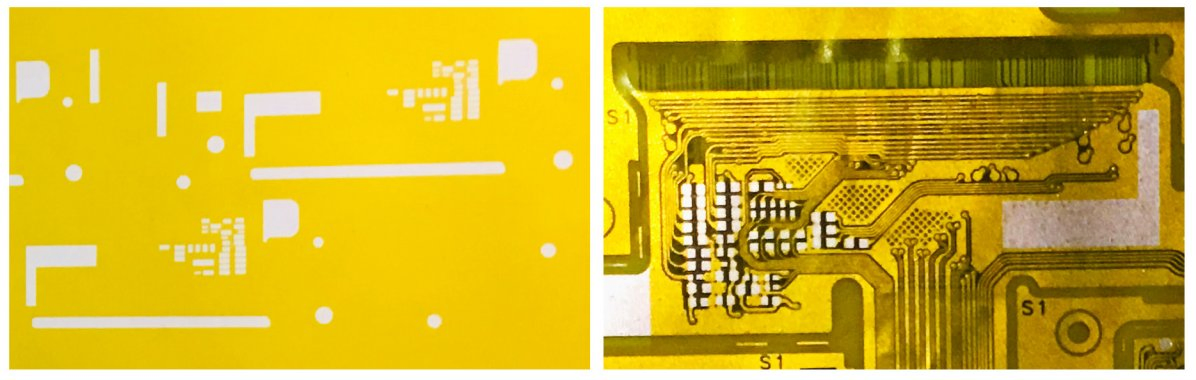

Sample Display

Sample Display

Equipment Processing Advantages

Advantage 1 Advantage 2 Advantage 3 Advantage 4 Advantage 5 Advantage 6 Advantage 7

Frequently Asked Questions

Q1: What can we do for you?
A: We are committed to providing you with advanced equipment, technical solutions, and comprehensive service support to help you improve production efficiency, reduce costs, and optimize product quality.
Q2: Are you a trade company or manufacturer?
A: We are a manufacturer with independent research and development capabilities and manufacturing capabilities, but we also provide OEM and ODM services.
Q3: What is your delivery date?
A: About 35 days after receipt of payment.
Q4: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
Q5: Can we be your agent?
A: We warmly welcome global agents to cooperate with us. We will provide full support for agents to expand the market, including professional solutions for machine technical issues and comprehensive after-sales service. Agents can enjoy favorable discount policies and attractive commission returns.
Q6: What is the after-sales service?
A: We offer a one-year warranty and lifetime service. During the warranty period, malfunctions or damaged components (excluding human factors) will be repaired or replaced free of charge. After the warranty, we provide multiple support methods to ensure continuous operation.
