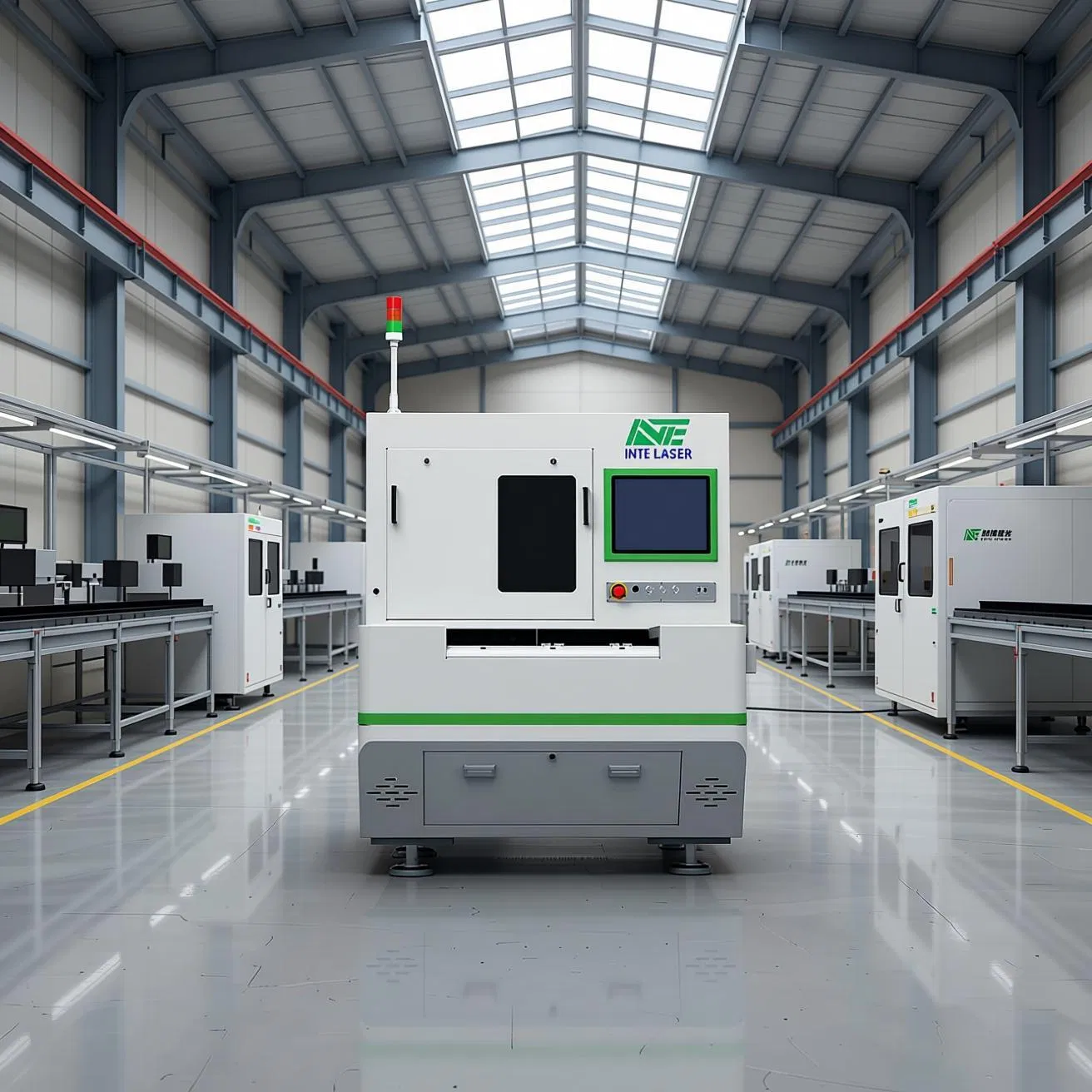

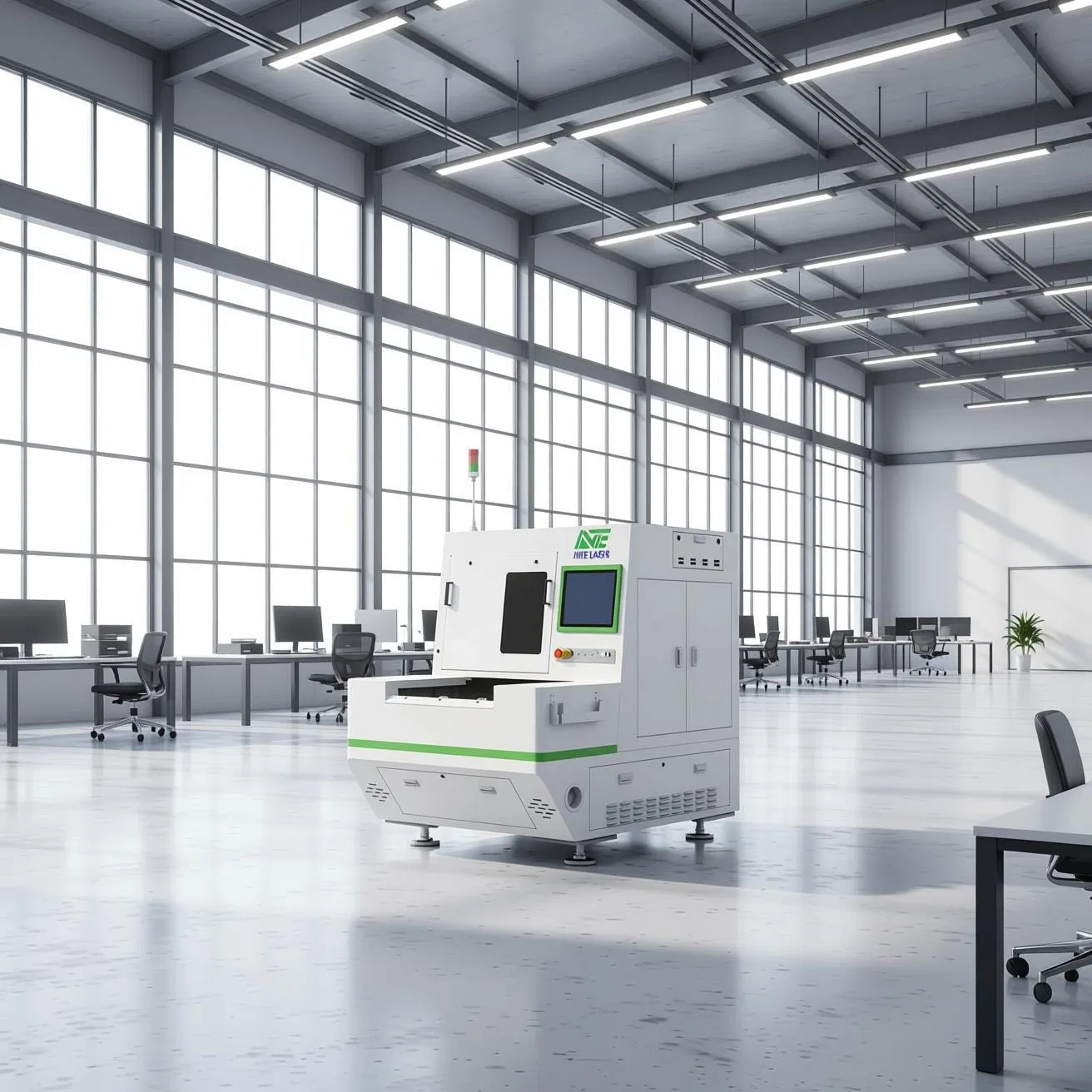

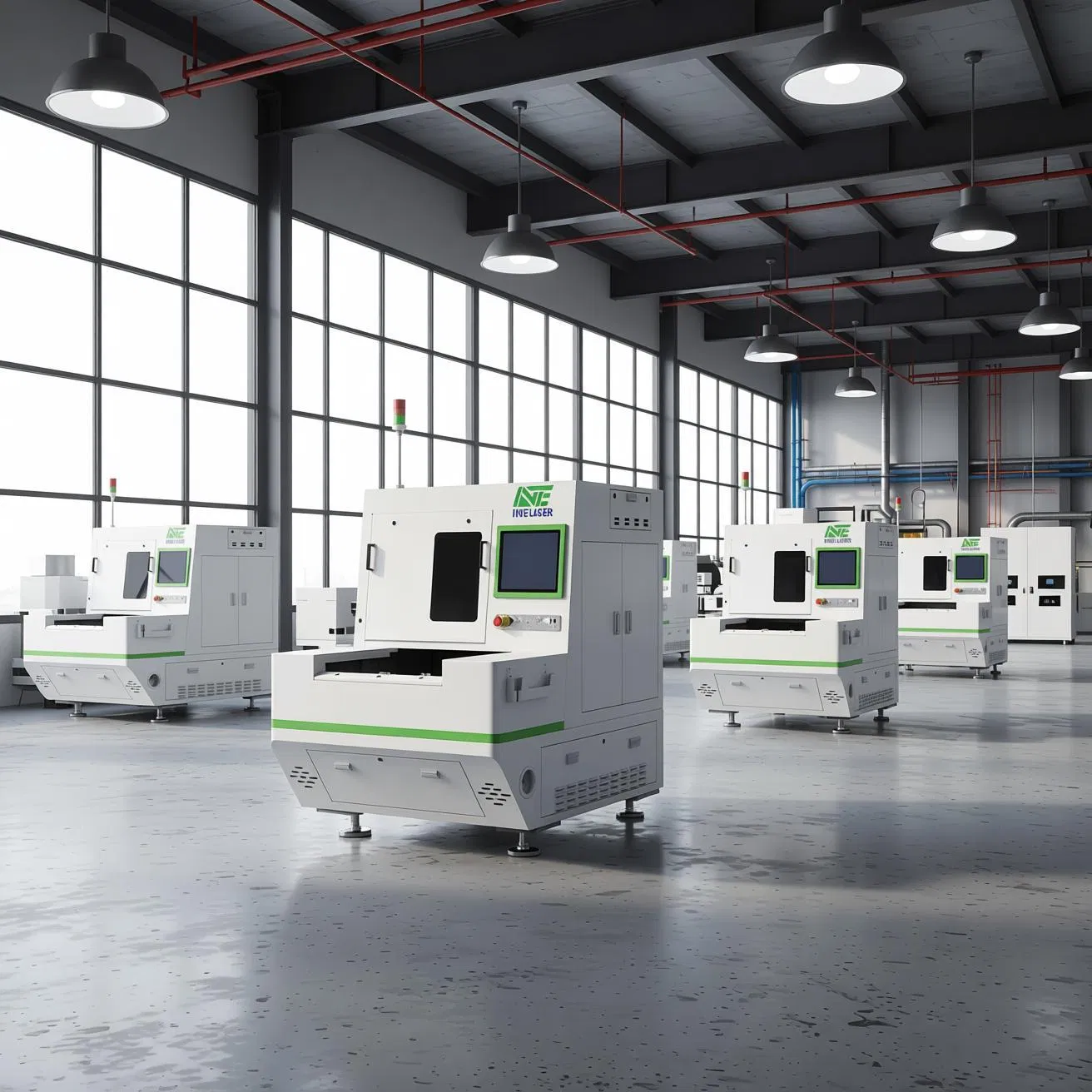

FPC Window Cutting Equipment with Picosecond/Nanosecond UV Laser High Precision 100% Yield Rate Potential, 0.15mm Minimum Pad Size for FPC Manufacturing

🎯

FPC Window Cutting Equipment with Picosecond/Nanosecond UV Laser - High Precision (±0.02mm), 100% Yield Rate

Basic Info.

Model NO.	YT-003
Application	Environmental Equipment, Petroleum Machinery Manufacturing, Aerospace Industry, Automotive Industry, Advertising Industry, Optical Industry
Cooling System	Water Cooling
Laser Type	Picosecond UV / Nanosecond UV
Processing Accuracy	±0.02mm
Applicable Material	Nonmetal (FPC / Flexible Circuits / Rigid-Flex PCBs)
Key Advantage	100% Yield Rate Guaranteed & Excess Adhesive Removal

Product Description

🚀 Product Advantages

Ultra-High Efficiency: Optimized processing speed with potential 100% yield rate.
Defect Elimination: Solves excess adhesive overflow issues in conventional manufacturing.
Exceptional Accuracy: ±0.02mm accuracy prevents pad misalignment.
Micro-Scale Capability: Supports minimum pad sizes down to 0.15mm.
Customizable: 500mm×680mm processing area (customizable).

⚙️ Technical Breakthroughs

Equipped with dual Picosecond and Nanosecond UV laser technology, the system enables versatile processing for various material thicknesses. The rigid structure ensures stability during high-speed cutting, while the integrated touchscreen interface simplifies real-time monitoring and quality control.

Technical Specification

Parameter	Value
Laser Type	Picosecond UV, Nanosecond UV
Processing Area	500mm X 680mm (customizable)
Machine Dimensions	1700mm X 1650mm X 1850mm
Processing Accuracy	± 0.02mm
Power Consumption	3.5 KW
Machine Weight	1700 KG
Environment	Temp: 22°C ± 2°C; Humidity: 30%~60%

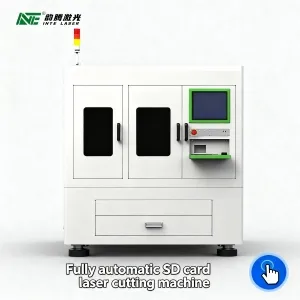

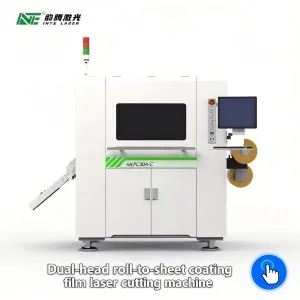

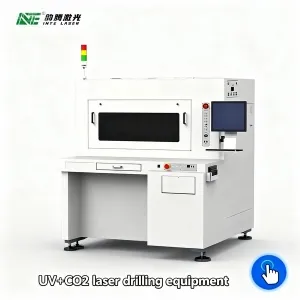

Other Professional Models

Application Areas

📱 Electronics & IoT

Ideal for cutting windows in flexible printed circuits used in smartphones, tablets, and wearable devices.

🚗 Automotive & Medical

Meets strict quality standards for automotive infotainment systems and implantable medical devices.

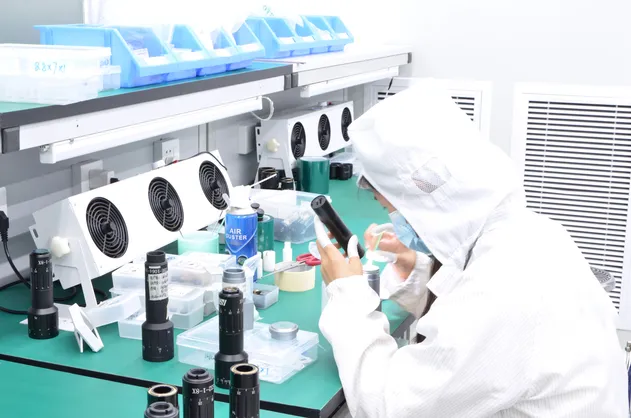

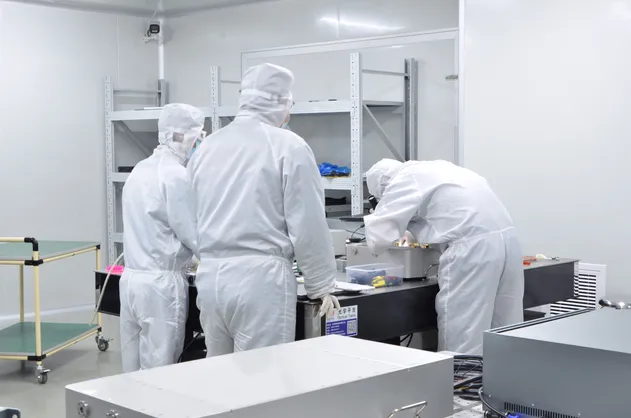

Company R&D Excellence

Specializing in the independent research and development of laser generators, optical devices, and automation systems, we provide innovative solutions for laser micromachining applications. Our four-dimensional integrated manufacturing approach creates value across semiconductors, consumer electronics, and new energy sectors.

Frequently Asked Questions

Q: What laser types are available for this FPC machine? A: It is equipped with both Picosecond UV and Nanosecond UV laser options to handle different precision and material requirements.

Q: What is the minimum pad size achievable? A: The machine can achieve a minimum pad size of 0.15mm, making it ideal for high-density electronic components.

Q: How does the equipment handle adhesive overflow? A: The UV laser's precise energy control eliminates adhesive residue during the cutting process, preventing short circuits and improving quality.

Q: Is the processing area fixed or customizable? A: The standard processing area is 500mm×680mm, but it can be fully customized based on specific production needs.

Q: What is the processing accuracy for window cutting? A: The machine provides a high processing accuracy of ±0.02mm, effectively eliminating pad misalignment issues.

Q: What industries typically use this equipment? A: It is widely used in FPC manufacturing, consumer electronics (smartphones/cameras), automotive electronics, and medical device production.
