Glass Cup Leaf for Wood and Stone Projects Paper Rubber UV Laser Engraving Machine UV Laser Marking System

Customization:	Available
After-sales Service:	Provided
Warranty:	2 Years

Send Inquiry

Product Description

Basic Specifications

Model NO.

HJZ-DB-04

Laser Visibility

Visible

Applicable Material

Glass Crystal Plastic

Cooling System

Air Cooling

Technical Class

Pulse Laser

Laser Wavelength

Fiber Laser

Laser Classification

Solid Laser

Type

Optical Fiber Laser Marking Machine

Laser Output Power

3W 5W 8W Customization

Engraving Speed

9000mm/S

Operating Voltage

110-240V

Marking Area

110*110mm to 300*300mm

Certification

CE, FDA

Control Software

Ezcad Software

Production Capacity

600sets/Month

Product Description

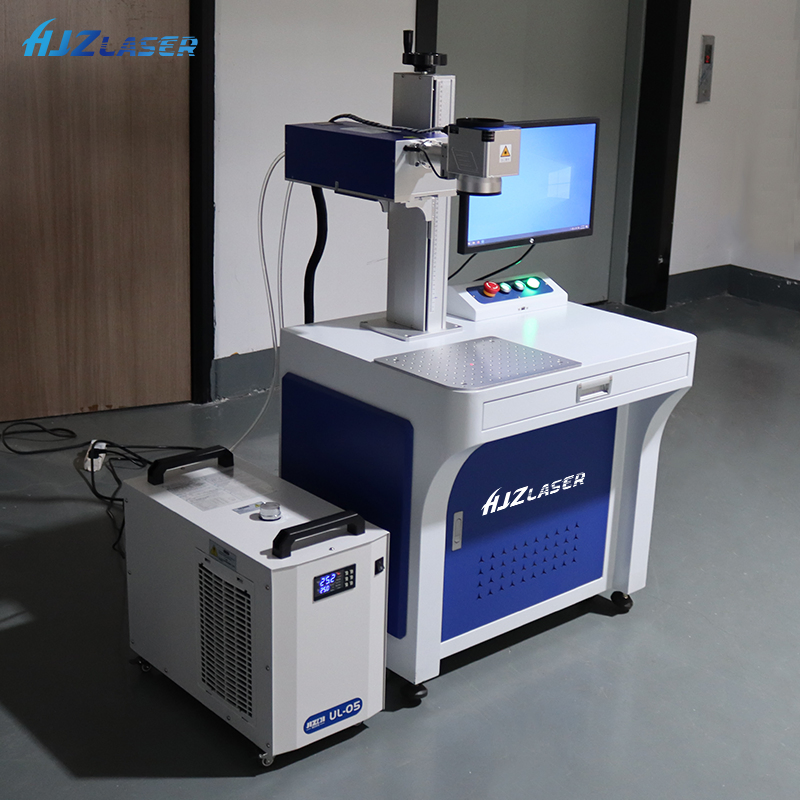

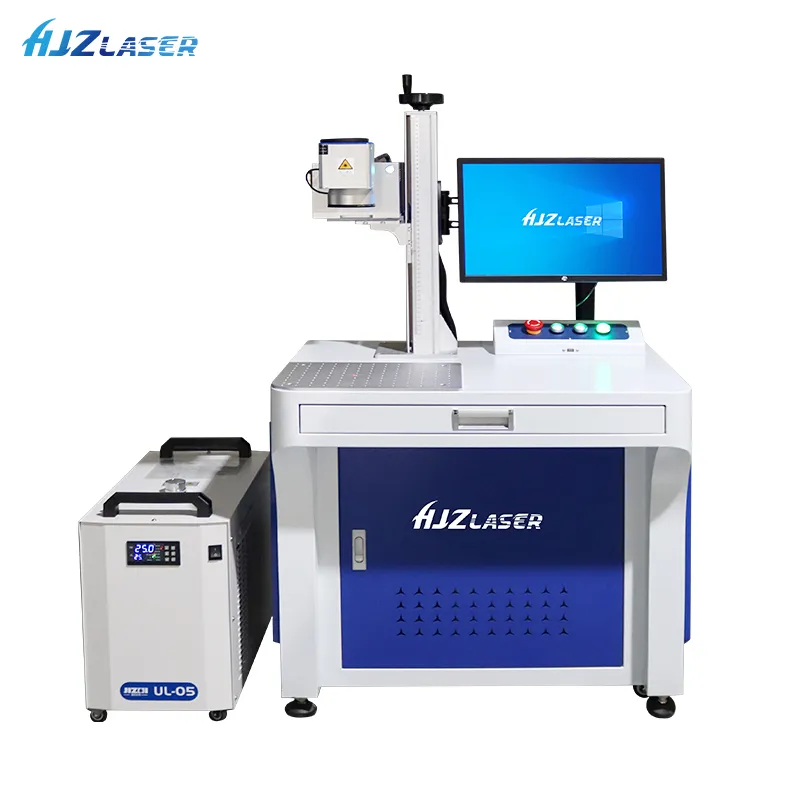

UV Laser Engraving Machine & Marking System for Glass, Wood, Stone, Paper, and Rubber

Equipment Overview:
This UV Laser Marking Machine (3W/5W/8W) utilizes advanced third-order intracavity frequency doubling (THG) technology. The 355nm ultraviolet laser features an extremely small laser spot, which significantly minimizes mechanical deformation and heat-affected zones during the marking process. It is ideal for hyperfine marking and engraving on delicate materials.

★

Key Features

Stable water-cooling system with high-precision temperature control.
Optimized for hyperfine marking and high-detail engraving.
High-quality, permanent marking results.
Environmentally friendly and safe machinery design.
Excellent electro-optical conversion efficiency and long service life.

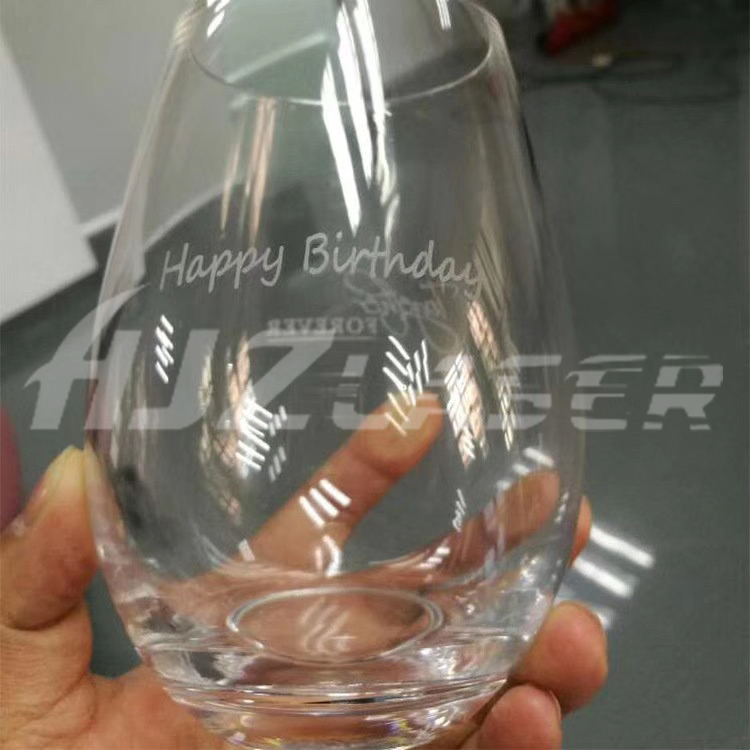

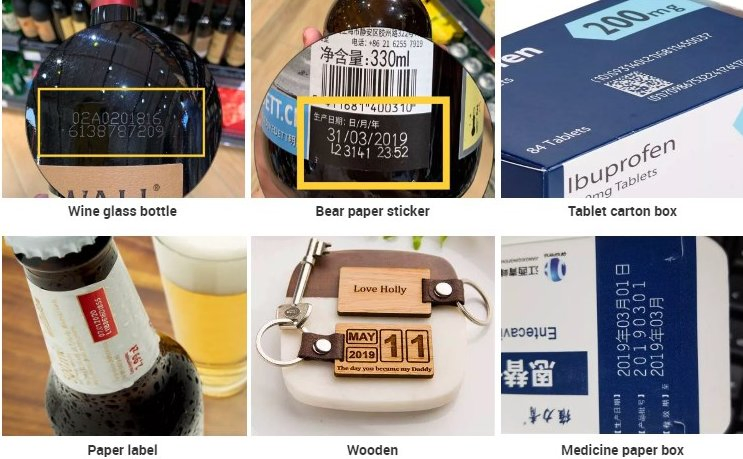

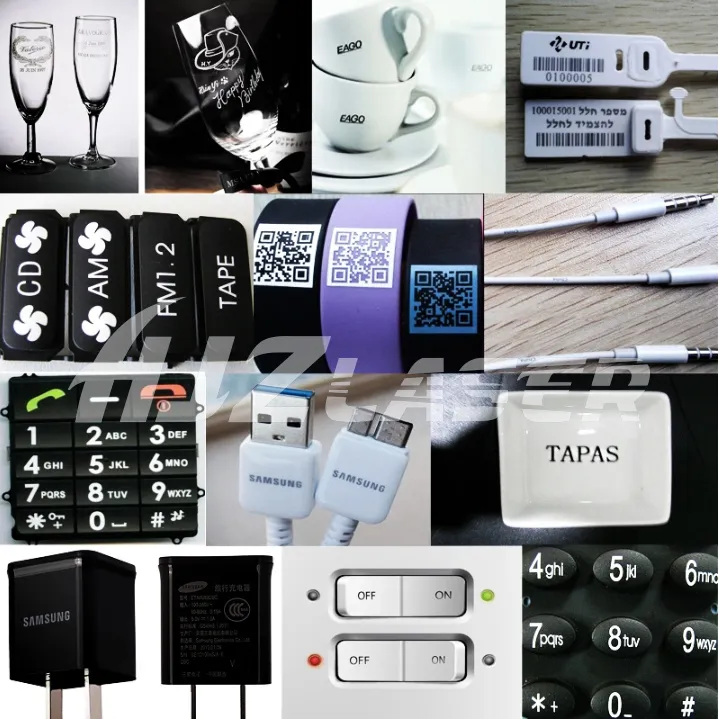

Applications & Samples

Mainly used for glass, charger shells, TET, LCD, plasma screens, textiles, thin ceramics, Silicon, IC Crystals, Sapphire, polymers, medicines, cosmetics, and various polymer materials such as wires and bottles.

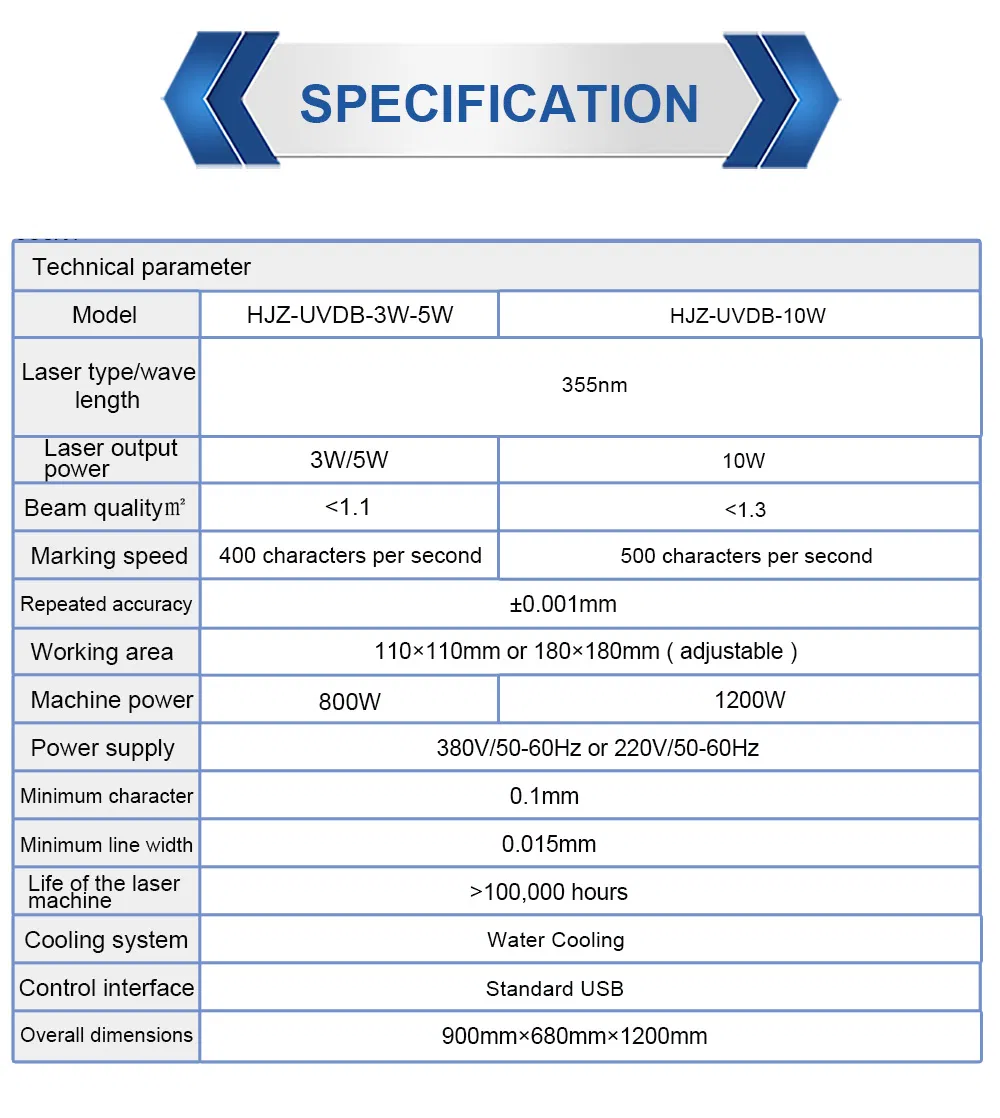

Technical Parameters

Parameter	Details
Output Power	3W / 5W / 8W
Laser Wavelength	355nm
Frequency	20-150KHZ
Beam Quality	<1.2
Engraving Speed	≤8000mm/s
Marking Range	100×100mm (Optional sizes available)
Minimum Line Width	0.01mm
Repetition Precision	±0.003mm
Cooling System	Air Cooling / Water Cooling
Operating Voltage	220V 50/60HZ

Service & Support

Pre-sale: Assistance in technical guidance and design solutions based on project feasibility. Testing and sample making available.

After-sale: 1-year warranty for the machine. Lifelong repair support and 24-hour technical assistance.

Training: Multi-channel training available including on-site factory visits, engineer dispatch, and remote online tools.

Frequently Asked Questions

What materials can this UV laser marking machine process?

It is highly effective for glass, crystal, various plastics, delicate ceramics, silicon, IC crystals, and many polymer materials that are sensitive to heat.

How does a UV laser differ from a standard fiber laser?

UV lasers use a 355nm wavelength which allows for "cold marking." This means the heat-affected zone is minimal, preventing material deformation or burning, which is essential for hyperfine work.

What is the expected delivery time for an order?

Generally, standard orders are processed within 1 to 3 days. Depending on customization requirements, it may take 3 to 10 days.

Does the machine come with control software?

Yes, the system is equipped with professional Ezcad software, which supports multiple graphic formats including Ai, BMP, DXF, and more.

What kind of maintenance does the UV laser require?

The machine is designed for stability. Regular maintenance involves keeping the lenses clean and ensuring the cooling system (air or water) is functioning properly.

Is the marking produced by the UV laser permanent?

Yes, the laser marking is permanent, resistant to wear, and does not fade over time, making it ideal for industrial coding and branding.
