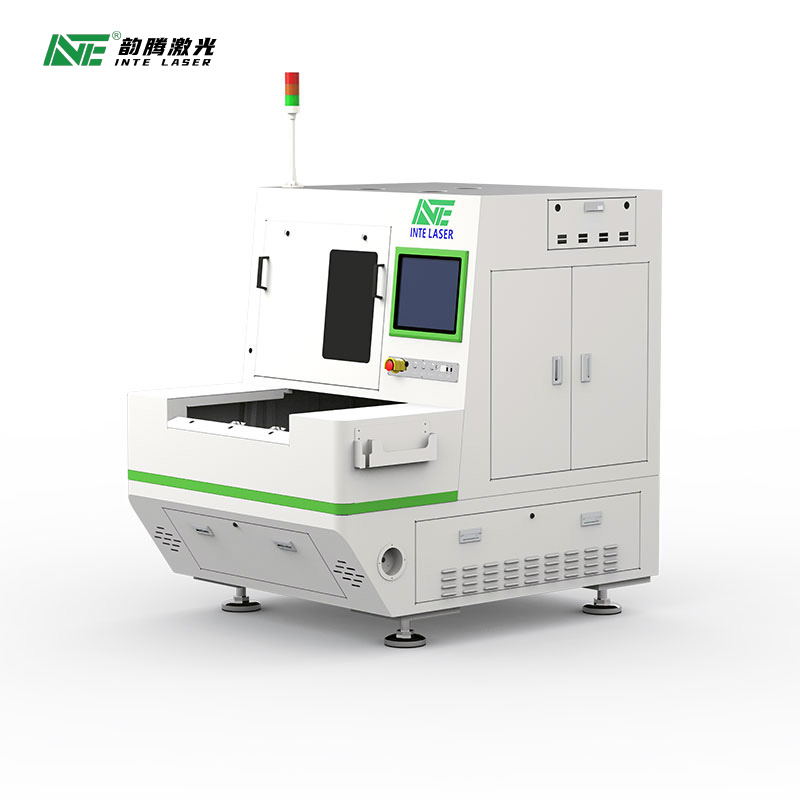

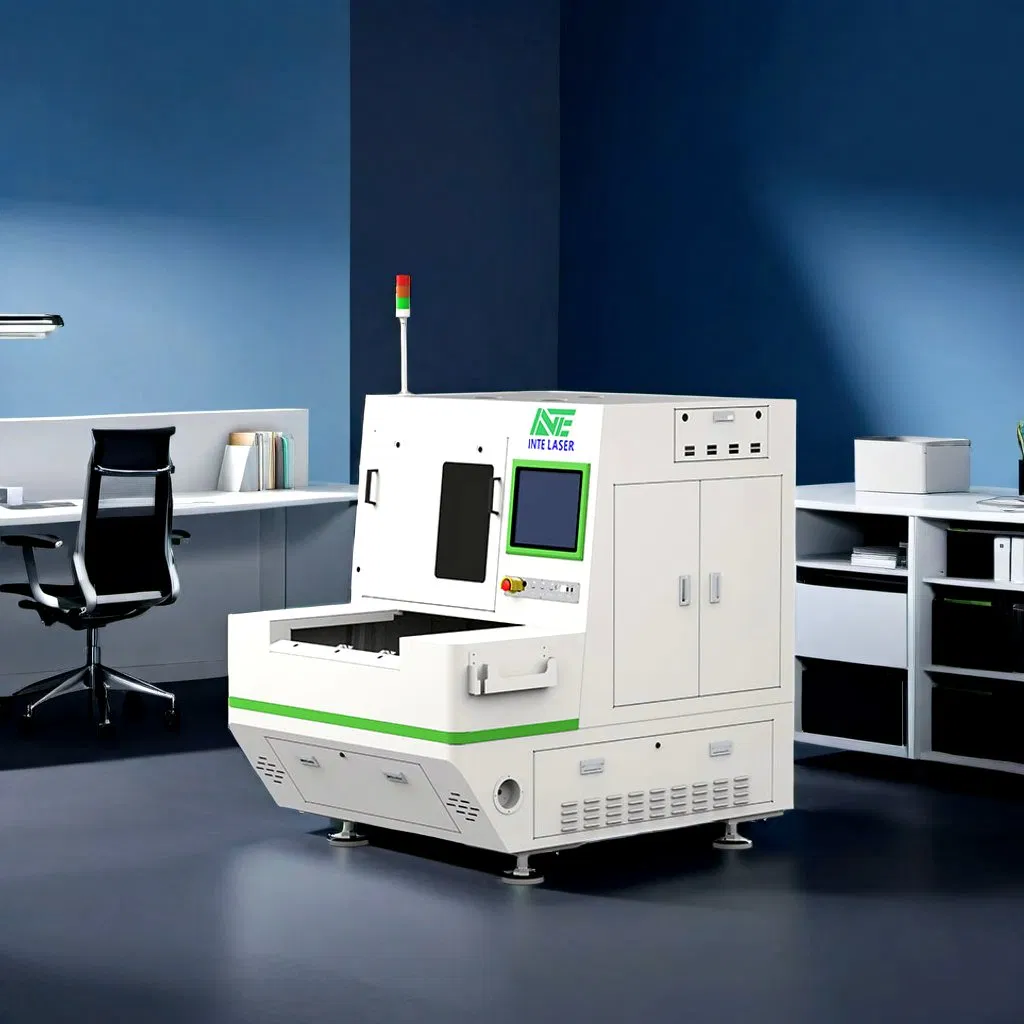

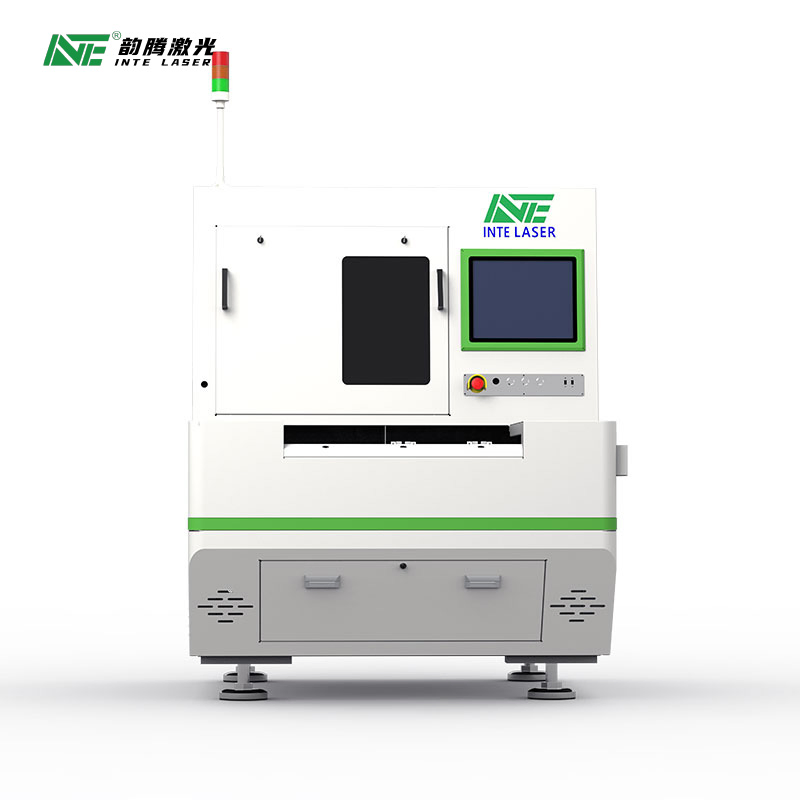

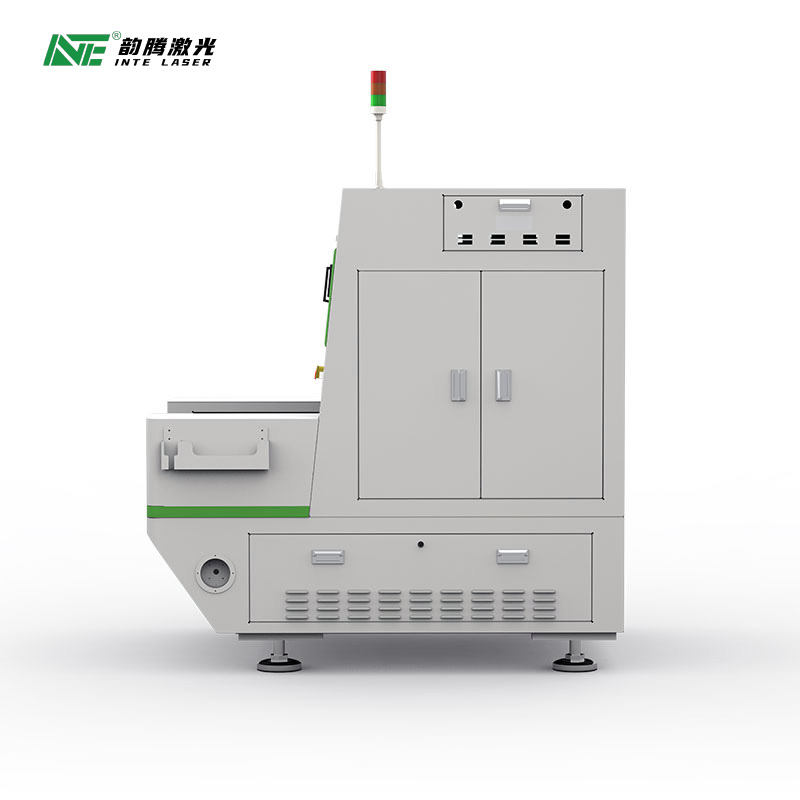

High Presicion Flexible Printed Circuit Laser Drill Machine
High Presicion Flexible Printed Circuit Laser Drill Machine
High Presicion Flexible Printed Circuit Laser Drill Machine
High Presicion Flexible Printed Circuit Laser Drill Machine
High Presicion Flexible Printed Circuit Laser Drill Machine
1 / 5
High Presicion Flexible Printed Circuit Laser Drill Machine
High Presicion Flexible Printed Circuit Laser Drill Machine
High Presicion Flexible Printed Circuit Laser Drill Machine
High Presicion Flexible Printed Circuit Laser Drill Machine
High Presicion Flexible Printed Circuit Laser Drill Machine

High Presicion Flexible Printed Circuit Laser Drill Machine

Customization: Available
After-sales Service: 1 Year
Warranty: 1 Year
Send Inquiry

Product Description

📋

Basic Information

Model NO.
InteFPC001
Structure
Laser Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Number of Shaft
Laser
Hole Diameter
±3um
Automatic Grade
Automatic
Precision
High Precision
Certification
ISO 9001
Condition
New
Cooling System
Water Cooling
Electric Power
4.Kw
Machine Weight
2200kg
Accuracy
±0.02mm
Function
FPC Through Hole, Blind Hole, Coverlayer Cutting
Origin
China
🎯

Product Description

High Precision Flexible Printed Circuit Laser Drill Machine

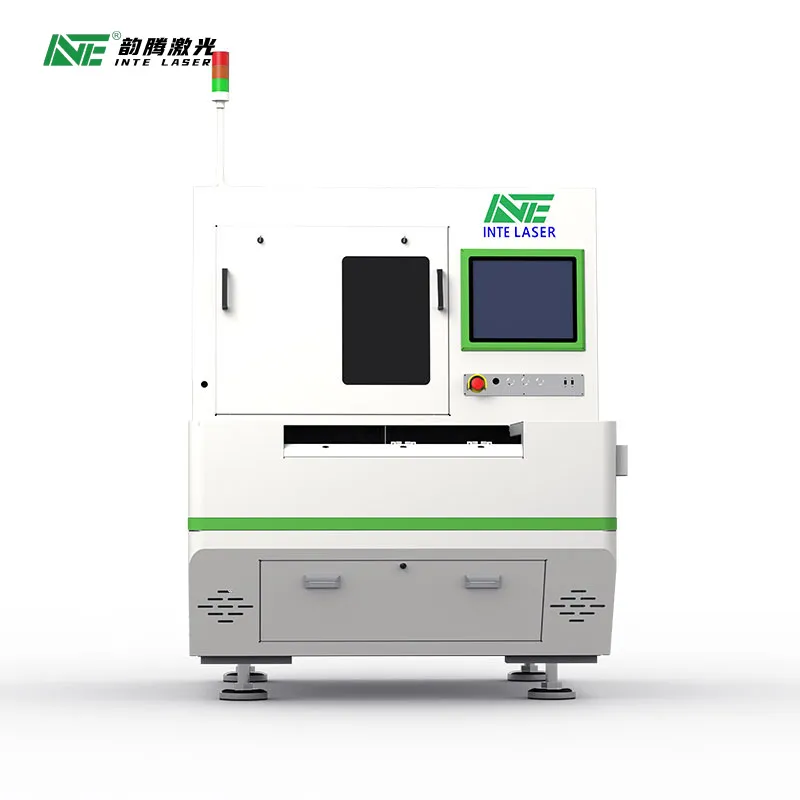

High Precision Laser Drill Machine
⚙️

Product Parameters

Laser TypeNanosecond UV
Processing Area650mm x 550mm (Customized)
Machine Size1600mm x 1600mm x 1810mm
Processing Accuracy±0.02mm
Machine Power4000W
Weight2200KG
Environmental ConditionHumidity: 30% to 60% (no condensation); Temperature: 22ºC ± 2
💎

Equipment Processing Advantage

✔ High precision, high performance, and stable mass production capabilities.
✔ Capable of roll-to-roll and sheet-to-sheet processing modes; utilizes five-axis linkage for processing through-holes and blind holes with efficiency.
✔ Offers flexible loading and unloading methods, including automatic or manual options.
🛠️

After-Sales Service

🔹1-year guarantee for the entire machine with lifetime maintenance support.
🔹Free technical training at our facility to ensure mastery of machine operation.
🔹Engineers available for overseas training and specialized after-sale services.
🏢

Company Overview

Technology-Driven Solutions

As a technology-oriented enterprise established in 2013, we specialize in laser applications and automatic manufacturing. We provide cutting-edge processing technology, manufacturing optimization, and specialized machines to help customers build extra creative value.

Core Focus

Our expertise covers the independent research and development of laser generators, optical devices, and automation system integration. We provide innovative solutions for laser micromachining in industries such as printed circuit boards, consumer electronics, semiconductors, glass, and new energy batteries.

Facility Image 1
Facility Image 2
🌍

Global Exhibitions

Exhibition 1
Exhibition 2
Exhibition 3
Exhibition 4
Exhibition 5
Exhibition 6
❓

Frequently Asked Questions

Q: What can you do for our production line?
A: We are committed to providing advanced equipment, technical solutions, and comprehensive service support to help you improve production efficiency, reduce costs, and optimize product quality.
Q: Are you a trade company or manufacturer?
A: We are a manufacturer with independent research and development capabilities as well as manufacturing facilities, offering both OEM and ODM services.
Q: What is your standard delivery time?
A: Typically, delivery takes about 35 days after receipt of payment, depending on the specific customization requirements.
Q: What are your payment terms?
A: Our standard terms are a 30% deposit in advance and the remaining 70% balance before shipment.
Q: Do you support customized processing areas?
A: Yes, we provide customized processing areas (e.g., 650mm x 550mm) to fit your specific manufacturing needs and material sizes.
Q: Is technical training included with the machine purchase?
A: Absolutely. we offer free training at our factory to ensure your operators master the machine's functions and safety protocols.
