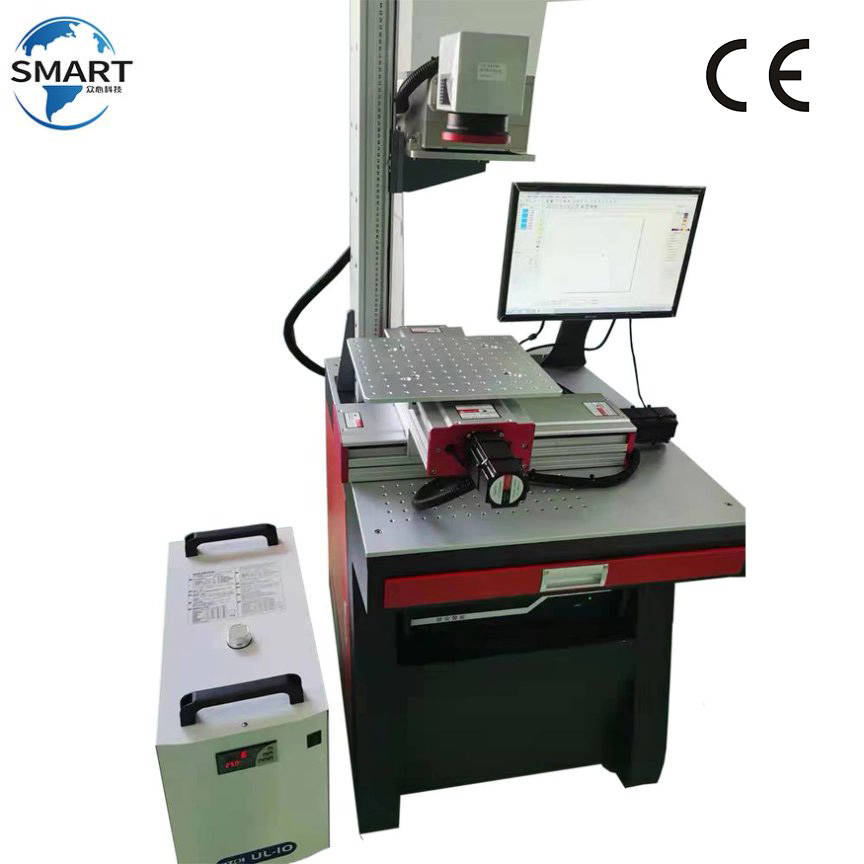

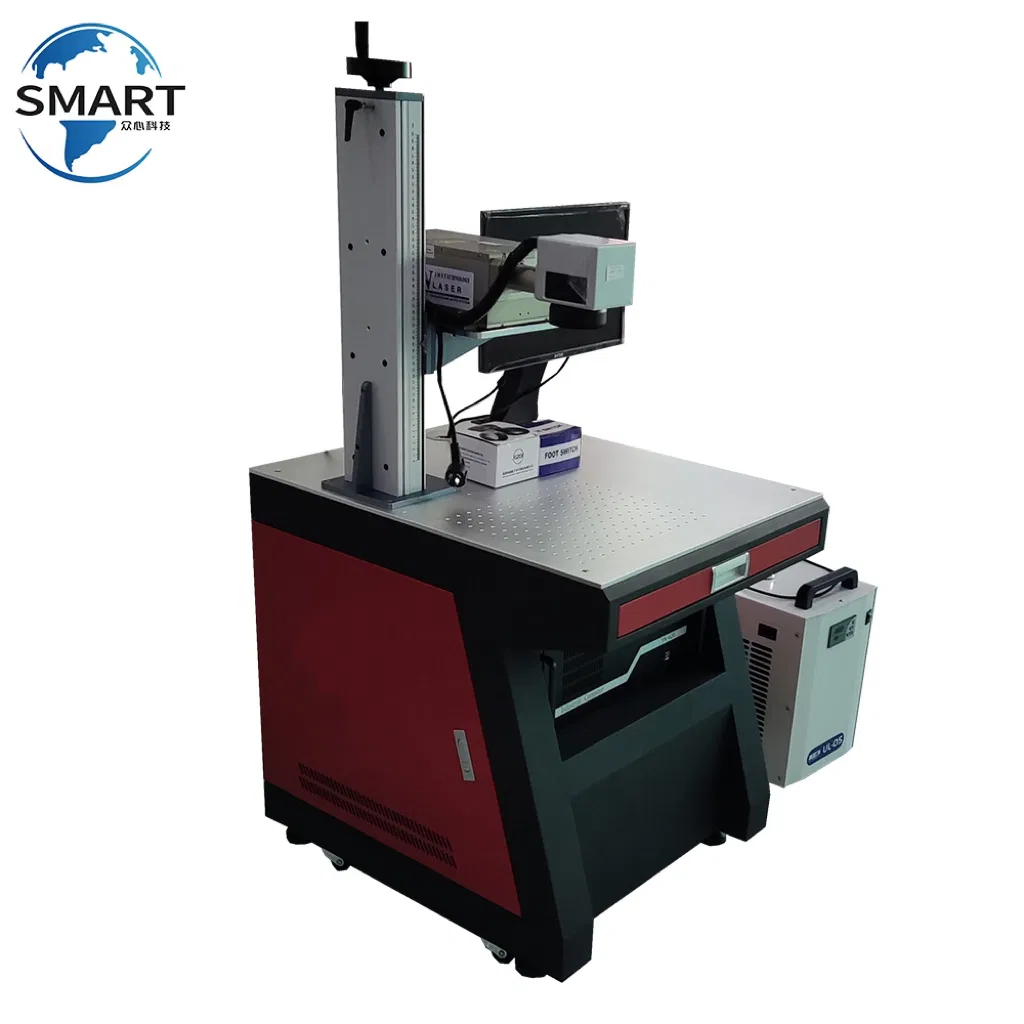

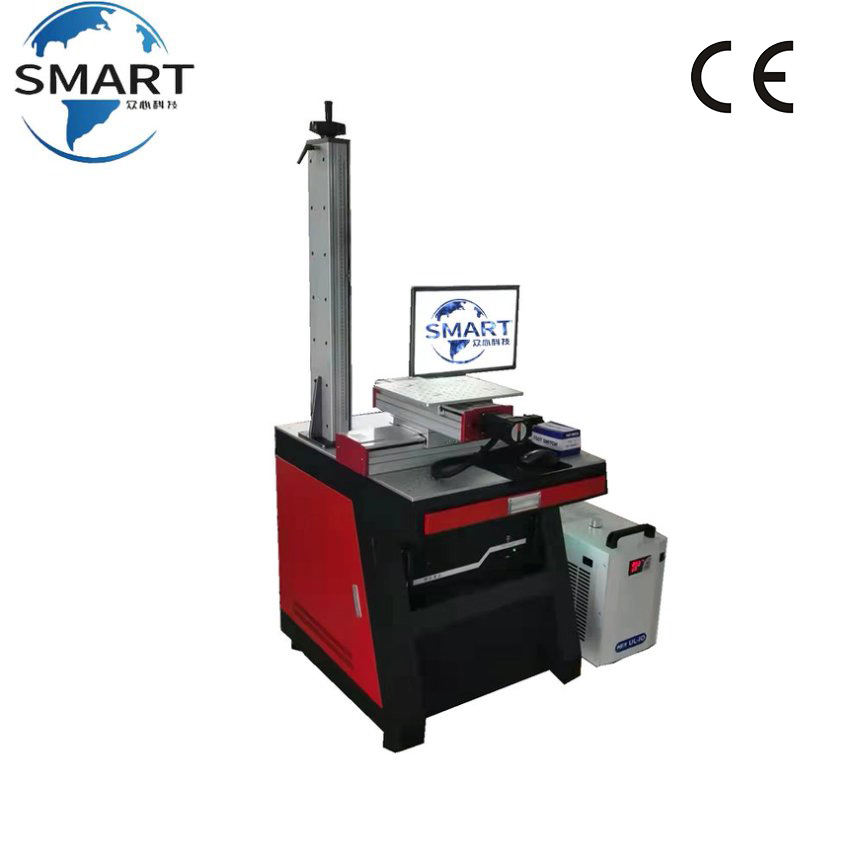

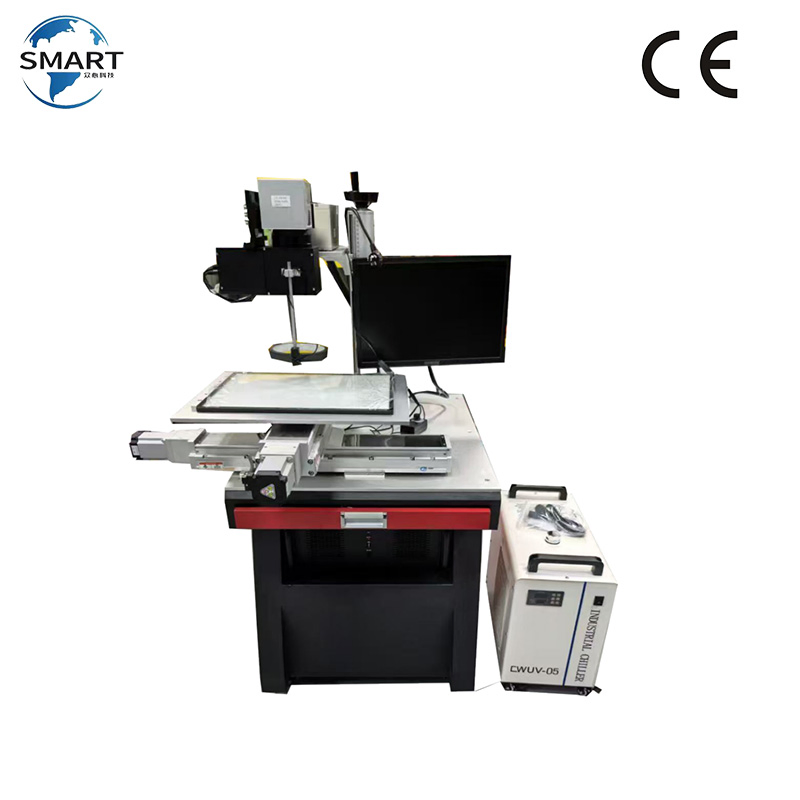

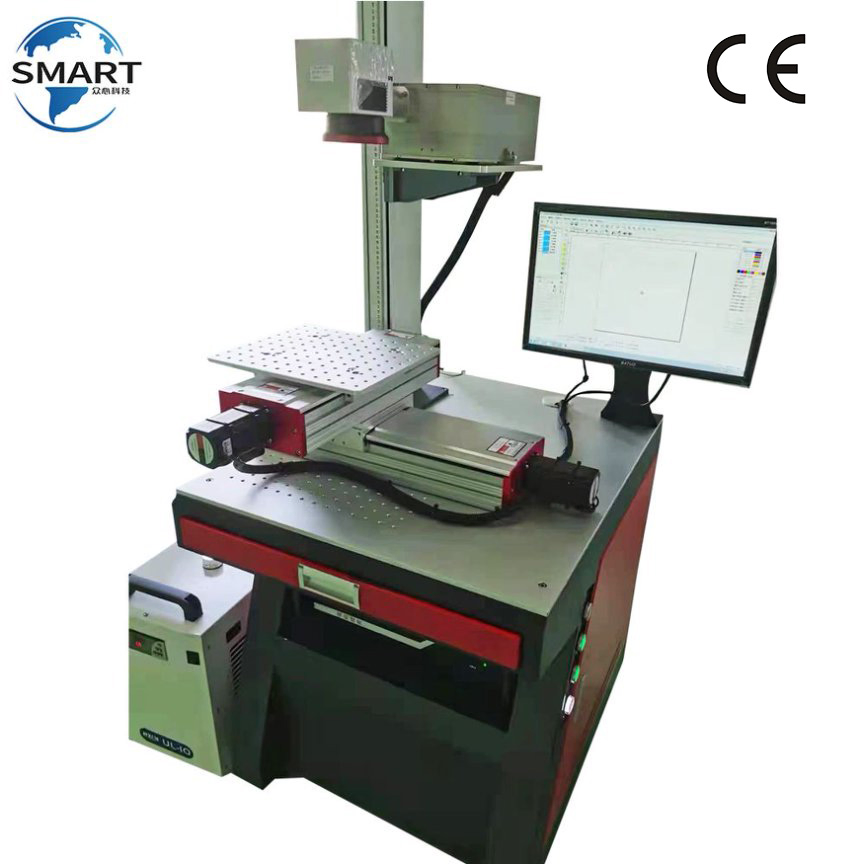

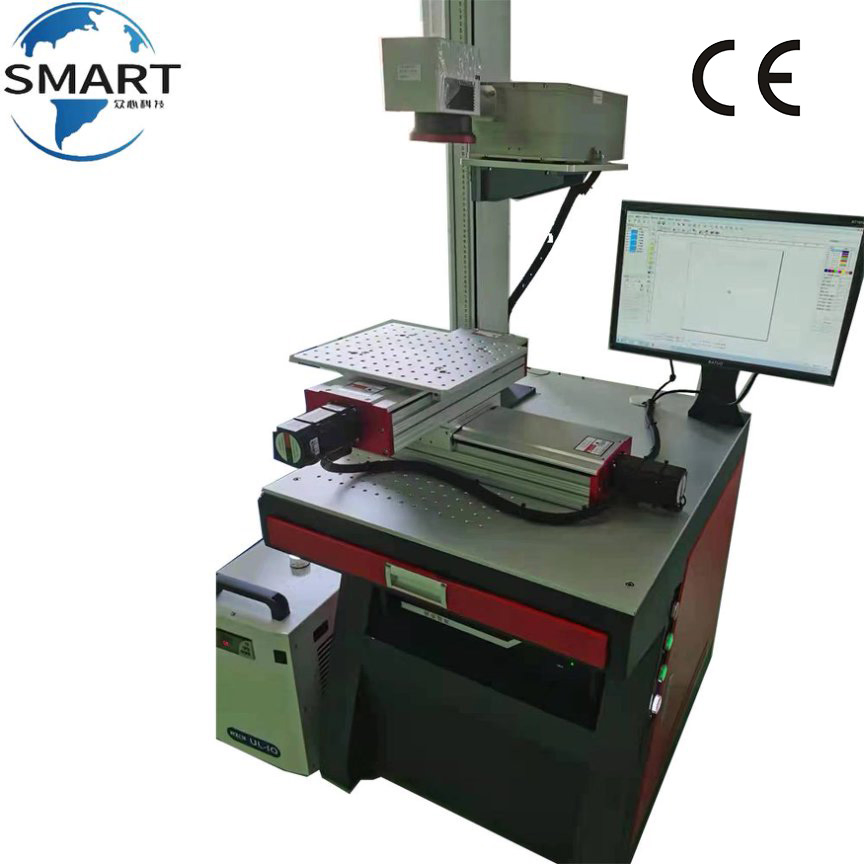

Precision UV Laser Marking Equipment for Durable Marking Needs

Customization:	Available
After-sales Service:	Online Support or on-Site Service
Warranty:	1 Years

📋

Basic Info

Model NO.

ZXJN-5WUVC/ZXJN-5WUVE

Laser Visibility

Invisible

Applicable Material

Metal

Cooling System

Water Cooling

Technical Class

Continuous Wave Laser

Laser Wavelength

Deep Ultraviolet

Laser Classification

Solid Laser

Type

UV Laser Marking Machine

Marking Method

Scanning Marking

Laser Power

3W /5W/10W

Certification

CE

HS Code

8456110090

🔍

Product Description

Core Specifications:

Laser Wave Length: 355nm
Repetition frequency: 10-200KHz
Engraving Area: 175*175mm
Engraving Depth: ≤0.1mm
Min character: 0.15mm
Max speed: ≤7000mm/s
Accuracy: 0.003mm
Beam quality: M2<1.1
Focus spot diameter: <0.01mm
Power Need: AC220V/50Hz/10A

Applications & Materials:

Applicable industries: consumer electronics, mobile phone accessories, LCD screen QR code & trademark engraving, ceramics, sapphire, jewelry, FPC flexible circuit board micro-hole drilling, cutting, biomedical glass line engraving, capacitive touch screen IPO etching, etc.

Applicable materials: glass, crystal, jade, plastic, silicone, rubber, acrylic, ceramics, fabric, leather, metals and various non-metallic materials, sapphire sheets, light-transmitting polymer materials, etc.

📊

Product Parameters

Laser type	Wavelength	Principle	Metal	Plastic	Glass	Ceramics	Features
UV	355nm	Photochemical ablation by breaking atomic bonds	√	√	√	√	Cold light source, fine marking, small heat zone
Fiber	1064nm	Physical or chemical change by light energy	√	Partial	-	√	High efficiency, long life, air-cooled
CO2	10.6um	Heat energy partially melts/vaporizes surface	Partial	√	√	√	Clear permanent marks, low cost, fast

⚙️

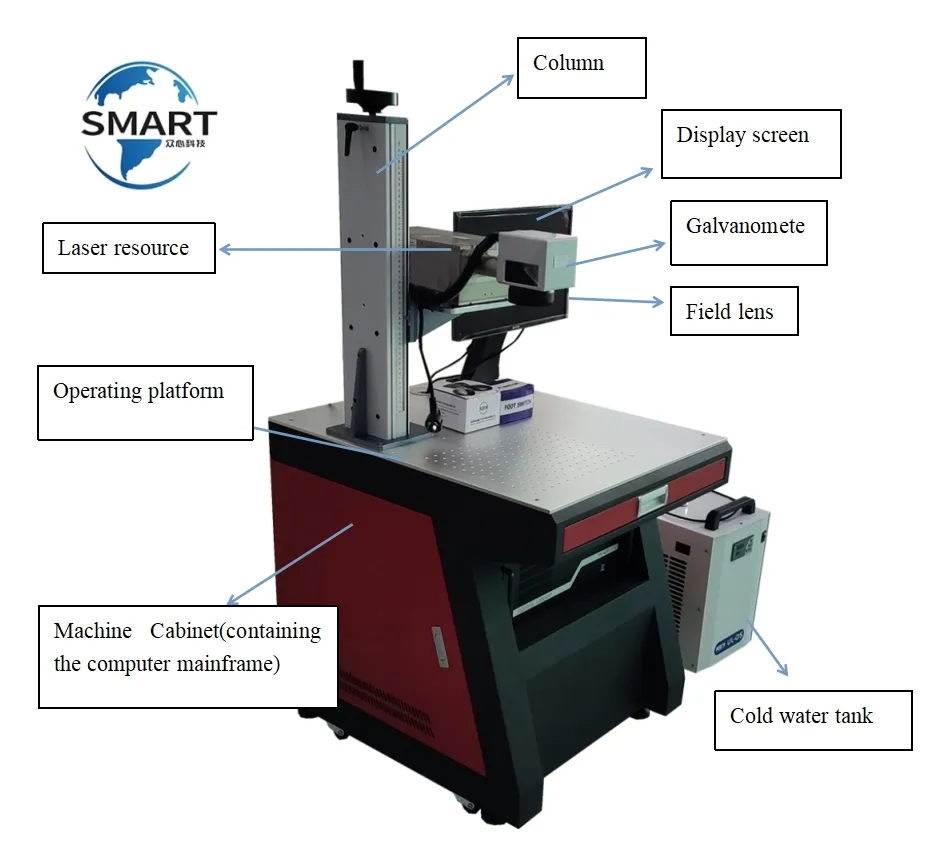

Key Components

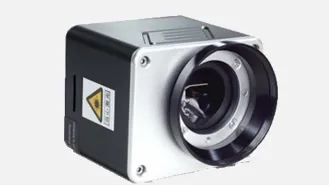

Galvanometer: High-performance micro motor, fast marking speed, stable operation, and high precision.

Field lens: High-performance lenses with good light perception, uniform lighting, and compact volume.

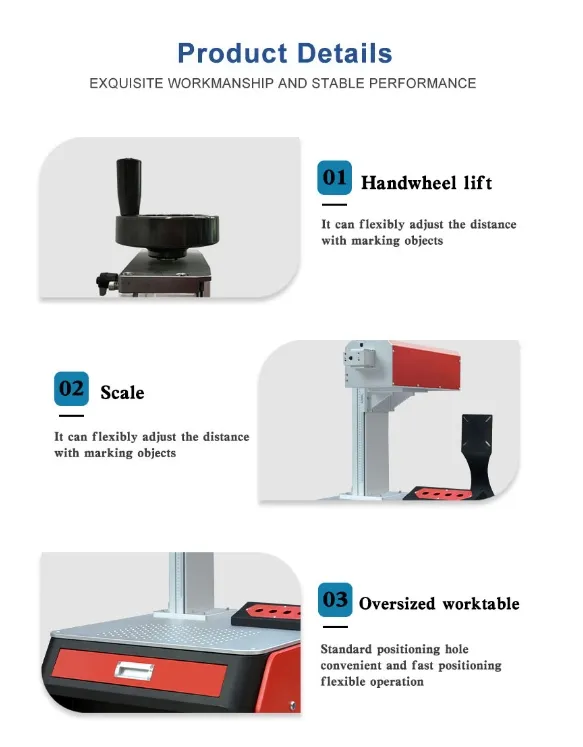

Lifting Column: Precise rulers for accurate positioning; stable and smooth adjustment benchmarks.

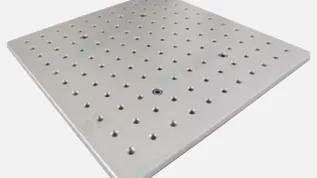

Workbench: 25X25 hole spacing for modular positioning and multi-station efficiency.

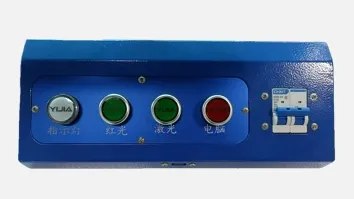

Control Panel: Multilingual customization, humanized switch, and safe anti-leakage settings.

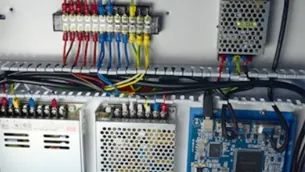

Internal Circuit: Standardized craftsmanship, strict installation for long-term safety and efficiency.

🖼️

Application & Production

📦

Packaging & Shipping

❓

Frequently Asked Questions

Q1: What is the delivery time for the machine?

Standard models are usually delivered within 7-15 days. Customized models usually take 15-30 working days.

Q2: How do I know which machine is suitable for me?

Please provide your material type, the desired effect (marking or cutting), the maximum size of your material, and the required thickness. We will recommend the best match.

Q3: How do you handle installation and training?

We provide training videos and English user manuals. Technical guidance is available via remote support. If necessary, engineers can be sent for on-site debugging.

Q4: What is the warranty policy?

We offer a 12-month quality guarantee from the date of arrival. Spare parts are provided free of charge for non-human damage during this period.

Q5: Can you provide OEM or ODM services?

Yes, we offer customized solutions for OEM and ODM projects, including logo customization and specific branding requirements.

Q6: How is the quality control handled?

We implement strict quality control measures with a dedicated inspection team. Production pictures and videos are shared with clients for approval before delivery.
