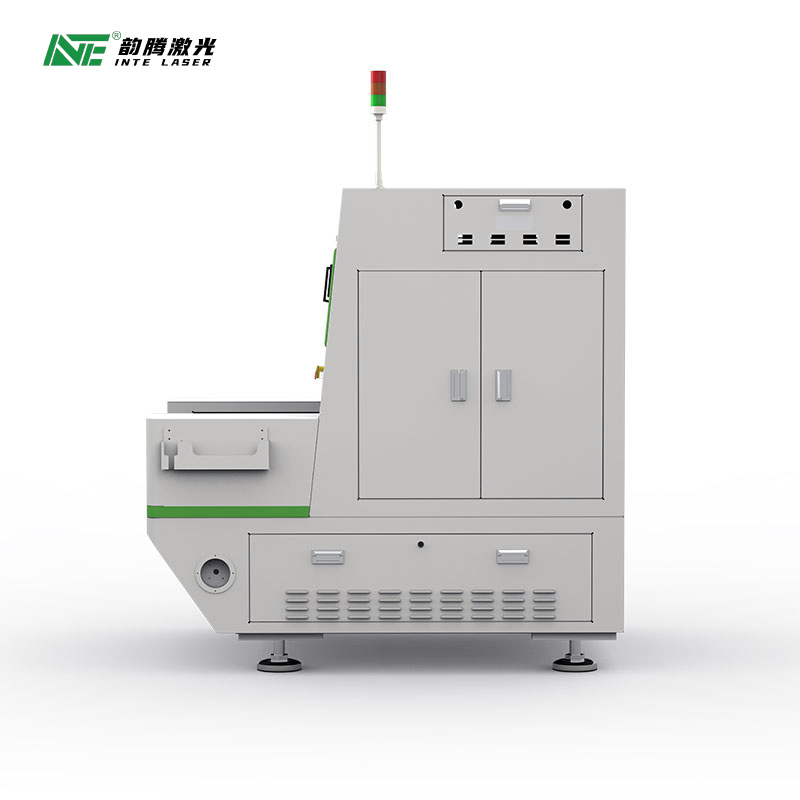

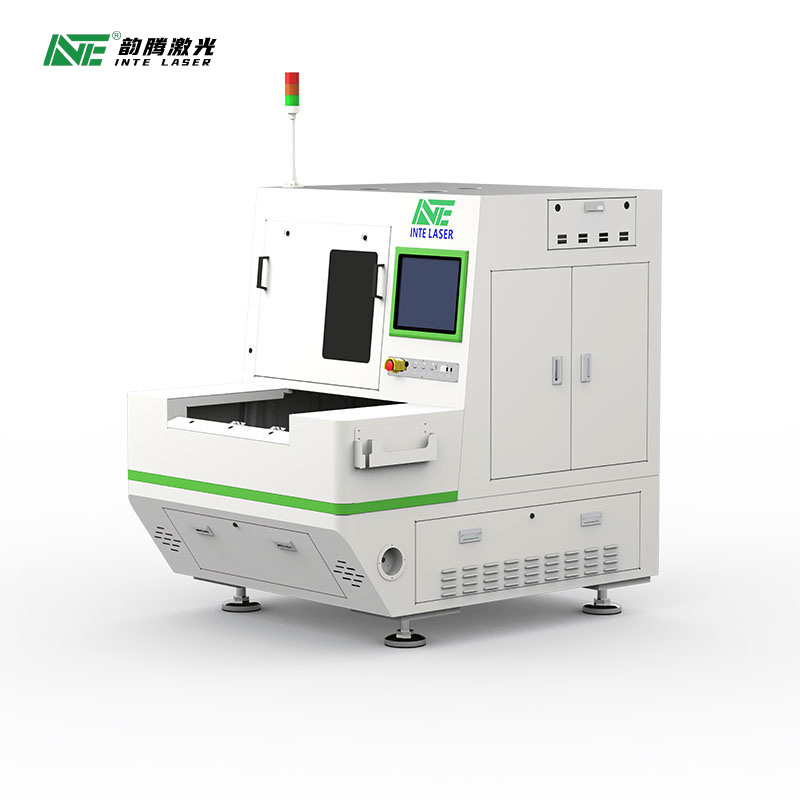

Advanced UV Laser FPC Window Processing Equipment for Precision Manufacturing

Customization: Available
After-sales Service: 1 Year
Warranty: 1 Year

Product Description

Basic Information
Model NO.
INTEFP0001
Application
Home Appliance, Environmental Equipment, Petroleum Machinery, Aerospace, Automotive
Cooling System
Water Cooling
Technical Class
Pulse Laser
Applicable Material
Nonmetal
Structure Type
Gantry Type
Laser Classification
Solid Laser
Laser Technology
Laser Flame Cutting
Machine Weight
1700kg
Processing Material
FPC
Laser Type
Picosend UV/Nanosend UV
Processing Accuracy
±0.02mm
Origin
China
Production Capacity
100 Sets/Month
Product Description
UV Laser FPC Processing

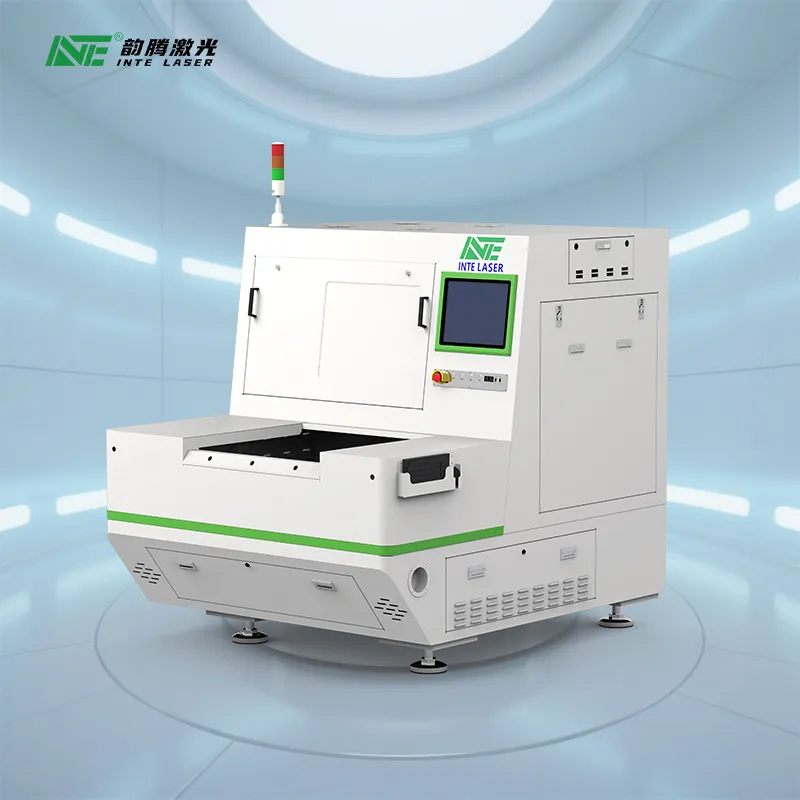

Equipment View 1

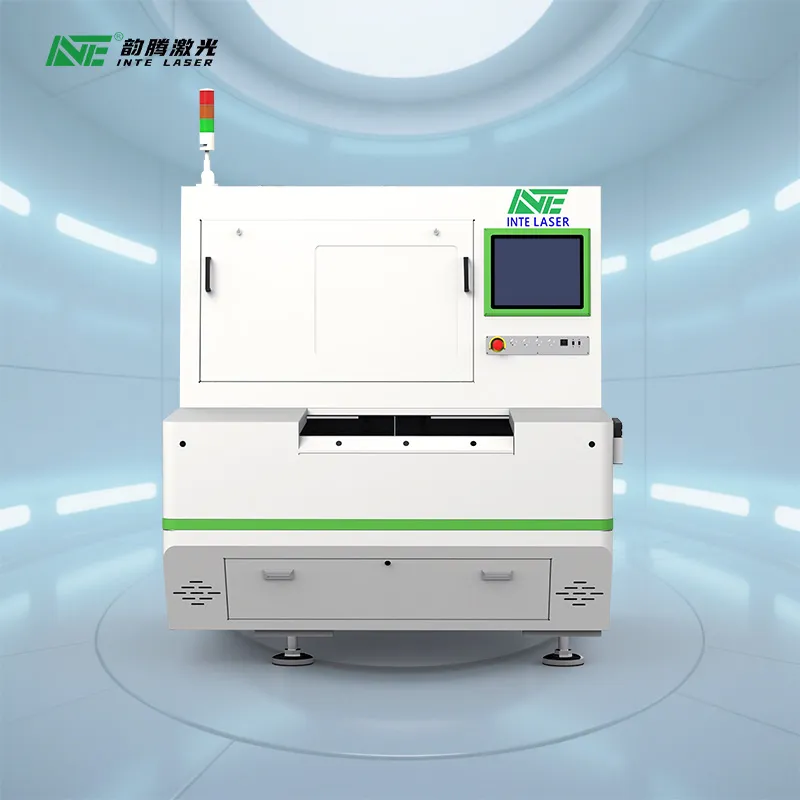

Equipment View 2

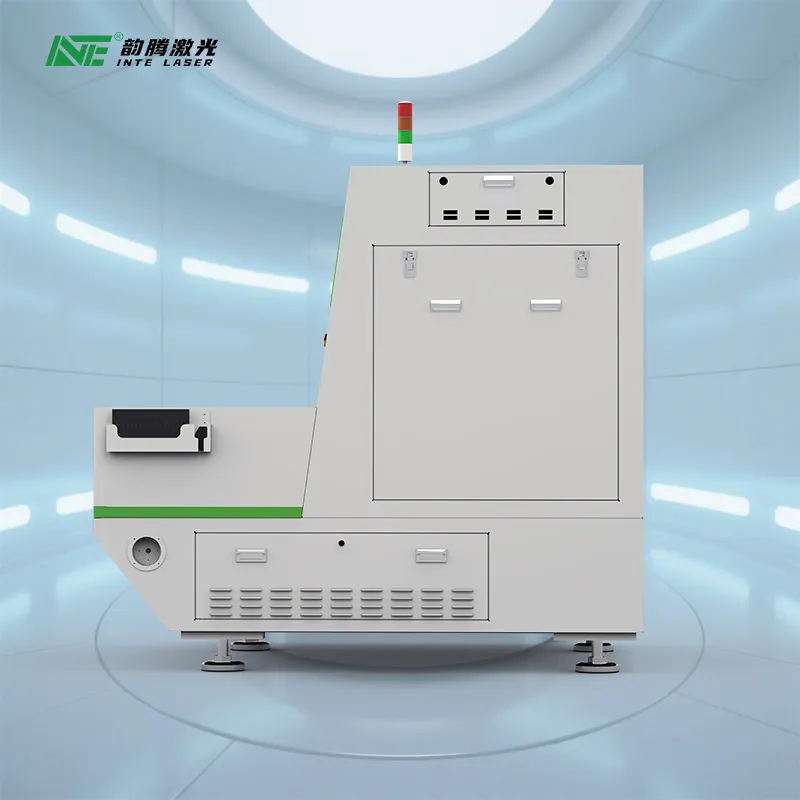

Equipment View 3

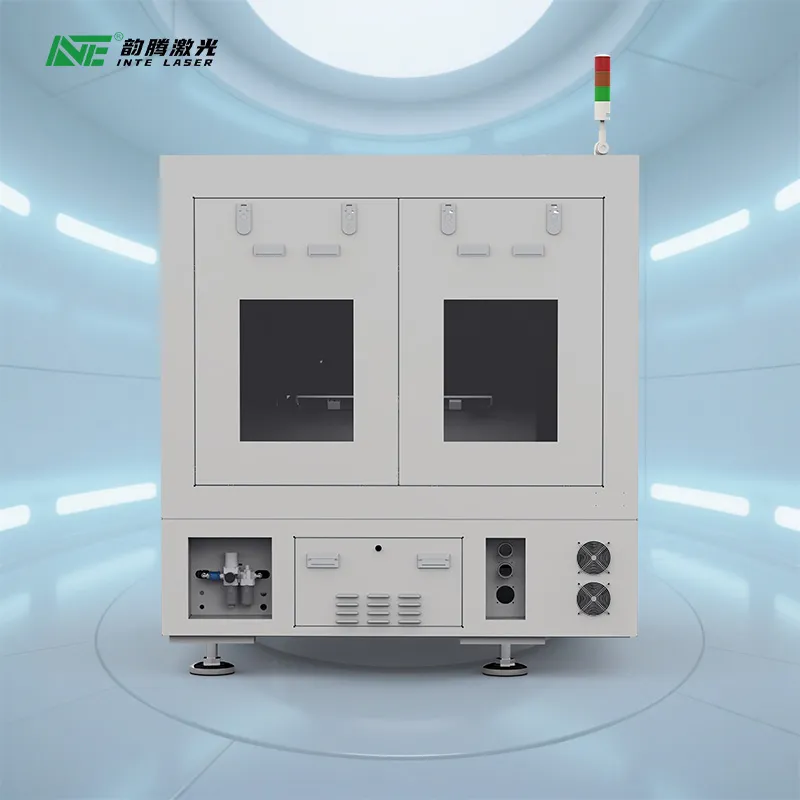

Equipment View 4
Laser TypePicosecond UV / Nanosecond UV
Processing Area500mm x 680mm (Customized)
Machine Size1700mm x 1650mm x 1850mm
Processing Accuracy±0.02mm
Machine Power3.5KW
Weight1700KG
Environmental ConditionHumidity: 30%-60%; Temp: 22ºC ± 2
Consumer Electronics

Core application scenarios including smartphones, tablets, wearable devices (smartwatches, TWS headphones), notebooks, and VR devices. Handles FPC cover film window opening, shape cutting, and flexible connection lines.

Automotive Electronics Field

Rapidly growing demand in new energy vehicles for camera/sensor wiring harnesses, Battery Management Systems (BMS), intelligent cockpits, and autonomous driving components like Lidar.

Medical Device Field

Miniaturization and flexibility for endoscopes, portable diagnostic devices, and wearable medical monitors such as dynamic ECG monitors.

High-end Manufacturing & Aerospace

Scenarios requiring extreme precision and reliability, including aerospace flexible circuit boards and micro-structure trimming of ABF substrates.

Other Electronic Manufacturing

Polymer material processing (PET, PI, PP), fingerprint chip modules, and high-precision electronic tapes. Supports 100% yield rate with small pad sizes (0.15mm).

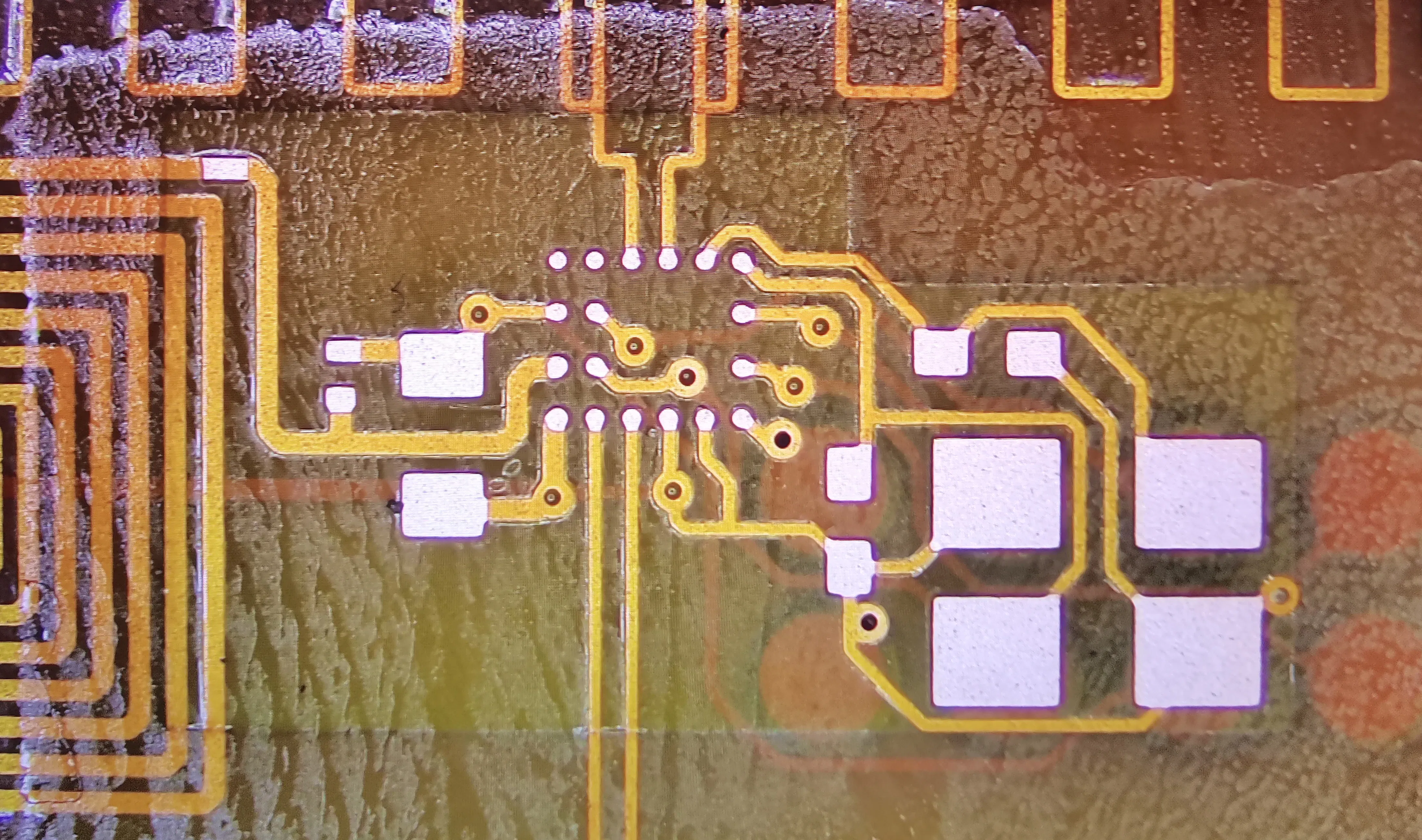

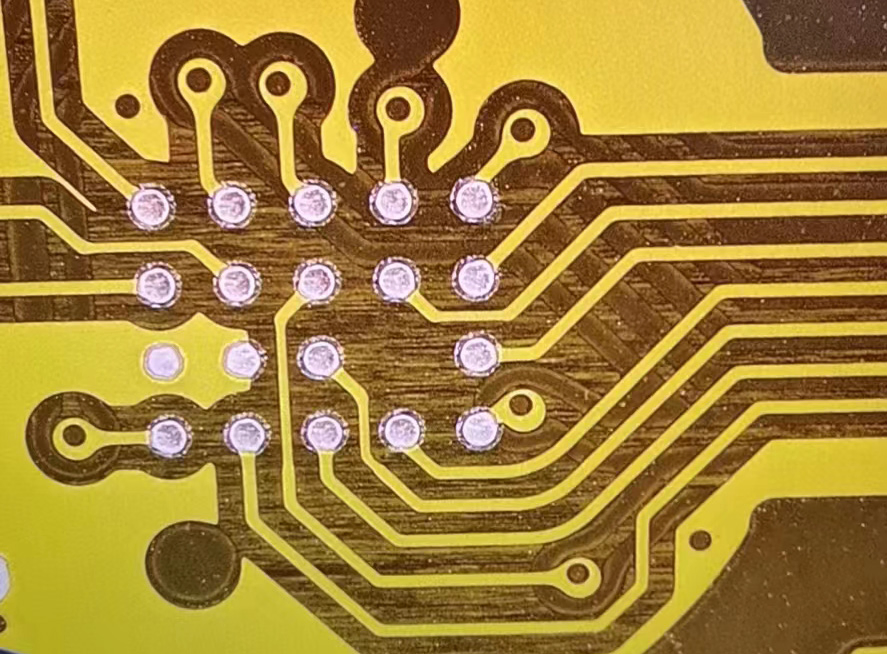

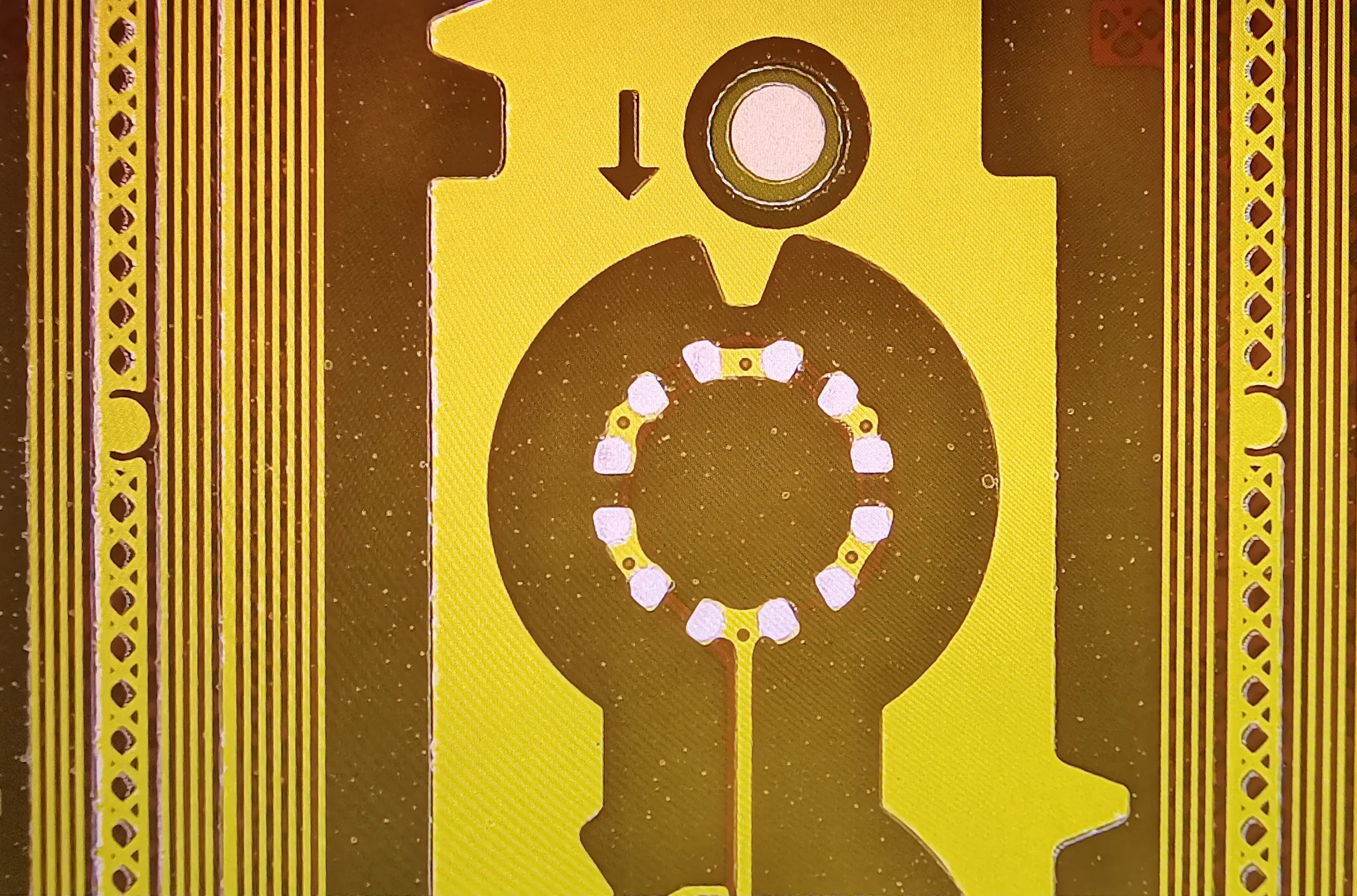

Sample Display

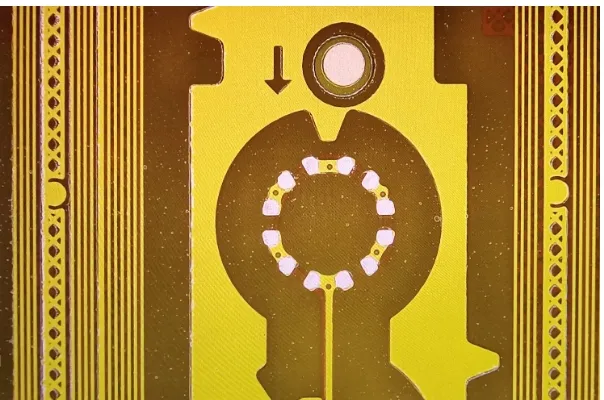

Sample 1

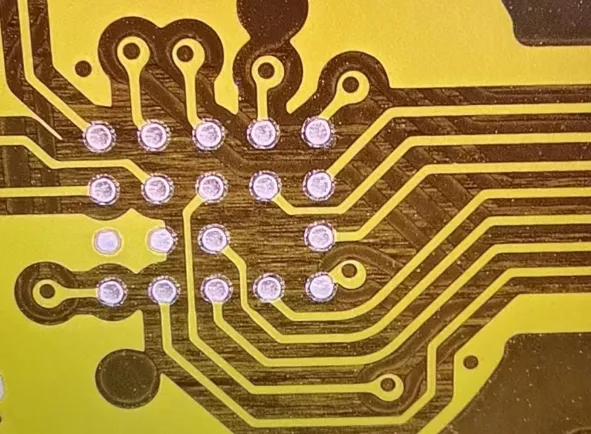

Sample 2

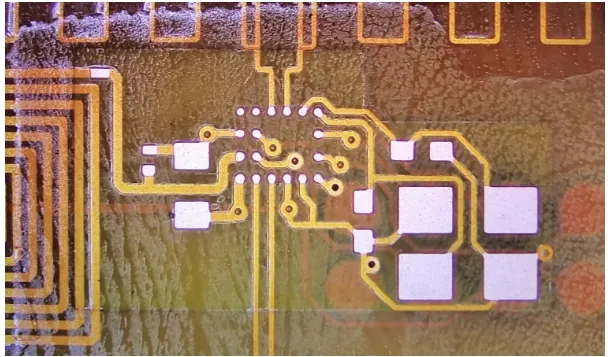

Sample 3
Equipment Processing Advantage
Advantage 1 Advantage 2 Advantage 3 Advantage 4 Advantage 5 Advantage 6
Frequently Asked Questions
Q1: What we can do for you?
We are committed to providing you with advanced equipment, technical solutions, and comprehensive service support to help you improve production efficiency, reduce costs, and optimize product quality.
Q2: Are you a trade company or manufacturer?
We are a manufacturer with independent research and development capabilities and manufacturing capabilities, but we also provide OEM and ODM services.
Q3: What is your delivery date?
About 35 days after receipt of payment.
Q4: What is your payment terms?
30% deposit in advance and 70% balance before shipment.
Q5: Can we be your agent?
We warmly welcome global agents. We provide full support to expand the market, including technical solutions and comprehensive after-sales service. Agents enjoy favorable discount policies and attractive commission returns.
Q6: What precision can the equipment achieve?
Our equipment achieves a high processing accuracy of ±0.02mm, ensuring high-quality output for precision manufacturing.
