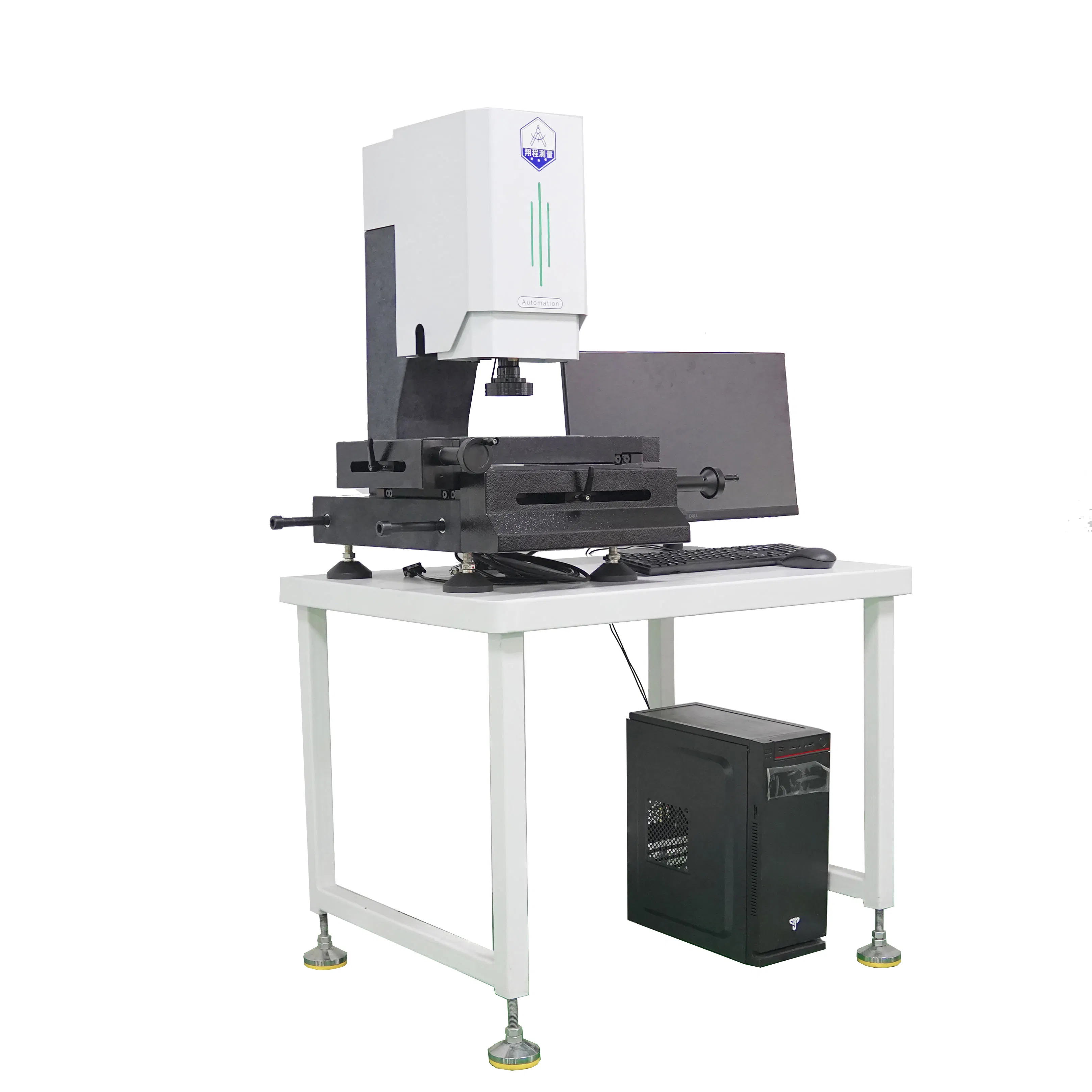

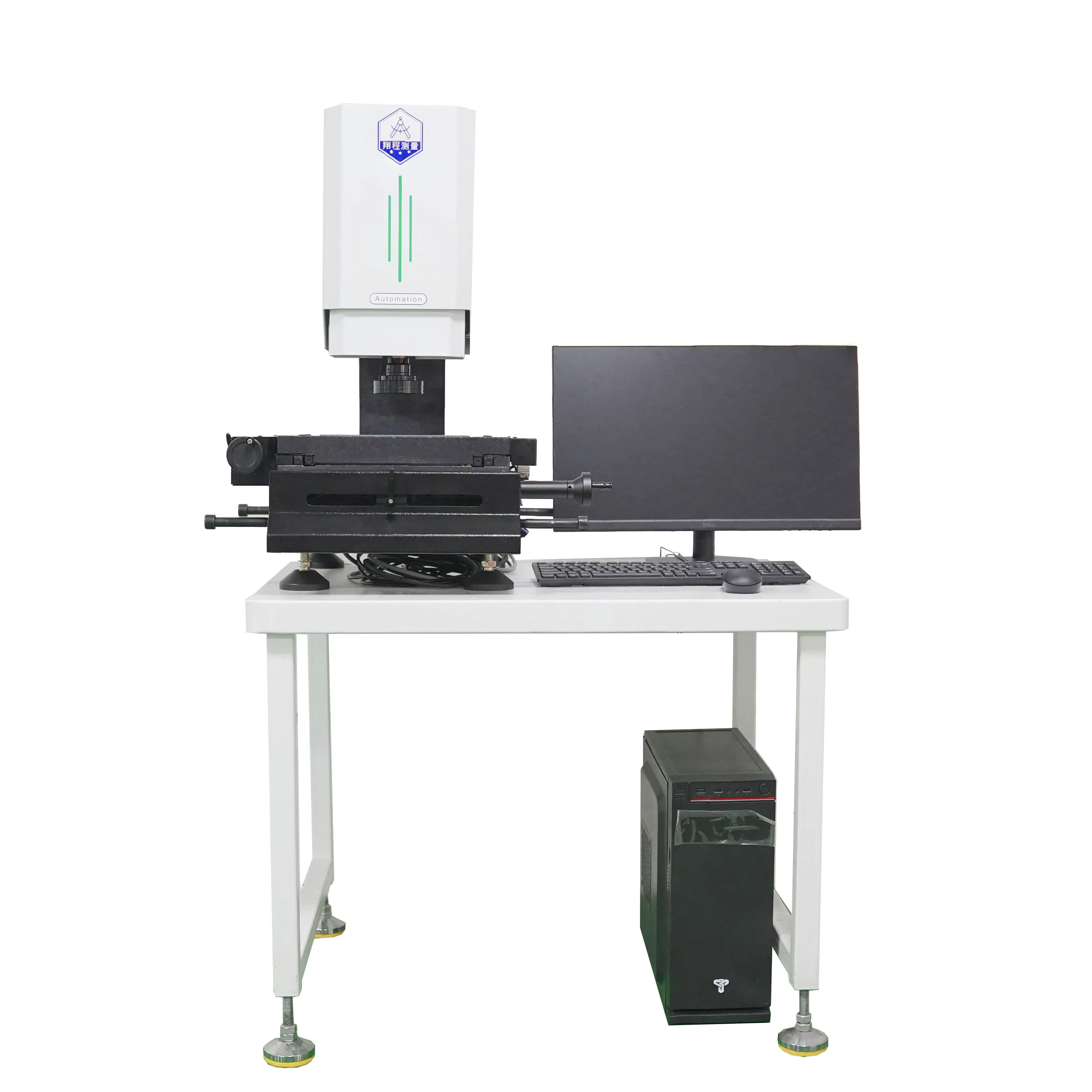

Yxc Semi Manual High-Precision Vision Measurer: Laser-Sharp Accuracy for Micro Components

📊 Basic Information

Model NO.	semi-2010
Type	2.5D Video Measuring System
Operate Method	Manual
Material	00 Grade Natural Marble Base, Column, Work Surface
Measuring Stroke	200100100mm
Linear Accuracy	3+L/200 Um
Lighting	3 Ring 8 Zone Multi-Angle Programmed LED
Resolution	0.001mm (0.0005mm Optional)
Magnification	30X to 200X
Power Supply	AC 220V 50/60Hz

🔍 Product Description

Product Summary:
This series combines traditional optics with the latest digital technology. It allows for high-precision measurement of micro-components directly on a computer screen. Widely applied in electronics, molds, plastics, die-cutting, precision metals, and PCB industries.

Z-axis automatically lifts and lowers to improve work efficiency.

Powerful software: measure angles, lengths, eccentricity, and draw complex graphs.

Auto-detect and auto-seeking functions for high-speed measurement.

🚀 Core Advantages

1. Complex Geometry: Ideal for tiny sizes like watches, springs, and irregular workpieces that traditional tools cannot measure.

2. Integration: Tracing processes can be adjusted and exported directly into AutoCAD for complete engineering drawings.

3. Surface Analysis: Ability to check surface roughness and complex circuit board paths with high accuracy.

🏢 Professional Expertise

A high-tech enterprise specializing in instrument research, development, and production with over 20 years of experience. The focus remains on automatic gantry image measuring instruments and projectors used globally in semiconductors, automotive, and precision gear industries.

⚙️ Technical Specifications

Parameter Model	YXC-2010Z	YXC-3020Z	YXC-4030Z	YXC-5040Z
Metal Table (mm)	360 X 260	460 X 360	560 X 460	895 X 750
Travel (mm)	200 X 100 X 100	300 X 200 X 200	400 X 300 X 200	500 X 400 X 200
Weight (Kg)	145	300	350	500
Camera	Color 1/3" CCD, Working distance 108mm
Accuracy	X, Y coordinate value error ≤ (3+L/200) μm

🛠️ Application Areas

Used extensively across various high-precision sectors:

Electronics & Semiconductors

Automotive & Aerospace

Medical Devices & Precision Metals

Mobile Phones & LCD TV Components

Watchmaking & Jewelry

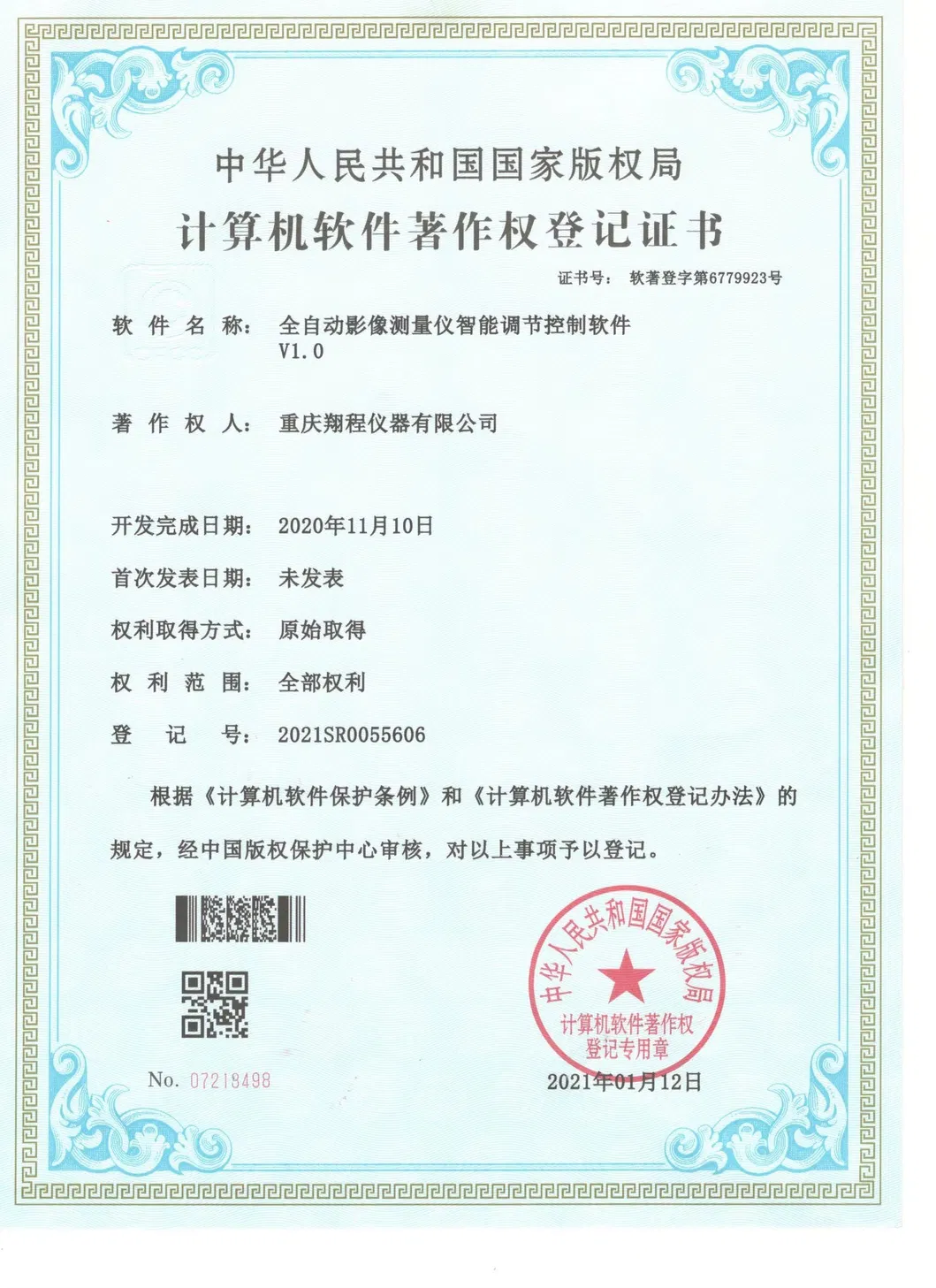

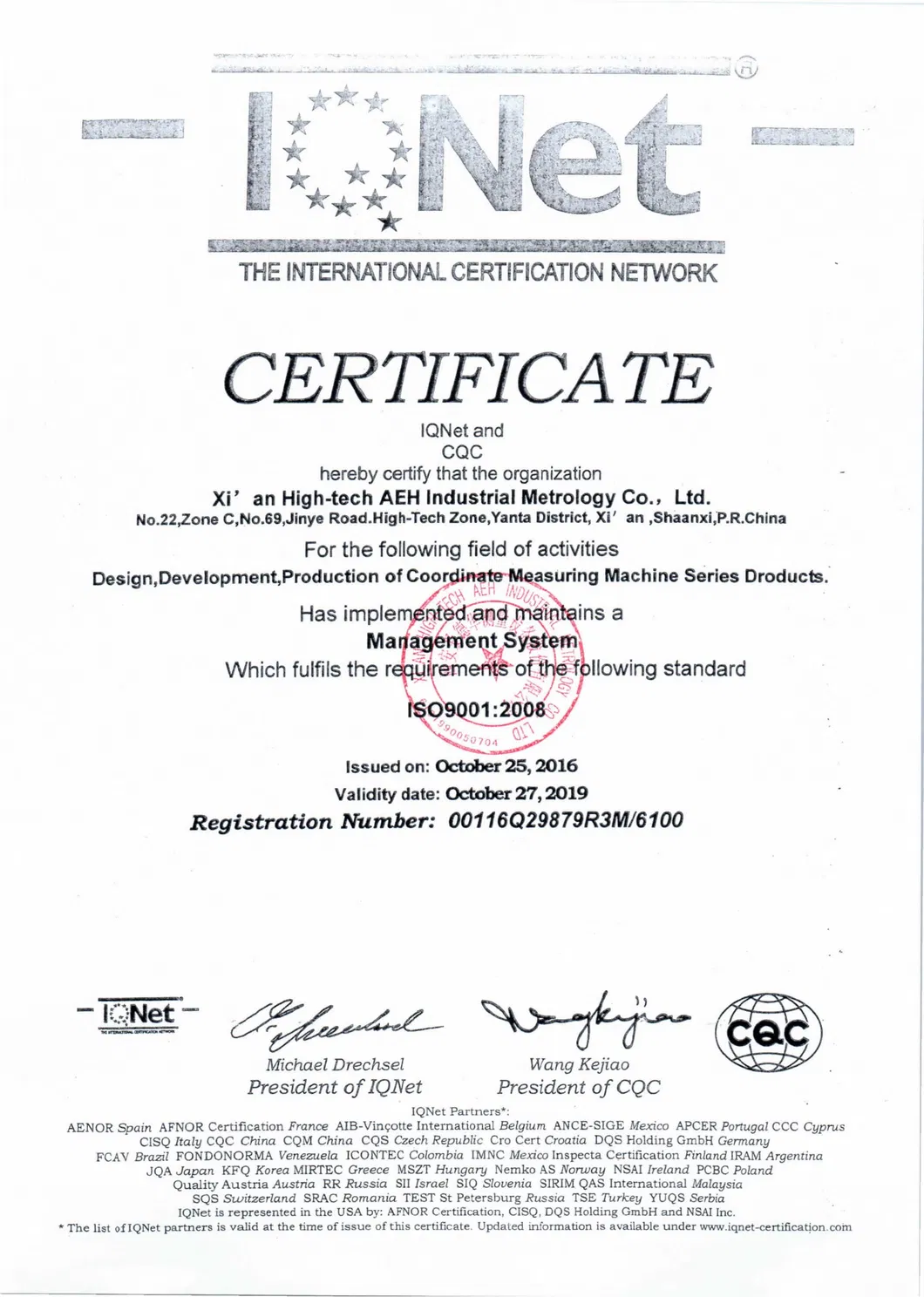

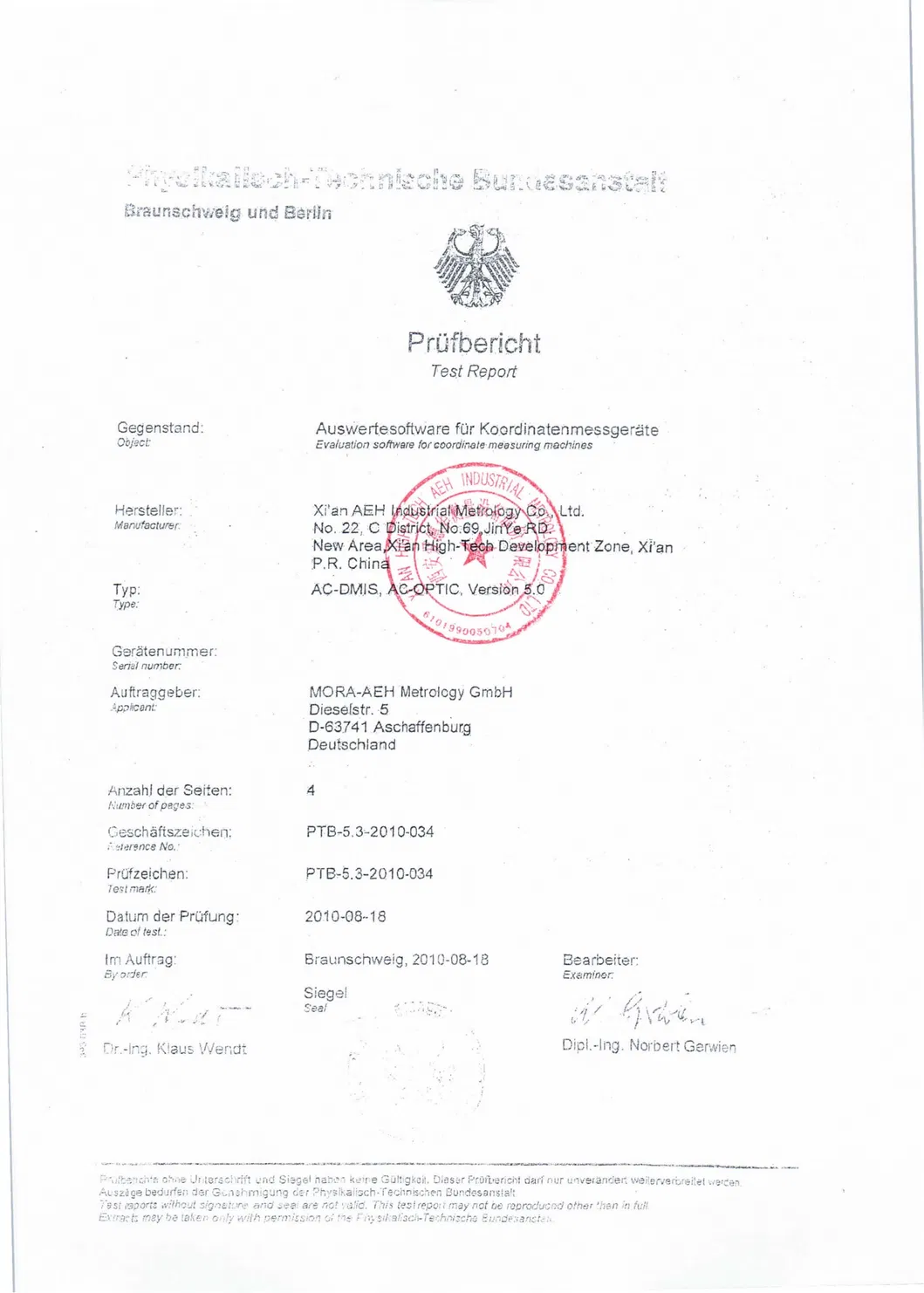

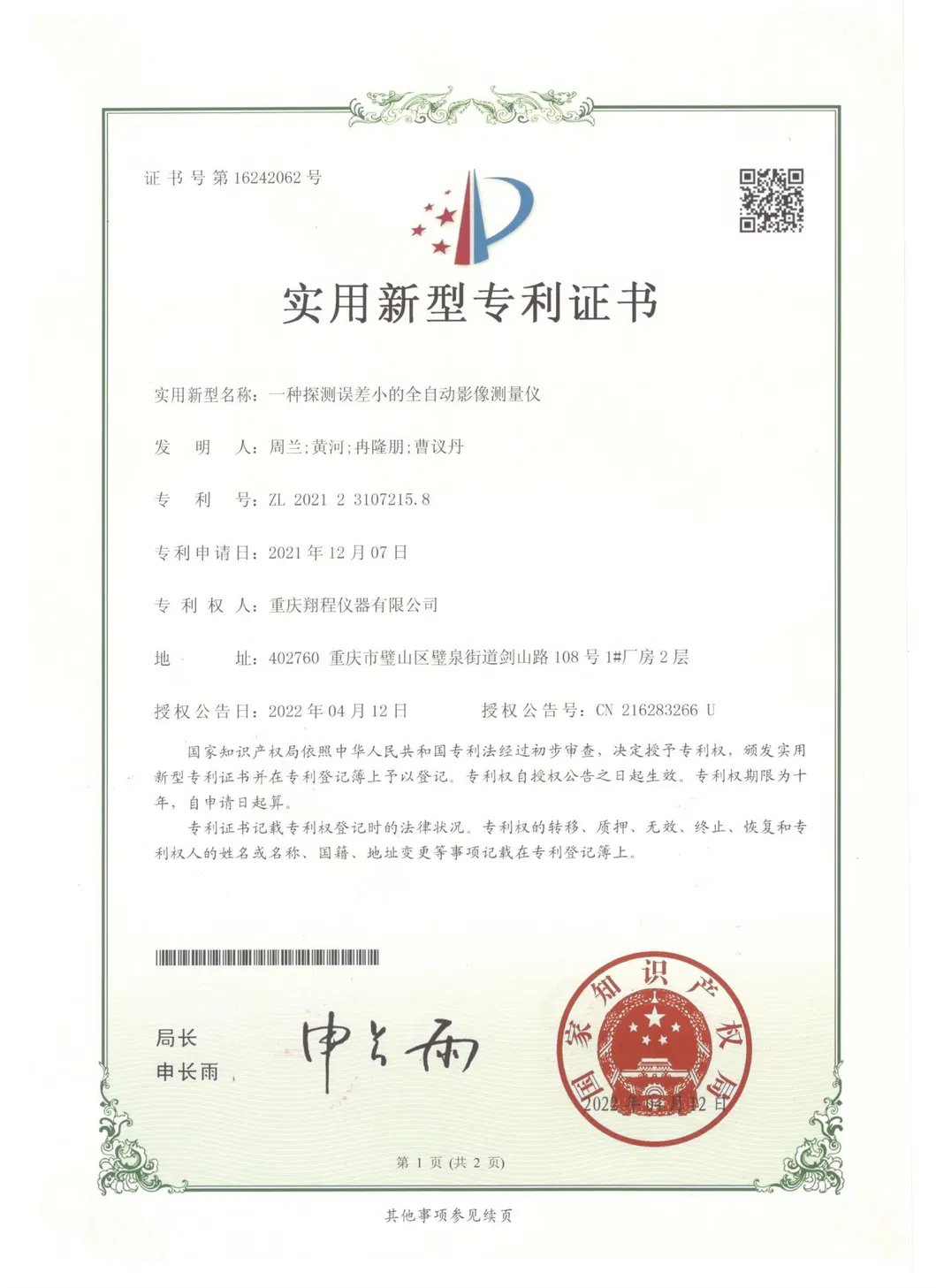

📜 Quality Certifications

📦 Packaging & Delivery

Package Size: 720cm * 610cm * 1685cm

Gross Weight: 380kg

Lead Time: 20 days (standard)

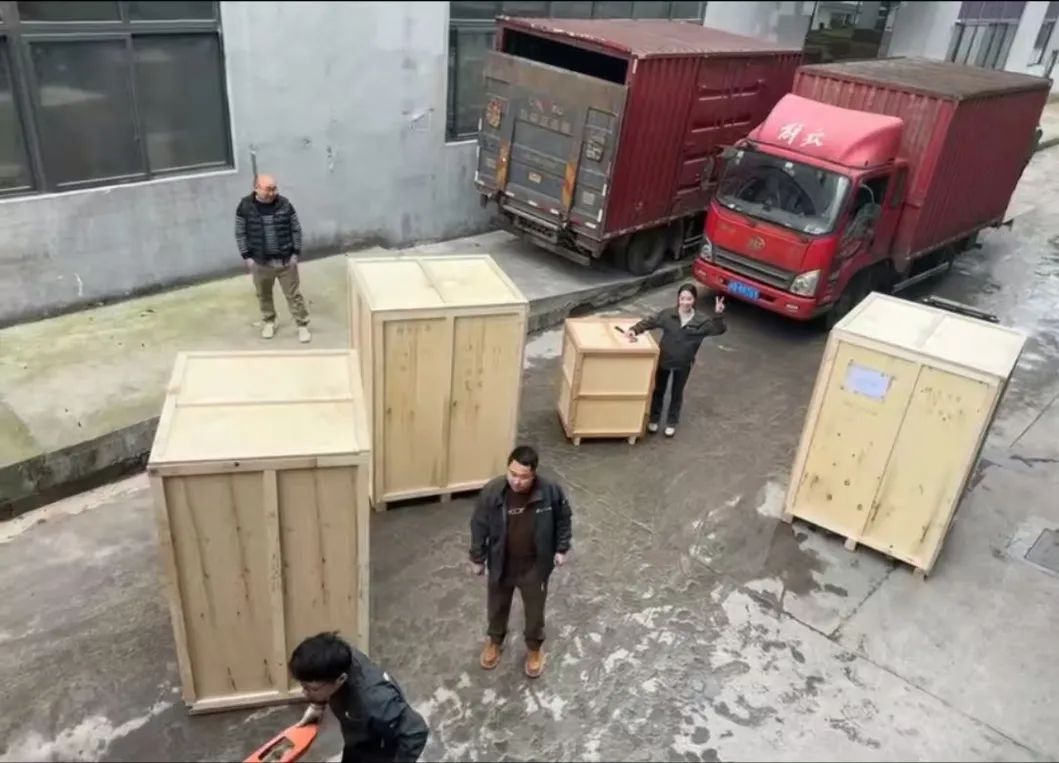

Security: Vacuum-packed in professional wooden cases for international shipping.

❓ Frequently Asked Questions

1. How to Choose the Appropriate Specification?

After receiving your requirements, our professional team will work out the best solutions by providing catalog specifications and demonstration videos tailored to your needs.

2. What is the delivery term for your products?

We usually maintain standard products in stock. For sizes larger than 1000mm, delivery is typically 7-10 working days after payment receipt. Urgent arrangements are possible.

3. Do you accept customized (OEM) service?

Yes, OEM services are welcome to meet specific industry measurement requirements.

4. What is your warranty period?

We provide a 12-month warranty. Post-warranty, our after-sales team provides lifelong technical support and troubleshooting.

5. Have you supplied clients in my country?

Our equipment is used in over 30 countries, including the USA, UK, Germany, Japan, Korea, India, and across Southeast Asia.

6. How to install and use the product?

We provide English operating instructions and video guides. On-site installation and training by engineers are also available if needed.
